● Watt: 480W
● Lumens: 74,400
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP Rating: IP65 - IK08
● Size: 597*362*132mm
● Lamp Weight: 10kg
● CCT (Color Temp): 3000,4000,5000,5700k
● 5 years warranty
● Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)/ 30*70
|Driver||Meanwell Driver 2*ELG-240-48A|
|Chip Brand||Lumileds 5050|
|Color Temp||3000K / 4000K / 5000K / 5700K|
|Beam Angle||10 /20/ 40 / 60 / 90/ 140*100 degree|
|Modules||Module rotatable up & down 15 degree|
|IP Rating||IP65 & IK08|
|Certficates||ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test|

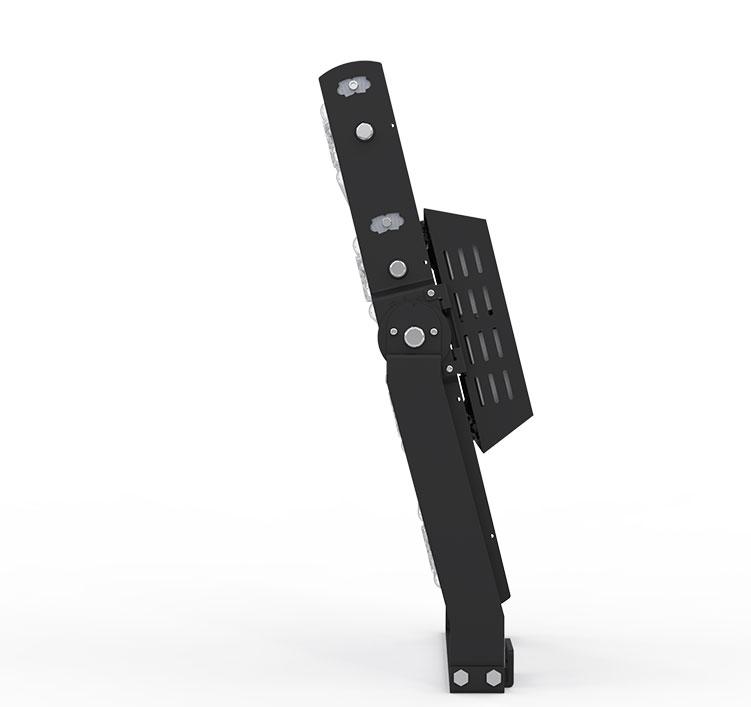

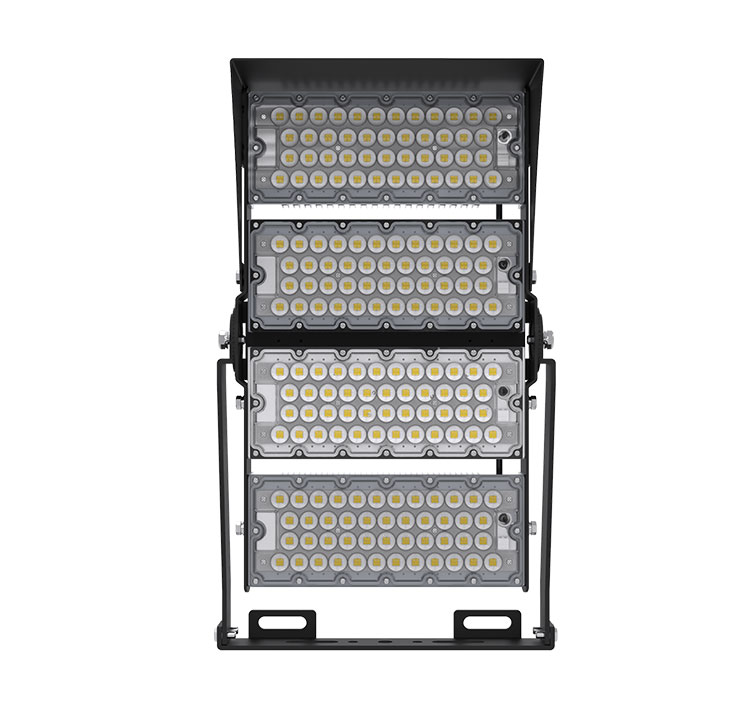

Slim LED High Mast Flood Light 480W
Slim LED High Mast Flood Light is a perfect Outdoor lighting solution for area, street, stadium.
ETL DLC ENEC TUV CE CB SAA RoHS
LM79 LM80 TM21 IK10 Salt Spray test approved
High quility LED Brand
Uses Lumileds 5050, High Efficiency 155Lm/W.
Fin heat dissipation design
Fin heat dissipation design, better heat dissipation capacity, avoid heat accumulation of lamps and prolong the service life of lamps.
Fin heat dissipation
1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.
2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.
Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation.
The 50,000-hour service life, IP65 waterproof rating and salt spray-resistant design ensure that the lamps can operate maintenance-free for many years.
Install our Slim LED high mast lights Can withstand hurricanes of 51.0-56.0m/s.
Withstand wind 51.0-56.0m/s
Round installation plate
The round installation plate allows the luminaire to rotate freely 270° horizontally.
Round installation plate
The angle of the module can be adjusted by ±15 degree, and the module has a visual scale, which is easier to adjust.
Slim LED High Mast Light is available in wattage from 100W to 1440W, which is the best choice to replace the existing MH/HID street lights of 200W-3000W.
The beam angle can be selected from 10/ 20/ 40/ 60/ 90/ 140*100 degree/ 135*60(P50). Professional light distribution angle can better achieve uniform and efficient lighting effect.
Can illuminate intersections, squares, docks, ships, ports, construction sites, cranes,Tennis courts, basketball courts, soccer fields, etc.
|347-480VAC Sosen driver|
|10KV or 20KV SPD|
|Hot-dip galvanizing bracket|
|Round installation plate|
1.Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value.
2.Round installation plate enables the luminaire to rotate horizontally.
Packing Method Marking
finished lamp packaging diagram
