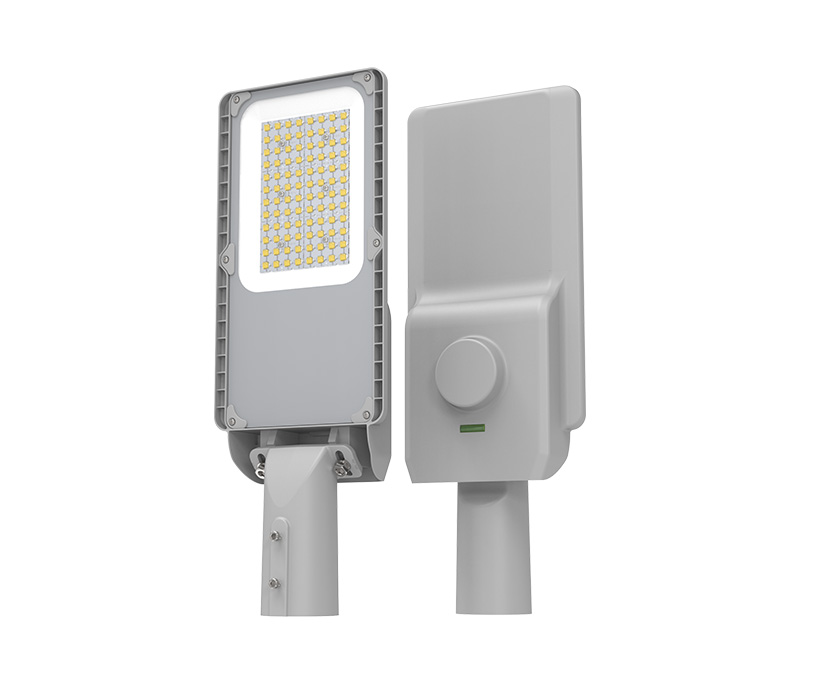

40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light

●   Watt: 40W

●   Lumens: 5,200/ 6,000

●   Light Source: Lumileds 3030/ 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK08

●   Arm Dia: 48/ 60mm

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: TypeII, TypeIII

Inquire Now Next Product

40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSMSL-T40W-LV(XXK)
Watt40W
Lumen6,000
Efficiency150LM/W±3%
Chip BrandLumileds 3030
Input Volt200-240VAC
HousingGrey
Meanwell Class I DriverXLG-40-H-A
Moso Class I DriverX6L-042M052F
Moso Class II DriverLCP-040M048
CCT3000-6000K
Arm Dia60mm
Size

190*198*515mm

Surge protection6KV
Beam AngleTypeII, TypeIII, TypeIV
CRI>70
Lifespan100,000 Hours
Dimming Function1 - 10V  Continuous/ PWM DALI Optional
Power Factor

>0.95 / 230VAC

IP & IK RatingIP66 & IK09
Thermal Management TypeNatural air cooling
Warranty5 years warranty
Cartifications

ENEC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

ModelLSMSL-T40W-LV(XXK)
Watt40W
Lumen6,600
Efficiency165LM/W±3%
Chip BrandLumileds 5050
Input Volt200-240VAC
HousingGrey
Meanwell Class I DriverXLG-40-H-A
Moso Class I DriverX6L-042M052F
Moso Class II DriverLCP-040M048
CCT3000-6000K
Arm Dia48mm/ 60mm
Size

190*198*515mm

Surge protection6KV
Beam AngleTypeII, TypeIII, TypeIV
CRI>70
Lifespan100,000 Hours
Dimming Function1 - 10V  Continuous/ PWM DALI Optional
Power Factor

>0.95 / 230VAC

IP & IK RatingIP66 & IK09
Thermal Management TypeNatural air cooling
Warranty5 years warranty
Cartifications

ENEC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

ModelLSMSL-T40W-LV(XXK)
Watt40W
Lumen6,800
Efficiency170LM/W±3%
Chip BrandLumileds 5050
Input Volt200-240VAC
HousingGrey
Meanwell Class I DriverXLG-40-H-A
Moso Class I DriverX6L-042M052F
Moso Class II DriverLCP-040M048
CCT3000-6000K
Arm Dia48mm/ 60mm
Size

190*198*515mm

Surge protection6KV
Beam AngleTypeII, TypeIII, TypeIV
CRI>70
Lifespan100,000 Hours
Dimming Function1 - 10V  Continuous/ PWM DALI Optional
Power Factor

>0.95 / 230VAC

IP & IK RatingIP66 & IK09
Thermal Management TypeNatural air cooling
Warranty5 years warranty
Cartifications

ENEC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

Mars LED Street Lights 40W

Mars LED Street Lights 40W

Mars LED Street light is a perfect Outdoor lighting solution for secondary roads, parks gardens and pathways.

40W

130-165Lm/W

4000K-6000K

ENEC TUV CE CB IECEE SAA RoHS

LM79 LM80 TM21

IK08 Salt Spray test approved

High brightness

High brightness

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 130-165Lm/W!

Lumileds 3030

Lumileds 5050

Adjustable angle

Adjustable angle

Mars LED Street Light You can select Vertical / Horizontal installation to support 42mm / 60mm / 78mm mounting holes. And the luminaire can be rotated ± 15degree, which can better obtain the best illuminance.

±15 degree

Waterproof & Lightning Protection

Waterproof & Lightning Protection

The lamps have passed the waterproof IP66 and anti-impact IK09 tests, and are equipped with 10KA lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.

IP66

10KA

Class I /Class II Driver

Class I /Class II Driver

In order to ensure the normal and stable operation of the lamps and reduce faults and insufficient light, the power supply of the lamps is very important. The lamps can choose Meanwell Class I driver/ Moso Class I driver/ Moso Class II driver, which can be very stable and safe to continuously output constant power.

Meanwell Class I driver

Moso Class I driver

Moso Class II driver

Self-cleaning

Self-cleaning

The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixtures performance and lifespan.


The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface,which is good for the lamp fixture heat dissipation when all the dust is gone away.

Self-cleaning

Other Watt

Mars LED Street Light is available in wattage from 40W to 200W, which is the best choice to replace the existing MH/HID street lights of 100W-500W.

Phtotmetric Options

Phtotmetric Options

The beam angle can be selected from TypeII, TypeIII, TypeIV.  Professional light distribution angle can better achieve uniform and efficient lighting effect.

TypeII

TypeIII

TypeIV

Application

Main roads, secondary roads, branch roads, expressways, overpasses, urban roads, overpasses, schools, residential areas, industrial areas, parks, city squares, courtyards, etc.

street lighting application

street lighting application

street lighting application

Photocell

Photocellmars led street light with photocell

The Mars Street Light Photocell integration controls the illumination of the fixture by detecting surrounding ambient light.


It can be turned off automatically at dawn, and the street light automatically turned on at dusk.

Surge Protection Device(10KV)10kv Surge Protection DeviceThe standard 100-277v fixture comes equipped with 10kA surge protection already integrated.
MountingMounting

Mars Slip Fitter 40mm

Mars Slip Fitter 50mm

Mars Slip Fitter 60mm(Standard)


Package details

55*28*18cm

Luminaire Weight: 4.2KG
