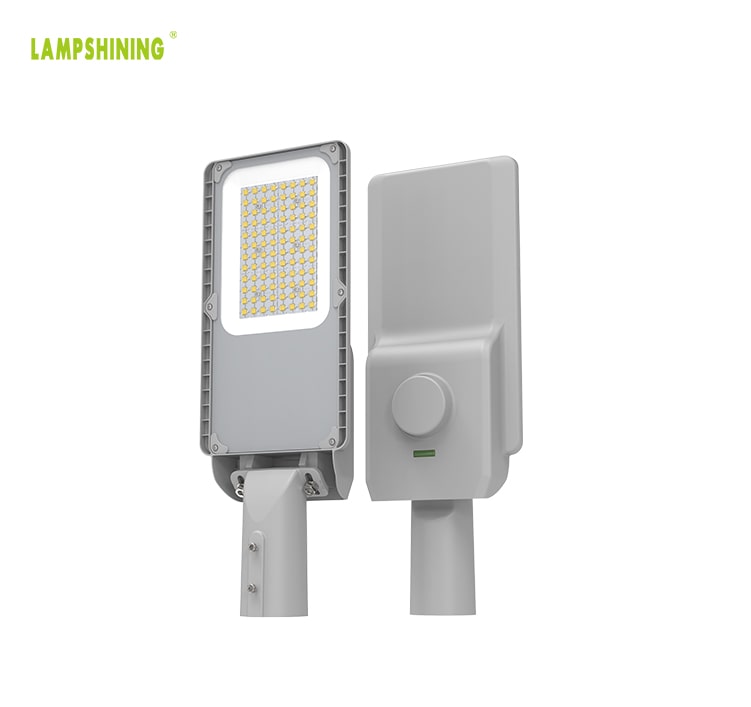

1.wattage : 60W
2.Model NO : LSMSL-T60W-LV(XXK)
3.Input Voltage : 100-277VAC
4.Lumens : 8100 Lumen(135LM/W)
5.CCT : 3000K 4000K 5000K 5700K
6.Light source : Lumileds 3030
7.Size : 18.7*10.2*3.74
8.Driver : Meanwell XLG-50-H-A
9.Replacement : 125W HPS,MH,HQI
10.Certficates : ENEC DLC TUV CE CB SAA RoHS IK08 IP66 test
Flame Retardan Salt Spray test
A minimal total cost of ownership was the driving force behind the development of the Mars range. It is equipped with LEDs and various dimming and remote management options for a dramatic reduction in energy consumption. It oﬀers a very competitive alternative to luminaires equipped with traditional light sources such as highpressure sodium lamps.
Continues to raise the bar on performance and lower the total cost of ownership by delivering higher value to municipalities and facility managers. The new Mars Tiny Model street light with its unrivalled lumen output for roadway lighting and economic performance expands the application range replacing up to 125W HPSV/MH street lights.
Mars Tiny Model series the perfect ﬁt for a wide array of roadway applications helping to improve the economic value for development authorities, municipalities or owned utilities.
Mars LED street lights are die-cast from aluminum to provide efficient heat dissipation. This ensures that the LEDs and drives operate at low temperatures during operation and can last from 5 to 10 years!
|Model||LSMSL-T60W-LV(XXK)||IP & IK Rating||IP66, IK08|
|Wattage||60 watt||Arm Dia||60 mm / 76mm|
|mmLumen||8100 lm||Beam Angle||Type II, Type III|
|Efficency||135lm/w||Lifespan||> 50,000 hours|
|Light Source||Lumileds 3030||Dimension|
18.7 * 10.2 * 3.75
|Driver||Meanwell XLG-50-H-A||Replacement||125W HPS,MH,HQI|
3000K 4000K 5000K 5700K
ENEC ETL DLC TUV CE CB SAA RoHS IK08 IP66 test
Salt Spray test
ENEC means safety in Europe, and all signatories of the ENEC Mark Scheme actively
support its commitment to the highest safety levels.
Mars Tiny street light is a perfect solution for secondary roads, parks gardens and pathways. It is aesthetically appealing due to its compact design and oers wide range of outdoor solutions with reduced cost of ownership. It can very well replace most of the ﬂuorescent based luminaires (CFL/FTL) and also ensures uniform lighting distribution.
1.The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.
2.The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.
|Length||17.28 in (439mm)||Height||3.74 in (95mm)|
|Width||7.20 in (183mm)||Height (w/photocell)|
5.27 in (134mm)
11.06 in (281mm)
The Mars fixture includes simple installation with convenient abjustability.
The Mars fixture can be mounted horizontally or vertically with our universal slip fit system. simply detach and rotate the slip fitter 180° to achieve the vertical orientation. Both orientation options include the ability to rotate 15degree or more.
Suitable for parks, roads
Small trac round - about
Lighting of secondary roads / side roads
Parks & gardens
Very suitable for park roads, alleys, and other small and medium-sized areas
Complete illumination across the entire roadway
No external reflectors required
Safe for industrial applications
Dramatic energy savings
ACCESSORY: Disconnect switch (Optional accessories)
The full range of standard open circuit switches, open the power cover will cut off the power supply of the entire lamp system, plus cut off the mains before installation to double The role of heavy protection. Close the power cover and power it on.
ACCESSORY: 10KV SPD Lightning arrester (Optional accessories)
The standard 100-277v fixture comes equipped with 10kA surge protection already integrated.
SPD1 surge protection devices is perfectly adapted for outdoor lighting to provide single phase protection for line/neutral, line/ground and neutral/ground in accordance with LEEE C62.41 2002 C High, UL 1449 and IEC61643-11.
ACCESSORY: Photocell (Optional accessories)
The Mars Street light Photocell integration controls the illumination of the fixture by detecting surrounding ambient light.
Photocell base comes pre-installed, lock cap included in package when shipped and ready to apply during assembly, Twist-Lock Photocell automatically turns lights On at Dusk and O ffat dawn.
ACCESSORY: Mounting (standard configuration)
The Mars Street Light comes standard with a 60mm slip fitter.
Optional slip fitter mounts are available at 60mm, and 76mm diameters.
