40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light
  • 40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light
  • 40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light
  • 40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light
  • 40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light
  • 40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light
40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light

40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light

●   Watt: 40W

●   Lumens: 5,200/ 6,000

●   Light Source: Lumileds 3030/ 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK08

●   Arm Dia: 48/ 60mm

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: TypeII, TypeIII

Inquire Now Next Product

40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSMSL-T40W-LV(XXK)
Watt40W
Lumen5,2006,000
Efficiency130LM/W±3%
150LM/W±3%
Chip BrandLumileds 3030
Lumileds 5050
Input Volt100-277VAC
DriverMeanwell XLG-50-H-A
Driver(Optional)Done DL-50W-V58A-MAP
CCT3000-6000K
Arm Dia48/ 60mm
Size

463*173*87mm(Non-photocell)

463*173*110mm(With photocell)

Surge protection10KV
Beam AngleTypeII Medium, TypeIII Medium
CRI>70
Expected Lifespan50,000 Hours to 70% Brightness
Dimming Function1 - 10V  Continuous/ PWM DALI Optional
Power Factor

>0.95 / 230VAC

IP & IK RatingIP66 & IK08
Thermal Management TypeNatural air cooling
Warranty5 years warranty
Cartifications

ENEC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved


40W LED Street Lights

A minimal total cost of ownership was the driving force behind the development of the Mars range. It is equipped with LEDs and various dimming and remote management options for a dramatic reduction in energy consumption. It offers a very competitive alternative to luminaires equipped with traditional light sources such as highpressure sodium lamps.


Continues to raise the bar on performance and lower the total cost of ownership by delivering higher value to municipalities and facility managers. The new Mars Tiny Model street light with its unrivalled lumen output for roadway lighting and economic performance expands the application range replacing up to 125W HPSV/MH street lights.


Mars Tiny Model series the perfect fit for a wide array of roadway applications helping to improve the economic value for development authorities, municipalities or owned utilities. Are die-cast from aluminum to provide efficient heat dissipation. This ensures that the LEDs and drives operate at low temperatures during operation and can last from 5 to 10 years!


mars 40w led street light


Size


Length26,78in (680mm) Height3.50in (89mm)
width10.24 in (260mm)Height (w/photocell)

4.37 in (111mm)

Horizontal

40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light


Features

1. High luminaire efficiency up to 150lm/w;

2. IP66 and IK09 protection rate;

3. 5 years warranty;

4. Flicker free drivers;

5. Comes with terminal Block and 10KV SPD,lenses and tempered glass and rotatable arms;

7. ENEC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved;

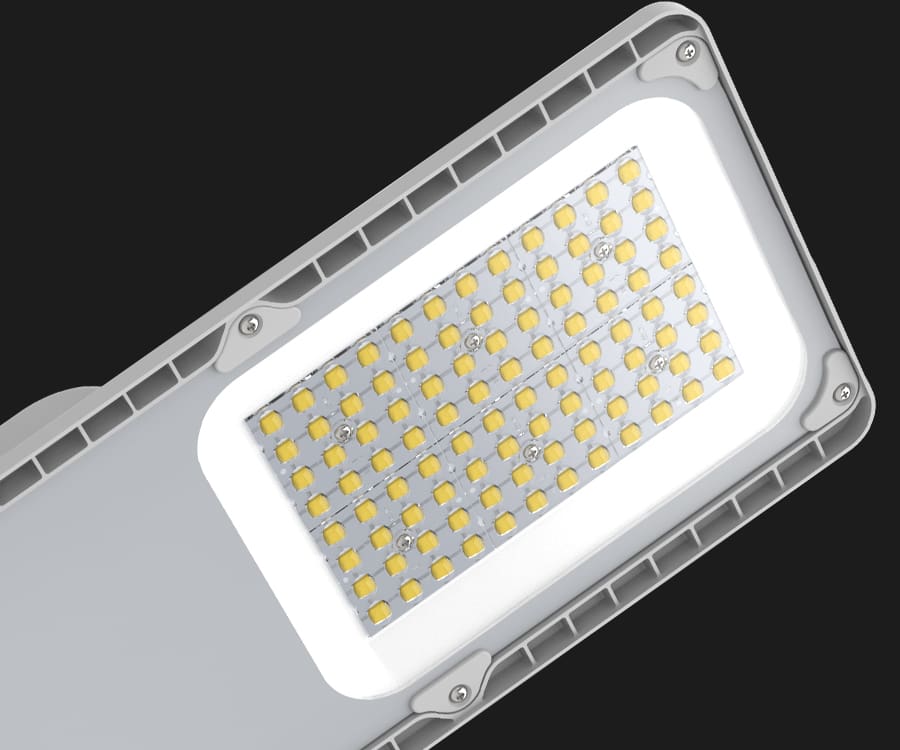

LED Brand

Uses Lumileds 3030/ 5050 Light Brand, High Efficiency 130-150Lm/W.

40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light


IP66 Waterproof

Mars LED Street Light Waterproof IP66.

40W LED Street Light/ Road Light/ Area Light 5800 Lumen Equivalent 105W HID/Metal Halide/HQI Light


Photocell Sensor

photocell sensor

The Mars Street Light Photocell integration controls the illumination of the fixture by detecting surrounding ambient light;

Automatically open at dusk;

Automatically close at dawn;

mars led street light with photocell sensor

Gradienter

The level instrument accurates the installation of lamps in a minute.


mars led street light with instrument accurates


Mounting optional

Mounting optional

The Mars fixture includes simple installation with convenient abjustability.

The Mars fixture can be mounted horizontally or vertically with our universal slip fit system. simply detach and rotate the slip fitter 180° to achieve the vertical orientation.

Both orientation options include the ability to rotate 15 degree or more.

Mounting optional


Beam Angle

Optical PC lens present in the Mars street lights provides a high-transmittance of >95%. At the same ime, they reflect most of the light and reduce the attrition rate. You can also customize the beam angle.The lights source and the lens have a distance of less than 0.55mm, which ensures that the loss ratio is <6%.

TypeII, TypeIII Beam Angle

Application

  • Very suitable for park roads, alleys, and other small and medium-sized areas

  • Complete illumination across the entire roadway

  • No external reflectors required

  • Safe for industrial applications

  • High-performance design

  • Dramatic energy savings

40w 145lm/w mars led street light application

Beam Angle

Optical PC lens present in the Mars street lights provides a high-transmittance of >95%. At the same ime, they reflect most of the light and reduce the attrition rate. You can also customize the beam angle.The lights source and the lens have a distance of less than 0.55mm, which ensures that the loss ratio is <6%.

TypeII, TypeIII Beam Angle

Photocell

Photocellmars led street light with photocell

The Mars Street Light Photocell integration controls the illumination of the fixture by detecting surrounding ambient light.


It can be turned off automatically at dawn, and the street light automatically turned on at dusk.

Surge Protection Device(10KV)10kv Surge Protection DeviceThe standard 100-277v fixture comes equipped with 10kA surge protection already integrated.
MountingMounting

Mars Slip Fitter 40mm

Mars Slip Fitter 50mm

Mars Slip Fitter 60mm(Standard)


Package details

55*28*18cm

Luminaire Weight: 4.2KG
