Model NO : LSMSL-L200W-LV(XXK)
Wattage : 200W
Input Voltage : 100-277VAC
Luminous Flux : 27000 Lumen(140Lm/W)
Lifespan : >50,000 hours
CCT : 3000K 4000K 5000K 5700K
Replacement : 500W HPS/HID
Dimension : 24''*12.99''*4.37''
Light Source : Lumileds 3030
Driver : ELG-240-48A / XLG-240-H-A
ENEC, DLC, ETL,cETL, TUV, c-tick, SAA, CB, CE, RoHS, IP66, Ik08, LSTMT, LM79, LM80, TM21
Excellent for main roads, collecting roads, and roundabouts
Complete illumination across the entire roadway
No external reflectors required
Safe for industrial applications
High performance design
Dramatic energy savings

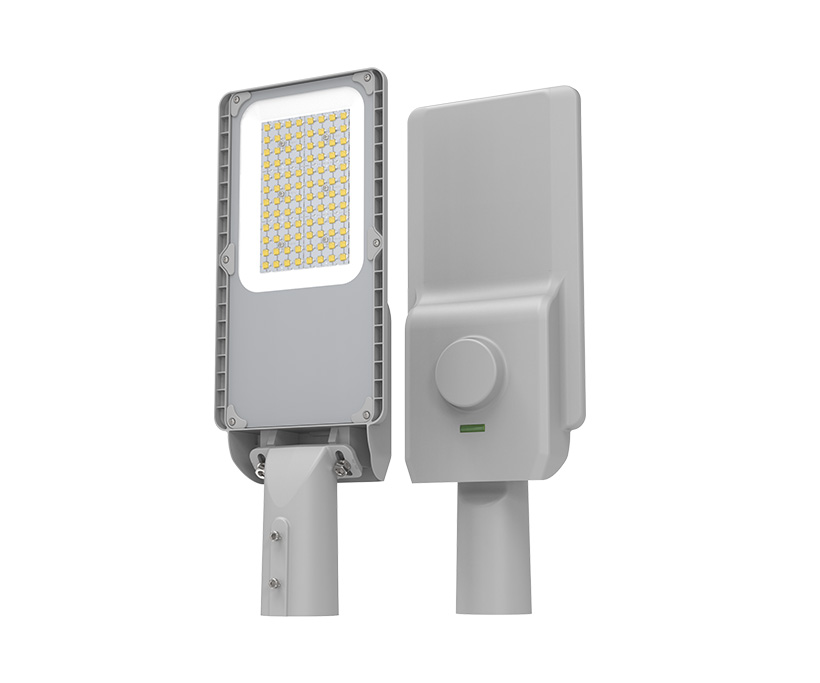

200W LED Street Light Specification
|Model||LSMSL-L200W-LV( XXK )|
|Luminous Flux||27000LM (140LM/W±3%)|
|Distribution||TypeII / TypeIII / Type V|
|CCT||3000K 4000K 5000K 5700K|
|Expected Lifespan||50,000 Hours to 70% Brightness|
|Dimming Function||1 - 10V Continuous||PWM DALI Optional|
|Material composition(body)||ADC-12 Aluminium Alloy (<0.1% copper conten)|
|Material composition(cover)||Extra clear tempered glass protect|
>0.95 / 230VAC
|IP & IK Rating||IP66 & IK08|
|Thermal Management Type||Natural air cooling|
|Warranty||5 years warranty|
|Cartifications||ENEC, DLC, ETL,cETL, TUV, c-tick, SAA, CB, CE, RoHS, IP66, Ik08, LSTMT, LM79, LM80, TM21|
|Length||24.01in (610mm)||Height||4.37in (111mm)|
1.The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.
2.The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.
Using state-of-the-art technology, Wars luminaires have been
designed to fulfil the Future Proof concept. The photometric engine is IP 66 sealed to protect the LEDs and lenses from coming into contact with the outside environment and so maintain photometric performance over time.
1.Streamlined design makes the drag coefficient smaller,more beautiful and safer; meets the aesthetic requirements of high-end street lamps.
2.The surface is made of 4mm thick tempered glass, which can pass the IK08 anti-attack test and meet the requirements of high-end street,
3.Die-casted with ADC-12 aluminum, the thickness of the shell is 3mm, which is more conducive to heat conduction and divergence.
4.A graphene heat conductive material is used between the PCB and the heat sink, which has higher thermal conductivity and higher material stability.
The Mars fixture includes simple installation with convenient abjustability.
The Mars fixture can be mounted horizontally or vertically with our universal slip fit system. simply detach and rotate the slip fitter 180° to achieve the vertical orientation. Both orientation options include the ability to rotate 15degree or more.
ENEC means safety in Europe, and all signatories of the ENEC Mark Scheme actively
support its commitment to the highest safety levels.
The smooth, anti-static surface of the Mars reduces dust, sand and avoid bird droppings and other material accumulation.
The UV protection and high strength anti-corrosion coating minmizes wear and increasesthe fixture's lifespan.
IP66 protection with durable electrostatic spray which apply to harsh outdoor applications. Tool free for open, reasonable layout design brings simple maintenance.
The LEDS Module and Driver can be easily removed,allowing real on-site replacement at the end of its service life in order to take advantage of future technological developments. This easy and rapid procedure reduces. maintenance costs and contrbutes to reducing the total cost of ownership.
Accessory: Disconnect switch(standard configuration)
The full range of standard open circuit switches, open the power cover will cut off the power supply of the entire lamp system, plus cut off the mains before installation to double The role of heavy protection. Close the power cover and power it on.
Accessory: 10KV SPD Lightning arrester(standard configuration)
The standard 100-277v fixture comes equipped with 10kA surge protection already integrated.
SPD1 surge protection devices is perfectly adapted for outdoor lighting to provide single phase protection for line/neutral, line/ground and neutral/ground in accordance with LEEE C62.41 2002 C High, UL 1449 and IEC61643-11.
Accessory: Photocell(Optional accessories)
The Mars Street light Photocell integration controls the illumination of the fixture by detecting surrounding ambient light.
Photocell base comes pre-installed, lock cap included in package when shipped and ready to apply during assembly, Twist-Lock Photocell automatically turns lights On at Dusk and O ffat dawn.
Accessory: Mounting(standard configuration)
The Mars Street Light comes standard with a 60mm slip fitter.
Optional slip fitter mounts are available at 60mm, and 76mm diameters.
Luminaire Weight: 8 KG
