100W Slim Folding Aluminum Fin Carport, Warehouse, Area UFO LED High Bay Light, Industrial LED Lamp

Watt: 100W

Lumens: 160Lm/W

Voltage: 100-277VAC, 50/60Hz

Driver type: Sosen SS-120CNL-130

Dimension:  Dia234*H145

Net weight : 3.0kg

Color Temp: 3000K 4000K 5000K 5700K 6000K

Beam Angle: 90 /120 degree

Light Source: Osram 2835

Certification:  ETL cETL DLC Premium GS TUV CB SAA D Mark IECEE LM79 LM80

Inquire Now Next Product

100W Slim Folding Aluminum Fin Carport, Warehouse, Area UFO LED High Bay Light, Industrial LED Lamp

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


100W Slim Folding Aluminum Fin UFO LED High Bay Light

Slim Fin series UFO LED High Bay light Uses high-quality aluminium case and Folding aluminum fin design. And meet the protection conditions of IP65 and IK10. The lightweight design of 100W which weighs only 3kg, has better heat dissipation effect. Slim fin ufo led high bay light has the characteristics of beauty, high quality and high safety. 160LM / W efficiency can greatly save energy consumption and is suitable for industrial warehouses, workshops, area, Carport, shop lighting.


100w slim folding aluminum fin ufo led high bay light


Size

100w slim folding aluminum fin ufo led high bay light size

Specifications

Model No.LSUFO-100WXY-LVS(XXK)
Power Consumption100W
Luminous Flux(±3%)16000Lm
Efficacy (5000K, Ra70)165(±3%) LM/W
Luminaire Net Weight3kg
IP RatingIP65
Power Factor>0.95
Frequency50 / 60Hz
Driver TypeSosen Driver SS-120CNL-130
Light SourceOsram 2835
Input Voltage100-227Vac
CCT3000K 4000K 5000K 5700K 6000K
CRI>80
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
Beam Angle90 / 120 degree
CertificationETL cETL DLC Premium GS TUV CB SAA D Mark IECEE LM79 LM80


Why choose Slim Fin UFO LED High Bay Light?

1.High luminaire efficiency up to 160lm/w, CRI > 80;

2.Mounting Height: 6-20meter;

3.IP65 and IK10 protection rate ;

4.5 years warranty;

5. Folding aluminum fin design which are very light weight;

6. ETL cETL DLC Premium GS TUV CB SAA D Mark IECEE LM79 LM80;


100w slim folding aluminum fin ufo led high bay light show


1.High Efficiency

CRI>80, Mounting height: 6-20meter. High Luminaire up to 160lm/w.

100w slim folding aluminum fin ufo led high bay light high efficiency


2.IP65 and IK10 protection

Use high-quality aluminium case, elaborate processing, good heat radiation effect, waterproof grade IP65 and IK10 rating of anticollision.

100w slim folding aluminum fin ufo led high bay light with ip65 and ik10 protection

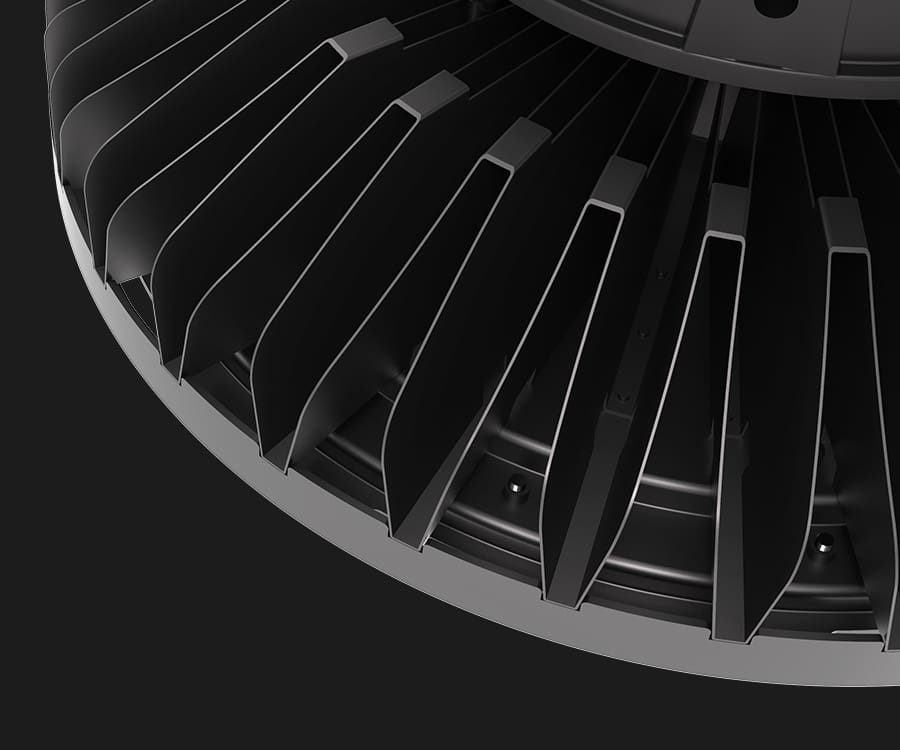

3.Folding aluminum fin design

Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.

100w slim fin ufo led high bay light folding aluminum fin design

lightweight fins ufo led high bay light

fins ufo led high bay light


Application

100w slim folding aluminum fin ufo led high bay light application

LED growing lights


contact us

Beam angle

90/120 degree

100w slim folding aluminum fin ufo led high bay light beam angle


Accessories

(60 degree)Aluminum reflector
Yoke BracketPC reflector without end capPC reflector with end cap
Tempered
(60 degree)Aluminum reflectorYoke BracketPC reflector without end capPC reflector with end capTempered


Folded fin heat sinks

Folded fins are created by a progressive stamping method. The fins are then bonded to a base with thermally conductive epoxy, brazing, welding, or similar metallurgical bonds, to create a heat sink. An advantage of folded fin heat sinks is the ability to combine aluminum and copper to tailor the performance of the heat sink to the particular application.


The main advantages are:

1.Lightweight 2.Reduced material cost 3.Forced airflow or natural convection 4. High aspect ratio fins

folded fin heat sinks

Package details

100W: 1pc/CTN

Carton size: 28*28*19cm

GW: 2.2Kg
