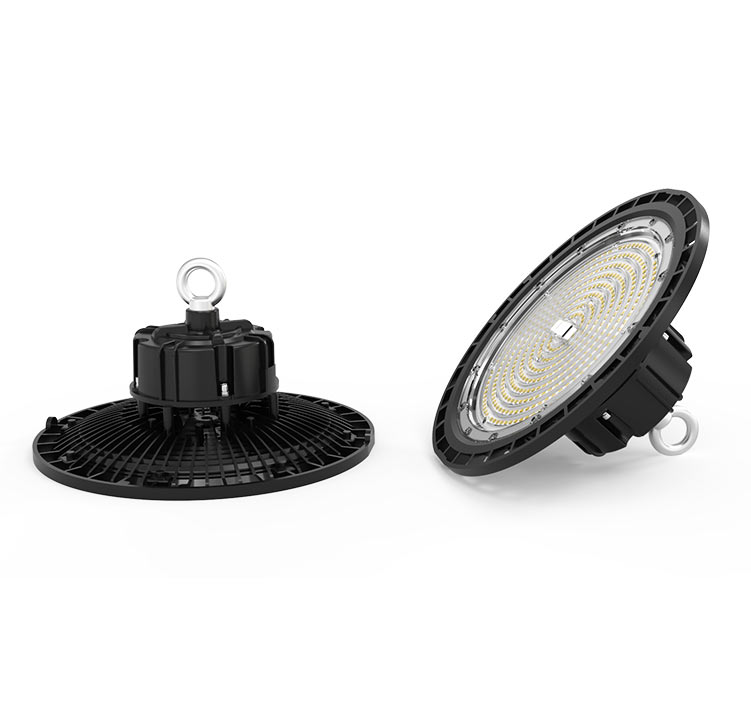

100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting
  • 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting
  • 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting
  • 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting
  • 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting
  • 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting
  • 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting
100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting 100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting

100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting

Watt: 100W

Driver : Sosen SS-120CNL-130

Lumens: 16,000Lm(160Lm/W)

Voltage: 100-277VAC, 50/60Hz

Lifetime: Rated Life of 50,000 Hours

IP Rating: IP65 (TUV report available)

Color Temp: 3000K,4000K,5000K,5700K

Beam Angle: 60/90/120 degree Input

Light Source: Orsam 2835

Replacement: 250-300W HID,HPS

Inquire Now Next Product

100w Ultra Slim UFO LED high bay lighting, daylight 4000-5700K Shops, warehouses, barns, museums lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Package details


ultra slim 100w warehouse ufo led high bay light


  • 5-year warranty

  • High Voltage 347-480VAC available

  • Long life span and less brightness degradation

  • Efficiency of power supply is more than 90%.

  • No UV and near-IR radiation in the light beam

  • Merryteck sensors and Zigbee system compliable

  • Tempered glass,PC reflector,Aluminum reflector,Yoke Bracket,milky cover are available


Product Parameters

ModelLSUFO-100WXY-LVS(XXK)
DLC NO.LSUFO-100WND-LVSLSUFO-100WD-LVS
Wattage100 watt
Lumen16000Lm(160Lm/W)
CRIRa70 (Ra80, Ra90 optional)
IP RatingIP65
Light SourceOsram 2835
Input volt100-277CAC
Dimension280*115mm
Lifespan>50000 Hours
CCT4000K, 5000K, 5700K
DriverSosen SS-120CNL-130
Beam angle60/90/120 degree Lens
CertificatesETL, cETL, DLC premium, TUV, CE, RoHS, SAA ctick, CB, LM79, LM80


Size

ultra slim 100w warehouse ufo led high bay light size


High qulity LED chip

Uses Osram 2835 led chip with high effcacy up to 160Lm Per watt.

Ultra Slim warehouse 100w 160lm/W led high bay light uses orsam 2835 led chip

Ultra Slim Lightweight design

1.Ultraslim, lightweight design for easier installation and weighing just 2.35kg

2.Aluminum heat dissipation system, Heat sink body is 20% heavier than other competitors which brings the better heat dissipation performance!

Ultra Slim Lightweight design Aluminum heat dissipation 100w led high bay light


Waterproof IP65

1.IP65(TUV report available)

2.Can't be immersed into the water

3.anti-dust design, able to be with flushable cleaning

Ultra Slim warehouse 100w led high bay light waterproof ip65


Zigbee wireless control

1.Save 60% of manpower 2.Save 60-80% energy 3.Longer life

Zigbee contorller+Motion sensor

Zigbee Daylight sensor

Zigbee Touch contorller

Zigbee wireless control Ultra Slim warehouse 100w 160lm/W led high bay light

Beam angle

Can change different PC covers or lens according to different occasions, easy to change accessories make UFO LED High Bay Light can be adjusted atany time to suit lighting occasions. Choice of 60, 90, 120 degrees.


ultra slim ufo led high bay light beam angle


Optional installation method

Optional chain installation and Yoke bracket installation


ultra slim ufo led high bay light optional installation method


Application

Suitable for large and small warehouses, gas stations, museums, exhibition halls, indoor sports fields, barns, factory lighting.


ultra slim ufo led high bay lighting application

ufo led high bay light for stadium

  • 5-year warranty

  • High Voltage 347-480VAC available

  • Long life span and less brightness degradation

  • Efficiency of power supply is more than 90%.

  • No UV and near-IR radiation in the light beam

  • Merryteck sensors and Zigbee system compliable

  • Tempered glass,PC reflector,Aluminum reflector,Yoke Bracket,milky cover are available

led high bay light accessory

Package details:

100-150W : 1pc/34*34*16cm GW: 3kg

(20ft container = 1500pcs)


Ultra slim UFO LED high bay light saves 50% on transportation costs
