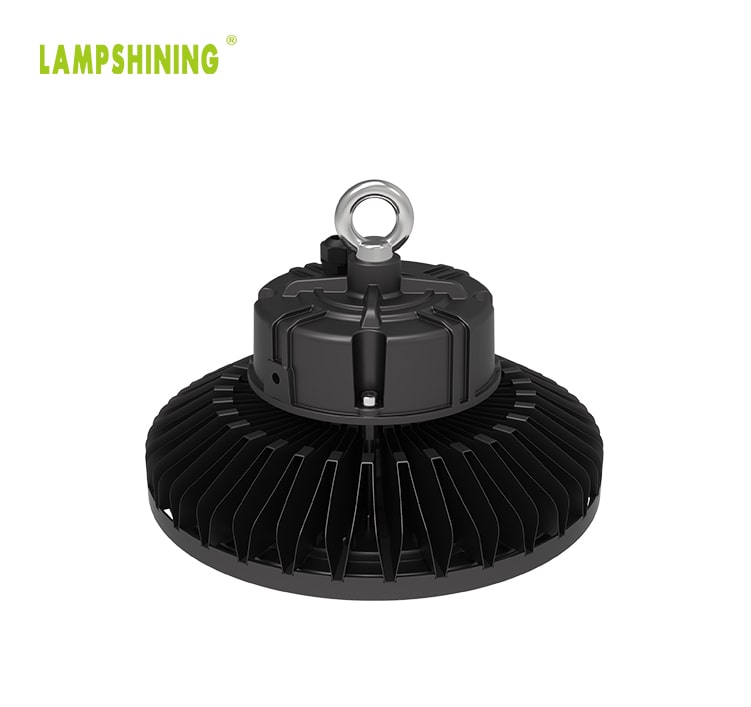

150w Slim Lightweight Folding Fins heatsink DLC Premium UFO LED High Bay Light - 30000 Lumens

●   Watt: 150W

●   Lumens: 24,000/ 30,000

●   Light Source: SMD 2835

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK10

●   Size: Dia277*H145

●   Lamp Weight: 2.7kg

●   CCT (Color Temp): 3000-6000k

●   5 years warranty

●   Beam Angle: 90/ 120 degree

Inquire Now Next Product

150w Slim Lightweight Folding Fins heatsink DLC Premium UFO LED High Bay Light - 30000 Lumens

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSUFO-150WXY-LVS(XXK)
Watt150W
Lumen24,000
Efficiency160(±3%)LM/W
Chip BrandOsram 2835
Input Volt100-277VAC
Driver(Non-dimmable)Moso G6-160V260
Driver(1-10V Dimmable)Moso G6-160M260
Driver(Dali Dimmable)
Moso G6-160D260D
Driver(0-10v Dimmable)Moso G6-160M260A12H
CCT3000-6000K
SizeDia234*H145
Package Weight2.2kg
Beam Angle90/ 120 degree
IP RatingIP65 & IK10
CRI>80
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
CertificationETL cETL DLC Premium TUV CE CB SAA IECEE LM79 LM80
ModelLSUFO-150WXY-LVS(XXK)
Watt150W
Lumen30,000
Efficiency200(±3%)LM/W
Chip BrandOsram 2835
Input Volt100-277VAC
Driver(Non-dimmable)Moso G6-160V260
Driver(1-10V Dimmable)Moso G6-160M260
Driver(Dali Dimmable)
Moso G6-160D260D
Driver(0-10v Dimmable)Moso G6-160M260A12H
CCT3000-6000K
SizeDia277*H145
Package Weight2.7kg
Beam Angle90/ 120 degree
IP RatingIP65 & IK10
CRI>80
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
CertificationETL cETL DLC Premium TUV CE CB SAA IECEE LM79 LM80

150W Slim Fin UFO LED High Bay Light

150W Slim Fin UFO LED High Bay Light

Slim Fin UFO LED High Bay Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

150W

160-200Lm/W

3000K-6000K

ETL DLC Premium TUV CB SAA IECEE

LM79 LM80

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 160-200Lm/W!

Osram 2835

Folding aluminum fin design

Folding aluminum fin design

The radiator is stamped and folded from pure aluminum.

Large heat dissipation area and light weight.

Compared with similar products, the weight is more than 50% lighter, lighter and easier to install.

Folding aluminum fin design

IP65 Waterproof & IK10

IP65 Waterproof & IK10

Use high-quality aluminium case, Housing is made of Die Casting Aluminum ADC12 elaborate processing, good heat radiation effect, waterproof grade IP65 and IK10 rating of anticollision.

IP65

IK10

Optional Features

Optional Features

Slim Fin UFO LED High Bay Light can be equipped with different sensors for smart lighting.

Dimmable 1-10v

Dimmable 0-10v

DALI Dimmable

Beam Angle

Beam Angle

The beam angle can be selected from 90/ 120 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.

90 degree

120 degree

Other Watt

Slim Fin UFO LED High Bay Light is available in wattage from 100W to 240W, which is the best choice to replace the existing MH/HID street lights of 50W-600W.

Slim fin ufo led high bay light

Slim fin ufo led high bay light

Slim fin ufo led high bay light

Accessories

Accessories

Slim Fin UFO LED High Bay Light can optionally be equipped with different reflectors.

Aluminum Reflector

PC Reflector

Yoke Bracket

Tempered Glass (Clear and Frosted)

Application

Used in factories, warehouses, workshops, stadiums, parking lots, logistics centers, large warehouses, super City lighting, underground garage, exhibition center, gymnasium lighting, high-speed toll station and other regional lighting.

Accessories

(60 degree)Aluminum reflector
Yoke BracketPC reflector without end capPC reflector with end cap
Tempered
(60 degree)Aluminum reflectorYoke BracketPC reflector without end capPC reflector with end capTempered


Folded fin heat sinks

Folded fins are created by a progressive stamping method. The fins are then bonded to a base with thermally conductive epoxy, brazing, welding, or similar metallurgical bonds, to create a heat sink. An advantage of folded fin heat sinks is the ability to combine aluminum and copper to tailor the performance of the heat sink to the particular application.


The main advantages are:

1.Lightweight 2.Reduced material cost 3.Forced airflow or natural convection 4. High aspect ratio fins

folded fin heat sinks

WattSize
150W(160Lm/W)1pc/ Dia*234*145



150W 160Lm/W slim fin UFO LED High Bay Light size


WattSize
150W(200Lm/W)1pc/ Dia*277*145



150W 200Lm/W slim fin UFO LED High Bay Light size
