Commercial 150W UFO LED High Bay Light - gymnasium,factory,workshop,shop Lighting retrofit

Watt: 150W

Driver: Sosen SS-150CNL-260

Lumens: 22,500Lm(150Lm/W) / 24,000Lm(160Lm/W)

Voltage: 100-277VAC / 347-480VAC

Lifetime: Rated Life of 50,000 Hours

IP Rating: IP65 (TUV report available)

Color Temp: 3000K,4000K,5000K,5700K

Beam Angle: 60/90 degree

Light Source: Orsam 2835

Replacement: 350-400W HID,HPS


Inquire Now Next Product

Commercial 150W UFO LED High Bay Light - gymnasium,factory,workshop,shop Lighting retrofit

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


150W Graphene heat sink UFO LED High Bay Light

RGO UFO LED High Bay Light is our newest product. Graphene heat sink and ultra-thin lightweight are its biggest features. The light efficiency can reach 150-160LM/W.  Induction sensor and remote control can make it and traditional lamps Compared to energy savings of 60-80%. Suitable for indoor Hanging Pendant LED lighting, is a perfect substitute for metal halides and high pressure sodium lamps;


150w rgo ufo led high bay light

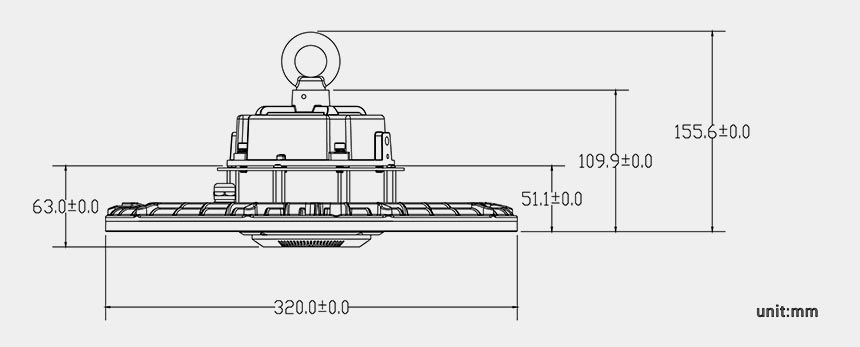

Size


150w rgo ufo led high bay light size


Specifications

ModelLSUFO-150WXY-GS(XXK)
Wattage150W
Lumen22,500Lm(150LM/W)24,000Lm(160LM/W)
DriverSS-150CNL-260
CRIRa70 (Ra80, Ra90 optional)
IP RatingIP65
Net weight2.64kg
Light Sourceosram 2835
Beam angle60/ 90 degree
Dimension320*109.9mm
Input volt100-277VAC/ 347-480VAC
CCT3000K, 4000K, 5000K, 5700K
CertificationETL TUV DLC(PREMIUM) SAA CB C-citk CE RoHS LM79 LM80


Features

1. Using the new radiator of graphene material, with light weight and small volume , and the heat dissipation effect is better;

2. Ultra-high surface thermal radiation coefficient (≥0.94),  the larger the coefficient, the faster the heat dissipation;

3. Super acid and alkali corrosion resistance, super UV resistance;

4. Light efficiency can be up to 150-160lm/w;

5.50,000 hours of lifespan;

6. Standard use of osram 2835 led chips, UL certified power supply warranty can be up to 5 years;

7. IP65 waterproof rating, can be applied to different environments;


Ultra Slim Design

Ultra slim and lightweight design, more efficient,safer and save labor costs;

150W UFO LED High Bay Light ultra slim design


Graphene Heat Sink

Ultra-high surface thermal radiation coefficient (≥0.94), the larger the coefficient, the faster the heat dissipation, Using new graphene material, with light weight and small volume, and the heat dissipation effect is better. The heat sink is made of graphene material, and graphene has excellent thermal conductivity. The thermal conductivity is up to 5300W/m.k. Its thermal conductivity is higher than that of copper, aluminum, iron and other metals;

150W UFO LED High Bay Light graphene heat sink


High Brightness LED Chip

100w rgo ufo led high bay light uses Osram 2835 chip, High brightness, Less light decayLife up to 50,000 hours;

150W UFO LED High Bay Ligh uses osram 2835


Intermediate Embedded Induction Sensor

Intermediate embedded induction sensor which helps reduce package size;

150W UFO LED High Bay Ligh with induction sensor

1.Light automatically on when ambient brightness is lower than preset lux level;

2.In the case of insufficient ambient brightness, the light will be brightened to 100% when motion is detected;

3.Light dims to standby level if no motion detected afte holdtime;

4.Light off when ambient lux level is higher than preset lux amount;


Remote control setting

150w led Warehouse Hanging Pendant Light remote control setting


Waterproof IP65

IP65 waterproof rating, can be applied to different environments;

150w rgo ufo led high bay light waterproof ip65


Installation method and light coverage


100w rgo ufo led high bay light installation method and light coverage


Application

RGO UFO LED High Bay Light, high efficient and lightweight, is widely used in warehouses, workshops, museums, gymnasiums, swimming pools, shops, bus stations, etc.


rgo ufo led high bay light application scenarios


LED lighting solution customization

Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.


warehouse led lighting dialux design


contact us


Beam Angle

Optional illumination Angle of 90,120 degree;


150W UFO LED High Bay Ligh beam angle

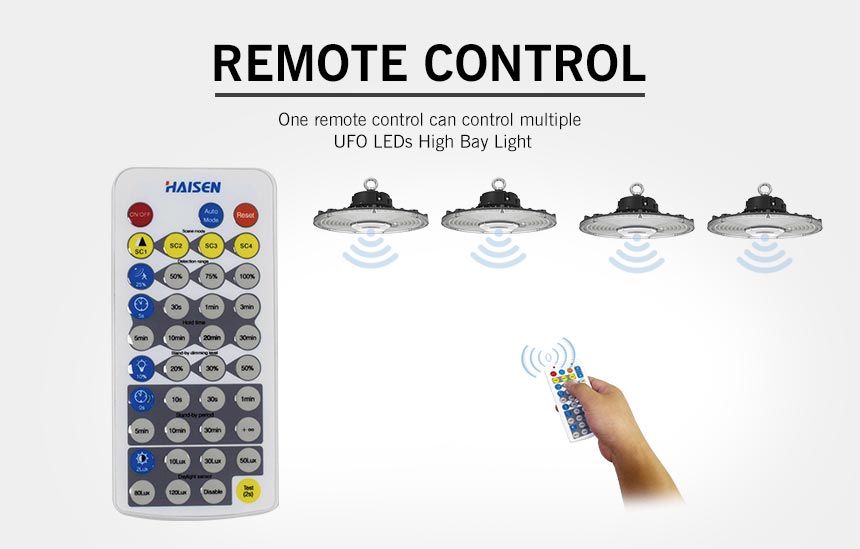

Remote control

One remote control can control multiple ufo led high bay light;

150w rgo ufo led high bay light remote control accessory


Induction Sensor

The sensor is available in black and white;

150w rgo ufo led high bay light induction sensor available in black and white

Package details

150W: 1pc/CTN

Carton size: 40*40*19cm

GW: 3.5Kg
