121W to 150W Pluto LED Street Lights - LED Roadway & Street Lights ENEC ENEC+ ZD4I zhaga

121W to 150W Pluto Series LED Street Lights  Street & Roadway Lighting

●   Watt: 121W to 150W

●   Efficiency: 150~180Lm/w

●   Light Source: SMD 5050

●   Input Volt: 200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )

●   IP Rating:IP66 and IK08/IK10 protection rate

●   Arm Dia: 48/ 60mm

●   CCT (Color Temp): 3000~6000K

●   5 years warranty

●   Beam Angle: TypeII TypeIII TypeIV

●   ENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Inquire Now Next Product

121W to 150W Pluto LED Street Lights - LED Roadway & Street Lights ENEC ENEC+ ZD4I zhaga

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSPSL-XXW -LV(XXK)
Watt121W to 150W
Lumen18150Lm ~ 22500Lm
Efficiency150Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Surge protection10KV
Size660*244*98mm
Beam AngleTYPE II-M,TYPE III-M,TYPE IV-M,TYPE II-S,TYPE III-S,TYPE IV-S
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Model

LSPSL-XXW -LV(XXK)
Watt121W to 150W
Lumen19965Lm ~ 24750Lm
Efficiency165Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Surge protection10KV
Size660*244*98mm
Beam AngleTYPE II-M,TYPE III-M,TYPE IV-M,TYPE II-S,TYPE III-S,TYPE IV-S
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Model

LSPSL-XXW -LV(XXK)
Watt121W to 150W
Lumen21780Lm ~ 27000Lm
Efficiency180Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Surge protection10KV
Size660*244*98mm
Beam AngleTYPE II-M,TYPE III-M,TYPE IV-M,TYPE II-S,TYPE III-S,TYPE IV-S
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available
ModelWattModelWattModelWatt
LSPSL-121W-LV(XXK)121WLSPSL-146W-LV(XXK)146W

LSPSL-122W-LV(XXK)122WLSPSL-147W-LV(XXK)147W

LSPSL-123W-LV(XXK)123WLSPSL-148W-LV(XXK)148W

LSPSL-124W-LV(XXK)124WLSPSL-149W-LV(XXK)149W

LSPSL-125W-LV(XXK)125WLSPSL-150W-LV(XXK)150W

LSPSL-126W-LV(XXK)126W



LSPSL-127W-LV(XXK)127W



LSPSL-128W-LV(XXK)128W



LSPSL-129W-LV(XXK)129W



LSPSL-130W-LV(XXK)130W



LSPSL-131W-LV(XXK)131W



LSPSL-132W-LV(XXK)132W



LSPSL-133W-LV(XXK)133W



LSPSL-134W-LV(XXK)134W



LSPSL-135W-LV(XXK)135W



LSPSL-136W-LV(XXK)136W



LSPSL-137W-LV(XXK)137W



LSPSL-138W-LV(XXK)138W



LSPSL-139W-LV(XXK)139W



LSPSL-140W-LV(XXK)140W



LSPSL-141W-LV(XXK)141W



LSPSL-142W-LV(XXK)142W



LSPSL-143W-LV(XXK)143W



LSPSL-144W-LV(XXK)144W



LSPSL-145W-LV(XXK)145W




Streamlined Pluto LED Street Lights 121W to 150W

Streamlined Pluto LED Street Lights 121W to 150W

Pluto LARGE Model street light is a perfect solution for secondaryroads

121W to 150W

150Lm/W 165Lm/W 180Lm/W

2200K~ 6500K

Lifespan (L90B10 >100,000hrs)

ENEC+ ENEC EPD TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH

High brightness

High brightness

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 130-180Lm/W!

SMD 5050

Adjustable angle

Adjustable angle

Streamlined Pluto LED Street Light You can select Vertical / Horizontal installation to support 42mm / 60mm / 78mm mounting holes. And the luminaire can be rotated ± 15degree, which can better obtain the best illuminance.

±15 degree

Waterproof & Lightning Protection

Waterproof & Lightning Protection

The lamps have passed the waterproof IP66 and anti-impact IK08 tests, and are equipped with 10-15KV lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.

IP66

10KV(Optional 20KV)



Class I  Class II  Zhaga  D4i

Class I Class II Zhaga D4i

In order to ensure the normal and stable operation of the lamps and reduce faults and insufficient light, the power supply of the lamps is very important. The lamps can choose Class I , Class II ,Zhaga , D4i.Which can be very stable and safe to continuously output constant power.

Class I

Class II

Zhaga

D4i

DALI

Heat Dissipation

Heat Dissipation

Streamlined Pluto LED Street Light adopts ADC12 aluminum alloy integrated die-casting heat dissipation design, which dissipates heat better and does not accumulate dust. Also passed Salt Spray test, 3G Vibration Photobiosafety test, sand test, UV test, REACH test.

ADC12 aluminum alloy integrated die-casting heat dissipation

Tool Free Opening

Tool Free Opening

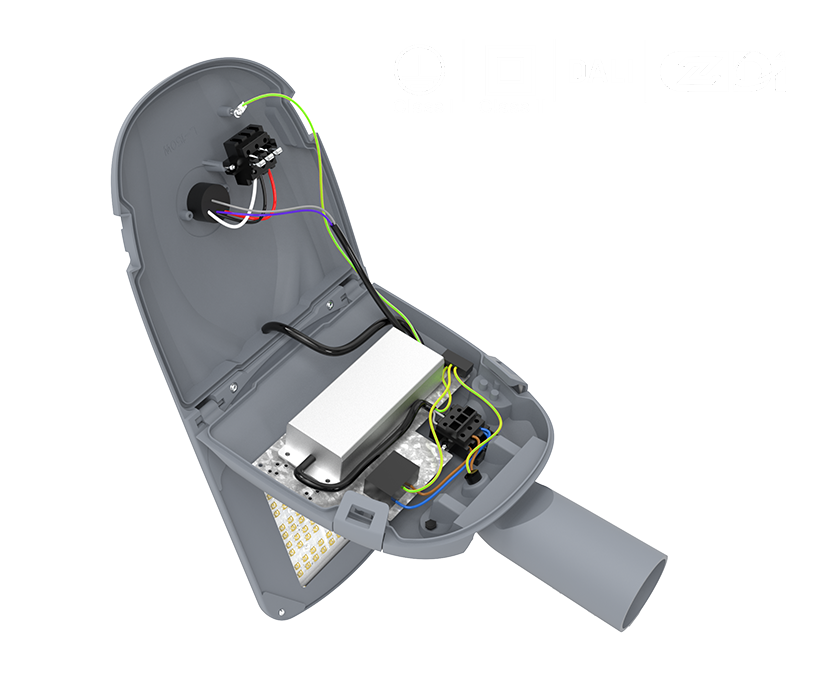

Easy Access to Internal Components (Tool-Free Opening). The lamps use a separable structure that makes transportation packaging and installation easier.

Tool Free

Optional Features

Optional Features

Photocell, Dimmable 1-10v 0-10v, DALI Dimmable, Zhaga Socket, Microwave Sensor, PIR Sensor

Photocell

Dimmable 1-10v/ 0-10v

DALI Dimmable

Zhaga Socket

Microwave Sensor

PIR Sensor

Other Watt

Streamlined Pluto LED Street Light is available in wattage from 10W to 300W, which is the best choice to replace the existing MH/HID street lights of  50W-600W.

Beam Anlge

Beam Anlge

The beam angle can be selected from TypeII, TypeIII, TypeIV. Professional light distribution angle can better achieve uniform and efficient lighting effect.

TypeII

TypeIII

TypeIV

Application

Main roads, secondary roads, branch roads, expressways, overpasses, urban roads, overpasses, schools, residential areas, industrial areas, parks, city squares, courtyards, etc.

street lighting application

street lighting application

street lighting application

Accessories

Photocell

(On at Dusk and Off at Dawn)

Dusk to Dawn photocell

NEMA 7pins+Short cap

(0-10V NEMA Dimming)

NEMA 7pins+Short cap
Optional Plug wires and Extended wires Optional Plug wires and Extended wires
10KA Surge Protection Device10KA Surge Protection Device

Moounting

(42mm/ 60mm/ 72mm)

Moounting

Size

WattSize
121W to 150W (150-180Lm/W) 660*244*98mm


120W Streamlined Pluto LED Street Light 130-165lm/w size
