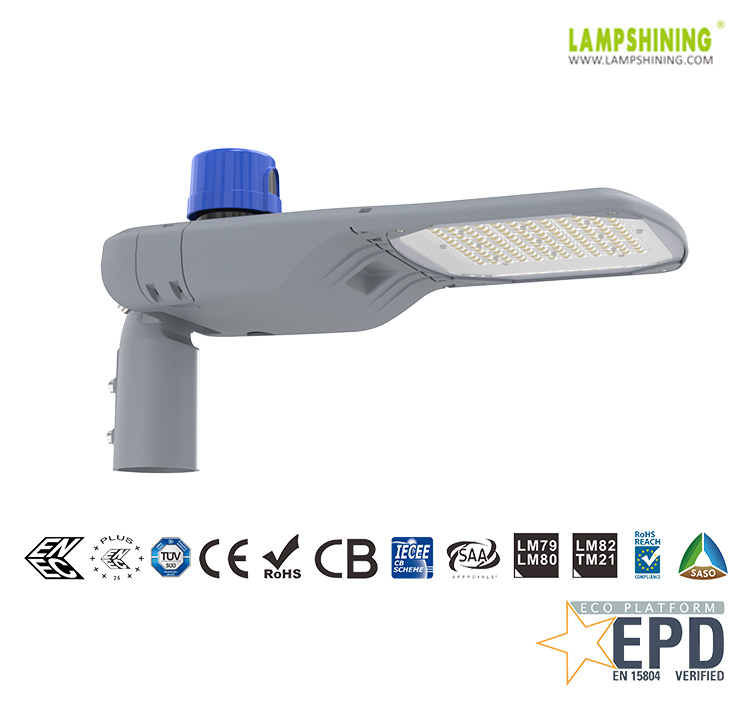

81W to 120W Outdoor LED Street LightS- ENEC ENEC+ ZD4I EPD Certification LED Roadway Lights

81W to 120W Pluto Series LED Street Lights  Street & Roadway Lighting

●   Watt: 81W to 120W

●   Efficiency: 150~180Lm/w

●   Light Source: SMD 5050

●   Input Volt: 200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )

●   IP Rating:IP66 and IK08/IK10 protection rate

●   Arm Dia: 48/ 60mm

●   CCT (Color Temp): 3000~6000K

●   5 years warranty

●   Beam Angle: TypeII TypeIII TypeIV

●   ENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS Darksky LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available



Inquire Now Next Product

81W to 120W Outdoor LED Street LightS- ENEC ENEC+ ZD4I EPD Certification LED Roadway Lights

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSPSL-XXW -LV(XXK)
Watt81W ~ 120W
Lumen12150Lm ~ 18000Lm
Efficiency150Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Size610*244*98mm
Surge protection10KV
Beam AngleTYPE II-M,TYPE III-M,TYPE IV-M,TYPE II-S,TYPE III-S,TYPE IV-S T2M,T2S,T3M,T3S
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Model

LSPSL-XXW -LV(XXK)
Watt81W ~ 120W
Lumen13365Lm ~ 19800Lm
Efficiency165Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Size610*244*98mm
Surge protection10KV
Beam AngleTYPE II-M,TYPE III-M,TYPE IV-M,TYPE II-S,TYPE III-S,TYPE IV-S T2M,T2S,T3M,T3S
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Model

LSPSL-XXW -LV(XXK)
Watt81W ~ 120W
Lumen14580Lm ~ 21600Lm
Efficiency180Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Size610*244*98mm
Surge protection10KV
Beam AngleTYPE II-M,TYPE III-M,TYPE IV-M,TYPE II-S,TYPE III-S,TYPE IV-S T2M,T2S,T3M,T3S
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available
ModelWattModelWattModelWatt
LSPSL-81W-LV(XXK)81WLSPSL-106W-LV(XXK)106W

LSPSL-82W-LV(XXK)82WLSPSL-107W-LV(XXK)107W

LSPSL-83W-LV(XXK)83WLSPSL-108W-LV(XXK)108W

LSPSL-84W-LV(XXK)84WLSPSL-109W-LV(XXK)109W

LSPSL-85W-LV(XXK)85WLSPSL-110W-LV(XXK)110W

LSPSL-86W-LV(XXK)86WLSPSL-111W-LV(XXK)111W

LSPSL-87W-LV(XXK)87WLSPSL-112W-LV(XXK)112W

LSPSL-88W-LV(XXK)88WLSPSL-113W-LV(XXK)113W

LSPSL-89W-LV(XXK)89WLSPSL-114W-LV(XXK)114W

LSPSL-90W-LV(XXK)90WLSPSL-115W-LV(XXK)115W

LSPSL-91W-LV(XXK)91WLSPSL-116W-LV(XXK)116W

LSPSL-92W-LV(XXK)92WLSPSL-117W-LV(XXK)117W

LSPSL-93W-LV(XXK)93WLSPSL-118W-LV(XXK)118W

LSPSL-94W-LV(XXK)94WLSPSL-119W-LV(XXK)119W

LSPSL-95W-LV(XXK)95WLSPSL-120W-LV(XXK)120W

LSPSL-96W-LV(XXK)96W



LSPSL-97W-LV(XXK)97W



LSPSL-98W-LV(XXK)98W



LSPSL-99W-LV(XXK)99W



LSPSL-100W-LV(XXK)100W



LSPSL-101W-LV(XXK)101W



LSPSL-102W-LV(XXK)102W



LSPSL-103W-LV(XXK)103W



LSPSL-104W-LV(XXK)104W



LSPSL-105W-LV(XXK)105W




Streamlined Pluto LED Street Lights 81W to 120W

Streamlined Pluto LED Street Lights 81W to 120W

Pluto LARGE Model street light is a perfect solution for secondaryroads

81W to 120W

150Lm/W 165Lm/W 180Lm/W

2200K~ 6500K

Lifespan (L90B10 >100,000hrs)

ENEC+ ENEC EPD TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH

High brightness

High brightness

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 130-180Lm/W!

SMD 5050

Adjustable angle

Adjustable angle

Streamlined Pluto LED Street Light You can select Vertical / Horizontal installation to support 42mm / 60mm / 78mm mounting holes. And the luminaire can be rotated ± 15degree, which can better obtain the best illuminance.

±15 degree

Waterproof & Lightning Protection

Waterproof & Lightning Protection

The lamps have passed the waterproof IP66 and anti-impact IK08 tests, and are equipped with 10-15KV lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.

IP66

10KV(Optional 20KV)



Class I  Class II  Zhaga  D4i

Class I Class II Zhaga D4i

In order to ensure the normal and stable operation of the lamps and reduce faults and insufficient light, the power supply of the lamps is very important. The lamps can choose Class I , Class II ,Zhaga , D4i.Which can be very stable and safe to continuously output constant power.

Class I

Class II

Zhaga

D4i

DALI

Heat Dissipation

Heat Dissipation

Streamlined Pluto LED Street Light adopts ADC12 aluminum alloy integrated die-casting heat dissipation design, which dissipates heat better and does not accumulate dust. Also passed Salt Spray test, 3G Vibration Photobiosafety test, sand test, UV test, REACH test.

ADC12 aluminum alloy integrated die-casting heat dissipation

Tool Free Opening

Tool Free Opening

Easy Access to Internal Components (Tool-Free Opening). The lamps use a separable structure that makes transportation packaging and installation easier.

Tool Free

Optional Features

Optional Features

Photocell, Dimmable 1-10v 0-10v, DALI Dimmable, Zhaga Socket, Microwave Sensor, PIR Sensor

Photocell

Dimmable 1-10v/ 0-10v

DALI Dimmable

Zhaga Socket

Microwave Sensor

PIR Sensor

Other Watt

Streamlined Pluto LED Street Light is available in wattage from 10W to 300W, which is the best choice to replace the existing MH/HID street lights of  50W-600W.

Beam Anlge

Beam Anlge

The beam angle can be selected from TypeII, TypeIII, TypeIV. Professional light distribution angle can better achieve uniform and efficient lighting effect.

TypeII

TypeIII

TypeIV

Application

Main roads, secondary roads, branch roads, expressways, overpasses, urban roads, overpasses, schools, residential areas, industrial areas, parks, city squares, courtyards, etc.

street lighting application

street lighting application

street lighting application

Accessories

Photocell

(On at Dusk and Off at Dawn)

Dusk to Dawn photocell

NEMA 7pins+Short cap

(0-10V NEMA Dimming)

NEMA 7pins+Short cap
Optional Plug wires and Extended wires Optional Plug wires and Extended wires
10KA Surge Protection Device10KA Surge Protection Device

Moounting

(42mm/ 60mm/ 72mm)

Moounting

Size

WattSize
81W to 120W (130-165Lm/W) 1pc/ 24.0in*3.88in*11.81in


80W streamlined pluto LED Street Light 130-165lm/w size


WattSize
100W (180LM/W)1pc/ 26.0in*3.88in*11.81in


80W streamlined pluto LED Street Light 180lm/w size
