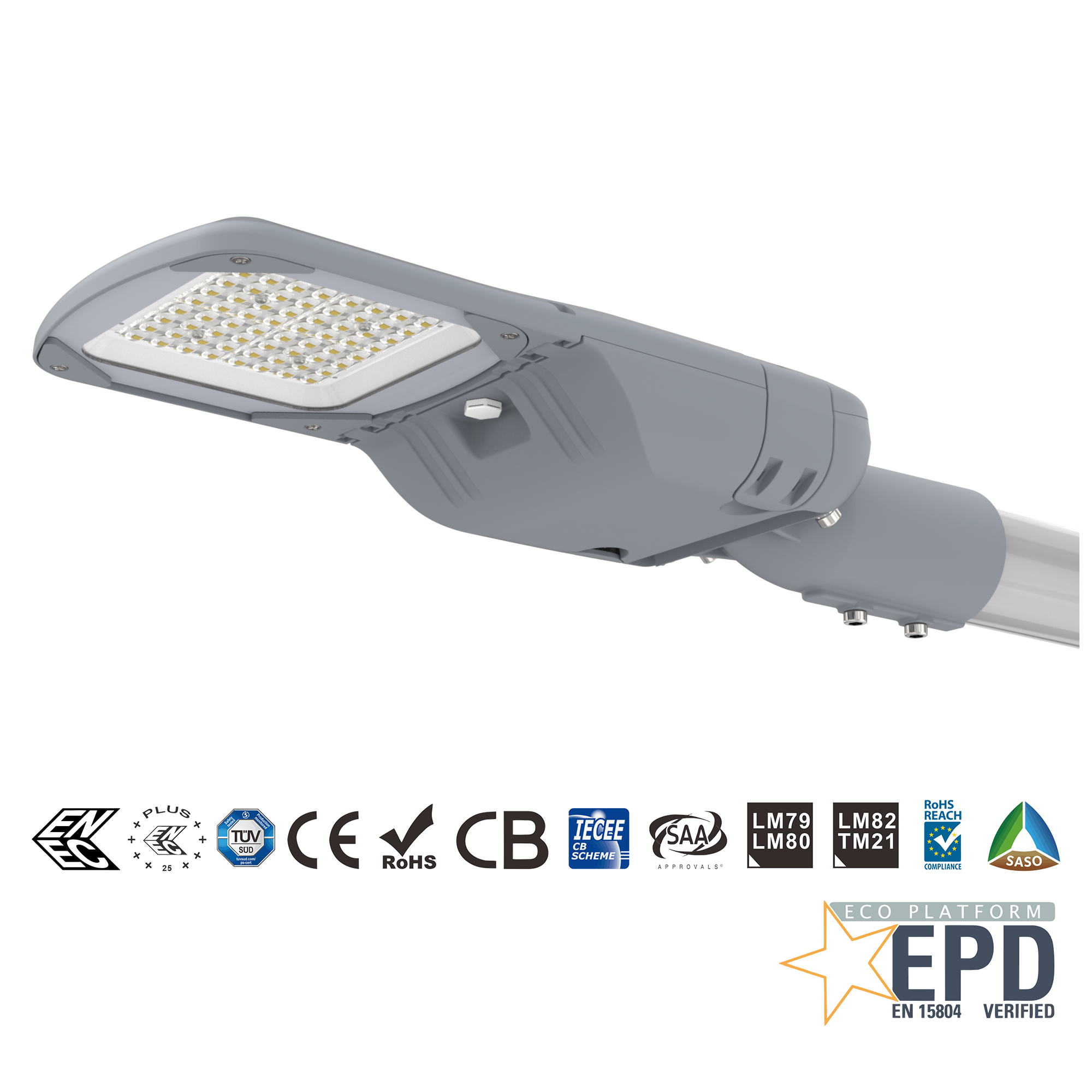

40W Streamlined Pluto LED Street Light Fixtures

Streamlined Pluto LED Street Lights is a perfect solution for secondary roads, parks gardens and pathways. It is aesthetically appealing due to its compact design and oers wide range of outdoor solutions with reduced cost of ownership. It can very well replace most of the fluorescent based luminaires (CFL/FTL) and also ensures uniform lighting distribution.

●   Watt: 40W

●   Lumens: 5,800-7,200

●   Light Source: Lumileds 3030/ 5050

●   Input Volt: 100-305VAC

●   IP Rating: IP66 - IK08

●   Arm Dia: 42/ 60/ 78mm

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: TypeII TypeIII TypeIV

●   ENEC ENEC+  TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L70B20 >100.000hrs available

Inquire Now

40W Streamlined Pluto LED Street Light Fixtures

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSPSL-40W-LV(XXK)
Watt40W
Lumen5,800lm
Efficiency145Lm/W±3%
Input Volt100-305VAC
Chip BrandLumileds 3030
CCT3000-6000K
Meanwell Class I DriverXLG-50-H-A
Moso Class I DriverX6L‐042M052F
Moso Class II DriverLCP‐040M048
Size22.0in*3.88in*7.70in
IP & IK RatingIP66 & IK08
Arm Dia60mm/ 48mm/ 42mm
LifespanL70B20 >100,000hrs
Surge protection10KV
Beam AngleType II, Type III, Type IV
CertificationsENEC ENEC+  TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH

Model

LSPSL-40W-LV(XXK)
Watt40W
Lumen6,000lm
Efficiency150Lm/W±3%
Input Volt100-305VAC
Chip BrandLumileds 5050
CCT3000-6000K
Meanwell Class I DriverXLG-50-H-A
Moso Class I DriverX6L‐042M052F
Moso Class II DriverLCP‐040M048
Size22.0in*3.88in*7.70in
IP & IK RatingIP66 & IK08
Arm Dia60mm/ 48mm/ 42mm
LifespanL70B20 >100,000hrs
Surge protection10KV
Beam AngleType II, Type III, Type IV
CertificationsENEC ENEC+  TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH

Model

LSPSL-40W-LV(XXK)
Watt40W
Lumen6,600lm
Efficiency165Lm/W±3%
Input Volt100-305VAC
Chip BrandLumileds 5050
CCT3000-6000K
Meanwell Class I DriverXLG-50-H-A
Moso Class I DriverX6L‐042M052F
Moso Class II DriverLCP‐040M048
Size22.0in*3.88in*7.70in
IP & IK RatingIP66 & IK08
Arm Dia60mm/ 48mm/ 42mm
LifespanL70B20 >100,000hrs
Surge protection10KV
Beam AngleType II, Type III, Type IV
CertificationsENEC ENEC+  TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH

Model

LSPSL-40W-LV(XXK)
Watt40W
Lumen7,200lm
Efficiency180Lm/W±3%
Input Volt100-305VAC
Chip BrandLumileds 5050
CCT3000-6000K
Meanwell Class I DriverXLG-50-H-A
Moso Class I DriverX6L‐042M052F
Moso Class II DriverLCP‐040M048
Size24.0in*3.88in*11.81in
IP & IK RatingIP66 & IK08
Arm Dia60mm/ 48mm/ 42mm
LifespanL70B20 >100,000hrs
Surge protection10KV
Beam AngleType II, Type III, Type IV
CertificationsENEC ENEC+  TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH
Other optional wattage(10W-320W)
10W15W20W
25W30W35W
40W45W50W
55W60W65W
70W75W80W
85W90W95W
100W105W110W
115W120W125W
130W135W140W
145W150W155W
160W165W170W
175W180W185W
190W195W200W
205W210W215W
220W225W230W
235W240W245W
250W255W260W
265W270W275W
280W285W290W
295W300W305W
310W315W320W

Streamlined Pluto LED Street Lights 40W

Streamlined Pluto LED Street Lights 40W

Streamlined Pluto LED Street light is a perfect Outdoor lighting solution for secondary roads, parks gardens and pathways.

40W

145-180Lm/W

4000K-6000K

L70B20 >100.000hrs

ENEC+ ENEC TUV CE CB IECEE SAA RoHS

LM79 LM80 LM82 TM21

IK08 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH

High brightness

High brightness

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 130-180Lm/W!

Lumileds 3030

Lumileds 5050

Adjustable angle

Adjustable angle

Streamlined Pluto LED Street Light You can select Vertical / Horizontal installation to support 42mm / 60mm / 78mm mounting holes. And the luminaire can be rotated ± 15degree, which can better obtain the best illuminance.

±15 degree

Waterproof & Lightning Protection

Waterproof & Lightning Protection

The lamps have passed the waterproof IP66 and anti-impact IK08 tests, and are equipped with 10-15KV lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.

IP66

10-15KV

Class I /Class II Driver

Class I /Class II Driver

In order to ensure the normal and stable operation of the lamps and reduce faults and insufficient light, the power supply of the lamps is very important. The lamps can choose Meanwell Class I driver/ Moso Class I driver/ Moso Class II driver, which can be very stable and safe to continuously output constant power.

Meanwell Class I driver

Moso Class I driver

Moso Class II driver

Heat Dissipation

Heat Dissipation

Streamlined Pluto LED Street Light adopts ADC12 aluminum alloy integrated die-casting heat dissipation design, which dissipates heat better and does not accumulate dust. Also passed Salt Spray test, 3G Vibration Photobiosafety test, sand test, UV test, REACH test.

ADC12 aluminum alloy integrated die-casting heat dissipation

Tool Free Opening

Tool Free Opening

Easy Access to Internal Components (Tool-Free Opening). The lamps use a separable structure that makes transportation packaging and installation easier.

Tool Free

Optional Features

Optional Features

Photocell, Dimmable 1-10v 0-10v, DALI Dimmable, Zhaga Socket, Microwave Sensor, PIR Sensor

Photocell

Dimmable 1-10v/ 0-10v

DALI Dimmable

Zhaga Socket

Microwave Sensor

PIR Sensor

Other Watt

Streamlined Pluto LED Street Light is available in wattage from 10W to 320W, which is the best choice to replace the existing MH/HID street lights of 50W-600W.

10-60W Streamlined pluto led street light

65W-100W Streamlined pluto led street light

105-150W Steamlined pluto led street light

155-200w streamlined pluto led street light

205-320w streamlined pluto led street light

Beam Anlge

Beam Anlge

The beam angle can be selected from TypeII, TypeIII, TypeIV. Professional light distribution angle can better achieve uniform and efficient lighting effect.

TypeII

TypeIII

TypeIV

Application

Main roads, secondary roads, branch roads, expressways, overpasses, urban roads, overpasses, schools, residential areas, industrial areas, parks, city squares, courtyards, etc.

street lighting application

street lighting application

street lighting application

Streamlined pluto LED Street Lights 35W IES

Streamlined pluto LED Street Lights 35W IES

IES Downloads

LED Street Lights 35W IES

Accessories

Photocell

(On at Dusk and Off at Dawn)

Dusk to Dawn photocell

NEMA 7pins+Short cap

(0-10V NEMA Dimming)

NEMA 7pins+Short cap
Optional Plug wires and Extended wires Optional Plug wires and Extended wires
10KA Surge Protection Device10KA Surge Protection Device

Moounting

(42mm/ 60mm/ 72mm)

Moounting
WattSize
40W (130-165Lm/W) 1pc/ 22.0in*3.88in*7.70in


40W Streamlined Pluto LED Street Light Fixtures


WattSize
40W (180LM/W)1pc/ 24.0in*3.88in*11.81in



40W Streamlined Pluto LED Street Light Fixtures
