LED Street Light 120w IP67 IK10 3000-5700K IECEE CB Lumileds Street Lamp, Replacement 300W-400W HPS,MH,HQI
  • LED Street Light 120w IP67 IK10 3000-5700K IECEE CB Lumileds Street Lamp, Replacement 300W-400W HPS,MH,HQI
  • LED Street Light 120w IP67 IK10 3000-5700K IECEE CB Lumileds Street Lamp, Replacement 300W-400W HPS,MH,HQI
LED Street Light 120w IP67 IK10 3000-5700K IECEE CB Lumileds Street Lamp, Replacement 300W-400W HPS,MH,HQI LED Street Light 120w IP67 IK10 3000-5700K IECEE CB Lumileds Street Lamp, Replacement 300W-400W HPS,MH,HQI

LED Street Light 120w IP67 IK10 3000-5700K IECEE CB Lumileds Street Lamp, Replacement 300W-400W HPS,MH,HQI

1.wattage            : 120W

2.Model NO        : LSVSL-120W-LV(XXK)

3.Input Voltage   : 100-277VAC

4.Lumens            : 16800 Lumen(140LM/W)

5.CCT                   : 3000K 4000K 5000K 5700K

6.Replacement    :300W-400W HPS,MH,HQI

7.Size                   : 417*320*86mm(Non-rotatable)

                               540*320*88mm(Rotatable)

8.Driver               : Meanwell ELG-150-48A

9.Light Source     : Lumileds 3030

10.Certficates      : ENEC TUV CE CB SAA RoHS IK10 IP67 test

                                Flame Retardan Salt Spray test

  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Lighing Layout

Lampshining newly developed LED Street/Area Light has an industry-leading 140LM/W for high efficiency and reliability. With IP67 waterproofing and IK10 protection, LED Street Light can work in harsh environments and deliver outstanding performance. Lampshining LED Street/Area uses Philips' high-quality Lumileds 3030 light source and has a professional power supply design that is extremely durable and safe. The configured Photocell can minimize the cost of light for energy saving and environmental protection. Easy to maintain, you can enjoy the best lighting and safety.


2019 new product venus led street light introduce

FEATURES

  • Aluminum (ADC12) die-casting molding;

  • The surface is treated with black spray powder added with metal powder specially for outdoor use, which can increase the concave and convex feeling of frosting and expand heat dissipation; area Lens surface frosting treatment, suitable for 5050/3030 lamp beads, different lenses for different environments;

  • The back of the lens groove prevents light leakage;

  • Meet the 48-hour qualification requirements of salt spray test (GB/T 2423.17-2008);

  • Meet the requirements of continuous exposure for 28 days for solar radiation test (GB/T 2423.24-1995);

  • Comply with ROHS standard;

  • Waterproof integrated shell, waterproof grade up to IP67;

  • Products through a number of certification, ETL CE CB SAA ENEC IP67 IK10 salt spray test;

PRODUCT SPECIFICATION

ModelLSVSL-120W-LV(XXK)IP & IK RatingIP67, IK10
Wattage120 wattArm Dia60 mm
Lumen
16800 lmBeam Angle80*155 degree
Efficency140lm/wLifespan> 50,000 hours
Light SourceLumileds 3030Size

417*320*86mm(Non-rotatable)

540*320*88mm(Rotatable)

Input Volt100-277VAC
DriverMeanwell ELG-100-48AReplacement300-400W HPS,MH,HQI
Color Temp

3000K 4000K 5000K 5700K

CertficatesENEC TUV CE CB SAA RoHS IK10 IP67 test Flame Retardan Salt Spray test


ENEC Certification


ENEC means safety in Europe, and all signatories of the ENEC Mark Scheme actively

support its commitment to the highest safety levels.

led street lights with enec certification


SHOW

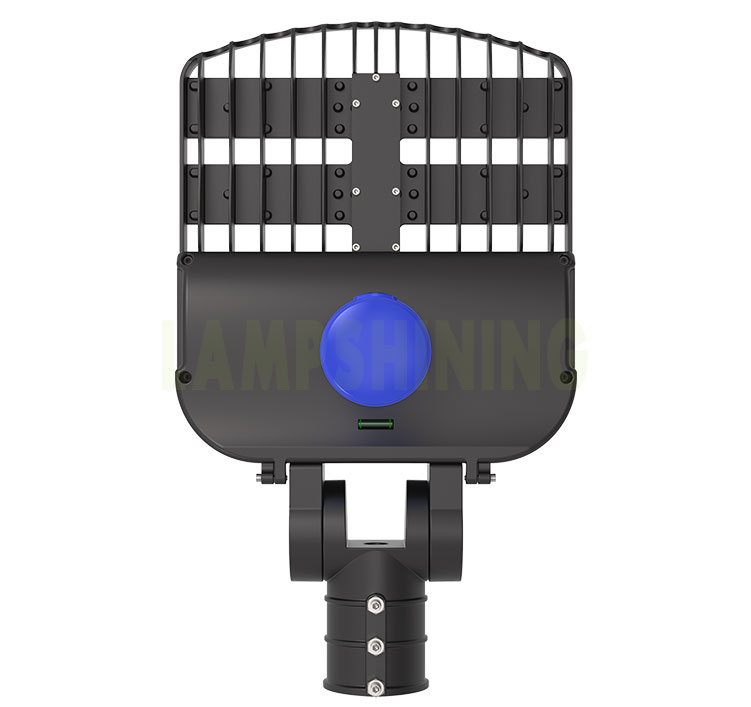

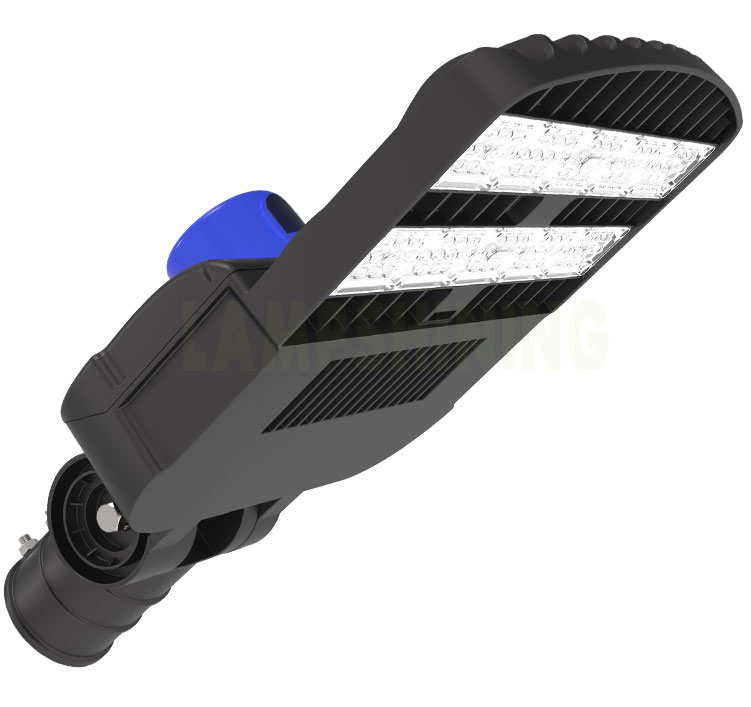

non-rotatable 120w 16800lm venus led street light show

rotatable 120w 16800lm venus led street light show

SIZE


non-rotatable and rotatable 120w 16800lm venus led street light size

non-rotatable and rotatable 120w 16800lm venus led street light show

CERTIFICATION

A number of authoritative certifications, allowing customers to use more confidence

non-rotatable and rotatable 120w 16800lm venus led street light certification

Characteristics

 The waterproof performance of the IP67 and the degree of protection of the IK10 allow the Venus LED Street Light to work in harsh environments.

120w 16800lm LED street light have a protection index of IP67 and IK10


Optional Photocell, optional 0-10V dimming Photocell(The dimming Photocell can achieve constant illumination: gradually brighten in the evening, gradually disappear in the early morning; lower brightness + light decay compensation at midnight)

non-rotatable and rotatable 120w 16800lm venus led street light with 0-10v photocell


Using Lumileds 3030 high quality Light Source

120W led street light using philips lumileds 3030 high quality light source

APPLIED TO

  2019 new venus series led street lights are suitable for street lighting, area lighting, highway lighting, parking lot lighting etc. Depending on the area, you can choose 50-240w led street light to replace 125w-750w HPS, MH,HQI.


120w venus led street light applied to

APPLICATION

120w venus led street light Range of application

led street light application

led street light application

FEATURES

  • Aluminum (ADC12) die-casting molding;

  • The surface is treated with black spray powder added with metal powder specially for outdoor use, which can increase the concave and convex feeling of frosting and expand heat dissipation; area Lens surface frosting treatment, suitable for 5050/3030 lamp beads, different lenses for different environments;

  • The back of the lens groove prevents light leakage;

  • Meet the 48-hour qualification requirements of salt spray test (GB/T 2423.17-2008);

  • Meet the requirements of continuous exposure for 28 days for solar radiation test (GB/T 2423.24-1995);

  • Comply with ROHS standard;

  • Waterproof integrated shell, waterproof grade up to IP67;

  • Products through a number of certification, ETL CE CB SAA ENEC IP67 IK10 salt spray test;

ACCESSORY: power supply

Meanwell ELG is standard,optional Meanwell HLG

led street light optional Meanwell power supply

ACCESSORY: Rotatable Arm

Optional Rotatable Arm

50w venus led street light optional non-rotatable and rotatable arm

ACCESSORY: Photocell (Optional accessories)

    The Mars Street light Photocell integration controls the illumination of the fixture by detecting surrounding ambient light.

    Photocell base comes pre-installed, lock cap included in package when shipped and ready to apply during assembly, Twist-Lock Photocell automatically turns lights On at Dusk and O ffat dawn.

120w 140lm/w LED Street Light Head photocell

ACCESSORY: 10KV SPD Lightning arrester (Optional accessories)

    The standard 100-277v fixture comes equipped with 10kA surge protection already integrated.

    SPD1 surge protection devices is perfectly adapted for outdoor lighting to provide single phase protection for line/neutral, line/ground and neutral/ground in accordance with LEEE C62.41 2002 C High, UL 1449 and IEC61643-11.

    120w 140lm/w LED Street Light Head 10KV SPD Lightning arrester

PACKAGING

Model           : LSVSL-120W-LV(XXK)

Package size : 62*41*17cm

weight          : 6.3kg

120w 16800lm 140lm/w venus led street light package details
