● Watt - 150W
● Lumens - 21,750
● Light Source - Lumileds 3030
● Input Volt - 100-240VAC
● IP Rating - IP67 - IK10
● Arm Dia - 60mm
● Size - 548*320*86mm
● Lamp Weight - 6.3kg
● CCT (Color Temp) - 3000, 4000, 5000, 6000
● 5 years warranty
● Beam Angle - TypeIII
|Chip Brand||Lumileds 3030|
|IP & IK Rating||IP67, IK10|
|Size||548*320*86mm(Non-rotatable) / 613*320*88mm(Rotatable)|
|Lifespan||> 50,000 hours|
|Certficates||ENEC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved|

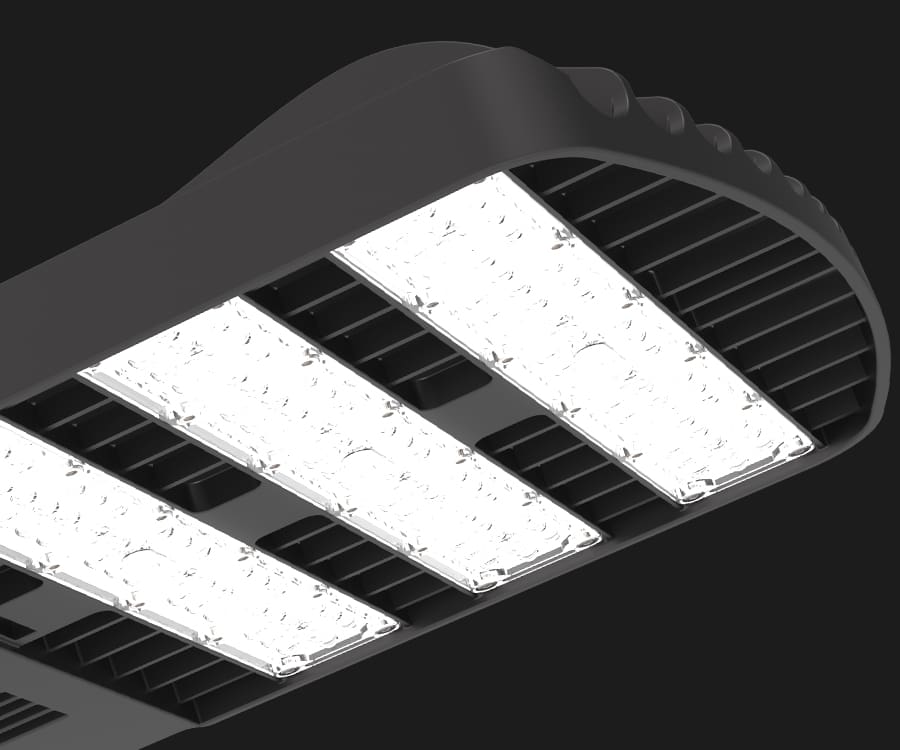

Lampshining newly developed LED Street/Area Light has an industry-leading 145LM/W for high efficiency and reliability. With IP67 waterproofing and IK10 protection, LED Street Light can work in harsh environments and deliver outstanding performance. Lampshining LED Street/Area uses Philips' high-quality Lumileds 3030 light source and has a professional power supply design that is extremely durable and safe. The configured Photocell can minimize the cost of light for energy saving and environmental protection. Easy to maintain, you can enjoy the best lighting and safety.
Aluminum (ADC12) die-casting molding;
The surface is treated with black spray powder added with metal powder specially for outdoor use, which can increase the concave and convex feeling of frosting and expand heat dissipation; area Lens surface frosting treatment, suitable for 5050/3030 lamp beads, different lenses for different environments;
The back of the lens groove prevents light leakage;
Meet the 48-hour qualification requirements of salt spray test (GB/T 2423.17-2008);
Meet the requirements of continuous exposure for 28 days for solar radiation test (GB/T 2423.24-1995);
Comply with ROHS standard;
Waterproof integrated shell, waterproof grade up to IP67;
Products through a number of certification, ETL CE CB SAA ENEC IP67 IK10 salt spray test;
A number of authoritative certifications, allowing customers to use more confidence. With ENEC, SAA, TUV, CB, CE, RoHS, IK10, IP67,Flame Retardan, Salt Spray Test, LSTMT, LM79, LM80, TM21.
ENEC means safety in Europe, and all signatories of the ENEC Mark Scheme actively
support its commitment to the highest safety levels.
The waterproof performance of the IP67 and the degree of protection of the IK10 allow the Venus LED Street Light to work in harsh environments.

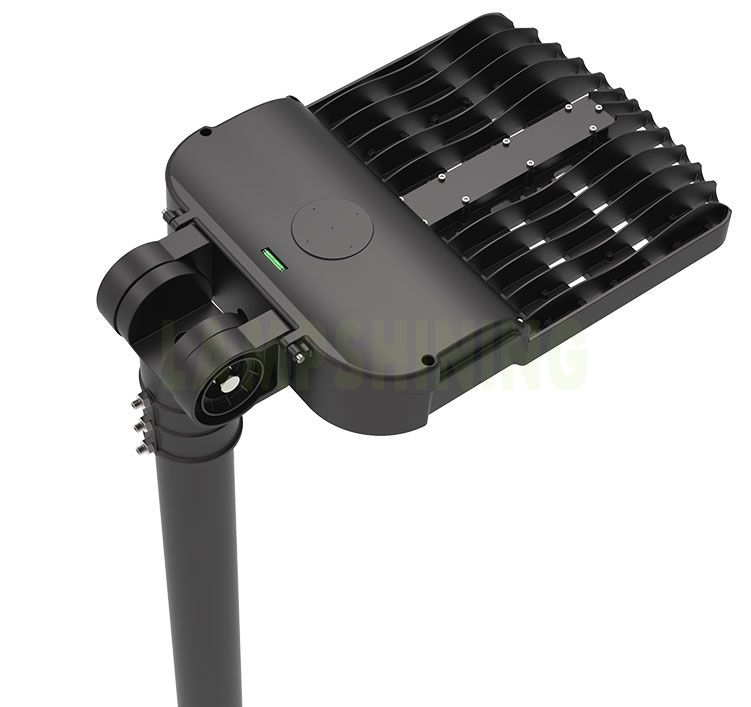

1.Depending on the usage scenario, you can choose a non-rotatable or rotatable sleeve.
2.Optional Photocell, optional 0-10V dimming Photocell(The dimming Photocell can achieve constant illumination: gradually brighten in the evening, gradually disappear in the early morning; lower brightness + light decay compensation at midnight)
2020 new venus series led street lights are suitable for street lighting, area lighting, highway lighting, parking lot lighting etc. Depending on the area, you can choose 50-240w led street light to replace 125w-750w HPS, MH,HQI.
Accessory: 10KV SPD Lightning arrester(Optional accessories)
The standard 100-277v fixture comes equipped with 10kA surge protection already integrated.
SPD1 surge protection devices is perfectly adapted for outdoor lighting to provide single phase protection for line/neutral, line/ground and neutral/ground in accordance with LEEE C62.41 2002 C High, UL 1449 and IEC61643-11.
Accessory: power supply
Meanwell ELG is standard,optional Meanwell HLG
Package size : 70*41*17cm
