300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light
  • 300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light
  • 300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light
  • 300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light
  • 300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light
  • 300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light
  • 300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light
300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light

300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light

●   Watt: 200W/ 240W/ 300W

●   Lumens: 36,000/ 40,800/ 48,000

●   Light Source: Lumileds 5050

●   Input Volt: 46-48VDC

●   IP Rating: IP65 - IK08

●   Size: 522*144*67mm

●   Lamp Weight: 2.05kg

●   CCT (Color Temp): 3000-6500K

●   5 years warranty

●   Beam Angle: 10/ 20/ 40/ 60/ 140x100/ 135x60(P50)

Inquire Now Next Product

300W LED Fin Module Light, Waterproof Lumileds 5050 160Lm/W Area Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSM-200W-PLUS

LSM-240W-PLUSLSM-300W-PLUS
Watt200W240W300W
Lumen36,00040,80048,000
Efficiency
180Lm/W±3%170Lm/W±3%160Lm/W±3%
DriverNot included
Input Volt46-48VDC
Chip BrandLumileds 5050/ Osram 5050
CCT4000K,5000k3000-6000k
Weight2.05kg
Size522*144*67mm
PlugM15 Male Plug
IP & IK RatingIP66 & IK10
Life TimeL70/B10 >50,000hours
Warranty5 Years warranty
DimmableDimmable and Non-dimmable
Beam Angle10/ 20/ 40/ 60/ 140*100/ 135*60 degree(P50)
CertificationReach

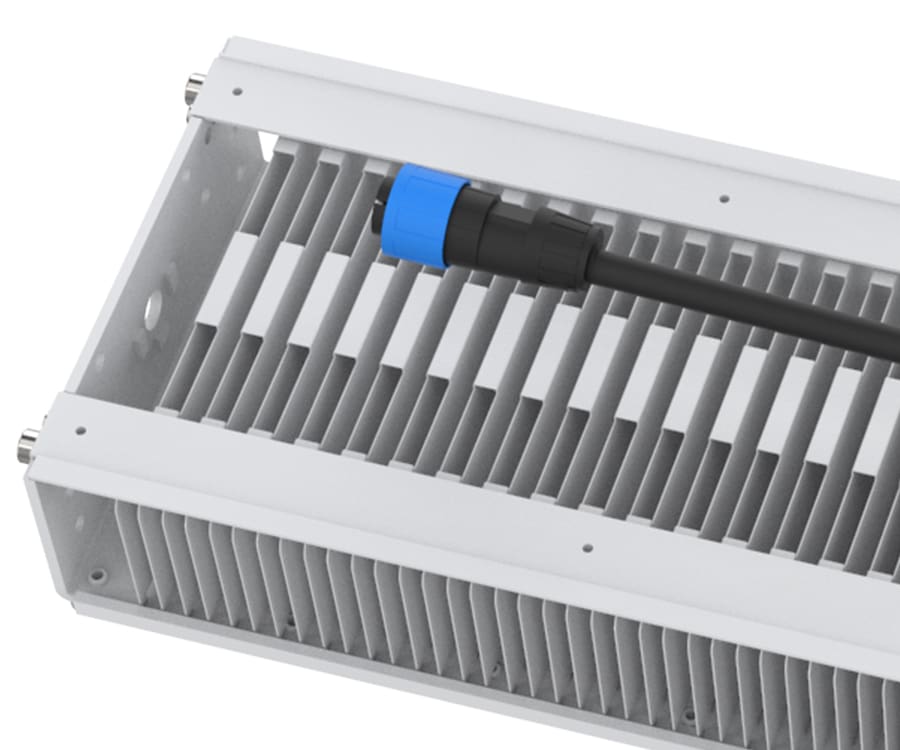

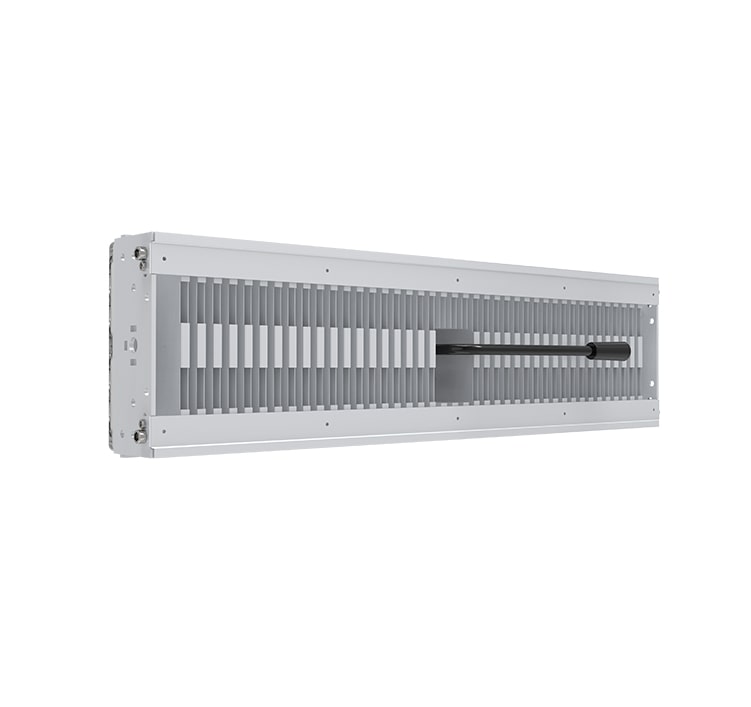

300W LED Fin Module Light

300W slim plus LED Fin Module Light

300W slim plus LED Fin Module Light exploded view

Size

300W LED Fin Module Light size

200W 240W 300W LED Fin Module Light

200W 240W 200W Slim Pro LED Fin Module Light. Folding aluminum fin design which are very light weight ncrease the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air!lt speeds up the spread of heat! Thermal effect is good!

300W LED Fin Module Light features

Product Show

300W LED Fin Module Light show

300W LED Fin Module Light


Photometrics


Certification Testing


Installation


get the latest quotation

Beam Angle

10/ 20/ 40/ 60/ 90 degree/ 30x70/ 140x100/ 135x60 degree(P50).

300W LED Fin Module Light beam angle
