50W Slim ProE LED Module Light, 42-46VDC M15 Waterproof Male Plug Aluminum Fin Moduler Lighting

●   Watt: 50W

●   Lumens: 7,000/ 8,500

●   Light Source: Lumileds 3030

●   Input Volt: 42-46VDC

●   Plug: M15 Male Plug

●   Size: 257*75*37mm

●   Lamp Weight: 0.45kg

●   CCT (Color Temp): 3000-6000K

●   5 years warranty

●   Beam Angle: 15/ 25/ 40/ 60/ 90/ 120/ 30*70/ 49*21/ 136*78

Inquire Now Next Product

50W Slim ProE LED Module Light, 42-46VDC M15 Waterproof Male Plug Aluminum Fin Moduler Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSM-50W-PROE

Watt50W
Lumen7,0008,500
Efficiency
140Lm/W±3%170Lm/W±3%
DriverNot included
Input Volt42-46VDC
Chip BrandLumileds 3030
CCT3000-6000K4000K,5000k
Weight0.5kg
Size257*75*37mm
PlugM15 Male Plug
IP & IK RatingIP65 & IK10
Life TimeL70/B10 >50,000hours
Warranty5 Years warranty
DimmableDimmable and Non-dimmable
Beam Angle15/ 25/ 40/ 60/ 90/ 120/ 30*70/ 49*21/ 136*78 degree
CertificationReach


50W LED Fin Module Light

50W Slim ProE LED Module Light

Size

50W Slim ProE LED Module Light size

Color

Optional gray and black.

optional gray and black

Explosive view

1.Lens

The opticallens is made of PC, and the Transmittance reaches 92%,reducing light loss.maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.


2.Aluminum Heat Sink Hemming Design

The module heat sink adopts the hemming design to prevent the deformation of the heat sink due to crash during the shipment and enhance the flatness and strength of the contact surface of the module heat sink.


3.Pure Aluminum Heat Sink

The modules can be rotated ina chain, which can meet the needs of large area lighting and achieve perfect area lighting.


4.M15 Quick Linker

The cable lenath is exposed 15cm, the default is M15 male plug. it can be customized according to different requirements.

50W Slim ProE LED Module Light explosive view


Photometrics


Certification Testing


Installation


get the latest quotation

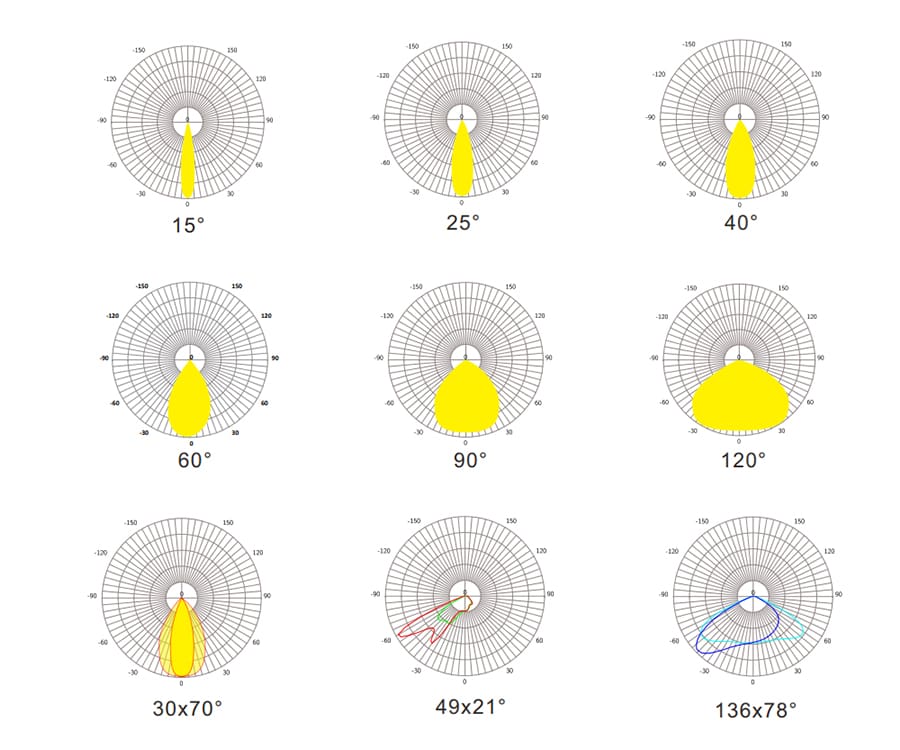

Beam Angle

15/ 25/ 40/ 60/ 90/ 120 degree/ 30*70/ 49*21/ 136*78 degree.

50W Slim ProE LED Module Light, 46-48VDC M15 Waterproof Male Plug Aluminum Fin Moduler Lighting
