600W;
108,000Lm(180Lm/W±3%);
15/ 30/ 60/ 90 degree/ TPII/ TPIII;
Replacement 1200W HPS, MH;
Industry-leading 180LM/W helps you save more energy;
A variety of professional optical lenses, suitable for lighting in various different scenes；
Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion;
Overview
600W LED Stadium Spotlight
Our 600W high power high efficiency LED stadium spotlight is designed to replace 1200W metal halides and HPS sport flood lamps. We have authoritative certifications such as ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test. We specialize in the R&D and manufacturing of LED Sport light to support the illuminating of areas. We have achieved very good results in all kinds of area lighting.
The Ultra series of LED Sport lights are sturdy and durable with integrated aluminum alloy die-casting honeycomb heat dissipation design. And the surface has adopted black sand powder spray treatment, corrosion resistance, oxidation resistance, and salt spray resistance. What's more,it uses the stainless steel bracket and Silicone gaskets, and the screws are made of AISI 304 stainless steel.
Optional Colors
The housing is available in black and silver gray.
Size
Specifications
| Model No. | LSHM‐600W‐LV(XXK)Ultra | LSHM‐600W‐LV(XXK)Ultra |
| Power Consumption | 600W | 600W |
| Light Source | Lumileds 3030 | Lumileds 5050 |
| Luminous Flux(±5%) | 90,000Lm[150(±3%) Lm/W] | 108,000[180(±3%) LM/W] |
| Driver Type | Meanwell 2*ELGC-300-H-A | Meanwell 2*ELGC-300-H-A |
| Luminaire Net Weight | 15.5kg | 15.5kg |
| Correlated Color Temperature | 3000K, 4000K, 5000K, 5700K, 6500K | |
| Color Rendering Index | Ra70 (Ra80, Ra90 optional) | |
| Input Voltage | 100-277 VAC | |
| Power Factor | >0.95 | |
| IP&IK Rating | IP66 / IK08 | |
| Life Time | L70/B10 >50,000hours | |
| Warranty | 5 Years / 7 years extended warranty available | |
| Dimmable | Dimmable and Non-dimmable | |
| Beam Angle | 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree) | |
| Certification | ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test. | |
Why Chooes Ultra 600W LED Stadium Spotlight?
1.High Lumens Efficiency
Standard osram 5050, Lumileds 5050 lamp beads luminous efficiency 180lm/W.
2.Bracket Rotatable
The Product Bracket can rotate more than 270 degree, easy to adjust the best lighting angle.
3.Multi-module splicing
Single module 600w design, simpler structure and easier assembly.

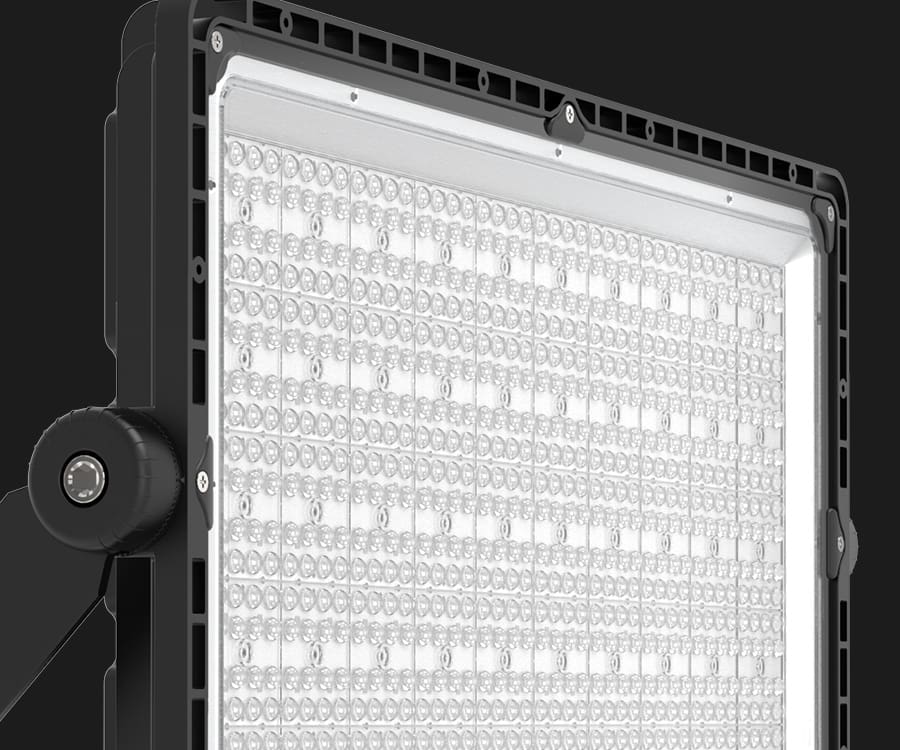

4.Honeycomb heat dissipation design
ADC12 aluminum alloy integrated die-casting, honeycomb heat dissipation design, heat dissipation effect is more.
The unique groove design of the power cover solves the heat dissipation problem of the power supply, reduces the working temperature of the power supply and prolongs the service life of the lamp.

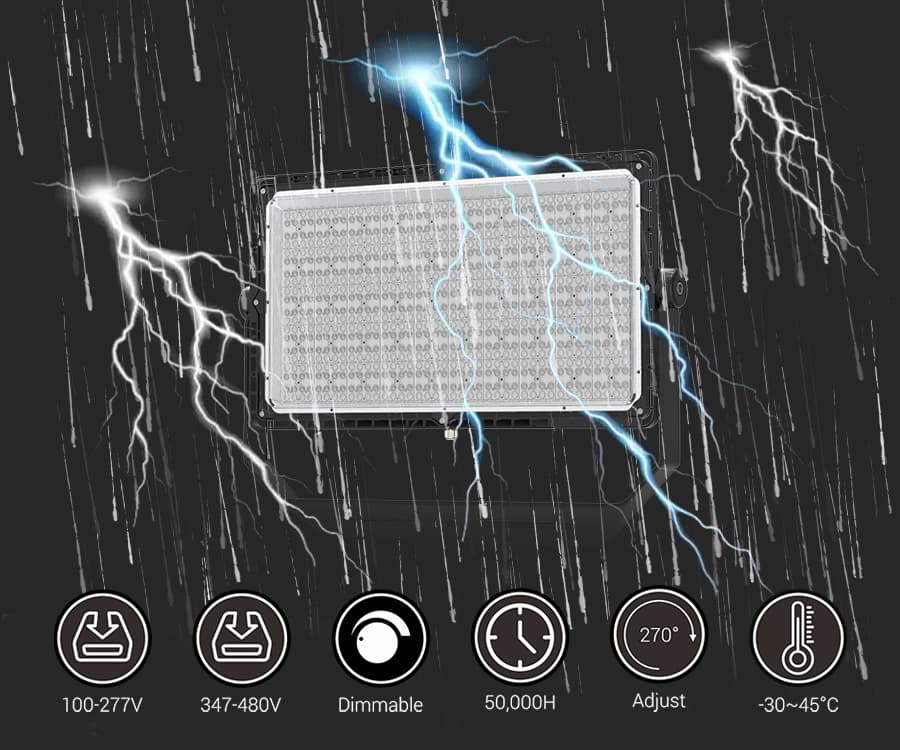

5.Waterproof IP66 & IK08
Waterproof IP66 and IK08 protection, can ensure that the lamp can work normally in bad weather.
Installation
Application
Ideal for outdoor crossroads, squares, docks, ships, ports, construction sites, cranes, tennis courts, basketball courts, football fields, etc.
LED lighting solution customization
Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.
Beam Angle
Optional 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree).
Anti-glare Cover
Optional anti-glare cover
Package details
600W: 70*58*22cm
1pc/ctn, GW: 15.5kg
