Stadium LED Lighting Fixtures - 800W 100-277V IP66 Anti-glare Rotatable Bracket Flood Light

●   Watt: 800W

●   Lumens: 148,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 763*573*151.5mm

●   Lamp Weight: 32kg

●   Optional Colors: Silver Gray, Black

●   CCT (Color Temp): 4000, 5000

●   5 years warranty

●   Beam Angle: 15/ 30/ 60/ 90 degree/ TPII/ TPIII

Inquire Now Next Product

Stadium LED Lighting Fixtures - 800W 100-277V IP66 Anti-glare Rotatable Bracket Flood Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

Model

LSHM‐800W‐LV(XXK)Ultra

Watt800W
Lumen148,000
Efficiency180Lm/W±3%
Driver

Meanwell Driver 4*ELG-240-48A

Input Volt100-277VAC
Chip Brand

Lumileds 5050

CCT4000K, 5000K
Weight32kg
Size
869*678*152mm
Color Rendering IndexRa70 (Ra80, Ra90 optional)
Power Factor>0.95
IP&IK RatingIP66 / IK10
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
DimmableDimmable and Non-dimmable
Beam Angle15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree)
CertificationTUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved

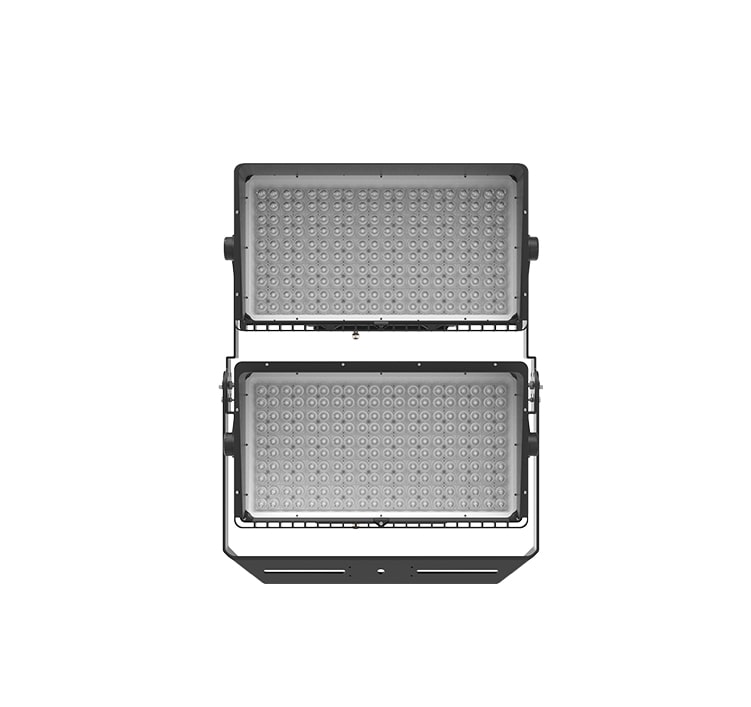

800W LED Stadium Flood Mast Light

Our 800W high power high efficiency LED Stadium flood Light is designed to replace 1800W-2000W metal halides and HPS Stadium flood lamps. We have authoritative certifications such as TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved. We specialize in the R&D and manufacturing of LED Sport light to support the illuminating of areas. We have achieved very good results in all kinds of area lighting.


The Ultra series of LED Sport lights are sturdy and durable with integrated aluminum alloy die-casting honeycomb heat dissipation design. And the surface has adopted black sand powder spray treatment, corrosion resistance, oxidation resistance, and salt spray resistance. What's more,it uses the stainless steel bracket and Silicone gaskets, and the screws are made of AISI 304 stainless steel.


ultra 800w led stadium flood light


Optional Colors

The housing is available in black and silver gray.

Ultra 800w led stadium light color can choose black and silver gray

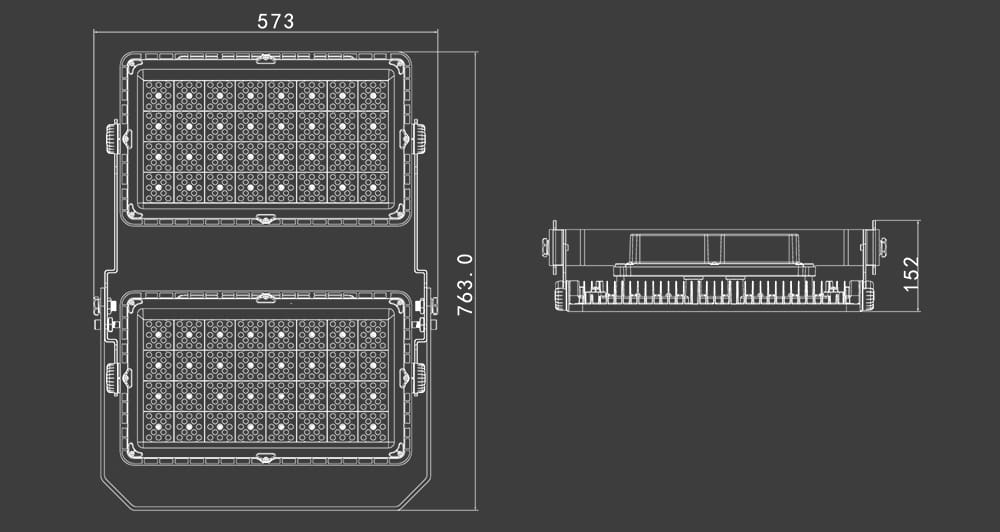

Size

Ultra 800w led stadium light Size parameters

Why Chooes Ultra 960W LED High Mast Light?

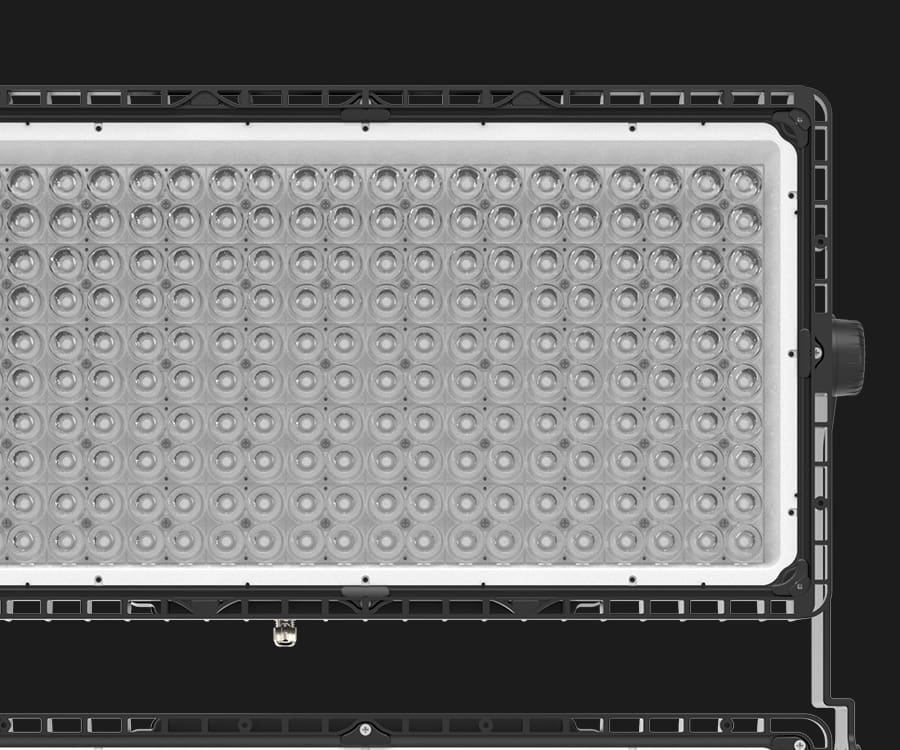

1.High Lumens Efficiency

Standard osram 5050, Lumileds 5050 lamp beads luminous efficiency 190lm/W.


High-efficiency ultra led stadium flood light using osram 5050

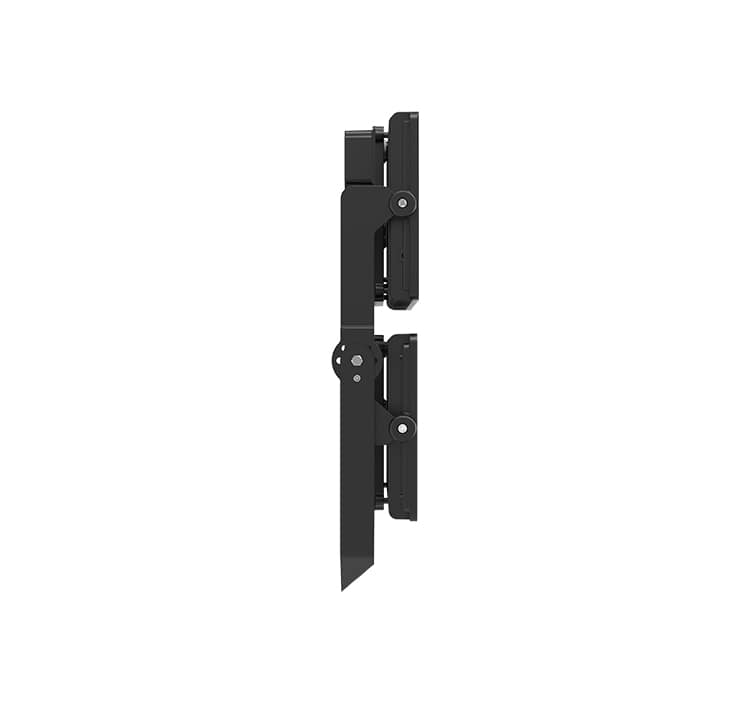

2.Bracket Rotatable

The Product Bracket can rotate more than 270 degree, easy to adjust the best lighting angle.


ultra led stadium flood light with rotatable bracket

bracket rotatable easy to adjust the best lighting angle


3.Multi-module splicing

Single module 400W/ 480w design, simpler structure and easier assembly.


Single module 800W, three modules can be spliced

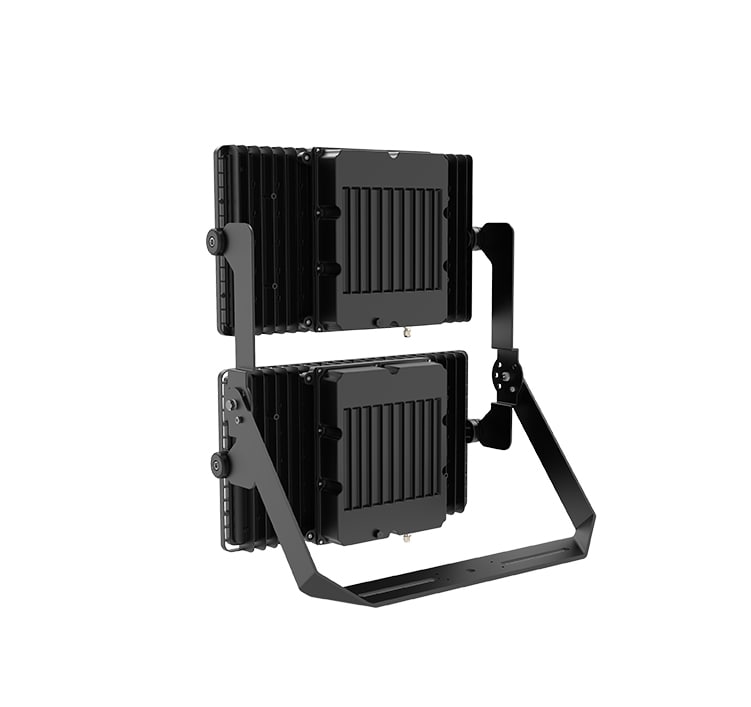

4.Honeycomb heat dissipation design

ADC12 aluminum alloy integrated die-casting, honeycomb heat dissipation design, heat dissipation effect is more.


Ultra led stadium flood light with honeycomb cooling design

The unique groove design of the power cover solves the heat dissipation problem of the power supply, reduces the working temperature of the power supply and prolongs the service life of the lamp.

Unique power slot design


5.Waterproof IP66 & IK08

Waterproof IP66 and IK08 protection, can ensure that the lamp can work normally in bad weather.


Waterproof and impact resistant led stadium floodlight


Application

Ideal for outdoor crossroads, squares, docks, ships, ports, construction sites, cranes, tennis courts, basketball courts, football fields, etc.


Suitable for crossroads, squares, docks, ships, ports, construction sites, cranes, tennis courts, basketball courts, football fields


LED lighting solution customization

Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.

dialux simulation

get the latest quotation

Beam Angle

Optional 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree).

ultra led sport light beam angle

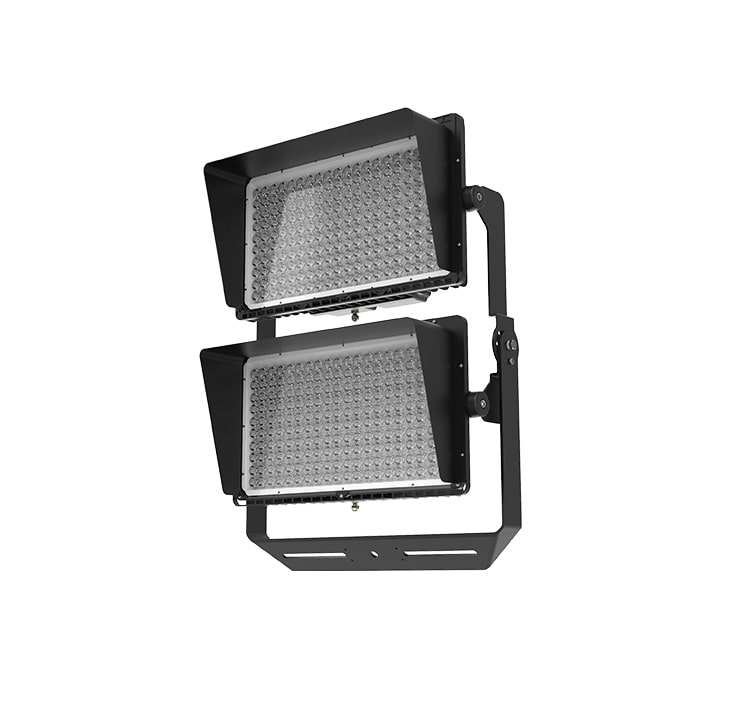

Anti-glare Cover

Optional anti-glare cover

optional anti-glare cover

Package details

800W: 96*75*23cm

1pc/ctn, GW: 34kg

960w led module high mast light packaging
