1440W 190Lm/W LED High Mast Light, Outdoor High Mast Roadway, Stadium, Cranes Lighting

1440W;

273,600Lm(190Lm/W±3%);

15/ 30/ 60/ 90 degree/ TPII/ TPIII;

Replacement 3000W HPS, MH;

Industry-leading 190LM/W helps you save more energy;

A variety of professional optical lenses, suitable for lighting in various different scenes;

Unique quality of light with flickerfree operation suitable for HDTV broadcasting and Super Slow Motion;

Inquire Now Next Product

1440W 190Lm/W LED High Mast Light, Outdoor High Mast Roadway, Stadium, Cranes Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


1440W Ultra Series LED High Mast Lights

Our 1440W high power high efficiency LED High Mast Light is designed to replace 3000W metal halides and HPS high mast flood lamps. We have authoritative certifications such as ETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test. We specialize in the R&D and manufacturing of LED Sport light to support the illuminating of areas. We have achieved very good results in all kinds of area lighting.


The Ultra series of LED High Mast lights are sturdy and durable with integrated aluminum alloy die-casting honeycomb heat dissipation design. And the surface has adopted black sand powder spray treatment, corrosion resistance, oxidation resistance, and salt spray resistance. What's more,it uses the stainless steel bracket and Silicone gaskets, and the screws are made of AISI 304 stainless steel.


1440W ultra series LED High Mast Lights


Optional Colors

The housing is available in black and silver gray.

1440W LED High Mast Lights optional colors

Size

1440W LED High Mast Lights size

Basic parameters

Model No.

LSHM‐1440W‐LV(XXK)Ultra

LSHM‐1440W‐LV(XXK)Ultra
Power Consumption1440W1440W
Light SourceLumileds 3030Lumileds 5050
Luminous Flux(±5%)230,400Lm[160(±3%) Lm/W]273,600[190(±3%) LM/W]
Driver TypeMeanwell 6*ELG-240-48AMeanwell 6*ELG-240-48A
Luminaire Net Weight49kg48kg
Correlated Color Temperature3000K, 4000K, 5000K, 5700K, 6500K
Color Rendering IndexRa70 (Ra80, Ra90 optional)
Input Voltage100-277 VAC
Power Factor>0.95
IP&IK RatingIP66 / IK08
Life TimeL70/B10 >50,000hours
Warranty5 Years / 7 years extended warranty available
DimmableDimmable and Non-dimmable
Beam Angle15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree)
CertificationETL, DLC, TUV, CE, ROSH, CB, SAA, LCP, IP66, IK08, Salt spray test.


Why Chooes Ultra 1440W LED High Mast Light?


1.High Lumens Efficiency

Standard osram 5050, Lumileds 5050 lamp beads luminous efficiency 190lm/W.

high efficiency 190lm/w


1.Bracket Rotatable

The Product Bracket can rotate more than 270 degree, easy to adjust the best lighting angle.


LED High Mast Lights Bracket Rotatable

LED High Mast Lights bracket rotatable easy to adjust the best lighting angle


2.Multi-module splicing

Single module 480w design, simpler structure and easier assembly.


ultra LED High Mast Lights simpler structure and easier assembly


3.Honeycomb heat dissipation design

ADC12 aluminum alloy integrated die-casting, honeycomb heat dissipation design, heat dissipation effect is more.


ultra LED High Mast Lights Honeycomb heat dissipation design

The unique groove design of the power cover solves the heat dissipation problem of the power supply, reduces the working temperature of the power supply and prolongs the service life of the lamp.

Better heat dissipation of power supply

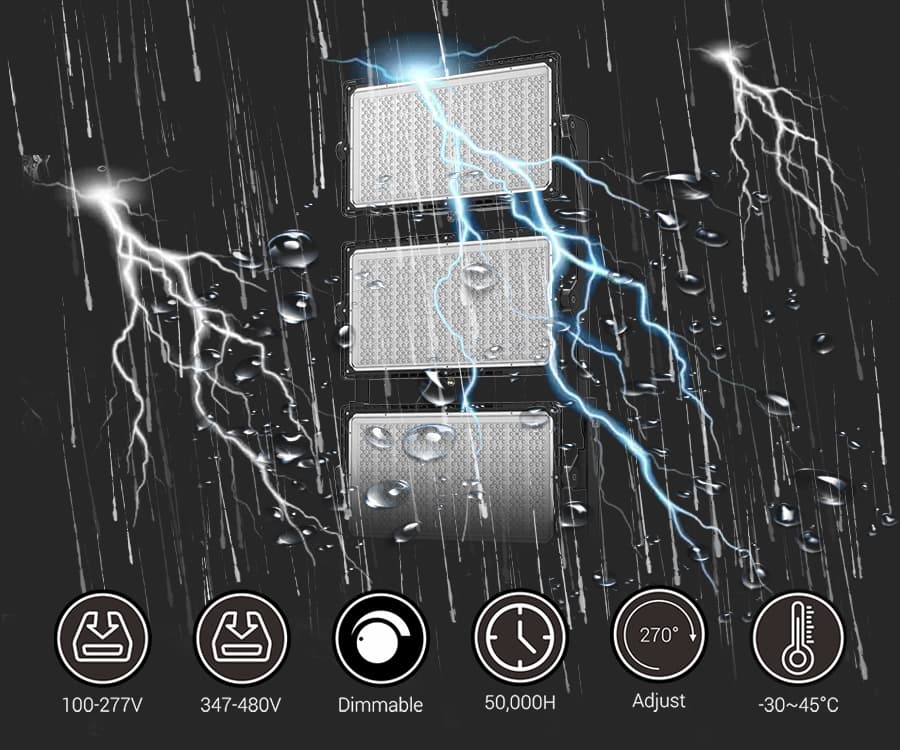

4.Waterproof IP66 & IK08

Waterproof IP66 and IK08 protection, can ensure that the lamp can work normally in bad weather.


ultra LED High Mast Lights waterproof ip66 and ik08


Application

Ideal for outdoor crossroads, squares, docks, ships, ports, construction sites, cranes, tennis courts, basketball courts, football fields, etc.


LED High Mast Lights application


LED lighting solution customization

Our engineers can customize professional DIAlux simulation for your venue for free.You only need to provide relevant site information, and our engineers will choose the best combination of power and beam angle for the LED lights.

dialux simulation

get the latest quotation

Beam Angle

Optional 15/ 30/ 60/ 90 degree/ TPII(137*80 degree)/ TPIII(146*83 degree).

ultra LED High Mast Lights beam angle

Anti-glare Cover

Optional anti-glare cover

LED High Mast Lights optional anti glare cover

Package details

1440W: 138*75*23cm

1pc/ctn, GW: 49kg

1440w led high mast light packing
