LED Sport Lights 240-1800W - Buy High Lumen Sport and Stadium Lighting Fixutres

●   Watt: 240W-1800W

●   Lumen: 39,600-279,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 438*390*281mm (A single module)

●   Weight: 9.5Kg-50kg

●   CCT (Color Temp): 3000,4000,5000,5700

●   5 years warranty

●   Beam Angle: 10/20/40/60/90/135*60(P50)/94*47(TypeIV)/30*70

Inquire Now

LED Sport Lights 240-1800W - Buy High Lumen Sport and Stadium Lighting Fixutres

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

IP RatingIP66
Power Factor>0.95
Frequency50 / 60Hz
Wind rating51.0-56.0m/s
Driver TypeXLG-240-H-A / ELG-240-48A / ELGC-300-H-A
Light SourceLumileds 5050
Input Voltage100-240 VAC / 100-277 VAC
CCT3000K 4000K 5000K 5700K
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
Beam Angle10° 20° 40° 60° 90° 135x60°(P50) 97x47°(TypeIV) 30x70°
CertificationETL DLC ENEC TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved


LED Sport Lights 240-1800W

dragonfly plus led sport light 240-1800w


Dragonfly Plus LED Sport Light Power


240W LED Sport Light Module


Model No.
LSDHM-240W-LVLSDHM-480W-LVLSDHM-720W-LVLSDHM-960W-LVLSDHM-1440W-LV
Power Consumption240W480W720W960W1440W
Luminous Flux(±3%)39,60079,200118,800158,400237,600
Efficacy (5000K, Ra70)165(±3%)LM/W


300W LED Sport Light Module


Model No.
LSDHM-300W-LVLSDHM-600W-LVLSDHM-900W-LVLSDHM-1200W-LVLSDHM-1800W-LV
Power Consumption300W600W900W1200W1800W
Luminous Flux(±3%)46,50093,000139,500186,000279,000
Efficacy (5000K, Ra70)155(±3%)LM/W


Easy combination

dragonfly plus series 240w 300w led sports light easy combination

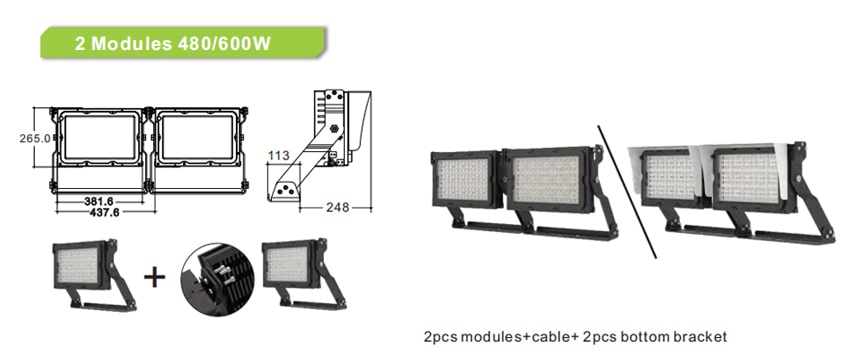

dragonfly plus series 480w 600w led sports light easy combination

dragonfly plus series 480w 600w led sports light easy combination

dragonfly plus series 720w 900w led sports light easy combination

dragonfly plus series 960w 1200w led sports light easy combination

dragonfly plus series 1440w 1800w led sports light easy combination

Dragonfly Plus LED High Mast Light Feature

1.5 years warranty;

2. Wind load: 51.0-56.0m/s;

3. IP66 and IK08 protection rate;

4. High luminaire efficiency up to 160lm/w;

5. Extended cable $1.0/meter (H05RN Rubber cable);

6. Drivers and modules come with female/male connectors;

7. ETL DLC ENEC TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved;


Quick Assembly of Modules

A. 600W is assembled by 2pcs 300W,900W is assembled by 3pcs 300W,1200W is assembled by 4pcs 300W;

B.You can stock plenty of single modules to assemble them into 2 modules,3modules and 4modules like LEGO by using different installation bracket and cable;


dragonfly max led high mast light


To assemble 240W-1800W with 1-6 modules. Modules are packaged separately to reduce shipping costs. AC is connected with M15 waterproof quick connectors. One module can be quickly composed with only 6 screws.

dragonfly plus led sport light quick assembly of modules

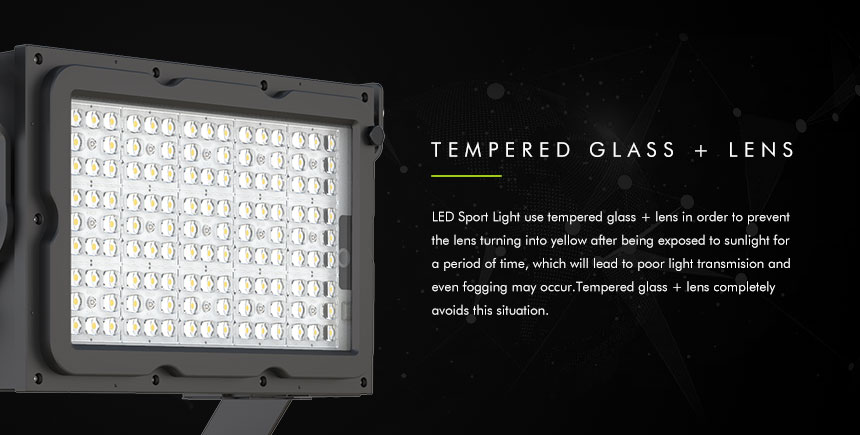

Tempered Glass + Lens

LED Sport Light use tempered glass + lens in order to prevent the lens turning into yellow after being exposed to sunlight for a period of time, which will lead to poor light transmision and even fogging may occur.Tempered glass + lens completely avoids this situation.


dragonfly plus led sport lights with tempered glass and lens


Module Rotatable

1.Marine grade aluminum housing, tempered glass cover and lenses;

2.Modules are 360 degree rotatable, arm comes with scale plate;


dragonfly plus led high mast sport lights moudle rotatable

dragonfly plus series led sport light bottom bracket with curve screw hole,easy adjustment

IP66 Waterproof & IK08

1.hot-dip galvanizing brackets, well protected from salf and acid rain;

2.Folding aluminum fin design which are very light weight;

dragonfly plus 240-1800W led high mast sport lights with ip66 waterproof


Photometrics

The beam angle can be selected from 10, 20, 40, 60, 90 degree, 135x60 degree, (P50)97x47 degree, (TypeIV)30x70 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.


dragonfly plus led sport light optional beam angle


Certification Testing


Optional Installation Method

1.Ceiling Installation 2.Pole Installation 3.Wall Installation 4.Ground Installation


LED sport lights optional installation method


Application

sport field led lighting

sport field led lighting


contact us

Beam Angle

The beam angle can be selected from 10, 20, 40, 60, 90 degree, 135x60 degree, (P50)97x47 degree, (TypeIV)30x70 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.


dragonfly plus led sport light optional beam angle

Accessories

1. Side bracket 2. Bottom bracket 3. Anti-glare cover 4. ELG-240-48A 5. 10KV or 20KV SPD

dragonfly plus led sport light accessories

dragonfly plus led sport light with anti glare cover
