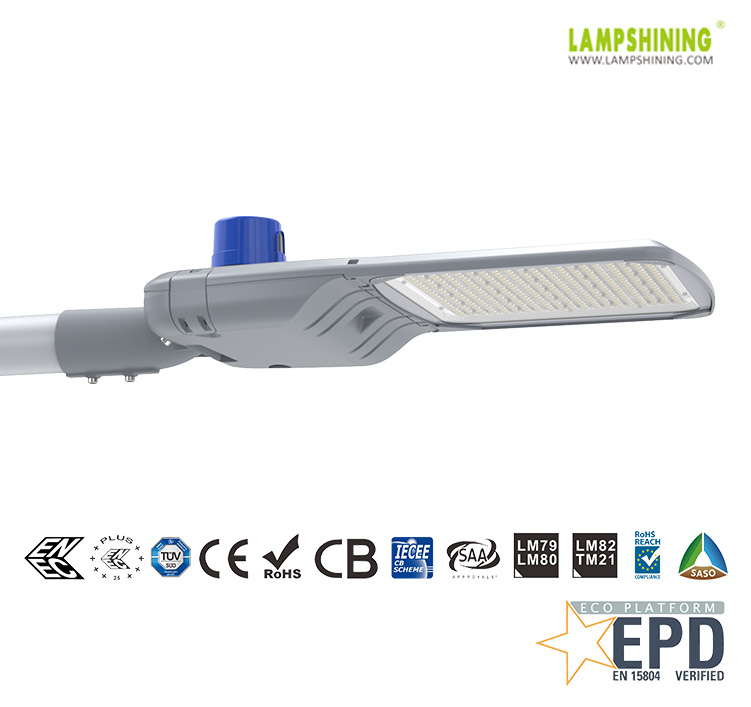

251W to 300W LED Street Light, Area Light, 165Lm/W, 49500LM, IP66 Waterproof

251W to 300W Pluto Series LED Street Lights  Street & Roadway Lighting

●   Watt: 251W to 300W

●   Efficiency: 150~180Lm/w

●   Light Source: SMD 5050

●   Input Volt: 200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )

●   IP Rating:IP66 and IK08/IK10 protection rate

●   Arm Dia: 48/ 60mm

●   CCT (Color Temp): 3000~6000K

●   5 years warranty

●   Beam Angle: TypeII TypeIII TypeIV

●   ENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Inquire Now Next Product

251W to 300W LED Street Light, Area Light, 165Lm/W, 49500LM, IP66 Waterproof

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSPSL-300W -LV(XXK)
Watt300W
Lumen45000Lm
Efficiency150Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Surge protection10KV
Size715*340*98mm
Beam AngleTYPE II-M,TYPE III-M,TYPE IV-M,TYPE II-S,TYPE III-S,TYPE IV-S
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Model

LSPSL-300W -LV(XXK)
Watt300W
Lumen49500Lm
Efficiency165Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Surge protection10KV
Beam AngleType II, Type III, Type IV
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available

Model

LSPSL-300W -LV(XXK)
Watt300W
Lumen54000Lm
Efficiency180Lm/W±3%
Input Volt200-240Vac (Class I & Class II & Dali & D4I input),Opitonal 120-277Vac (Class I )
Chip BrandSMD 5050
CCT3000-6000K
DriverSosen & Moso
Functional ControlsClass I Class II  Zhaga  D4i
Switch cutoffincluded
IP & IK RatingIP66 and IK08/IK10 protection rate
Arm Dia60mm/ 48mm
L90B10 Lifespan >100,000hrs (L90B10 )
Surge protection10KV
Beam AngleType II, Type III, Type IV
CertificationsENEC ENEC+ ZD4I TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 ISTMT TM21 IK08 IK10 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH L90B10 >100.000hrs ,EPD Available
ModelWattModelWattModelWatt
LSPSL-251W-LV(XXK)251WLSPSL-276W-LV(XXK)276W

LSPSL-252W-LV(XXK)252WLSPSL-277W-LV(XXK)277W

LSPSL-253W-LV(XXK)253WLSPSL-278W-LV(XXK)278W

LSPSL-254W-LV(XXK)254WLSPSL-279W-LV(XXK)279W

LSPSL-255W-LV(XXK)255WLSPSL-280W-LV(XXK)280W

LSPSL-256W-LV(XXK)256WLSPSL-281W-LV(XXK)281W

LSPSL-257W-LV(XXK)257WLSPSL-282W-LV(XXK)282W

LSPSL-258W-LV(XXK)258WLSPSL-283W-LV(XXK)283W

LSPSL-259W-LV(XXK)259WLSPSL-284W-LV(XXK)284W

LSPSL-260W-LV(XXK)260WLSPSL-285W-LV(XXK)285W

LSPSL-261W-LV(XXK)261WLSPSL-286W-LV(XXK)286W

LSPSL-262W-LV(XXK)262WLSPSL-287W-LV(XXK)287W

LSPSL-263W-LV(XXK)263WLSPSL-288W-LV(XXK)288W

LSPSL-264W-LV(XXK)264WLSPSL-289W-LV(XXK)289W

LSPSL-265W-LV(XXK)265WLSPSL-290W-LV(XXK)290W

LSPSL-266W-LV(XXK)266WLSPSL-291W-LV(XXK)291W

LSPSL-267W-LV(XXK)267WLSPSL-292W-LV(XXK)292W

LSPSL-268W-LV(XXK)268WLSPSL-293W-LV(XXK)293W

LSPSL-269W-LV(XXK)269WLSPSL-294W-LV(XXK)294W

LSPSL-270W-LV(XXK)270WLSPSL-295W-LV(XXK)295W

LSPSL-271W-LV(XXK)271WLSPSL-296W-LV(XXK)296W

LSPSL-272W-LV(XXK)272WLSPSL-297W-LV(XXK)297W

LSPSL-273W-LV(XXK)273WLSPSL-298W-LV(XXK)298W

LSPSL-274W-LV(XXK)274WLSPSL-299W-LV(XXK)299W

LSPSL-275W-LV(XXK)275WLSPSL-300W-LV(XXK)300W


Streamlined Pluto LED Street Lights 251W to 300W

Streamlined Pluto LED Street Lights 251W to 300W

Streamlined Pluto LED Street light is a perfect Outdoor lighting solution for secondary roads, parks gardens and pathways.

251W to 300W

150Lm/W 165Lm/W 180Lm/W

2200K~ 6500K

Lifespan (L90B10 >100,000hrs)

ENEC+ ENEC EPD TUV CE CB IECEE SAA RoHS LM79 LM80 LM82 TM21 Salt Spray test 3G Vibration Photobiosafety test,sand test,UV test,REACH

High brightness

High brightness

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 130-165Lm/W!

SMD 5050

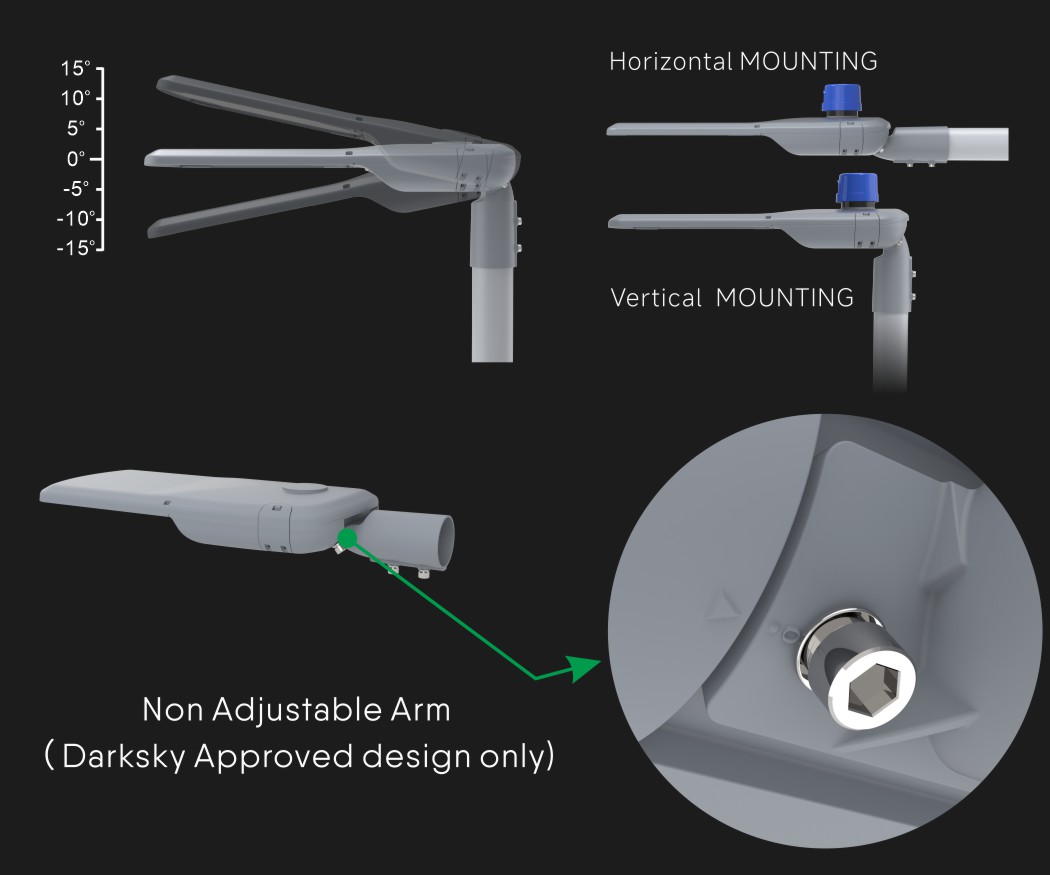

Adjustable angle

Adjustable angle

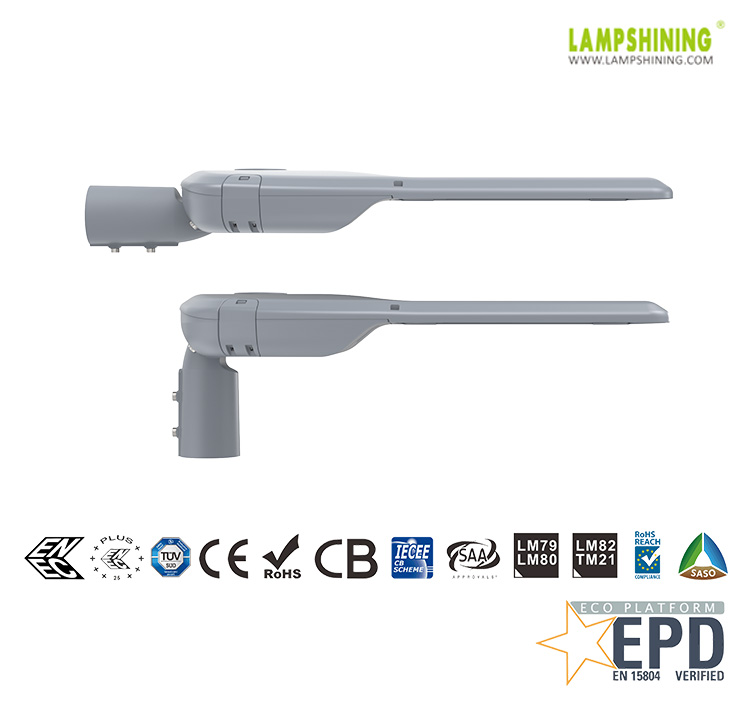

Streamlined Pluto LED Street Light You can select Vertical / Horizontal installation to support 42mm / 60mm / 78mm mounting holes. And the luminaire can be rotated ± 15degree, which can better obtain the best illuminance.

±15 degree

Waterproof & Lightning Protection

Waterproof & Lightning Protection

The lamps have passed the waterproof IP66 and anti-impact IK08 tests, and are equipped with 10-15KV lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.

IP66

10KV(Optional 20KV)



Class I  Class II  Zhaga  D4i

Class I Class II Zhaga D4i

In order to ensure the normal and stable operation of the lamps and reduce faults and insufficient light, the power supply of the lamps is very important. The lamps can choose Class I , Class II ,Zhaga , D4i.Which can be very stable and safe to continuously output constant power.

Class I

Class II

Zhaga

D4i

DALI

Heat Dissipation

Heat Dissipation

Streamlined Pluto LED Street Light adopts ADC12 aluminum alloy integrated die-casting heat dissipation design, which dissipates heat better and does not accumulate dust. Also passed Salt Spray test, 3G Vibration Photobiosafety test, sand test, UV test, REACH test.

ADC12 aluminum alloy integrated die-casting heat dissipation

Tool Free Opening

Tool Free Opening

Easy Access to Internal Components (Tool-Free Opening). The lamps use a separable structure that makes transportation packaging and installation easier.

Tool Free

Optional Features

Optional Features

Photocell, Dimmable 1-10v 0-10v, DALI Dimmable, Zhaga Socket, Microwave Sensor, PIR Sensor

Photocell

Dimmable 1-10v/ 0-10v

DALI Dimmable

Zhaga Socket

Microwave Sensor

PIR Sensor

Other Watt

Streamlined Pluto LED Street Light is available in wattage from 10W to 300W, which is the best choice to replace the existing MH/HID street lights of  50W-600W.

Beam Anlge

Beam Anlge

The beam angle can be selected from TypeII, TypeIII, TypeIV. Professional light distribution angle can better achieve uniform and efficient lighting effect.

TypeII

TypeIII

TypeIV

Application

Main roads, secondary roads, branch roads, expressways, overpasses, urban roads, overpasses, schools, residential areas, industrial areas, parks, city squares, courtyards, etc.

street lighting application

street lighting application

street lighting application

Accessories

Photocell

(On at Dusk and Off at Dawn)

Dusk to Dawn photocell

NEMA 7pins+Short cap

(0-10V NEMA Dimming)

NEMA 7pins+Short cap
Optional Plug wires and Extended wires Optional Plug wires and Extended wires
10KA Surge Protection Device10KA Surge Protection Device

Moounting

(42mm/ 60mm/ 72mm)

Moounting

Packaging size

WattSizeWeight
251W to 300W1pc/ 75*37*16cm12.3Kg
