200W 32000Lm Saturn LED Street light | Outdoor Dusk to Dawn Factory Area, Lighting

●   Watt: 200W

●   Lumens: 25,000/ 28,000/ 32,000

●   Light Source: Lumileds 3030/ 5050

●   Input Volt: 100-240VAC

●   IP Rating: IP66 - IK10

●   Arm Dia: 42/ 60mm

●   Size: 549*280*92mm

●   Lamp Weight: 5.6kg

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: TypeII, TypeIII

Inquire Now Next Product

200W 32000Lm Saturn LED Street light | Outdoor Dusk to Dawn Factory Area, Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSSSL-200W(XXK)
Watt200W
Lumen25,00028,00032,000
Efficiency125Lm/W±3%140Lm/W±3%160Lm/W±3%
Chip BrandLumileds 3030Lumields 5050
Input Volt100-240VAC
DriverSosen Driver SS-200GA-56
CCT4000K-6000K
Arm Dia42/ 60mm
Size549*280*92mm
Weight5.6kg
HousingWhite/ Grey/ Black
Beam Angle
TypeII, Type III
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved
ModelLSSSL-200W(XXK)
Watt200W
Lumen28,000
Efficiency140Lm/W±3%
Chip BrandLumileds 3030
Input Volt100-240VAC
DriverSosen Driver SS-200GA-56
CCT4000K-6000K
Arm Dia42/ 60mm
Size549*280*92mm
Weight5.6kg
HousingWhite/ Grey/ Black
Beam Angle
TypeII, Type III
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved
ModelLSSSL-200W(XXK)
Watt200W
Lumen32,000
Efficiency160Lm/W±3%
Chip BrandLumields 5050
Input Volt100-240VAC
DriverSosen Driver SS-200GA-56
CCT4000K-6000K
Arm Dia42/ 60mm
Size549*280*92mm
Weight5.6kg
HousingWhite/ Grey/ Black
Beam Angle
TypeII, Type III
CertificationTUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

Saturn LED Street Lights 200W

Saturn LED Street Lights 200W

Saturn LED Street light is a perfect Outdoor lighting solution for secondary roads, parks gardens and pathways.

200W

125-160Lm/W

4000K-6000K

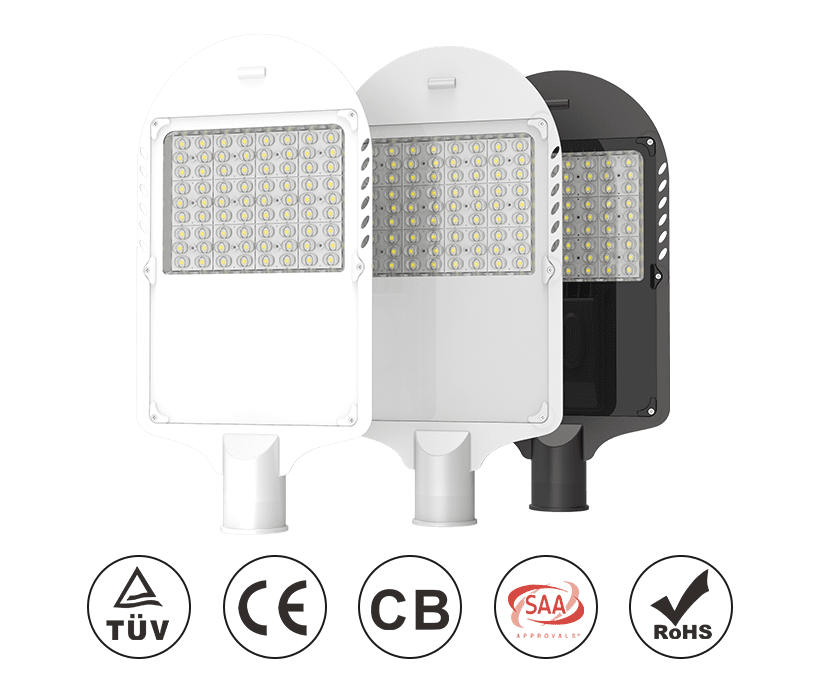

TUV CE CB SAA RoHS

LM79 LM80 TM21

IK08 Salt Spray test approved

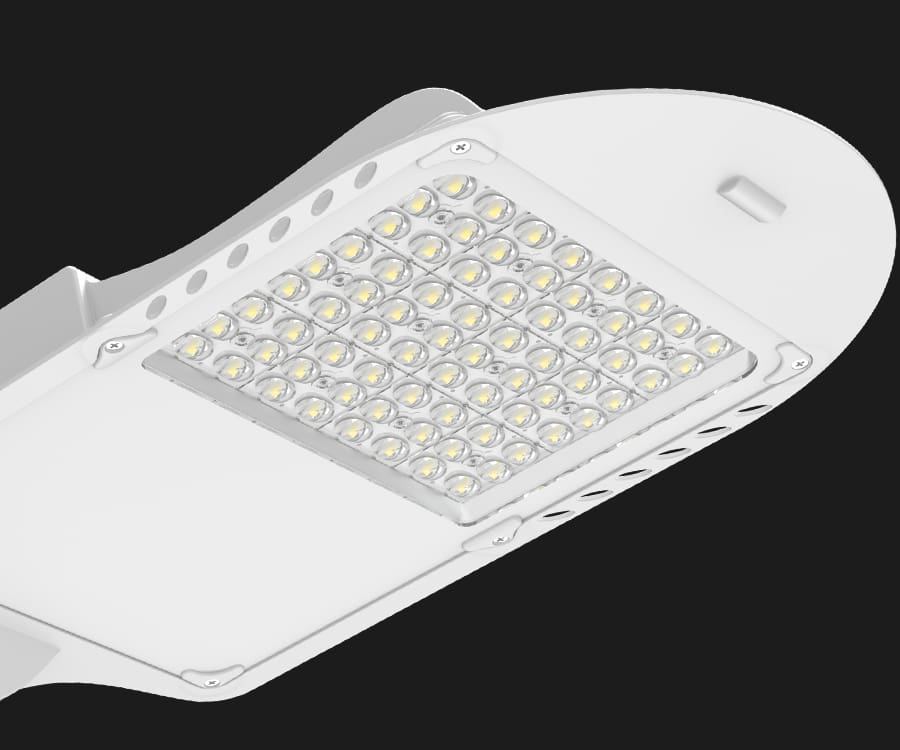

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 125-160Lm/W!

Lumileds 3030

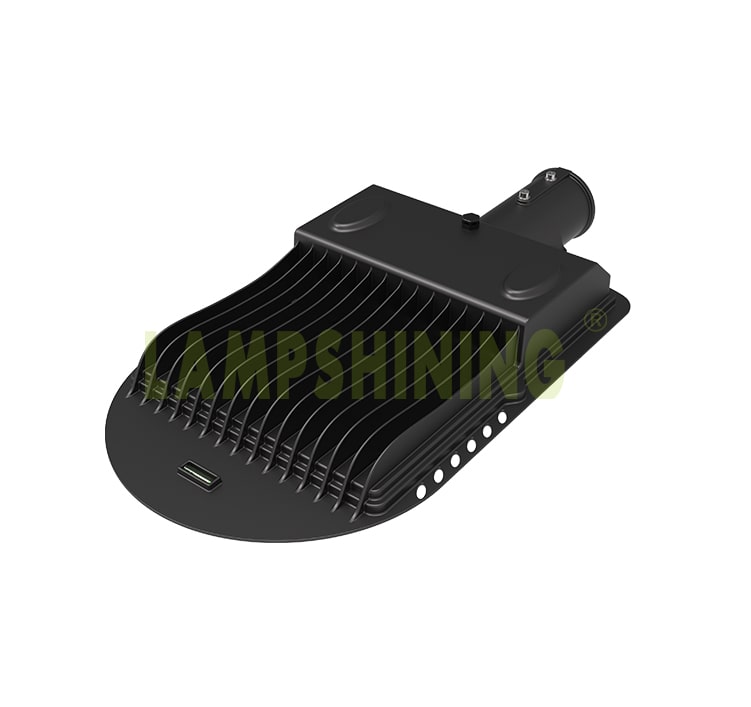

Die-casting heat dissipation

Die-casting heat dissipation

ADC12 aluminum alloy integrated die-casting heat dissipation design, larger heat dissipation area and better heat dissipation effect

Die-casting heat dissipation

IP66 Waterproof & Lightning Protection

IP66 Waterproof & Lightning Protection

The lamps have passed the waterproof IP66 and anti-impact IK10 tests, and are equipped with 10KA lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.

IP66

IK10

10KA

Self-cleaning

Self-cleaning

The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixtures performance and lifespan.


The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface,which is good for the lamp fixture heat dissipation when all the dust is gone away.

Self-cleaning

Horizontal installation

Horizontal installation

The level instrument accurates the installation of lamps in a minute.

Horizontal installation

Installation Hole

Installation Hole

Saturn LED Street light can choose 60mm/42mm pole mounting holes.

60mm

42mm

Photocell

Photocell

Option to install various sensors and realize intelligent lighting

Photocell sensor

NEMA 5pins

NEMA 7pins

NEMA short cap

10KV SPD

Accessorries

2 Lights AdaptorConer bracket

L bracket for 60mm ole post top

Corner Adaptor

Wall Mount Bracket adaptor for dia 60mm spigot

Rotatable adaptor(dia 60mm to dia60mm) (dia 60mm to dia76mm)

2 Lights AdaptorConer bracket

L bracket for 60mm ole post top

Corner Adaptor

Wall Mount Bracket adaptor for dia 60mm spigot

Rotatable adaptor(dia 60mm to dia60mm) (dia 60mm to dia76mm)

Beam angle

Beam angle

The beam angle can be selected from Type2 M, Type3 M. Professional light distribution angle can better achieve uniform and efficient lighting effect.

Type2 M

Type3 M

Other Watt

Saturn LED Street Light is available in wattage from 20W to 200W, which is the best choice to replace the existing MH/HID street lights of 50W-500W

Application

Main roads, secondary roads, branch roads, expressways, overpasses, urban roads, overpasses, schools, residential areas, industrial areas, parks, city squares, courtyards, etc.

street lighting application

street lighting application

street lighting application

Accessorries

L bracket for 60mm pole post topConer bracketWall mount adaptor for dia. 60mm spigot
adaptor for 2 street light (both dia 60mm)

Rotatable adaptor (dia 60mm to dia60mm)

(dia 60mm to dia76mm)

led street light accessory L bracket for 60mm pole post topled street light accessory Coner bracketled street light accessory Wall mount adaptor for dia 60mm spigotled street light accessory adaptor for 2 street light (both dia 60mm)led street light accessory Rotatable adaptor (dia 60mm to dia60mm)(dia 60mm to dia76mm)

Photocell sensorNEMA 5pinsNEMA 7pinsNEMA short cap10KV SPD
led street light accessory Photocell sensorled street light accessory nema 5pinsled street light accessory nema 7pinsled street light accessory nema short capled street light accessory 10KV SPD


WattSize
200W1pc/ 547*240*82mm


Saturn 200w LED Street Light size
