100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell
  • 100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell
  • 100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell
  • 100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell
  • 100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell
  • 100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell
100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell

100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell

●   Watt: 100W

●   Lumens: 11,000

●   Light Source: Lumileds 3030

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK10

●   Size: 675*280mm

●   Arm Diameter: 2'' & 3''

●   Lamp Weight: 5.3kg

●   CCT (Color Temp): 3000,4000,5000,5700k

●   5 years warranty

●   Beam Angle: 90/ 120 degree

Inquire Now Next Product

100W LED Post Top Light Fixture 11,000Lm outdoor Park Pathway Pole Garden Lights Photocell

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSPT-100W(XXK)
Watt100W
Lumen11,000
Efficiency110Lm/W±3%
Input Volt100-277VAC
LED BrandLumileds 3030
DriverMeanwell XLG-100-H-A
IP & IK RatingIP65* IK10
Beam Angle90/ 120 degree
Arm Diameter2"& 3"
IP RatingIP65
Color Temp3000K,4000K,5000K,5700K
Heat dissipationAluminum heat dissipation system
LifetimeRated Life of 50,000 Hours
Dimension675*280mm
CertificationETL cETL DLC TUV CE SAA CB RoHS


100W LED Post Top Light

LED Post Top Light Fixtures 60w 100w


Size

LED Post Top Light Fixtures 60w 100w size.jpg


Features and benefits

1.5 year warranty

2.No camera flickering

3.Photocell sensor available

4.Available in tempered glass or LENS

5.Long life span and less brightness degradation

6.Efficiency of power supply is more than 90%

7.NO UV and near-IR radiation in the light beam


Certification

The 100W LED Post Top Light has passed DLC, ETL, TUV, SAA, CE, IECEE, CB RoHS certification.


fence post top led lights passed DLC ETL TUV SAA CE IECEE CB RoHS certification

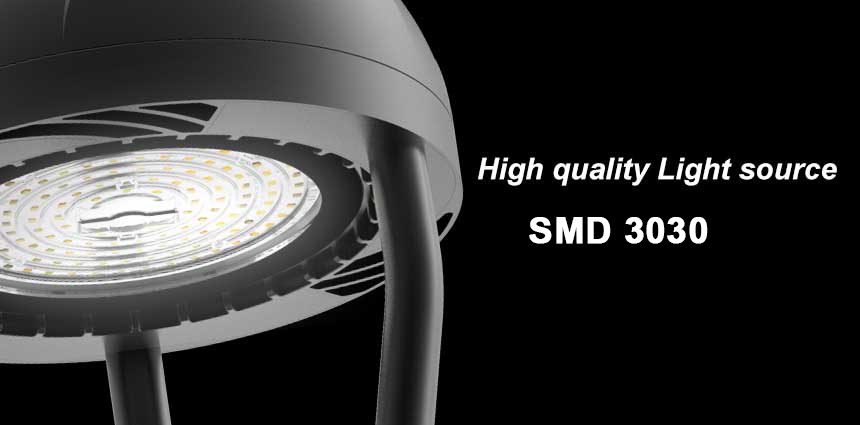

Light source

The 100W LED Post Top Light uses High quality Philips SMD 3030 Light source.


100w led post top retrofit light uses philips smd 3030 light source


Waterproof IP65

1.Anti-dust design, able to be with flushable cleaning

2.IP65(TUV report available)

3.Can't be immersed into the water


100w led top post light with waterproof ip65


IK10

IK10: blow with a baseball bat, projectiles, kicks.


post top street light led retrofit kit IK10 protection


Application

LED Post Top Light Fixtures application.jpg

LED Post Top Light Fixtures application.jpg

Ordering Guide

100w LED Lamp Post Fixtures


If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.


contact us


Package


Package details

(Packed in accessorries)

60W-100W: 1pc/ 66 x 36 x 21cm   GW: 5.3Kg

20ft container: 560pcs  40ft container: 1120pcs


Package details

(Packed in finished unit)

60W-100W: 1pc/ 75X36X36cm   GW: 5.3Kg

20ft container: 280pcs  40ft container: 580pcs
