18,000-54,000 Lumen (180Lm/W);
Equivalent 200-1000W HPS / MH;
20, 40, 60, 90, 97*47(Type 4), 135*60(P50);
ETL DLC ENEC TUV CB SAA LM79 LM80 IK08 Salt spray Certification;
Linkable Floodlight means that a single generator can be used to light these lights;
Buckle design,tool free open and maintanance;
Lightweight ultra-thin design, light weight, easy to transport and install;
LSNFL-100W(XXK) / LSNFL-150W(XXK) / LSNFL-200W(XXK) / LSNFL-240W(XXK) / LSNFL-300W(XXK)
|Watt||100W 150W 200W 240W 300W|
|Lumen||18000-54000 Lumens (180Lm/W±3%)|
|LED Brand||Lumileds 5050|
|Driver||XLG-100-H-A / SS-100GA-56|
|IP & IK||IP66 & IK08|
|Color Temp||3000K, 4000K, 5000K, 5700K, 6000K, 6500K|
|Optional Beam Angle||20, 40, 60, 90, 97*47 degree(Type 4), 135*60 degree(P50);|
|Number of lamp beads||72|
|Light source||Philips 5050|
|Certifications||ETL DLC ENEC TUV CB SAA LM79 LM80 IK08 Salt spray|
110V 220V Linkable LED Flood Light Fixtures
Linkable LED Flood Light are all large-scale projects. , Railroad tracks, construction sites, etc. provide high-quality LED temporary lighting to help better complete the work.
Many outdoor projects have a large span. In areas of 500 meters or more, this Linakble LED Flood Light uses only 30% of the power used by fluorescent lights or metal halides, which means it is lighter and more mobile. Good convenience.
Not only that, with a service life of 50,000 hours, higher quality light, and a 5-year warranty, you no longer need to replace the lamps every one or two years. Choosing our Linkable NEMO LED Flood Light is the most economical and effective lighting option for outdoor projects.
1. It can be connected with male and female butt joints, which is more convenient and quick to install;
2.Cable length can be customized according to actual requirements;
3.The end can be covered with waterproof caps instead of using the wiring connector;
1.Ultra high efficiency 180Lm/W LED lights;
2.Can be linked for outdoor temporary work;
3.Lightweight and stackable;
4.Can be wall-mounted, mast-mounted;
6.Optional 3000K-4000k color temperature;
7.ETL DLC ENEC TUV CB SAA LM79 LM80 IK08 Salt spray certification;

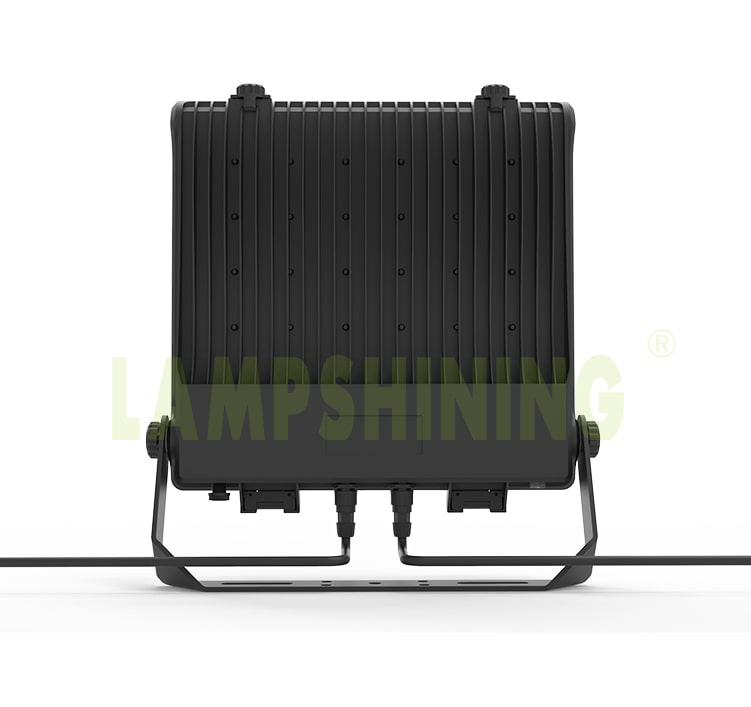

The bracket of this linkable LED Flood Light supports a rotation of 180 degrees, and you can rotate to achieve your satisfactory illumination angle. And the operation is simple, you only need to turn his fixed knob by hand to start adjusting the angle.
Optional Wall installation, Ground installation, Pole installation methods;
1. Portable floodlighting 2.linkable floodlighting 3.Temporary railway lighting
Beam angle application
The advantage of Polarized illumination angle is anti-glare, which does not shine on the athlete's eyes when playing, which makes the sports experience and training effect better. Optional 20, 40, 60, 90, 97*47(Type 4), 135*60(P50).
|Slip Fitter||Photocell sensor||1-10V Dimmable|
|SPD 10KV or 20KV||NEMA 3pin Photocell||Shorting Cap|
Optional plug wires and Extended wires
1. Please make sure that all wires are connected correctly when you are installing it.
2.Optional plug wires and Extended wires.
Carton size: 55*43*17cm GW: 6.5Kg
