1000W ProX LED High Mast Lights LED Stadium Flood Lights LED Sports Lighting,Sports lighting for live broadcasting and TV coverage

  • High luminaire efficiency up to 200Lm/w

  • Marine grade aluminum housing

  • IP66 and IK10 protection rate

  • Comes with DMX and Dali function,remote driver box available

  • Folding aluminum fin design which is very light weight

  • 5mm thickness turnnion bracket

  • Both single module and full lamp are rotatable

  • Power supply is mounted away from heat sink which ensures great lifespan of the power supply

  • Asymmetrical P50-L & P60 optics produce very low Glare Rating, GR<45,lights were forwarded further away which produces a higher uniformity up to 0.8

  • 5 years warranty


Inquire Now Next Product

1000W ProX LED High Mast Lights LED Stadium Flood Lights LED Sports Lighting,Sports lighting for live broadcasting and TV coverage

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSHM-1000W-LV(XXK)ProX
Watt1000W
Chip BrandLumileds 5050
Lumen160,000Lm
Efficiency  160Lm/w±3%
P50 Lumen Efficiency (Asymmetrical)150Lm/w±3%
Driver

Moso Driver

Gross Weight20.5kg
Input Volt198~440Vac 50/60Hz
Power Factor>0.9
CRIRa80
FuctionDali2.0 & DMX
SPD10KV

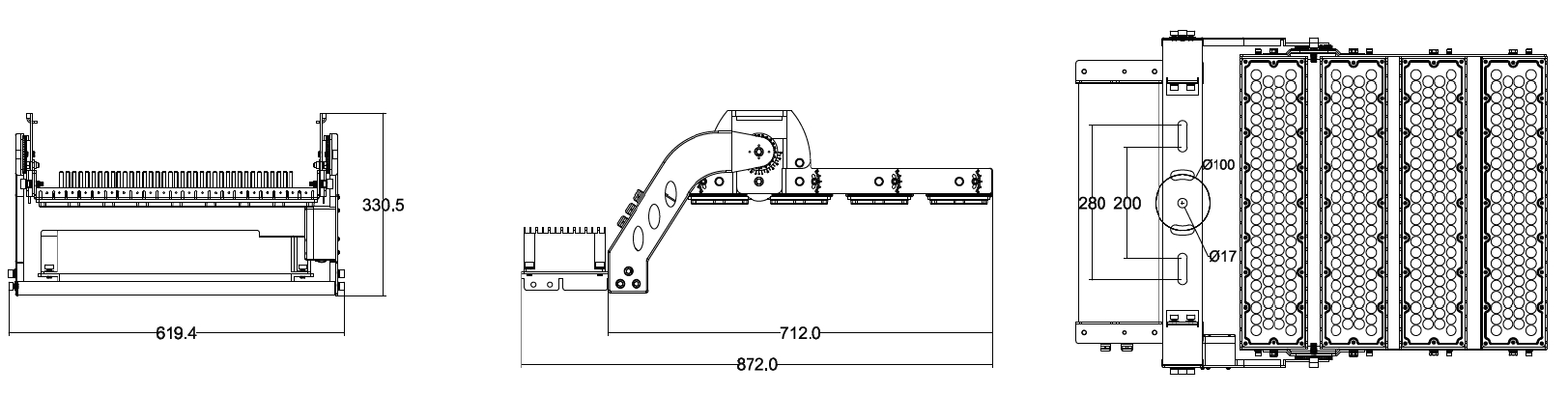

Size619*872*330MM
ModulesRotatable 88°
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10° 20° 40°  60°  90°
Beam Angle(Asymmetrical)P50
CertificationsENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / TM21/ IK10 / Salt Spray
Warranty5 Years


Model

LSHM-1000W-LV(XXK)ProX
Watt1000W
Chip BrandLumileds 5050
Lumen175,000Lm
Efficiency  175Lm/w±3%
P50 Lumen Efficiency (Asymmetrical)162Lm/w±3%
P60-L Lumen Efficiency (Asymmetrical)140Lm/w±3%
Driver

Moso Driver

Gross Weight20.5kg
Input Volt198~440Vac 50/60Hz
Power Factor>0.9
CRIRa80
FuctionDali2.0 & DMX
SPD10KV
Size619*872*330MM
ModulesRotatable 88°
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10° 20° 40°  60°  90°
Beam Angle(Asymmetrical)P50  P60-L
CertificationsENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / TM21/ IK10 / Salt Spray
Warranty5 Years


Model

LSHM-1000W-LV(XXK)ProX
Watt1000W
Chip BrandLumileds 5050
Lumen190,000Lm
Efficiency  190Lm/w±5%
Driver

Moso Driver

Gross Weight20.5kg
Input Volt198~440Vac 50/60Hz
Power Factor>0.9
CRIRa80
FuctionDali2.0 & DMX
SPD10KV
Size619*872*330MM
ModulesRotatable 88°
CCT3000K~6000K
IP RatingIP66
IK RatingIK10
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)25° 40°  60°
CertificationsENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / TM21/ IK10 / Salt Spray
Warranty5 Years


1000W ProX LED High Mast Lights LED Stadium Flood Lights

1000W ProX LED High Mast Lights LED Stadium Flood Lights

HIgh power 1000W LED Stadium Lights and LED Sports Lights in the PROX series are designed to provide high power and high efficiency with low glare and uniformity, while minimizing light pollution. These lights feature a polarized light design with asymmetrical optic lenses that distribute light asymmetrically, focusing more light in one direction than another, which can be useful for illuminating specific areas without creating excess glare or light pollution.


The no overflow upward lights feature ensures that there is no direct uplighting, eliminating any spill light or glare from the stadium lighting. This helps to minimize light pollution and create a more comfortable environment for players and spectators.


The uniform illumination provided by the LED Stadium Lights and LED Sports Lights ensures that there are no dark spots or uneven lighting, creating a safe and enjoyable environment for players and spectators. The high power and high efficiency of these lights mean that they can provide excellent illumination while minimizing energy consumption, resulting in significant cost savings over time.


The combination of high power, high efficiency, low glare, and uniformity in the 1440W LED Stadium Lights and LED Sports Lights in the PROX series make them an excellent choice for sports stadiums and other large outdoor areas where efficient, effective, and environmentally-friendly lighting is needed. The no overflow upward lights feature ensures that there is no light pollution to the sky or surrounding areas, making these lights an excellent choice for environmentally-conscious organizations.


NO overflow upward lights

NO light pollution to sky

NO light pollution

Low Glare Rating GR<45

Higher uniformity up to 0.8

PROX LED Stadium Flood Lights are an excellent choice for outdoor areas where durable and reliable lighting is needed.

PROX LED Stadium Flood Lights are an excellent choice for outdoor areas where durable and reliable lighting is needed.

The 600W 720W PROX LED High Mast Lights are designed to withstand harsh outdoor conditions while providing excellent illumination for large areas. These lights feature a low wind resistance design, ensuring that they can withstand strong winds and other adverse weather conditions.


The turnnion bracket of the 600W 720W PROX LED High Mast Lights is made from 5mm thick material, which provides super toughness and ensures that the lights remain securely mounted even in high wind conditions. This bracket is designed to minimize vibrations and ensure that the lights remain stable and secure at all times.


The IP66 and IK10 protection rate of the 600W 720W PROX LED High Mast Lights means that they are highly resistant to dust, water, and physical impact. This ensures that the lights remain protected from the elements and can provide reliable illumination even in harsh outdoor conditions.


The 10KV surge protection feature of the 600W&720W PROX LED High Mast Lights helps to protect the lights from electrical surges, which can cause damage and reduce the lifespan of the lights. This feature ensures that the lights remain functional and reliable over time, providing excellent illumination for large areas with minimal maintenance requirements.


IP66

IK10

10KV ro 20KV SPD

Low glare stadium LED lighting fixtures

Low glare stadium LED lighting fixtures

Low glare stadium LED lighting fixtures are designed to provide high-quality illumination with minimal glare. Glare is the sensation of brightness caused by excessive brightness or brightness differences in the visual field, which can cause discomfort, visual fatigue, and reduced visibility.


Low glare stadium LED lighting fixtures are designed to minimize these effects by providing uniform illumination that is easy on the eyes. These fixtures often feature asymmetric optical lenses that distribute light asymmetrically, focusing more light in one direction than another. This helps to illuminate specific areas without creating excess glare or light pollution.


Low glare stadium LED lighting fixtures often feature glare control technology, which helps to reduce the amount of glare produced by the fixtures. This can be achieved through the use of anti-glare screens, diffusers, or other technologies that help to reduce the amount of light that is reflected or refracted in unwanted directions.


low glare stadium LED lighting fixtures are an excellent choice for sports stadiums and other large outdoor areas where effective and efficient lighting is needed without compromising on visual comfort and safety. These fixtures provide excellent illumination while minimizing glare, providing a comfortable and safe environment for players and spectators alike.

No overflow upward lights

No light pollution to sky

Low Glare Rating GR<45

Uniformity(U0) up to 0.8

No upper light output ratio (ULOR 0%) when mounted at 0° & 10° tilt

No upper light output ratio (ULOR 0%) when mounted at 0° & 10° tilt

PROX LED high mast lights are modular in design with various asymmetrical beam angles for precise lighting distribution,

professional optical lens for sports field P50&P60-L can be mounted at 0° horizontally to reduce wind resistance,

No upper light output ratio (ULOR 0%) when mounted at 0° tilt. The drive power supply is convenient for various

installation applications and uses a folded fin aluminum heat sink with key features such as small size, light weight,

good heat dissipation, and favorable price. Optional DMX, DALI2.0 intelligent control.

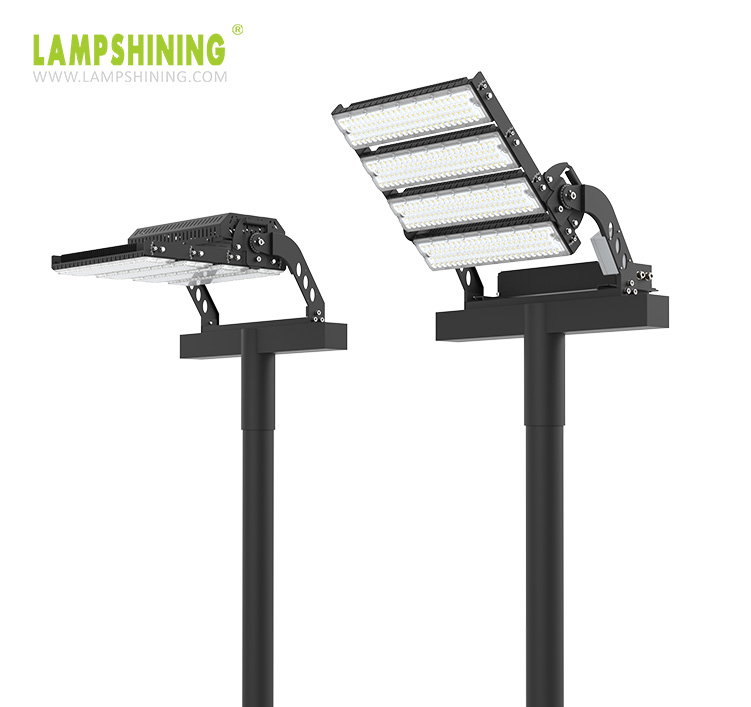

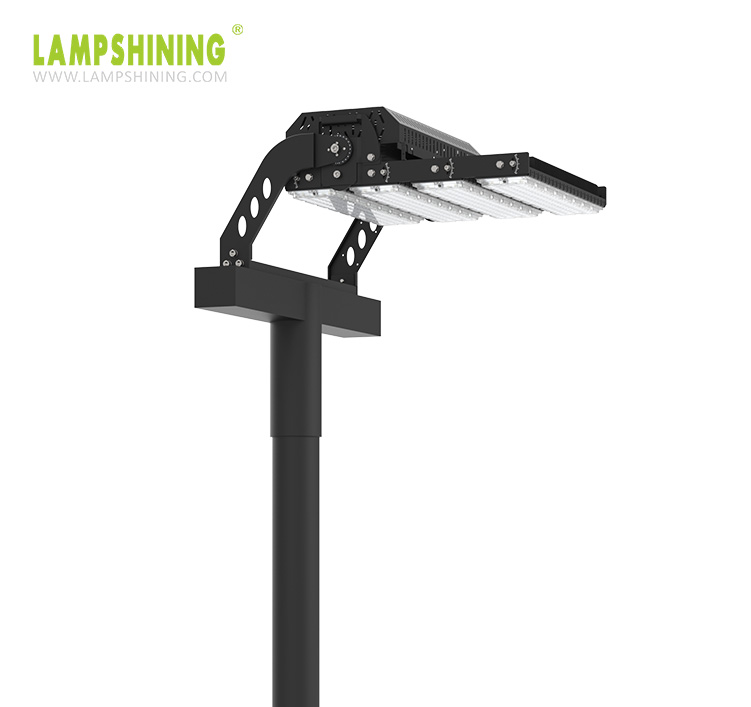

Lamp tilted up 0°

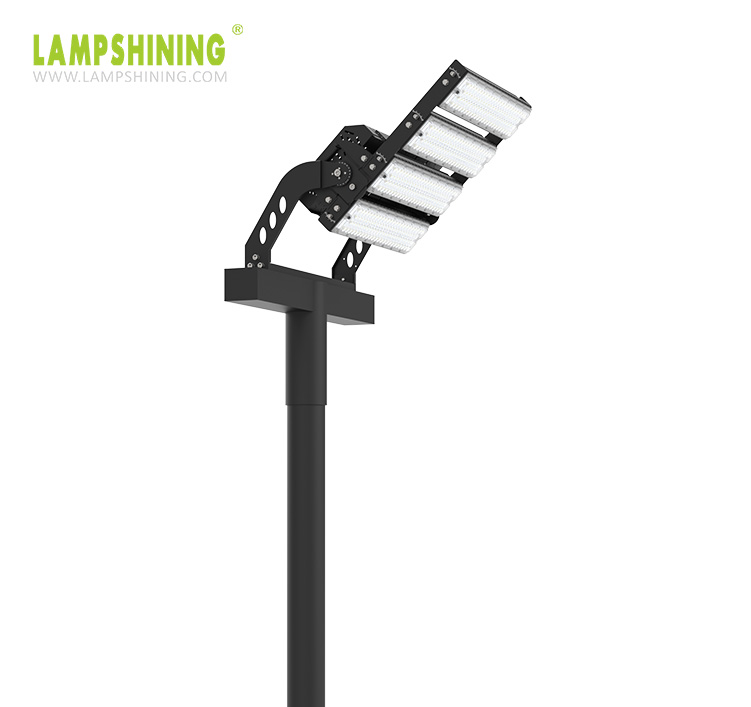

Lamp tilted up 10°

Football Field 100*64m simulation based

Football Field 100*64m simulation based

Football Field 100*64m simulation based on LSHM-1000W-LV(XXK)ProX P60-L asymmetrical optic


low Glare Rating, GR<45

higher uniformity up to 0.8

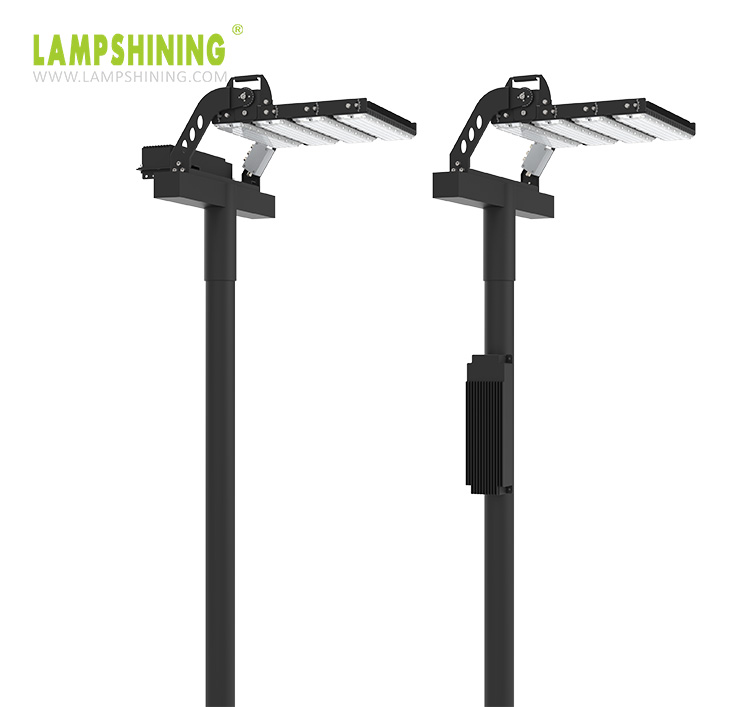

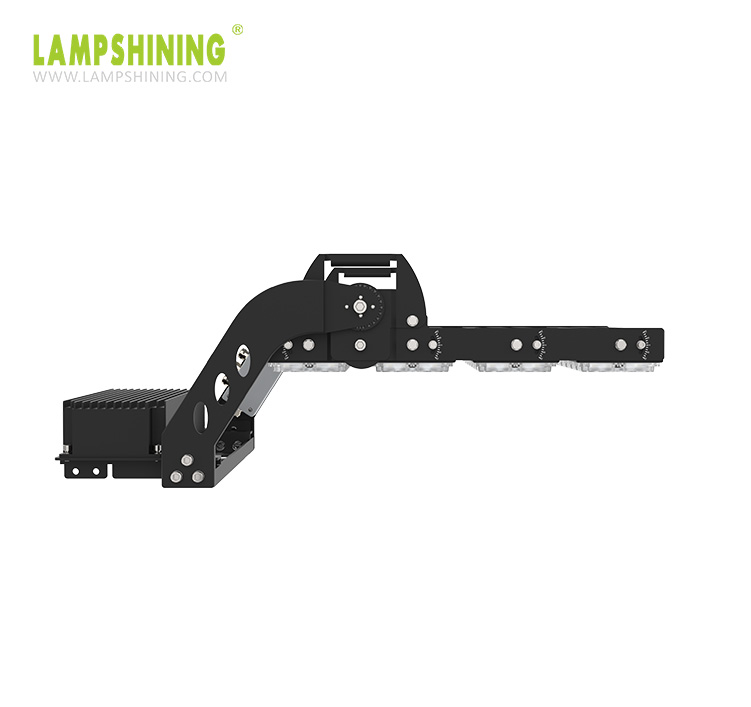

Power supply Remote installation

Power supply Remote installation

The ability to remotely install the power supply for LED lights is an important feature that can provide greater flexibility and convenience in terms of installation. The fact that these remote drivers can be located up to 300m from the luminaire is particularly impressive, as this provides a significant amount of flexibility in terms of where the lights can be installed.


Remote installation of the power supply can be particularly useful in situations where the luminaire is being installed in a difficult-to-reach location or where access to the luminaire is limited. For example, if the luminaire is being installed on a tall pole or building, it may be more convenient to install the driver at the base of the structure rather than at the top. This can help to simplify the installation process and reduce the amount of time and effort required to install the lights.


In addition to providing greater flexibility in terms of installation, remote installation of the power supply can also help to improve the reliability and longevity of the lights. By locating the driver away from the luminaire, the driver is less likely to be exposed to extreme temperatures or other environmental factors that could impact its performance. This can help to ensure that the lights remain reliable and perform optimally over time.


PROX Series LED High Mast Lights 400W~1440W

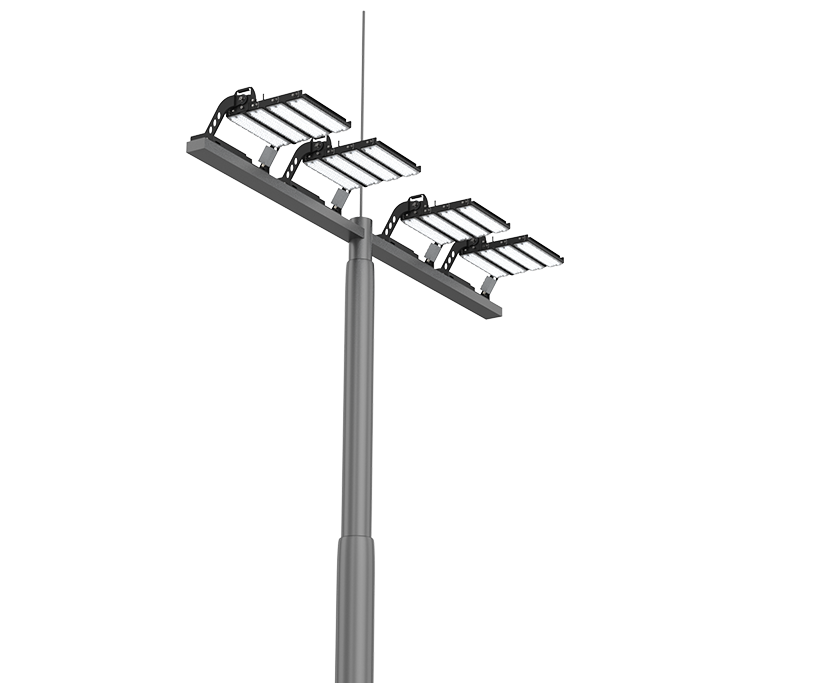

400w 480w ProX LED High Mast Lights LED Stadium Flood Lights

600w 720w ProX LED High Mast Lights LED Stadium Flood Lights

1000W ProX LED High Mast Lights LED Stadium Flood Lights

1200W ProX LED High Mast Lights LED Stadium Flood Lights

1440W ProX LED High Mast Lights LED Stadium Flood Lights

Application

For area lighting for interior and exterior applications:

Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and

bmx sportlighting etc.


NO Spill Light and Glare Stadium Lighting

NO Spill Light and Glare Stadium Lighting

NO Spill Light and Glare Stadium Lighting

NO Spill Light and Glare Stadium Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting
