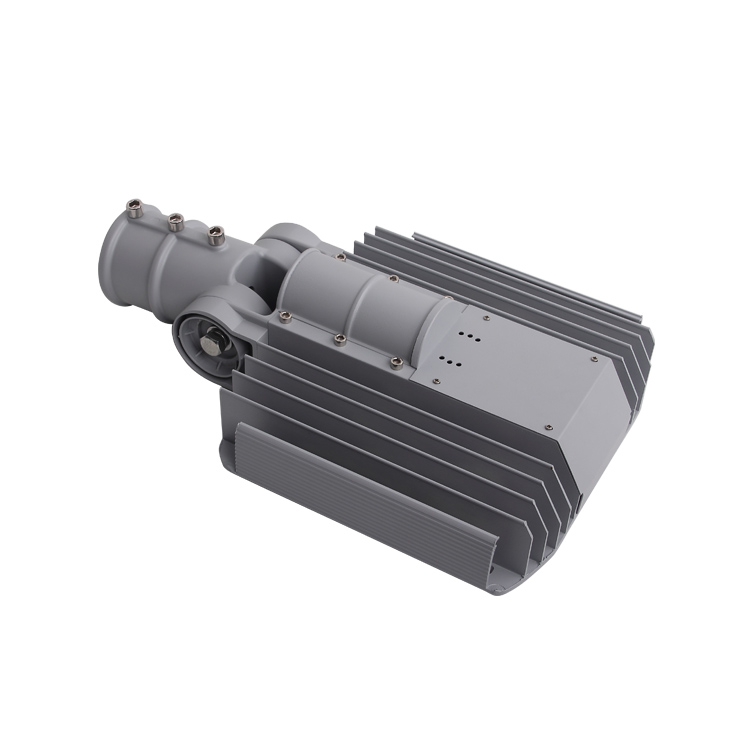

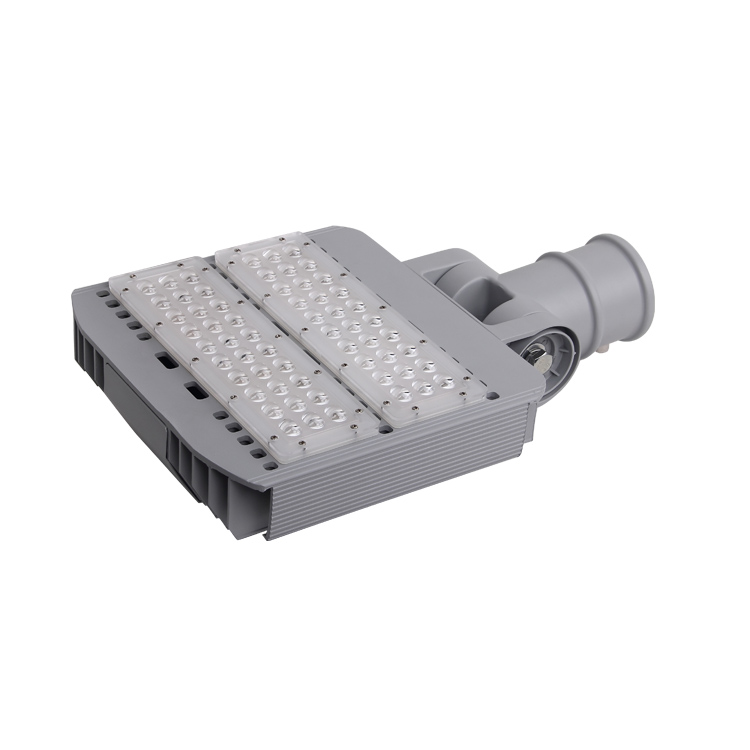

100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting
  • 100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting
  • 100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting
  • 100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting
  • 100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting
100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting

100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting

  • MODEL: LSRSL-100W-A

  • CRI: >70

  • Efficacy: 127LM/W

  • Lumens: 12700 Lumens

  • Dimension: 6.02'x13.19'x6.69'

  • Input Voltage: 180-277VAC, 50/60HZ

  • Driver: Meanwell Driver ELG-100-48A

  • Lifetime: Rated Life of 50,000 Hours

  • Aluminum finn heat dissipation system

  • Colors: 3000K, 4000K, 4500K,5000K or 5700K

  • Beam Angle: 30x70° /60x90°/60x120°/70x140 degree

  • ETL, cETL, DLC,TUV, FCC, SAA, CE, & RoHS Listed Certified

Inquire Now

100W Arm Rotatable LED Street Lights 12700LM SMD 3030 180-277VAC Road Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


Specifications

Model LSRSL-100W-AIP RatingIP65
Wattage100WCRI>80
Luminous Flux12700 LumenWorking Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Light Source

PhilipsSMD 3030

Warranty5 year Warranty
Equivalent250W HID/Metal HalideRated Lifespan50,000+ hours
CCT3000K 4000K  5000K  5700K  6500KCertifiedISO9001, CE, RoHS, FC, ETL, TUV, SAA
Input Voltage

100-277VAC/180-277VA

LED QTYN/A
Power Factor>0.95Driver PowerMeanwell ELG-100-48A
Beam Angle30*70°/ 60*90°/ 60*120°/ 70*140°Dimension531*335*170mm (20.91' X 13.19' X 6.69')
ConstructionHigh pressure die-casting aluminum external


Rotatable 100W LED Street Lights

Rotatable 100W LED Street Lights


Size

Rotatable 100W LED Street Lights size

Main Feature

  • Long life span and less brightness degradation

  • Efficiency of power supply is more than 90%

  • No magnetic disturbance influence

  • No UV and near-IR radiation in the light beam

  • Meanwell driver and Philips 3030 Chips

  • Installation arm rotatable

  • Dimmable available

  • 5 years warranty


Advantage


Rotatable 100W LED Street Lights show

1.Rotatable angle up to 270 degree

Rotatable 100W LED Street Lights advantage


1.Anti-dust design, able to be with flushable cleaning

2.IP65(TUV report available)

3.Can't be immersed into the water

Rotatable 100W LED Street Lights waterproof


Application

1.Street 2.Parking lots 3. Path way

Rotatable 100W LED Street Lights application

Rotatable 100W LED Street Lights application

Rotatable 100W LED Street Lights show

Packaging

Arm Rotatable LED Street Lights Packaging

1pc/carton

carton  size: 53*36*19cm

Gross weight:5.0KG

packaging
