150W LED Street Light, Cost-effective, lightweight area roadway lighting

Watt: 150W

Lumens:  20250LM (135LM/W)

Voltage: 100-240VAC, 50/60Hz

Lifetime: Rated Life of 50,000 Hours

Dimension: 549*280*92mm

Arm Dia : 60mm

Color Temp: 3000K,4000K,5000K,5700K

Beam Angle: Type 2M, Type 3M

Light Source: Lumileds 3030

Replacement: TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test

Inquire Now Next Product

150W LED Street Light, Cost-effective, lightweight area roadway lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


150W LED Street Light


150w saturn led street light


Size


150w led street light size


Specifications

ModelLSSSL-150W(XXK)
Watt150W
Lumen

20250lm (135LM/W±3%)

Chip BrandLumileds 3030
Input Volt100-240Vac
Driver

Sosen Driver SS-150VA-56

CCT3000K, 4000K, 5000K, 5700K, 6000K
Arm Dia

60mm

HousingWhiteGreyBlack
Size549*280*92mm
Beam angleType 2M, Type 3M
Certification
TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved


Feature

20W LED Street Light exploded view

1. High luminaire efficiency up to 135lm/w;

2. 20-150W available (Mounting Height: 4-12M);

3. IP66 and IK08 protection rate;

4. Cost-effective street light for rural roadway lighting;

5. 5 years warranty;

6. TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved;

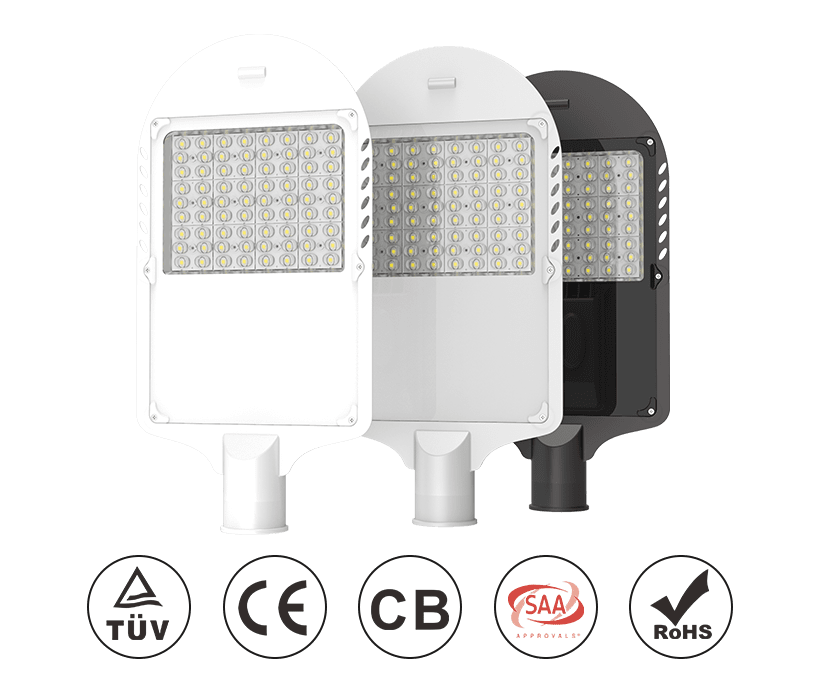

150w led street light can choose housing color

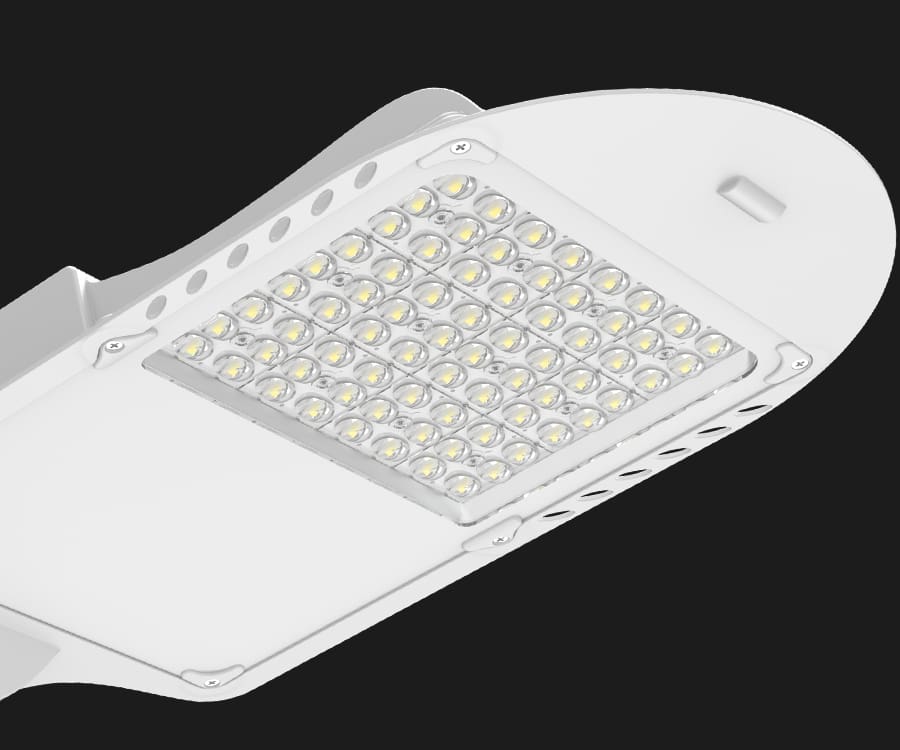

1.high quality led source

Using high-quality Lumileds 3030 LED source, high efficiency 135-140LM / W. saturn series LED street lights use tempered glass + lens In order to prevent the lens turning into yellow after being exposed to sunlight for a period of time,  which will lead to poor light transmission and even fogging may occur. Tempered glass + lens completely avoids this situation.


150w lumileds 3030 saturn led street light with tempered glass and optional lens

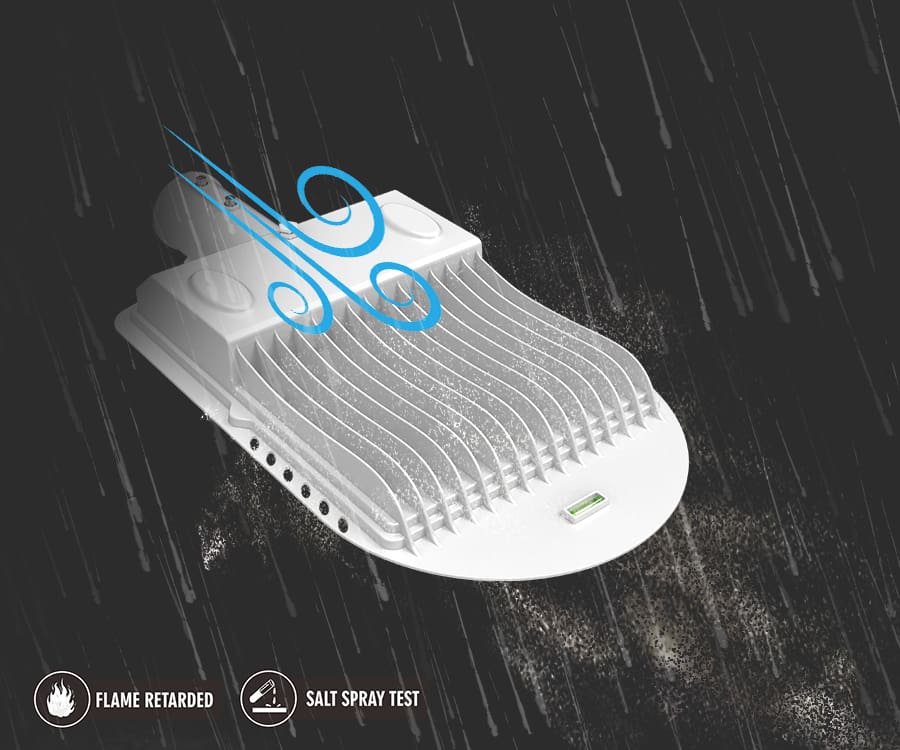

2.heat dissipation

The fin can increase the heat dissipation area and obtain better heat dissipation effect. Birds are also prevented from staying on the lamps.


150w led street light heat dissipation


3.Easy to clean

The design of the Saturn LED street light makes it difficult for dust to accumulate. The dust will be blownaway when the wind blows.


150w led street light easy to clean

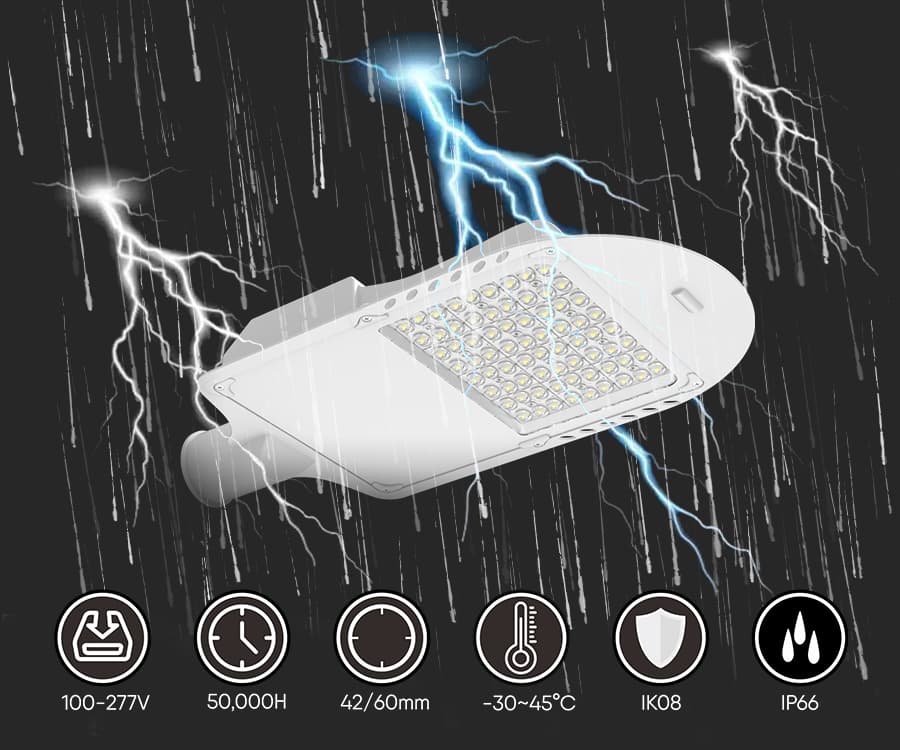

4.Waterproof IP66

The waterproof performance.of IP66.enables Saturn LED street lights to keep working normally in bad weather.


150w led street light waterproof ip66


5.Level instrument

The level instrument accurates thetion of lain a minute.


150w led street light with level instrument


6.Pole installation holes

60mm optional pole mounting holes.


150w led street light 60mm pole installation holes

150w led street light optional accessory


contact us

Beam angle

Optional Type 2M, Type 3M beam angle;


saturn led street light beam angle


Application

Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting;


led street light application

Accessorries

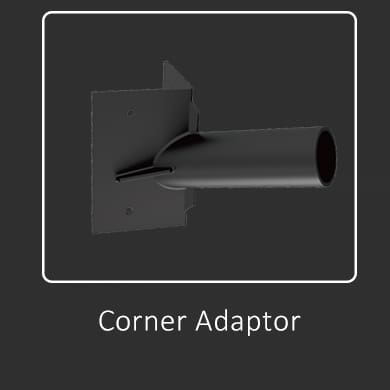

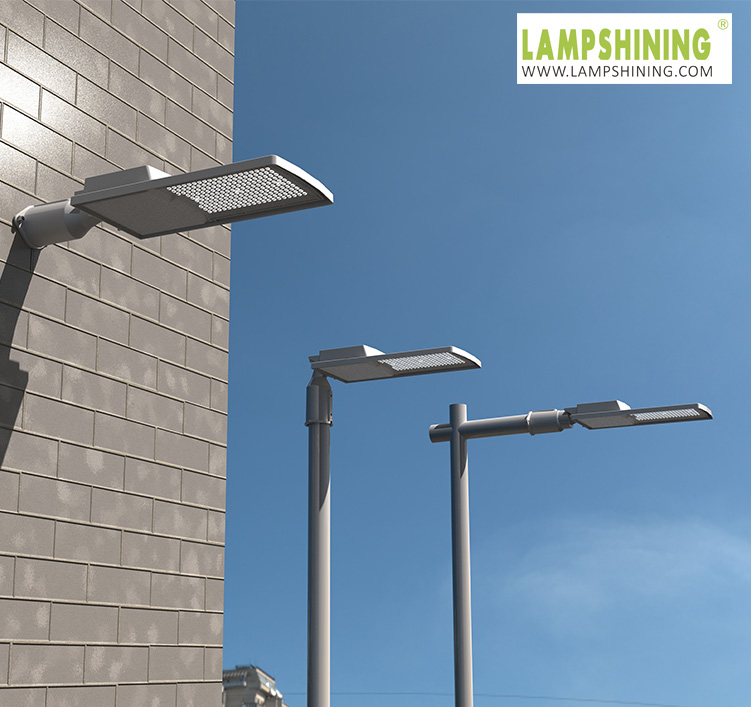

L bracket for 60mm pole post topConer bracketWall mount adaptor for dia. 60mm spigot
adaptor for 2 street light (both dia 60mm)

Rotatable adaptor (dia 60mm to dia60mm)

(dia 60mm to dia76mm)

led street light accessory L bracket for 60mm pole post topled street light accessory Coner bracketled street light accessory Wall mount adaptor for dia 60mm spigotled street light accessory adaptor for 2 street light (both dia 60mm)led street light accessory Rotatable adaptor (dia 60mm to dia60mm)(dia 60mm to dia76mm)

Photocell sensorNEMA 5pinsNEMA 7pinsNEMA short cap10KV SPD
led street light accessory Photocell sensorled street light accessory nema 5pinsled street light accessory nema 7pinsled street light accessory nema short capled street light accessory 10KV SPD


Package details for without photocell

150W: 1pc/62*35*16mm

GW: 6.5kg


Package details for with photocell

150W: 1pc/63*36*21mm

GW: 6.8kg
