80W Saturn LED Street Light Head, Waterproof and dustproof, pole and wall mount led light

80W Saturn LED Street Light Head, Waterproof and dustproof, pole and wall mount led light

● Watt: 80W

● Lumens: 10,800/ 12,000/ 13,600

● Light Source: Lumileds 3030/ 5050

● Input Volt: 100-240VAC

● IP Rating: IP66 - IK10

● Arm Dia: 42/ 60mm

● Size: 547*240*82mm

● Lamp Weight: 5kg

● CCT (Color Temp): 3000, 4000, 5000, 6000

● 5 years warranty

● Beam Angle: TypeII, TypeIII

Inquire Now Next Product Specification Sheet

Data Sheets
Beam Angle
Options/Accessories
Package details

Specifications

Model	LSSSL-80W(XXK)
Watt	80W
Lumen	10,800	12,000	13,600
Efficiency	135Lm/W±3%	150Lm/W±3%	170Lm/W±3%
Chip Brand	Lumileds 3030		Lumields 5050
Input Volt	100-240VAC
Driver	Sosen Driver SS-100GA-56
CCT	4000K-6000K		4000K, 5000K
Arm Dia	42/ 60mm
Size	54724082mm
Weight	5kg
Housing	White/ Grey/ Black
Beam Angle	TypeII, Type III
Certification	TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

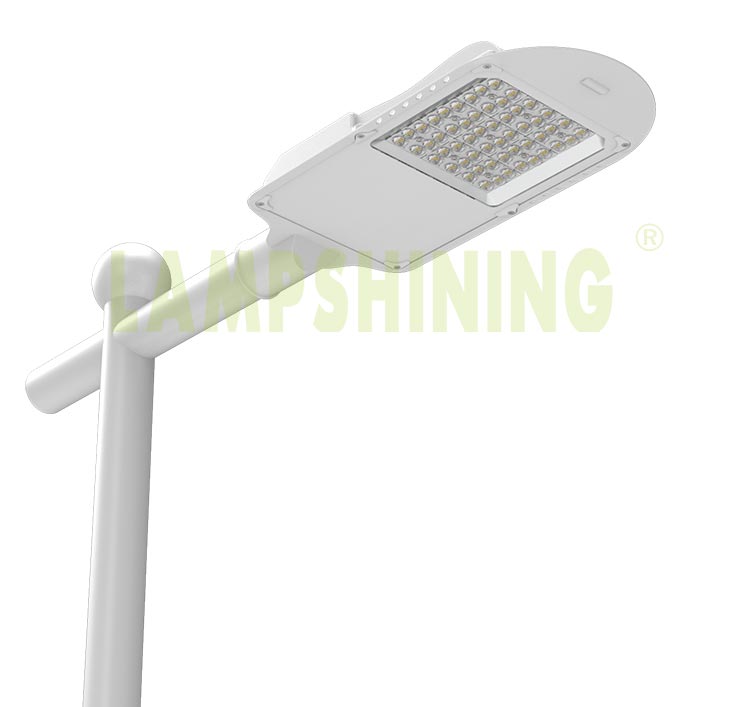

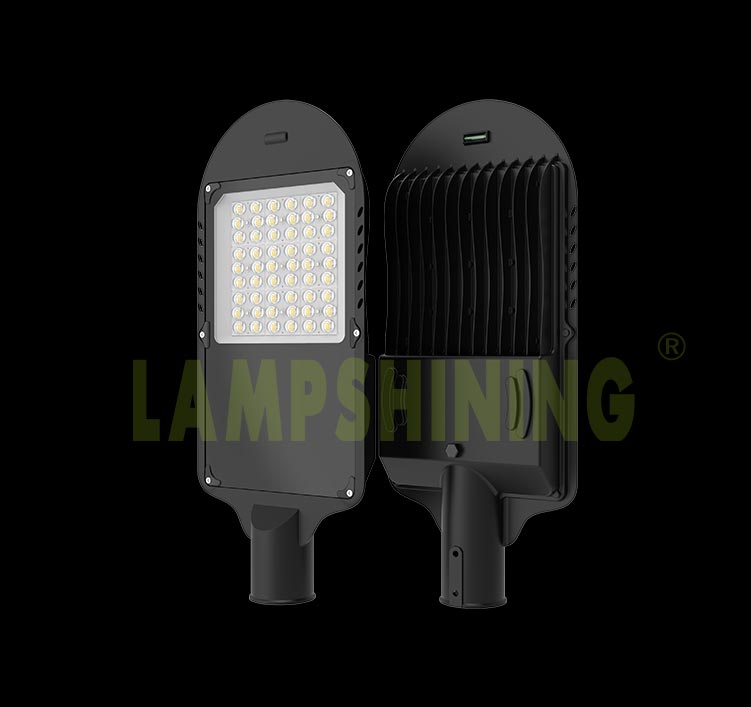

80W LED Street Light

80w saturn led street light

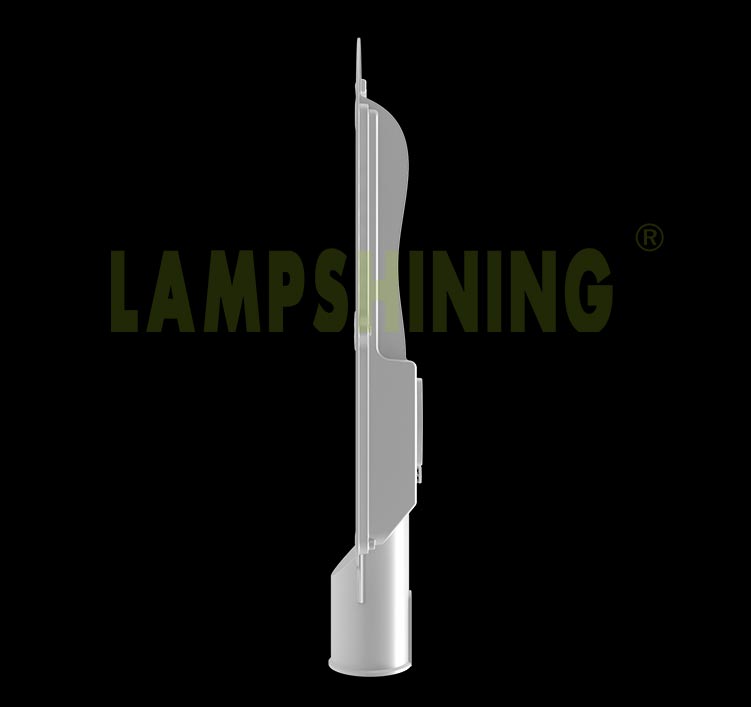

Size

80w led street light size

Feature

20W LED Street Light exploded view

1. High luminaire efficiency up to 170lm/w;

2. 20-150W available (Mounting Height: 4-12M);

3. IP66 and IK08 protection rate;

4. Cost-effective street light for rural roadway lighting;

5. 5 years warranty;

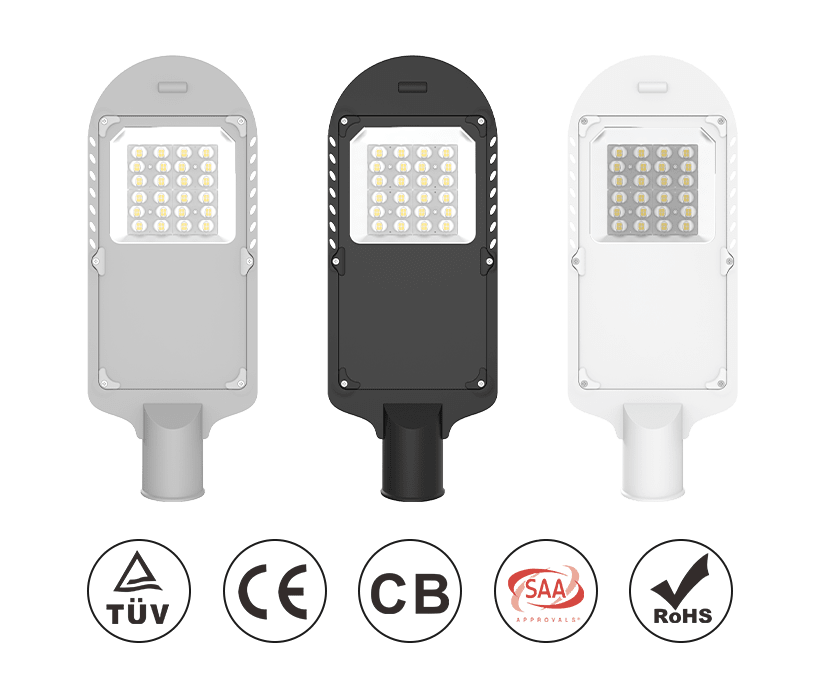

6. TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved;

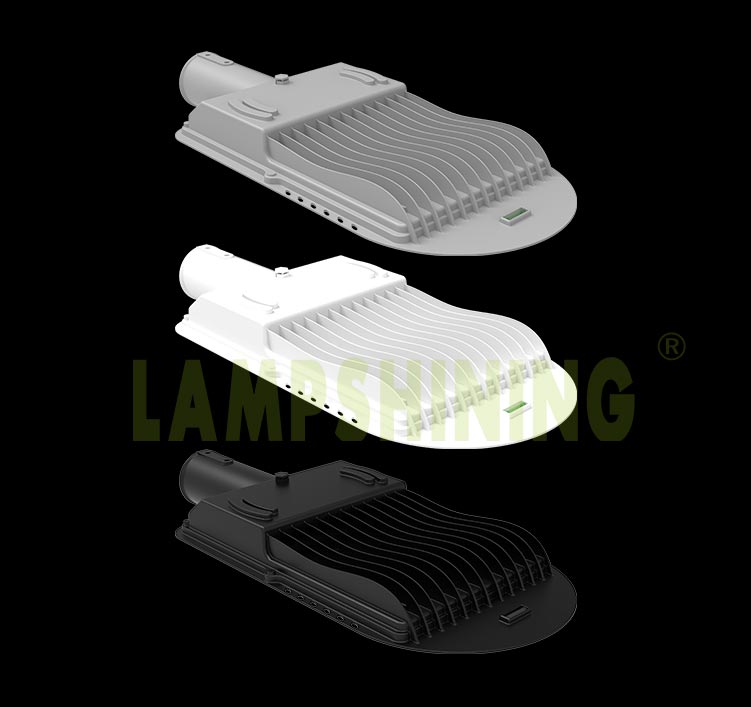

80w led street light can choose housing color

1.high quality led source

Using high-quality Lumileds 3030/ 5050 LED source, high efficiency 135-170LM / W. saturn series LED street lights use tempered glass + lens In order to prevent the lens turning into yellow after being exposed to sunlight for a period of time, which will lead to poor light transmission and even fogging may occur. Tempered glass + lens completely avoids this situation.

80w lumileds 3030 saturn led street light with tempered glass and optional lens

2.heat dissipation

The fin can increase the heat dissipation area and obtain better heat dissipation effect. Birds are also prevented from staying on the lamps.

80w led street light heat dissipation

3.Easy to clean

The design of the Saturn LED street light makes it difficult for dust to accumulate. The dust will be blownaway when the wind blows.

80w led street light easy to clean

4.Waterproof IP66

The waterproof performance.of IP66.enables Saturn LED street lights to keep working normally in bad weather.

80w led street light waterproof ip66

5.Level instrument

The level instrument accurates thetion of lain a minute.

80w led street light with level instrument

6.Beam Angle

Optional Type 2M, Type 3M beam angle

saturn led street light beam angle

7.Pole installation holes

60mm optional pole mounting holes.

80w led street light 60mm pole installation holes

80w led street light optional accessory

8.Application

Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting.

street led lighting application

Beam angle

Optional Type 2M, Type 3M beam angle

saturn led street light beam angle

Application

Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting.

street led lighting application

Accessorries

L bracket for 60mm pole post top	Coner bracket	Wall mount adaptor for dia. 60mm spigot	adaptor for 2 street light (both dia 60mm)	Rotatable adaptor (dia 60mm to dia60mm) (dia 60mm to dia76mm)

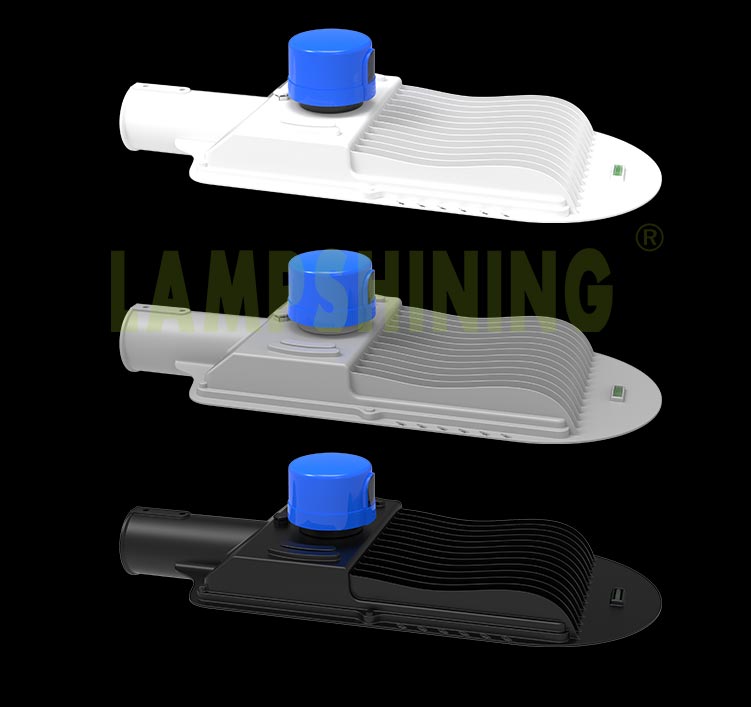

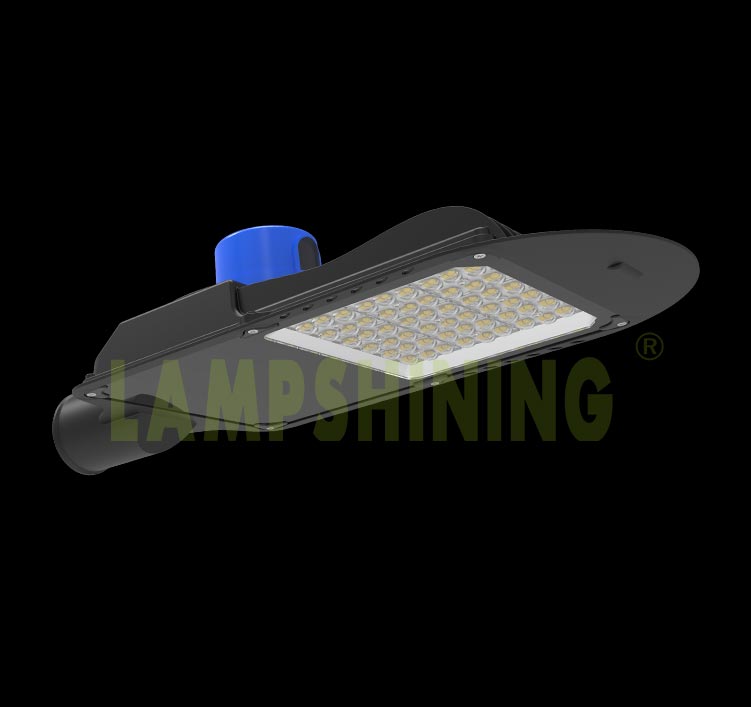

Photocell sensor	NEMA 5pins	NEMA 7pins	NEMA short cap	10KV SPD
