● Watt: 40W
● Lumens: 5,400/ 6,000/ 6,800
● Light Source: Lumileds 3030/ 5050
● Input Volt: 100-240VAC
● IP Rating: IP66 - IK10
● Arm Dia: 42/ 60mm
● Size: 491*190*82mm
● Lamp Weight: 3kg
● CCT (Color Temp): 3000, 4000, 5000, 6000
● 5 years warranty
● Beam Angle: TypeII, TypeIII
Specifications
Model | LSSSL-40W(XXK) | ||
Watt | 40W | ||
Lumen | 5,400 | 6,000 | 6,800 |
Efficiency | 135Lm/W±3% | 150Lm/W±3% | 170Lm/W±3% |
Chip Brand | Lumileds 3030 | Lumields 5050 | |
Input Volt | 100-240VAC | ||
Driver | Sosen Driver SS-50VAL-50B | ||
CCT | 4000K-6000K | 4000K, 5000K | |
Arm Dia | 42/ 60mm | ||
Size | 491*190*82mm | ||
Weight | 3kg | ||

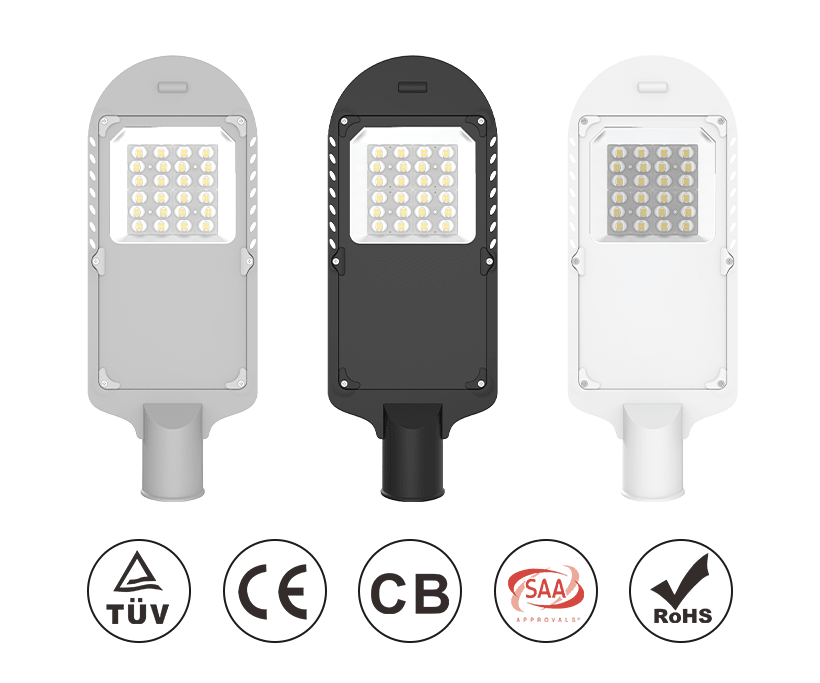

Housing | White/ Grey/ Black | ||
Beam Angle | TypeII, Type III | ||
Certification | TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved |
40W LED Street Light
Size
Feature
1. High luminaire efficiency up to 170lm/w;
2. 20-150W available (Mounting Height: 4-12M);
3. IP66 and IK08 protection rate;
4. Cost-effective street light for rural roadway lighting;
5. 5 years warranty;
6. TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved;

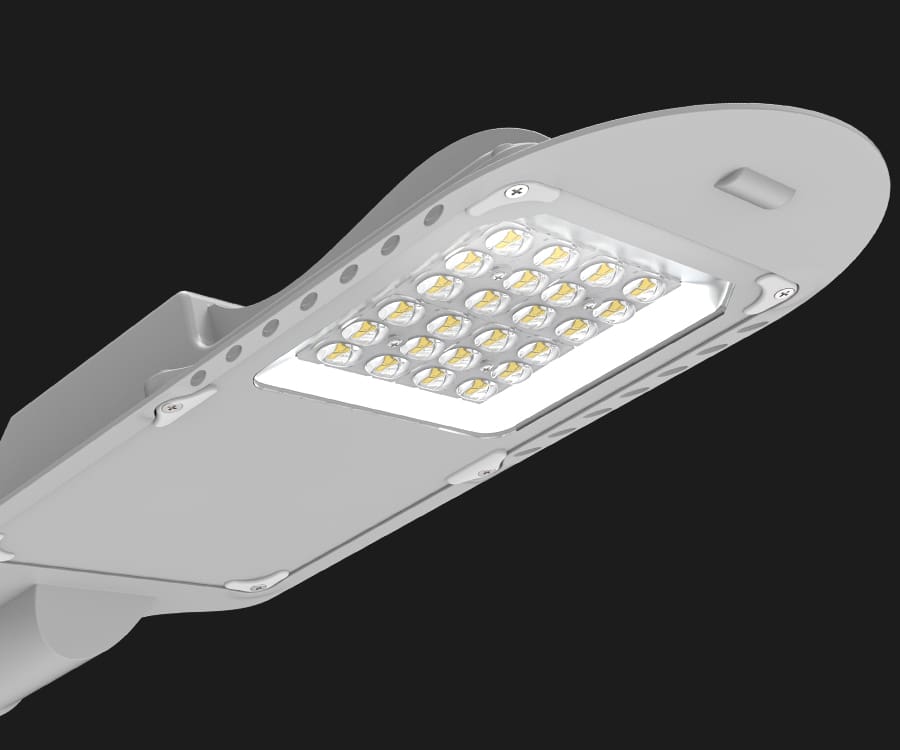

1.high quality led source
Using high-quality Lumileds 3030/ 5050 LED source, high efficiency 135-170LM / W. saturn series LED street lights use tempered glass + lens In order to prevent the lens turning into yellow after being exposed to sunlight for a period of time, which will lead to poor light transmission and even fogging may occur. Tempered glass + lens completely avoids this situation.
2.heat dissipation
The fin can increase the heat dissipation area and obtain better heat dissipation effect. Birds are also prevented from staying on the lamps.
3.Easy to clean
The design of the Saturn LED street light makes it difficult for dust to accumulate. The dust will be blownaway when the wind blows.
4.Waterproof IP66
The waterproof performance.of IP66.enables Saturn LED street lights to keep working normally in bad weather.
5.Level instrument
The level instrument accurates thetion of lain a minute.
6.Beam Angle
Optional Type 2M, Type 3M beam angle
7.Pole installation holes
60mm/42mm optional pole mounting holes.
8.Application
Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting.
Beam angle
Optional Type 2M, Type 3M beam angle
Application
Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting.
Accessorries
L bracket for 60mm pole post top | Coner bracket | Wall mount adaptor for dia. 60mm spigot | adaptor for 2 street light (both dia 60mm) | Rotatable adaptor (dia 60mm to dia60mm) (dia 60mm to dia76mm) |
![]() | ![]() | ![]() | ![]() | ![]() |
Photocell sensor | NEMA 5pins | NEMA 7pins | NEMA short cap | 10KV SPD |
![]() | ![]() | ![]() | ![]() | ![]() |
Package details for without photocell
40W: 1pc/57*26*14mm
GW: 3.0kg
Package details for with photocell
40W: 1pc/58*30*20mm
GW: 3.3kg
