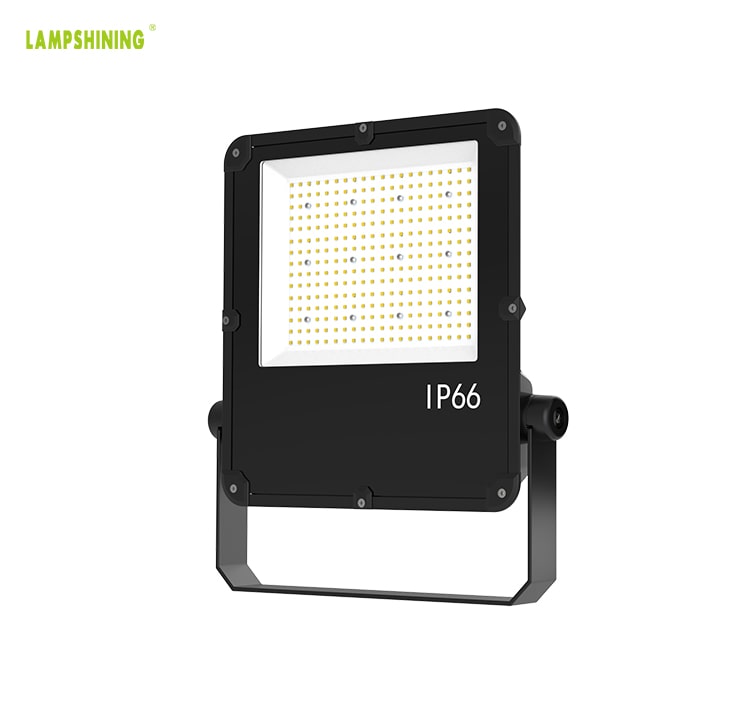

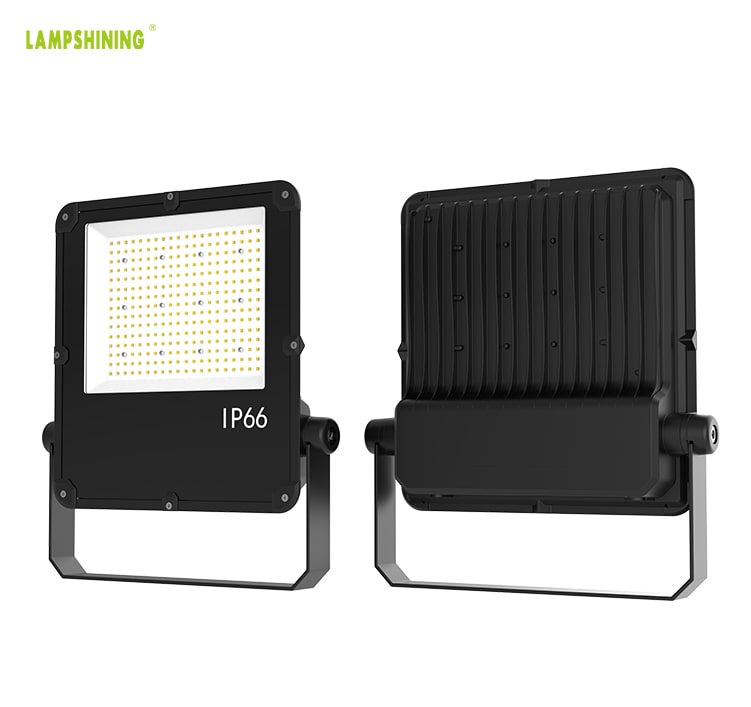

EKO 150W LED Flood Light Fixtures - 25500 Lumens - 400W Equivalent- 3000-6000K

●   Watt: 150W

●   Lumens: 19,500/ 22,500/ 25,500

●   Light Source: Lumileds 3030/ 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 400*359*60mm

●   CCT (Color Temp): 3000-6000K

●   5 years warranty

●   Beam Angle: 90, 120 degree

Inquire Now Next Product

EKO 150W LED Flood Light Fixtures - 25500 Lumens - 400W Equivalent- 3000-6000K

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet


Model

LSSFL-150W(XXK)
Watt150W
Lumen25,500
Efficiency170Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 2835
Power SupplyMoso Driver
Surge Protection6KV
CCT3000-6000K
Size411*367*57mm
IP & IK RatingIP66 & IK08
Beam Angle30°/ 60°/ 90°/ 120° / TYPE2 / Type3 / Type4
CertificationsETL, DLC, TUV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, TM21, Salt spray test approved

Remark: 120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%




Model

LSSFL-150W(XXK)
Watt150W
Lumen28,500
Efficiency190Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 2835
Power SupplyMeanwell Driver
Surge Protection6KV
CCT3000-6000K
Size411*367*57mm
IP & IK RatingIP66 & IK08
Beam Angle30°/ 60°/ 90°/ 120° / TYPE2 / Type3 / Type4
CertificationsETL, DLC, TUV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, TM21, Salt spray test approved

Remark: 120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%

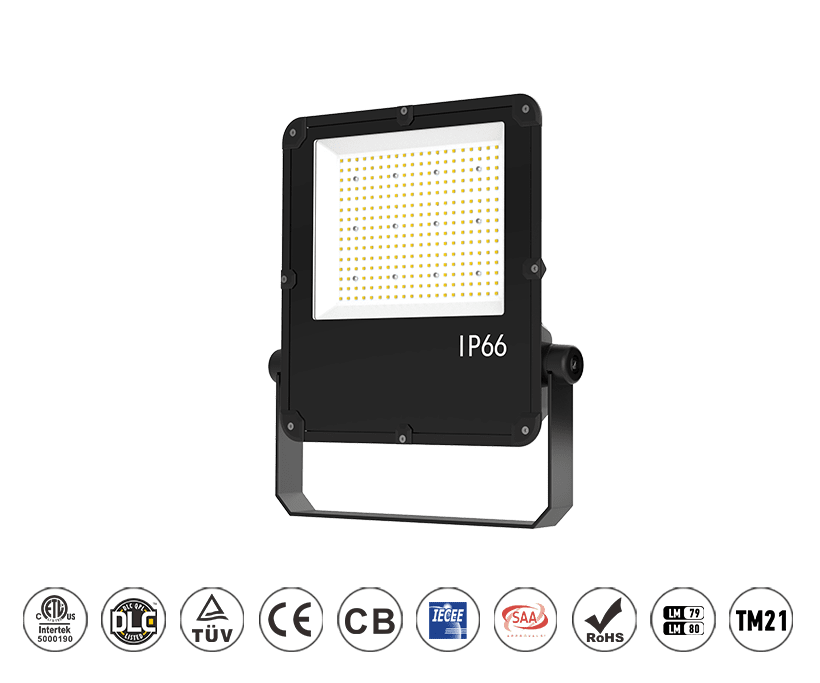

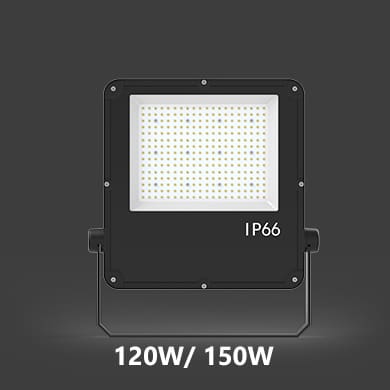

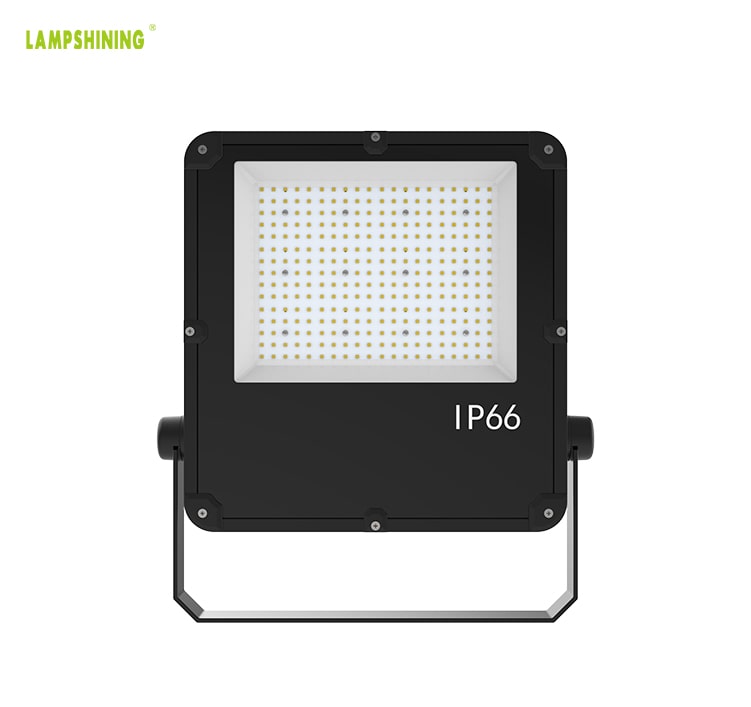

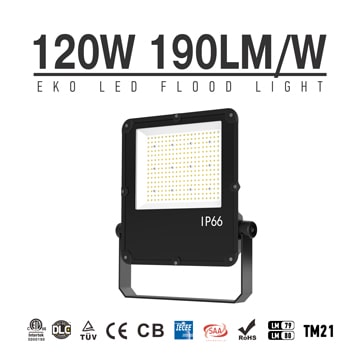

EKO 150W LED Flood Light

EKO 150W LED Flood Light

EKO 150W LED Flood Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

150W

170-190Lm/W

3000K-6000K

ETL DLC TUV CE CB IECEE SAA RoHS

LM79 LM80 IK08 Spray Test approved

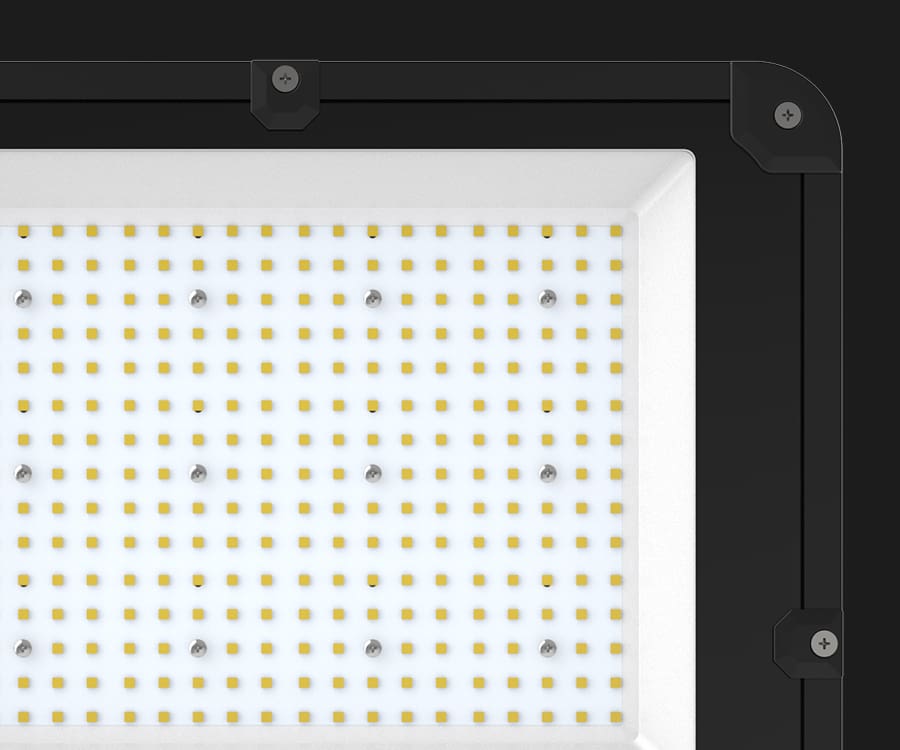

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 170-190Lm/W!

Lumileds 2835

Lumileds 5050

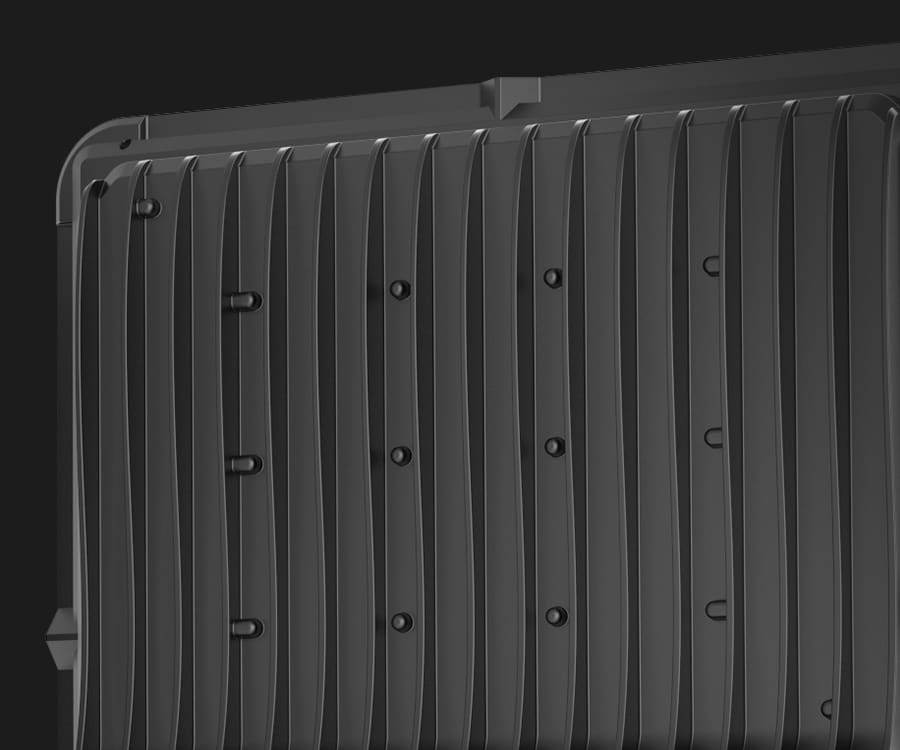

Integrated aluminum material Design

Integrated aluminum material Design

Integrated aluminum material (ADC12) die-casting,The surface is treated with black powder spraying of outdoor special metal powder, which increases the frosted concave and convex feeling and expands the heat dissipation area.

Integrated aluminum material (ADC12) die-casting

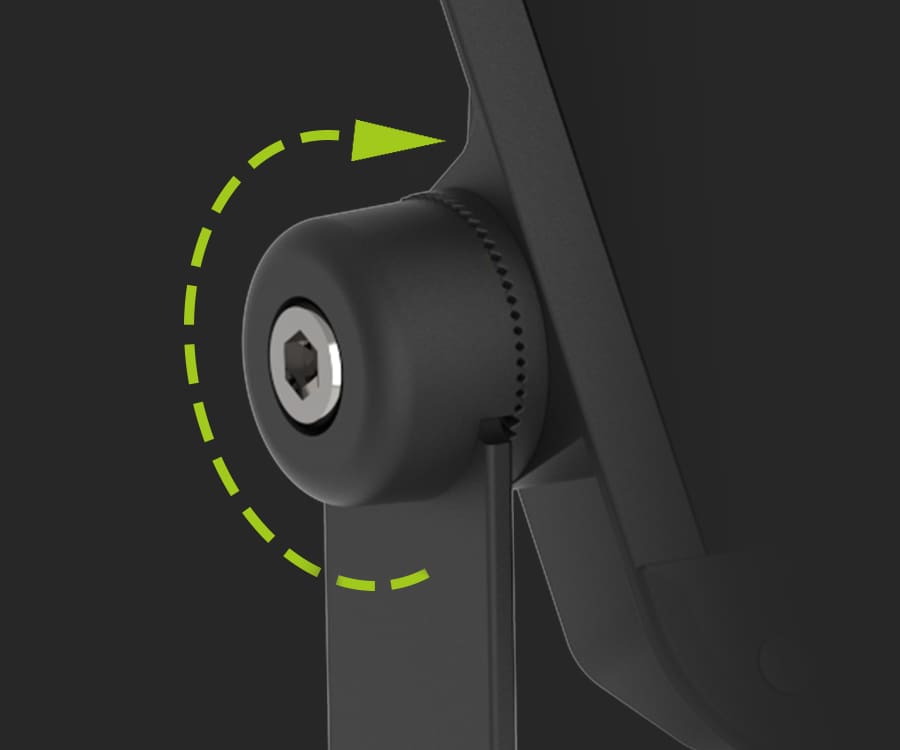

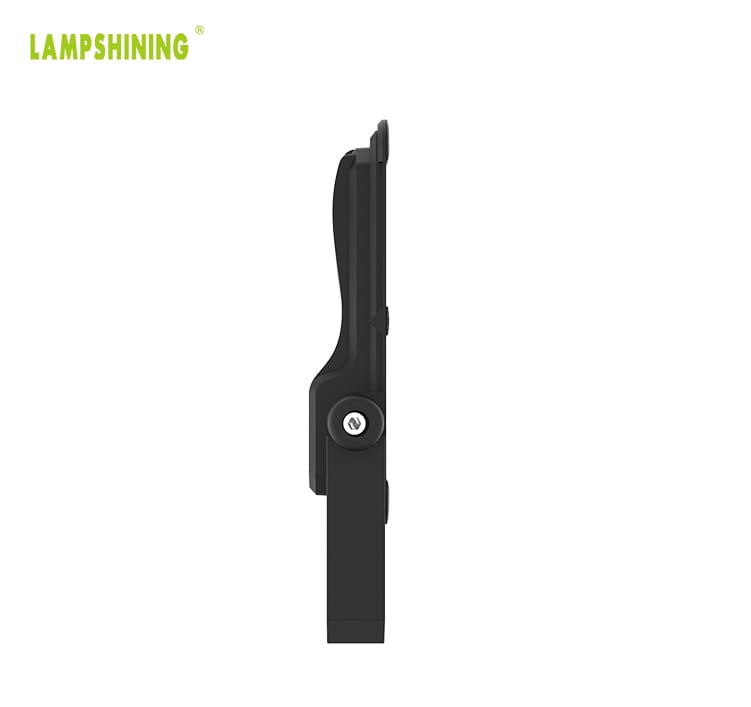

Bracket Rotatable

Bracket Rotatable

The angle of the bracket can be adjusted according to the needs, up to 270 degree.

Bracket Rotatable

IP66 Waterproof & IK08

IP66 Waterproof & IK08

Integrated waterproof shell, Waterproof grade IP66 and IK08 rating of anticollision.

IP66

IK08

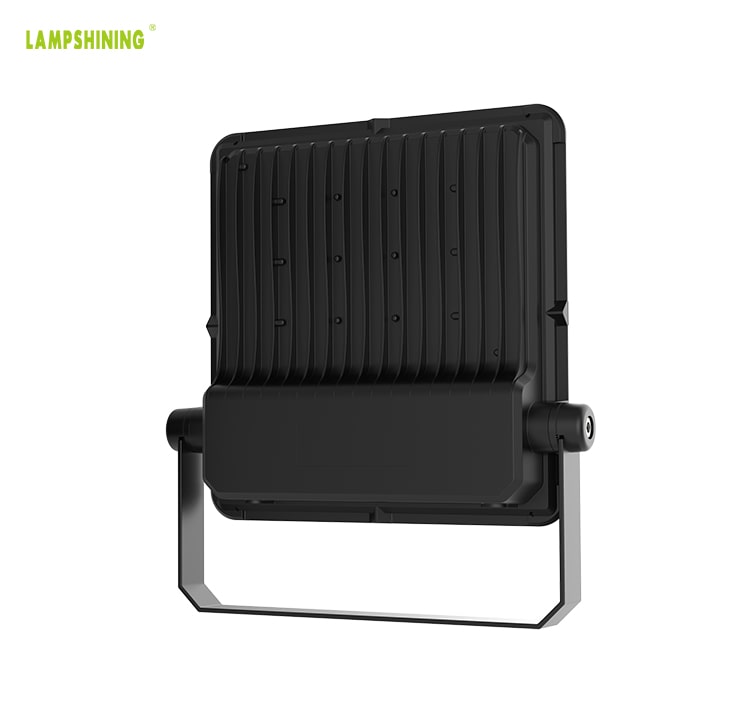

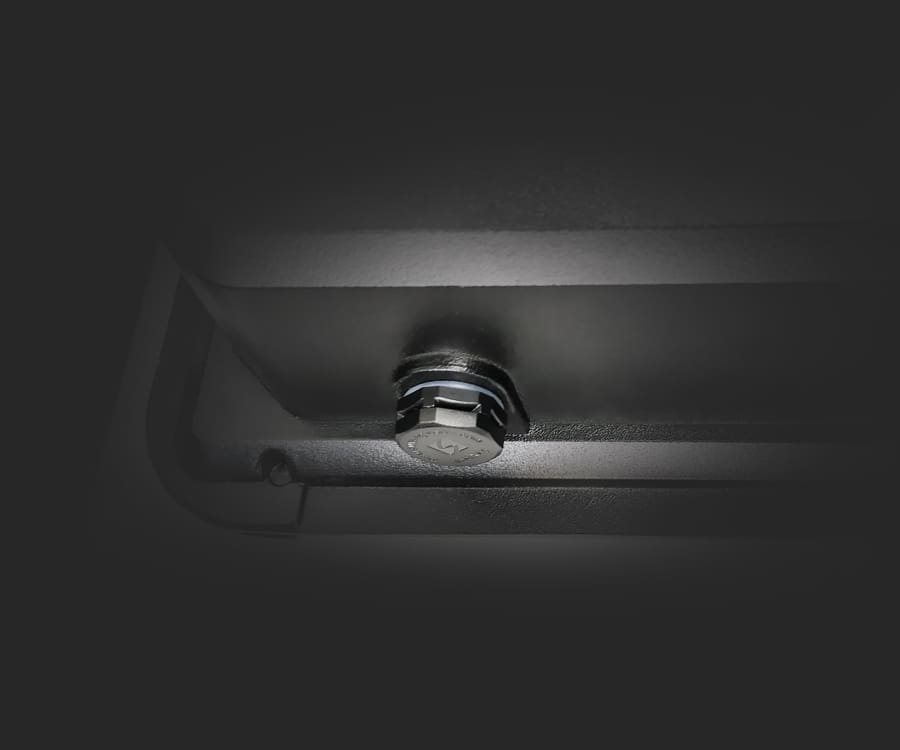

Respirator

Respirator

All series are equipped with respirator as standard, which makes the temperature of the power space lower

Respirator

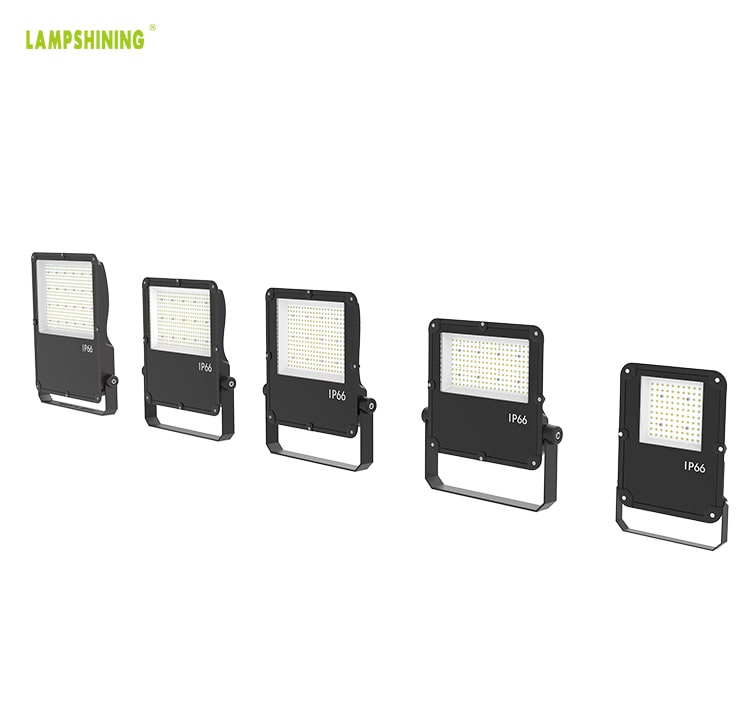

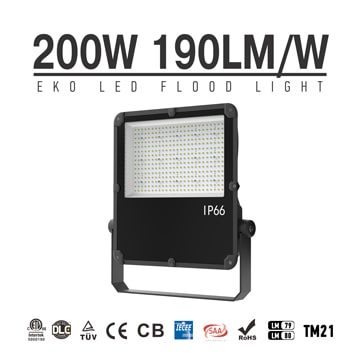

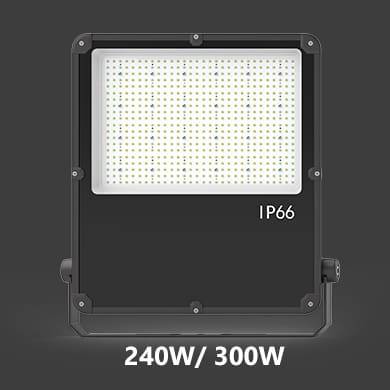

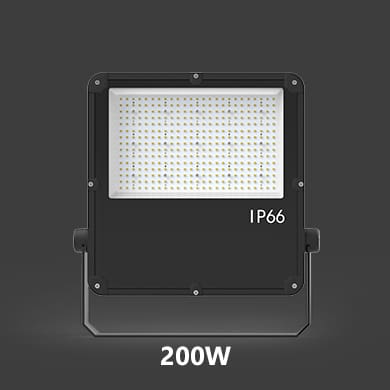

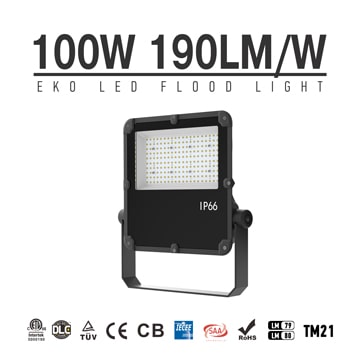

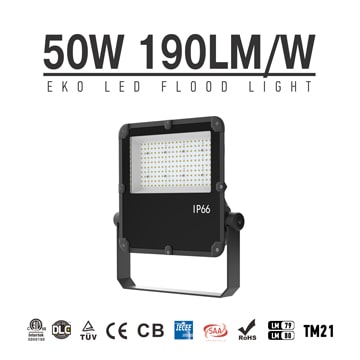

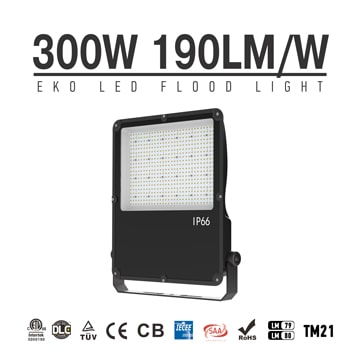

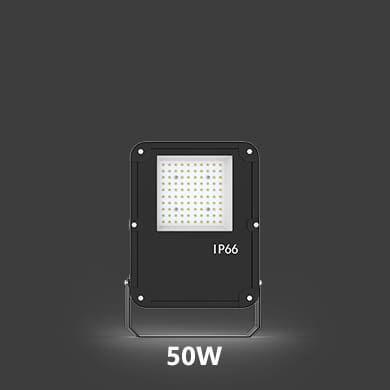

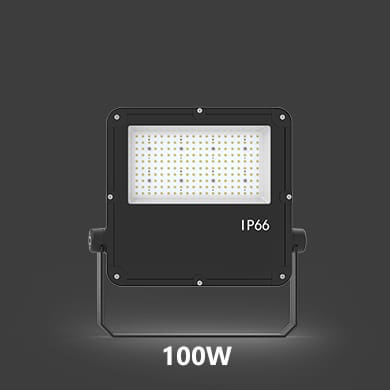

Other Watt

EKO LED Flood Light is available in wattage from 50W to 300W, which is the best choice to replace the existing MH/HID street lights of 100W-600W.

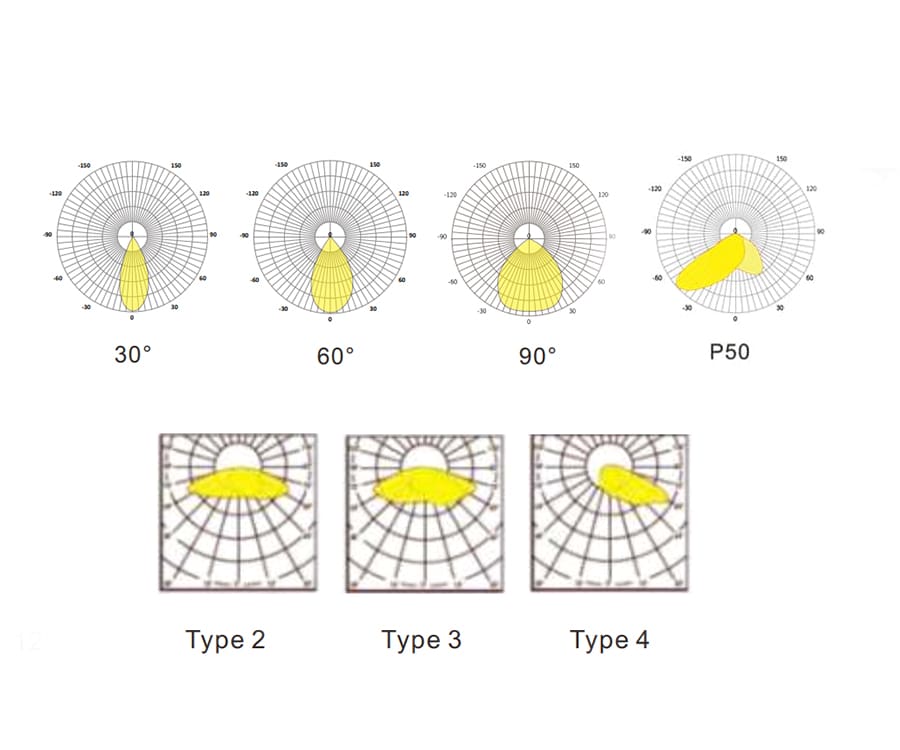

Beam Anlge

Beam Anlge

The beam angle can be selected from 30/ 60/ 90/ 120 degree/ Type II/ Type III/ Type VI/ P50. Professional light distribution angle can better achieve uniform and efficient lighting effect.

30

60

90

120

Type II

Type III

Type IV

P50

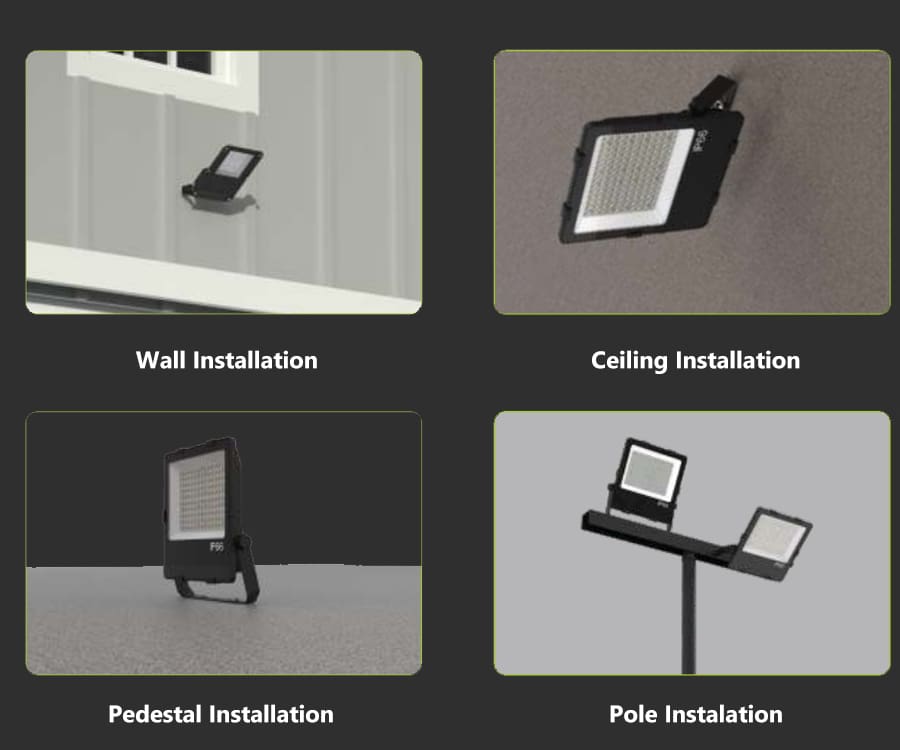

Installation

Installation

Different scenarios EKO LED Flood Light supports different installation methods.

Wall Installation

Ceiling Installation

Pedestal Installation

Pole Installation

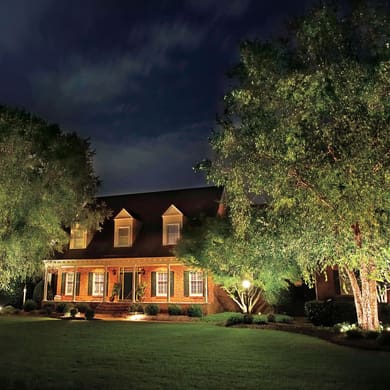

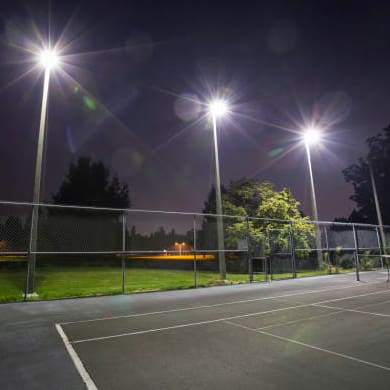

Application

Professional tennis court, landscape lighting, projection lighting, advertising lighting, bridge lighting, dock, ship lighting, intersection lighting, etc.

Accessories


Slip FitterSlip Fitter
Photocell sensorPhotocell sensor
1-10V Dimmable1-10V Dimmable
SPD 10KV or 20KVSPD 10KV or 20KV
PhotocellPhotocell
Short Circuit CapShort Circuit Cap
NEMA 7pin
NEMA 7pin

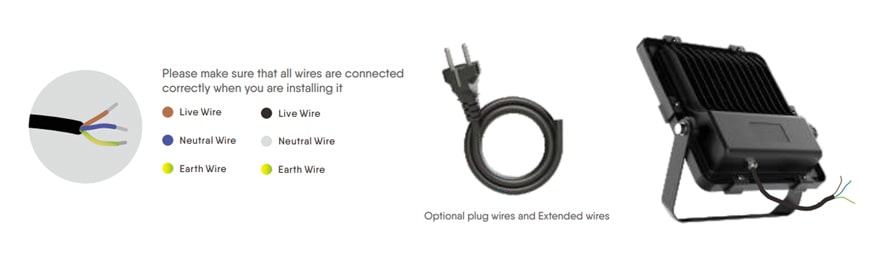

1.Please make sure that all wires are connected correctly when you are installing it

2.Optional plug wires and Extended wires

Optional plug wires and Extended wires

Package details

150W:

1pcs/CTN carton

size: 46*40*13cm

GW: 4.0Kg

Packaging
