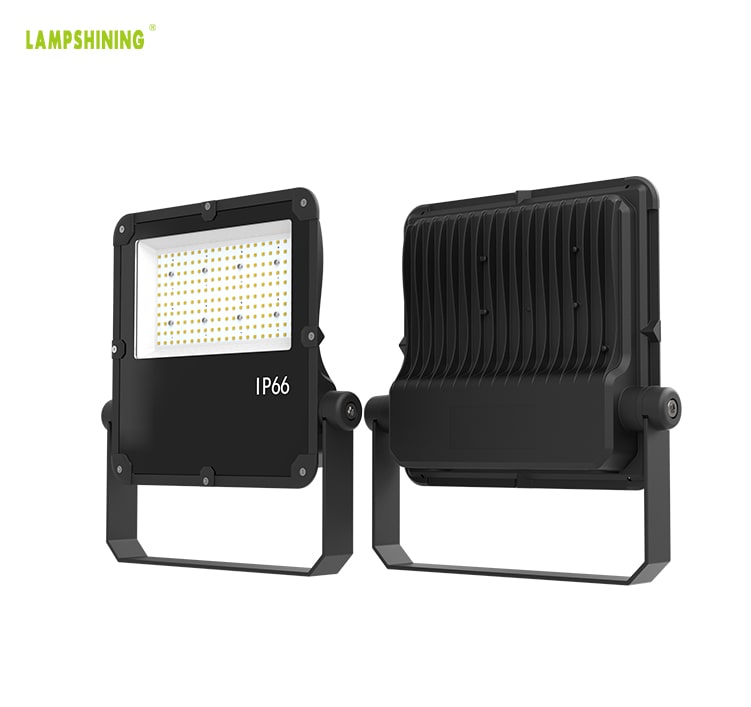

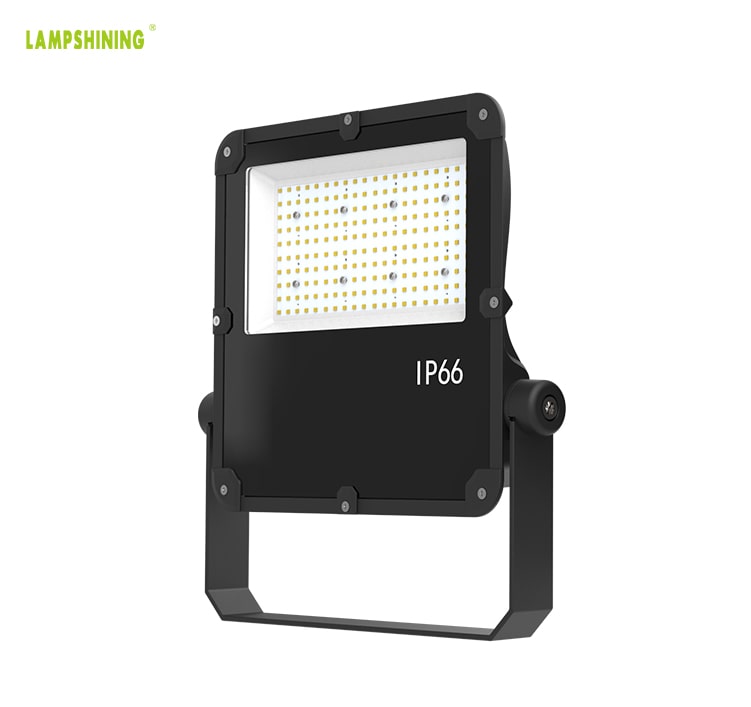

50W LED Floodlight - 7500 Lumen Outdoor Lighting

●   Watt: 50W

●   Lumens: 6,500/ 7,500

●   Light Source: Lumileds 3030

●   Input Volt: 100-240VAC

●   IP Rating: IP66 - IK10

●   Anti-Glare Design

●   Size: 291*254*51mm

●   CCT (Color Temp): 3000-6000K

●   5 years warranty

●   Beam Angle: 90, 120 degree

Inquire Now

50W LED Floodlight - 7500 Lumen Outdoor Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
Specification

Model

LSSFL-50W(XXK)
Watt50W
Lumen8,500
Efficiency170Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 2835
Surge Protection6KV
CCT3000-6000K
Size312*217*52mm
IP & IK RatingIP66 & IK08
Beam Angle

30°/ 60°/ 90°/ 120° / TYPE2 / Type3 / Type4

CertificationsETL DLC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved



Remark:120 degree is witout optic which lumen efficiency is 170Lm/w±3% and 190Lm/w±3%,the rest beam angles with optic which lumen efficiency is 160Lm/w±3%

Model

LSSFL-50W(XXK)
Watt50W
Lumen9,500
Efficiency190Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 5050
Surge Protection6KV
CCT3000-6000K
Size312*217*52mm
IP & IK RatingIP66 & IK08
Beam Angle30°/ 60°/ 90°/ 120° / TYPE2 / Type3 / Type4
CertificationsETL DLC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved


Remark:120 degree is witout optic which lumen efficiency is 170Lm/w±3% and 190Lm/w±3%,the rest beam angles with optic which lumen efficiency is 160Lm/w±3%


EKO 50W LED Flood Light

EKO 50W LED Flood Light

EKO 50W LED Flood Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

50W

170-190Lm/W

3000K-6000K

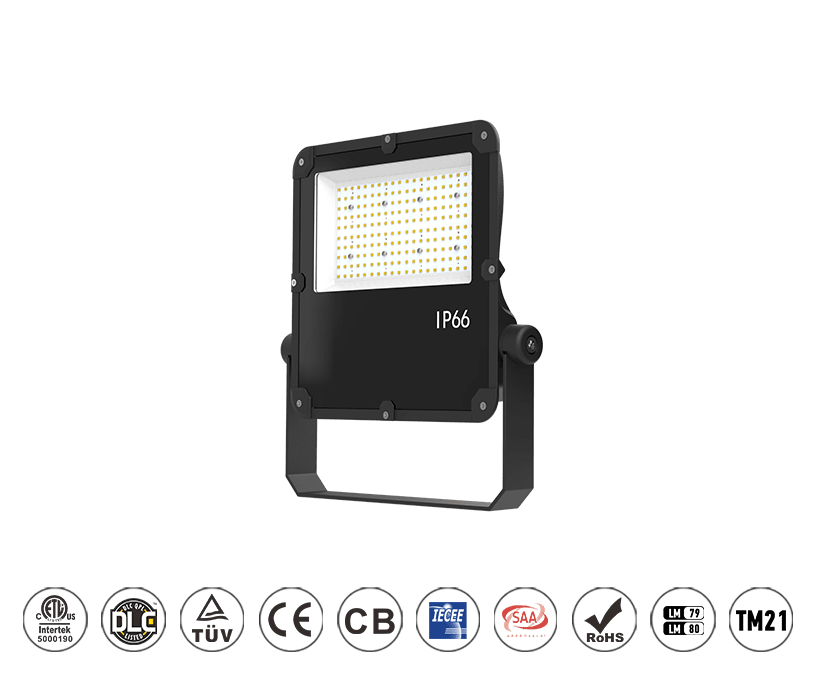

ETL DLC TUV CE CB IECEE SAA RoHS

LM79 LM80 IK08 Spray Test approved

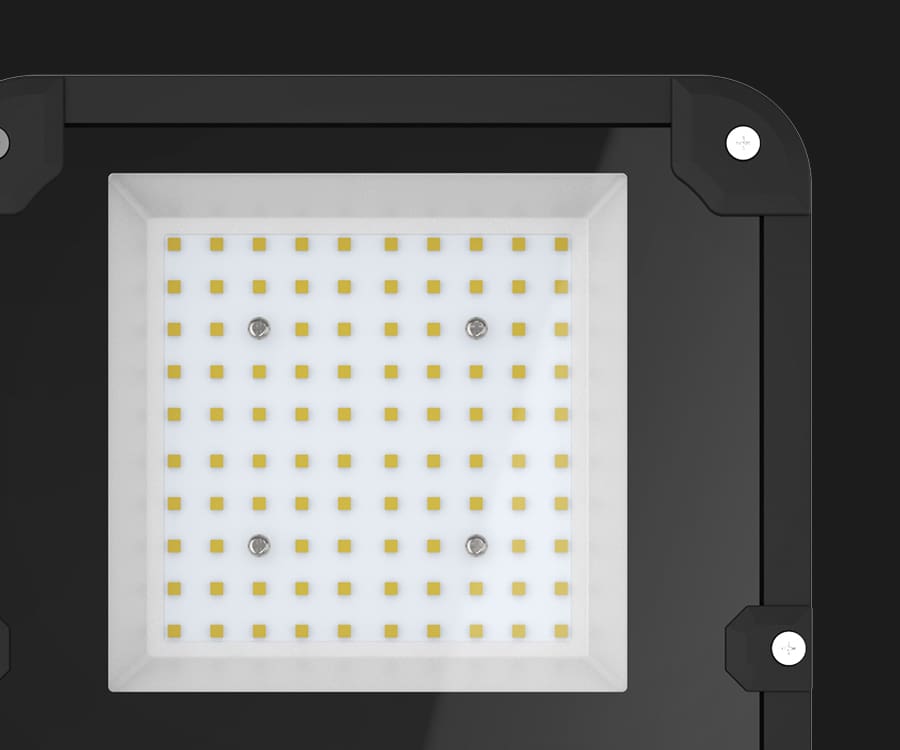

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 170-190Lm/W!

Lumileds 2835

Lumileds 5050

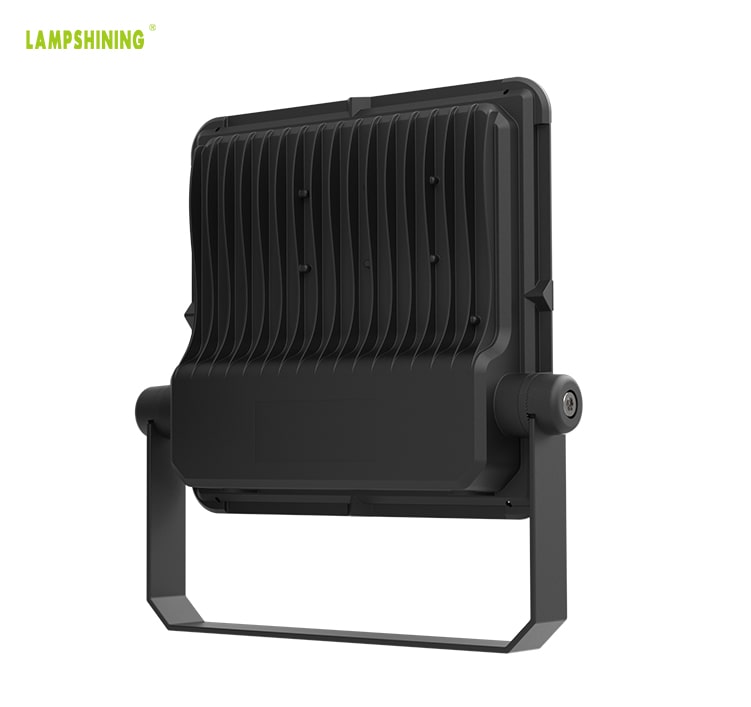

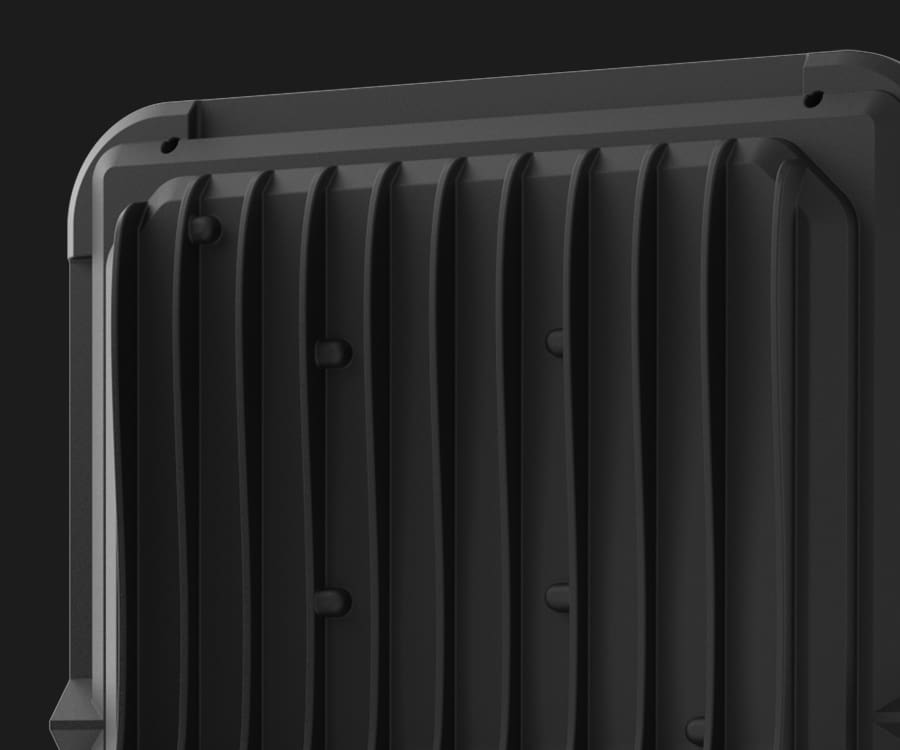

Integrated aluminum material Design

Integrated aluminum material Design

Integrated aluminum material (ADC12) die-casting,The surface is treated with black powder spraying of outdoor special metal powder, which increases the frosted concave and convex feeling and expands the heat dissipation area.

Integrated aluminum material (ADC12) die-casting

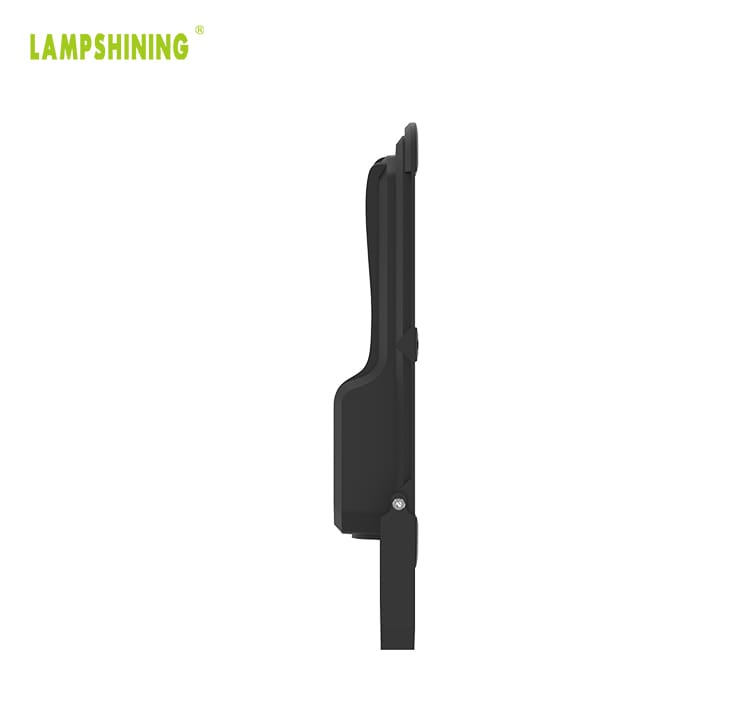

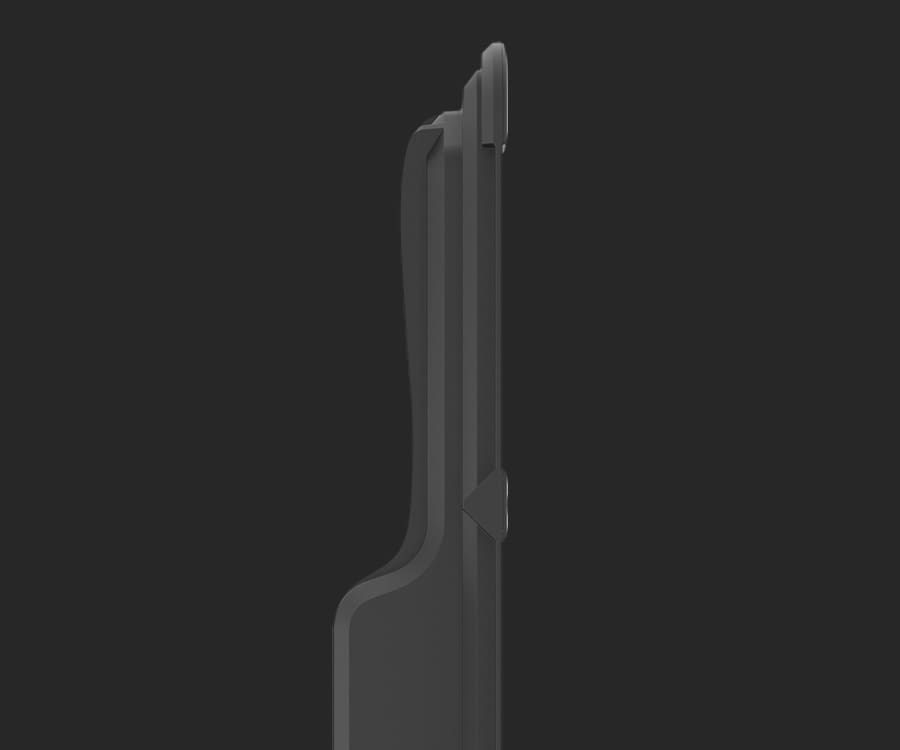

Lightweight Ultra-thin design

Lightweight Ultra-thin design

The lightweight and ultra-thin design makes the product light in weight and convenient for transportation and installation on the premise of ensuring the heat dissipation of the lamps;

The streamlined appearance has a small wind resistance coefficient, which is also conducive to air flow and heat dissipation;

Lightweight

Ultra-thin

IP66 Waterproof & IK08

IP66 Waterproof & IK08

Integrated waterproof shell, Waterproof grade IP66 and IK08 rating of anticollision.

IP66

IK08

Respirator

Respirator

All series are equipped with respirator as standard, which makes the temperature of the power space lower

Respirator

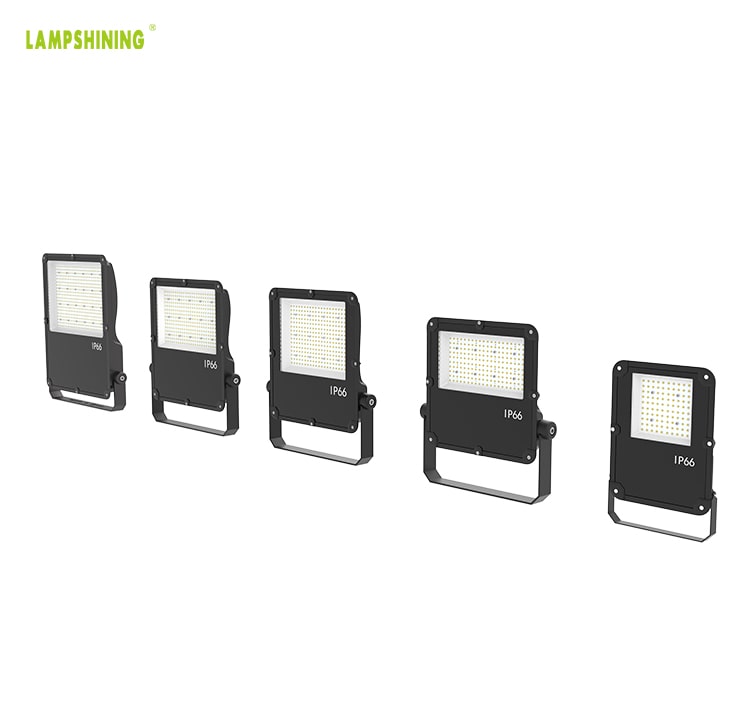

Other Watt

EKO LED Flood Light is available in wattage from 50W to 300W, which is the best choice to replace the existing MH/HID street lights of 100W-600W.

Beam Anlge

Beam Anlge

The beam angle can be selected from 30/ 60/ 90/ 120 degree/ Type II/ Type III/ Type VI/ P50. Professional light distribution angle can better achieve uniform and efficient lighting effect.

30

60

90

120

Type II

Type III

Type IV

P50

Installation

Installation

Different scenarios EKO LED Flood Light supports different installation methods.

Wall Installation

Ceiling Installation

Pedestal Installation

Pole Installation

Application

Professional tennis court, landscape lighting, projection lighting, advertising lighting, bridge lighting, dock, ship lighting, intersection lighting, etc.

Accessories

Slip FitterSlip Fitter
Photocell sensorPhotocell sensor
1-10V Dimmable1-10V Dimmable
SPD 10KV or 20KVSPD 10KV or 20KV
PhotocellPhotocell
Short Circuit CapShort Circuit Cap
NEMA 7pin
NEMA 7pin


1.Please make sure that all wires are connected correctly when you are installing it

2.Optional plug wires and Extended wires

Optional plug wires and Extended wires

Package details

50W: 10pcs/CTN

Carton size: 66*30*67cm

GW: 18.5Kg

Packaging
