170Lm/W →
190Lm/W →

Model	LSSFL-100W(XXK)
Watt	100W
Lumen	17,000Lm
Efficiency	170Lm/W±3%
Input Volt	100-277VAC
Chip Brand	Lumileds 2835
Power Supply	Moso MNC-100V240
Surge Protection	6KV
CCT	3000-6000K
Size	36834255mm
IP & IK Rating	IP66 & IK08
Beam Angle	30°/ 60°/ 90°/ 120° / TYPE2 / Type3 / Type4
Certifications	ETL DLC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

Remark: 120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%

Model	LSSFL-100W(XXK)
Watt	100W
Lumen	19,000Lm
Efficiency	190Lm/W±3%
Input Volt	100-277VAC
Chip Brand	Lumileds 5050
Power Supply	Meanwell XLG-100-H-A
Surge Protection	6KV
CCT	3000-6000K
Size	36834255mm
IP & IK Rating	IP66 & IK08
Beam Angle	30°/ 60°/ 90°/ 120° / TYPE2 / Type3 / Type4
Certifications	ETL DLC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

Remark: 120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%

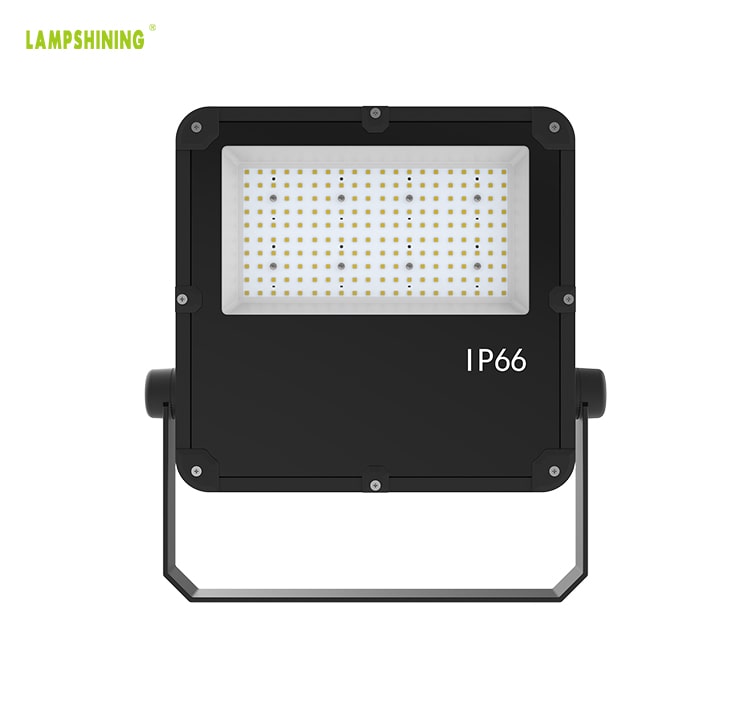

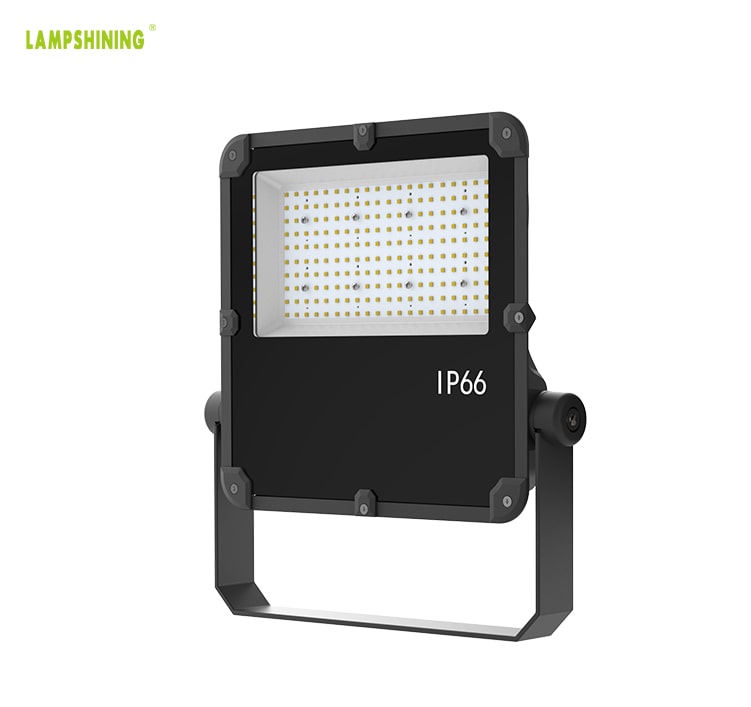

EKO 100W LED Flood Light

EKO 100W LED Flood Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

100W

170-190Lm/W

3000K-6000K

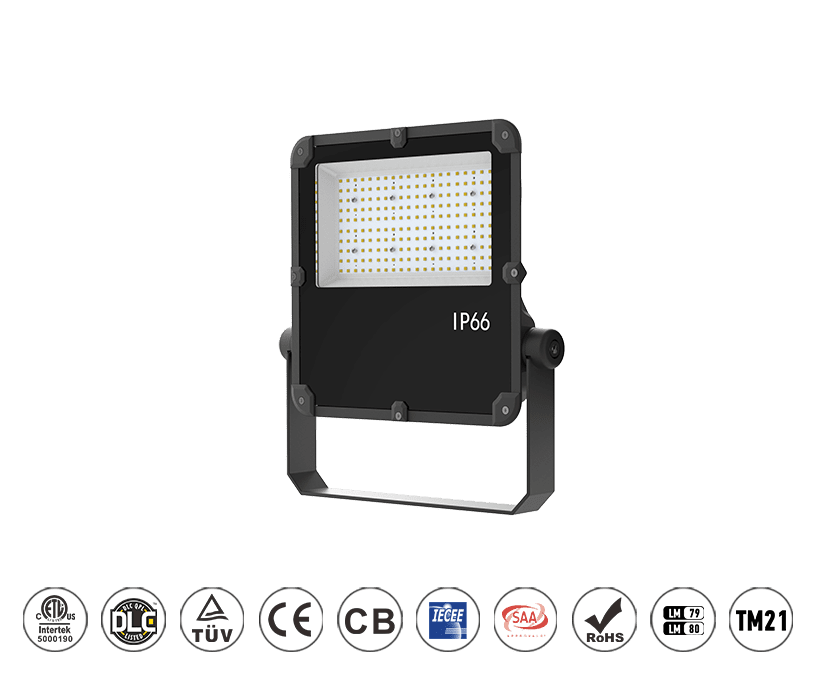

ETL DLC TUV CE CB IECEE SAA RoHS

LM79 LM80 IK08 Spray Test approved

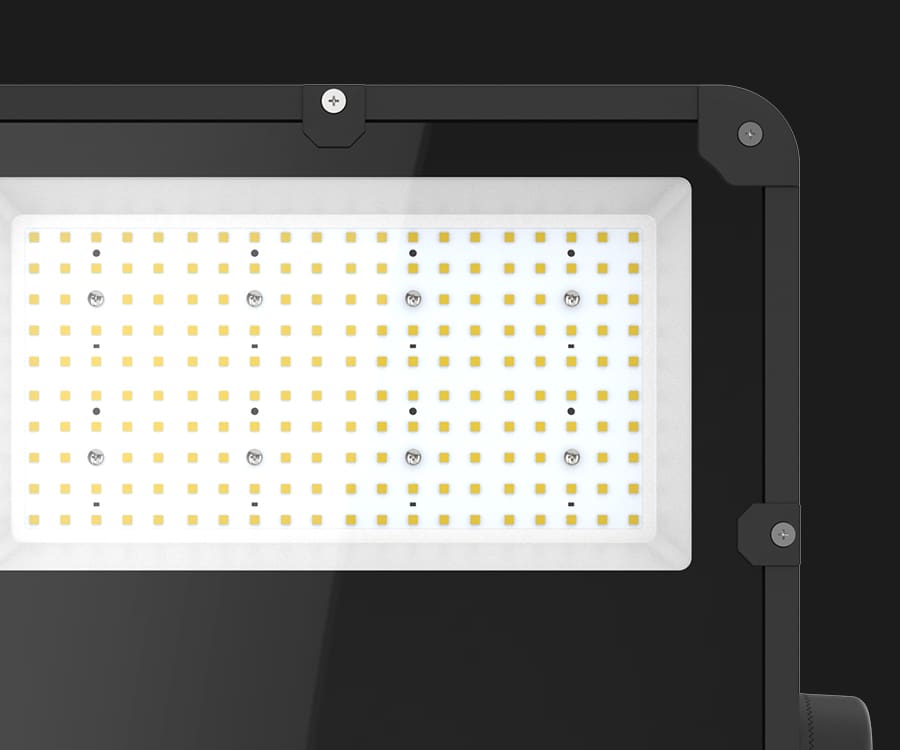

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 170-190Lm/W!

Lumileds 2835

Lumileds 5050

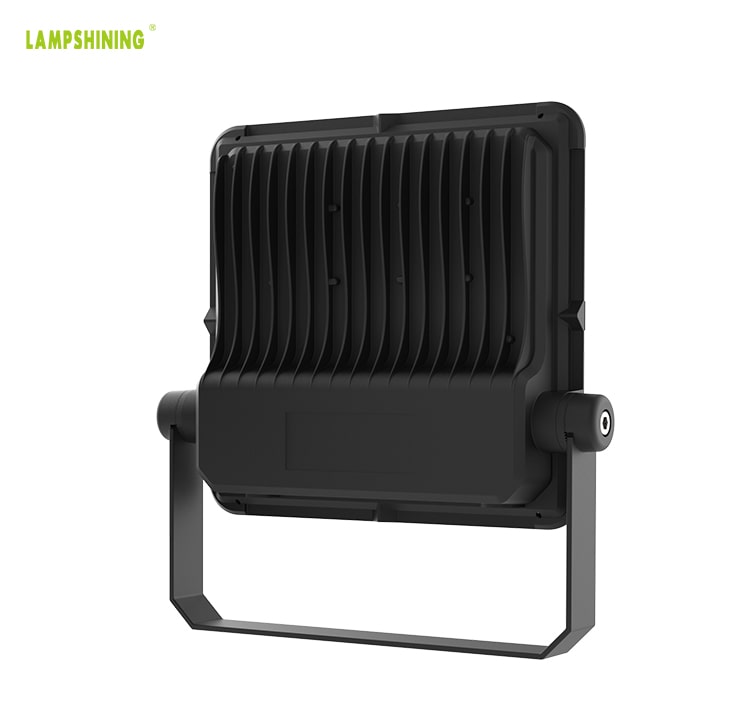

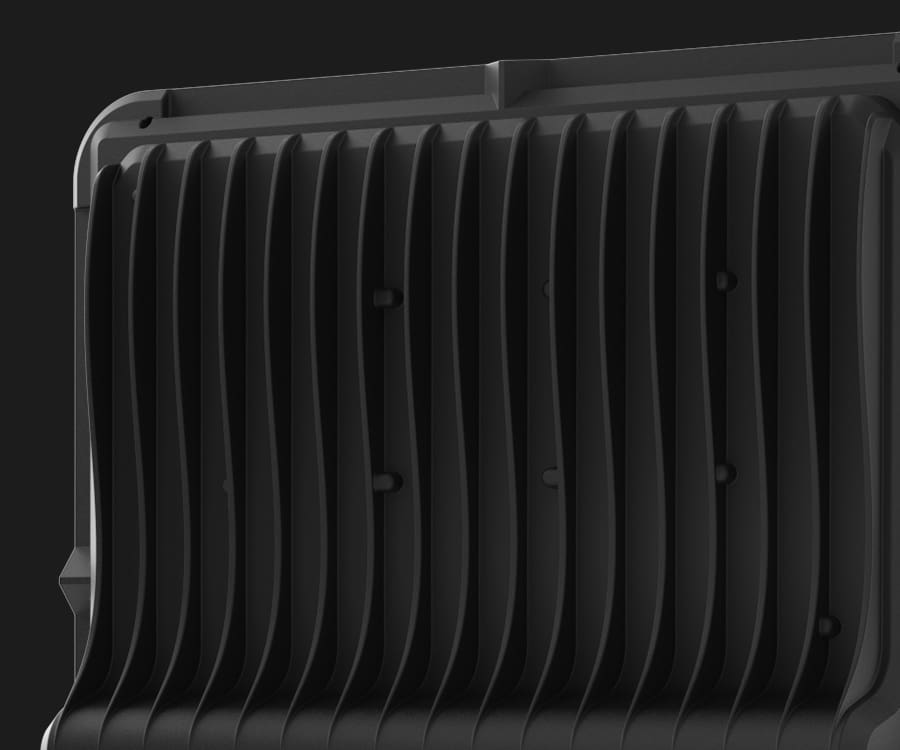

Integrated aluminum material Design

Integrated aluminum material (ADC12) die-casting,The surface is treated with black powder spraying of outdoor special metal powder, which increases the frosted concave and convex feeling and expands the heat dissipation area.

Integrated aluminum material Design

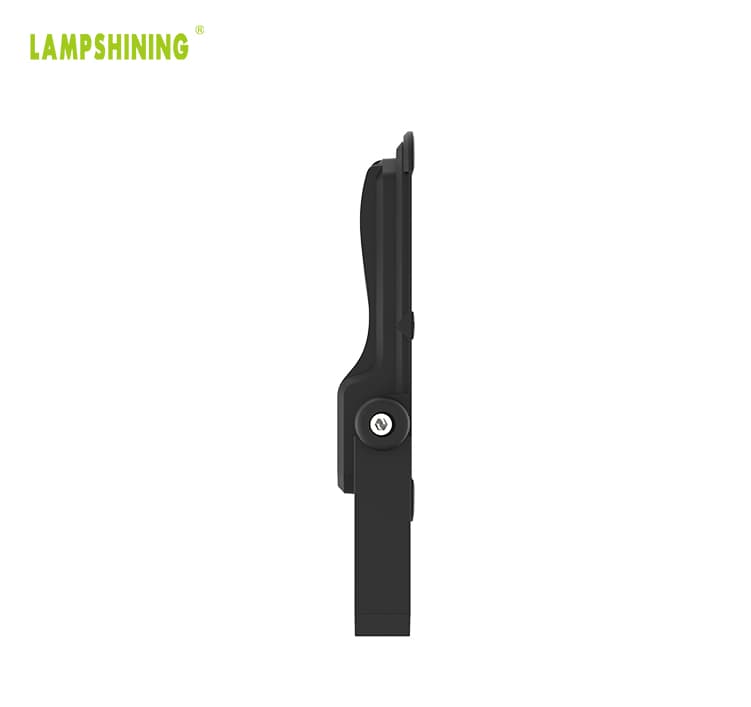

Bracket Rotatable

The angle of the bracket can be adjusted according to the needs, up to 270 degree.

Bracket Rotatable

IP66 Waterproof & IK08

Integrated waterproof shell, Waterproof grade IP66 and IK08 rating of anticollision.

IP66

IK08

Respirator

All series are equipped with respirator as standard, which makes the temperature of the power space lower

Respirator

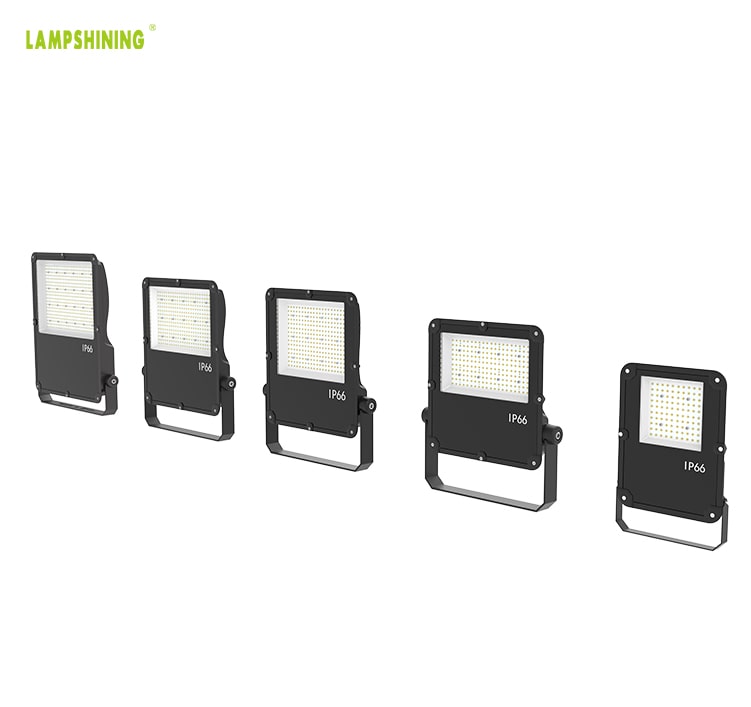

Other Watt

EKO LED Flood Light is available in wattage from 50W to 300W, which is the best choice to replace the existing MH/HID street lights of 100W-600W.

Beam Anlge

The beam angle can be selected from 30/ 60/ 90/ 120 degree/ Type II/ Type III/ Type VI/ P50. Professional light distribution angle can better achieve uniform and efficient lighting effect.

120

Type II

Type III

Type IV

P50

Installation

Different scenarios EKO LED Flood Light supports different installation methods.

Wall Installation

Ceiling Installation

Pedestal Installation

Pole Installation

Application

Professional tennis court, landscape lighting, projection lighting, advertising lighting, bridge lighting, dock, ship lighting, intersection lighting, etc.
