LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
  • LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
  • LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
  • LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
  • LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
  • LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
  • LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
  • LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof
LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 WaterproofLED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 WaterproofLED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 WaterproofLED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 WaterproofLED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 WaterproofLED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 WaterproofLED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof

LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof

1. 1500W;

2. 240,000Lm(160Lm/W);

3. Replaceable 3000W-4500W HPS, MH, HQI;

4. ENEC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved certification;

5. The lamp efficiency reaches 170LPW, with higher brightness and less energy consumption;

6. Slim Plus LED high mast light is made of sturdy foldable aluminum fin module shell and heavy-duty anti-corrosion surface treatment;

Inquire Now Next Product

LED High Pole Flood Light High Power Outdoor 1500w, 240000Lumens 6500K IP66 Waterproof

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview

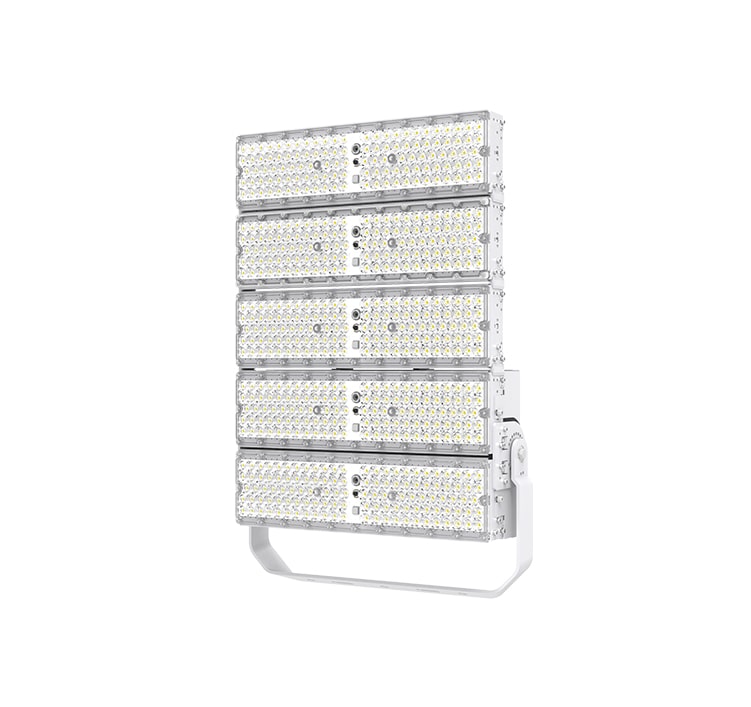

Slim Plus 1500W LED High Pole Light, 170LPW LED Flood High Mast Sports Lighting

Lampshining new 170Lm/W 1500W outdoor pole LED high mast lighting fixtures replace traditional lighting fixtures and can immediately improve the quality of lighting in stadiums, large areas, roads, ports, and airports, and reduce energy consumption by as much as 75%. And passed the ENEC TUV CE CE CB SAA RoHS LM79 LM80 TM21 21 IK10 salt spray test approval.


slim plus 1500w led high mast light

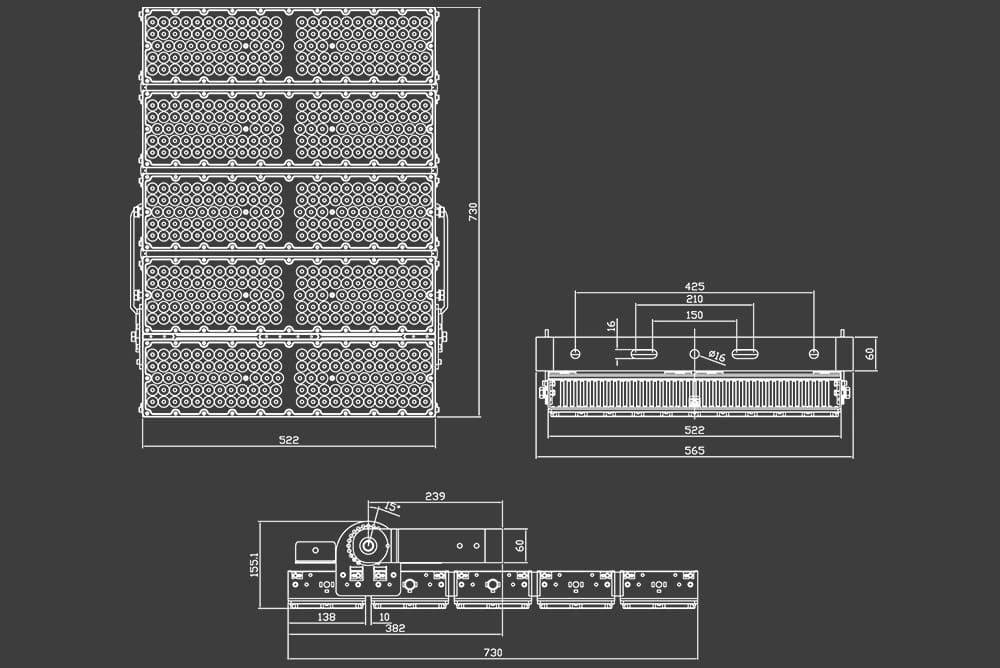

Size

565*730*155mmslim plus 1500w led high mast light size

Specifications

Model No.LSHM‐1500W‐LV(XXK)PLUS
Power1500W
Luminous Flux(±3%)240,000 Lumens(160Lm/W)
Protection levelIP66IK10
Power Factor>0.95
Weight22kg
Wind rating51.0-56.0m/s
Driver TypeMeanwell 5*ELGC-300-H-A
Light SourceLumileds 5050
Input Voltage100-277 VAC
CCT3000K 4000K 5000K 5700K 6500K
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
Beam Angle10 / 20 / 40/ 60 / 90 degree/ TypeIV/ 135*60 degree(P50)
CertificationENEC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Feature

1. High luminaire efficiency up to 170lm/w;

2. Marine grade aluminum housing;

3. IP66 and IK08 protection rate;

4. 5 years warranty;

5. Folding aluminum fin design which are very light weight;

6. ENEC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;


Why Choose 1500W Outdoor Slim Plus LED High Mast Flood Light?

1.High Efficiency

Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 160Lm/W. Save more energy consumption.

more efficiency led lighting

high efficiency 1500w led high pole flood light


2.Heat dissipation

Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.


folding aluminum fin design 1500w led high pole flood light


3.Dustproof net

protect the lamp from other debris.


1500w led high pole flood light with dustproof net


4.Waterproof IP66

Waterproof IP66, safer for outdoor use.

waterproof ip66 1500w led high pole light


5. Higher quality lighting

The lampshining Slim plus series LED high mast light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90.

high CRI/TLCI slim plus led high mast light


6.Laser pointer calibration

Laser Tech, help to do final calibration.

It is more convenient to control the illumination direction of the lamp during installation.Laser pointer

slim plus led high mast light with Laser pointer


Application

slim plus led high mast light application


Click to contact us for more detailed information and the latest quotation!


contact us

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.

slim plus led high mast light baem angleg

Anti-glare Cover(optional)

anti glare cover accessory

Bending lamp mounted Bracket(optional)

Optional tilt angle bending bracket, more convenient installation

Bending lamp mounted Bracket

Carton

1500W: 1pc/ 81*64*22cm  GW:25Kg
