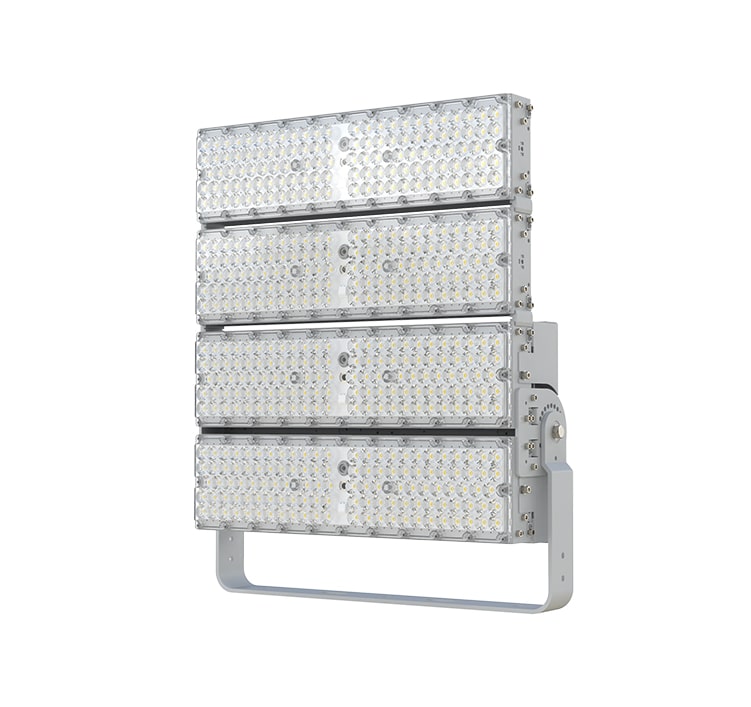

800W 152000 Lumens LED High Pole Flood area lights, 2000W Metal Halide Equal

●   Watt: 800W

●   Lumens: 144,000/ 152,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 565*582*155mm

●   Lamp Weight: 16kg

●   CCT (Color Temp): 4000, 5000k

●   5 years warranty

●   Beam Angle: 10/20/40/60/140*100/135*60(P50)

Inquire Now Next Product

800W 152000 Lumens LED High Pole Flood area lights, 2000W Metal Halide Equal

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSHM‐800W‐LV(XXK)PLUS
Watt800W
Lumen144,000
Efficiency180Lm/W±3%
DriverMeanwell 4*ELG-240-48A
Input Volt100-277VAC
Chip BrandLumieleds 5050
CCT4000K, 5000K
Weight16kg
Size565*582*155mm
IP RatingIP66 & IK10
Wind rating51.0-56.0m/s
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
Beam Angle10 / 20 / 40/ 60 / 90/ 140*100/ 135*60 degree(P50)
CertificationTUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved
ModelLSHM‐800W‐LV(XXK)PLUS
Watt800W
Lumen152,000
Efficiency190Lm/W±3%
DriverMeanwell 4*ELG-240-48A
Input Volt100-277VAC
Chip BrandLumieleds 5050
CCT4000K, 5000K
Weight16kg
Size565*582*155mm
IP RatingIP66 & IK10
Wind rating51.0-56.0m/s
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
Beam Angle10 / 20 / 40/ 60 / 90/ 140*100/ 135*60 degree(P50)
CertificationTUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved

Slim Plus LED Flood Light 800W

Slim Plus LED Flood Light 800W

Slim Plus LED High Pole Flood area lights is a perfect Outdoor lighting solution for Tunnels, airports, Stadium.

800W

Lumileds 5050

180Lm/W

190Lm/W

3000K-6000K

TUV CE CB SAA RoHS

LM79 LM80 TM21 IK10 Salt Spray test approved

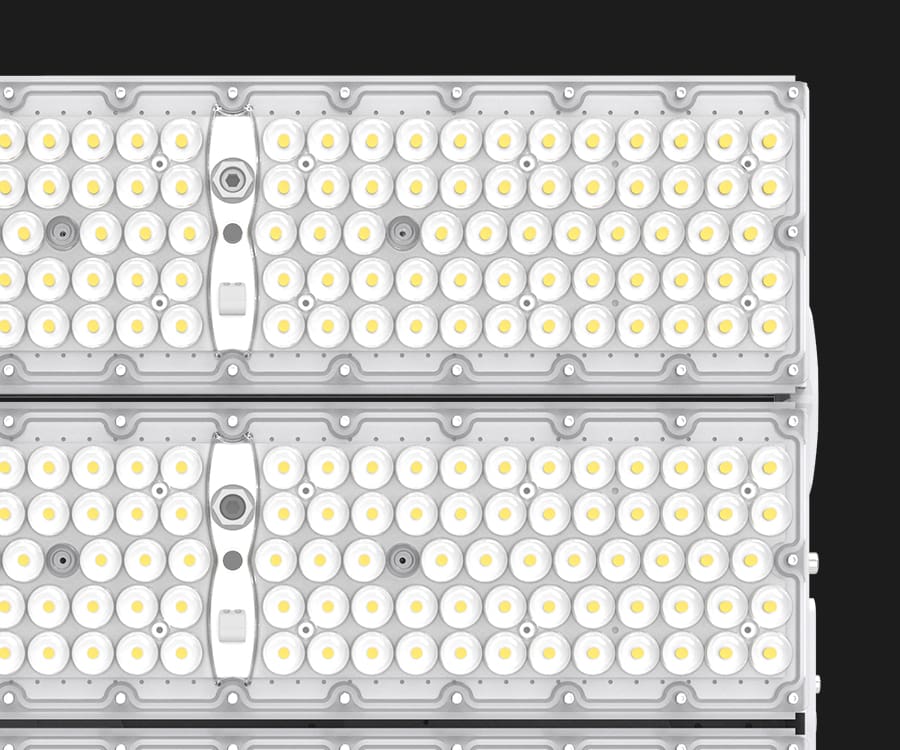

High quility LED Brand

High quility LED Brand

Uses Lumileds 5050, High Efficiency 180-190Lm/W.

Lumileds 5050

Folding aluminum fin design

Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.

Folding aluminum fin

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim plus led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

50,000H

-30~45℃

Dustproof net

Dustproof net

The radiator of Slim Plus LED Flood Light adds a layer of dust net to prevent more dust from affecting heat dissipation, and it is also easier to maintain later.

Dustproof net

Laser pointer calibration

Laser pointer calibration

Laser Tech, help to do final calibration. It is more convenient to control the illumination direction of the lamp during installation.

Laser pointer calibration

Higher quality lighting

Higher quality lighting

The lampshining Slim plus series LED high mast light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90.

High CRI

Other Watt

Slim Plus LED Flood Light is available in wattage from 200W to 1500W, which is the best choice to replace the existing MH/HID street lights of 500W-3000W.

Slim Plus LED Flood Light

Slim Plus LED Flood Light

Slim Plus LED Flood Light

Slim Plus LED Flood Light

Slim Plus LED Flood Light

Beam Anlge

Beam Anlge

The beam angle can be selected from 10/ 20/ 40/ 60/ 90/ P50(135*60 degree). Professional light distribution angle can better achieve uniform and efficient lighting effect.

10 degree

20 degree

40 degree

60 degree

90 degree

P50(135* 60 degree)

Application

Can illuminate intersections, squares, docks, ships, ports, construction sites, cranes,Tennis courts, basketball courts, soccer fields, etc.

Accessories

10KV or 20KV SPD
1-10V Dimmable
347-480VAC(Sosen driver)
Dali dimmable(Sosen driver)
Anti-glare plate200W 38,000LM LED Flood Light, 1-10V Dimmable Bracket Rotatable Aluminum 7kg Module Area Light
Laser pointer200W 38,000LM LED Flood Light, 1-10V Dimmable Bracket Rotatable Aluminum 7kg Module Area Light


Anti-glare Cover(optional)

anti glare cover accessory

Bending lamp mounted Bracket(optional)

Optional tilt angle bending bracket, more convenient installation

Bending lamp mounted Bracket

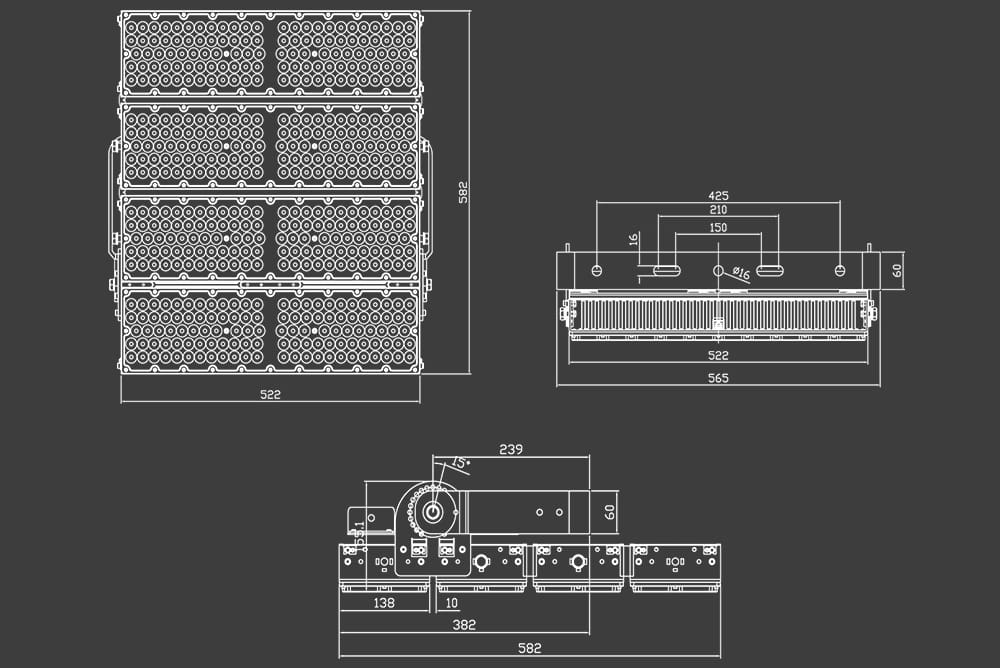

WattSize
800W1pc/ 565*582*155mm


slim plus 800W LED High Pole Flood area lights size
