1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting
  • 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting
  • 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting
  • 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting
  • 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting
  • 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting
1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting 1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting

1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting

1. 1440W;

2. 223,200(155Lm/W);

3. Replaceable 3000W-4000W HPS, MH, HQI;

4. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved Certification;

5. Die-cast connector can realize the conversion of multiple modules to single module;

6. The lamp efficiency reaches 155LPW, with higher brightness and less energy consumption;

Inquire Now Next Product

1440W Outdoor High Lumen LED Light, Tower Crane, Street Electrical Poles Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

1440W Outdoor High Lumen LED High Mast Light, Tower Crane,Street Electrical Poles Lighting

Slim Pro 1440w LED sport Lighting, 155Lm/W.  Immediately improve lighting quality and reduce energy costs by up to 75%. Suitable Sport, Cricket Field, horse arean Lighting.


slim pro 1440w led high mast light

Specifications

Model No.LSHM‐B1440W‐LV(XXK)
Power1440W
Luminous Flux(±3%)223,200(155Lm/W)
Protection levelIP66IK10
Power Factor>0.95
Weight22kg
Wind rating51.0-56.0m/s
Driver TypeMeanwell 6*ELG-240-48A
Light SourceLumileds 5050
Input Voltage100-277 VAC
CCT3000K 4000K 5000K 5700K 6500K
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
Beam Angle10 / 20 / 40/ 60 / 90 degree/ TypeIV/ 135*60 degree(P50)
CertificationETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Size

860*650*132mmslim pro 1440w led high mast light size


Feature

1. High luminaire efficiency up to 155lm/w;

2. Marine grade aluminum housing;

3. IP66 and IK10 protection rate;

4. 5 years warranty;

5. Folding aluminum fin design which are very light weight;

6. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;


Why Choose 1440W Outdoor LED high mast Lighting?

1.High Efficiency

Uses high quality Lumileds 5050, LED Sport Light Efficiency up to 155Lm/W. Save more energy consumption.

high efficiency slim pro 1440w led high mast light

higher efficiency

2.Heat dissipation

Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.


floding aluminum fin design 1440w led high mast lighting


3.Die-cast connector

Die-cast connector can realize the conversion of multiple modules to single module.1440w led high mast lighting can realize the conversion of multiple modules to single module


4.Waterproof IP66

Waterproof IP66, safer for outdoor use.waterproof ip66 1440w led high mast lighting


5. Higher quality lighting

The lampshining Slim pro series LED sport light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90.

high CRI/TLCI slim plus led high mast light

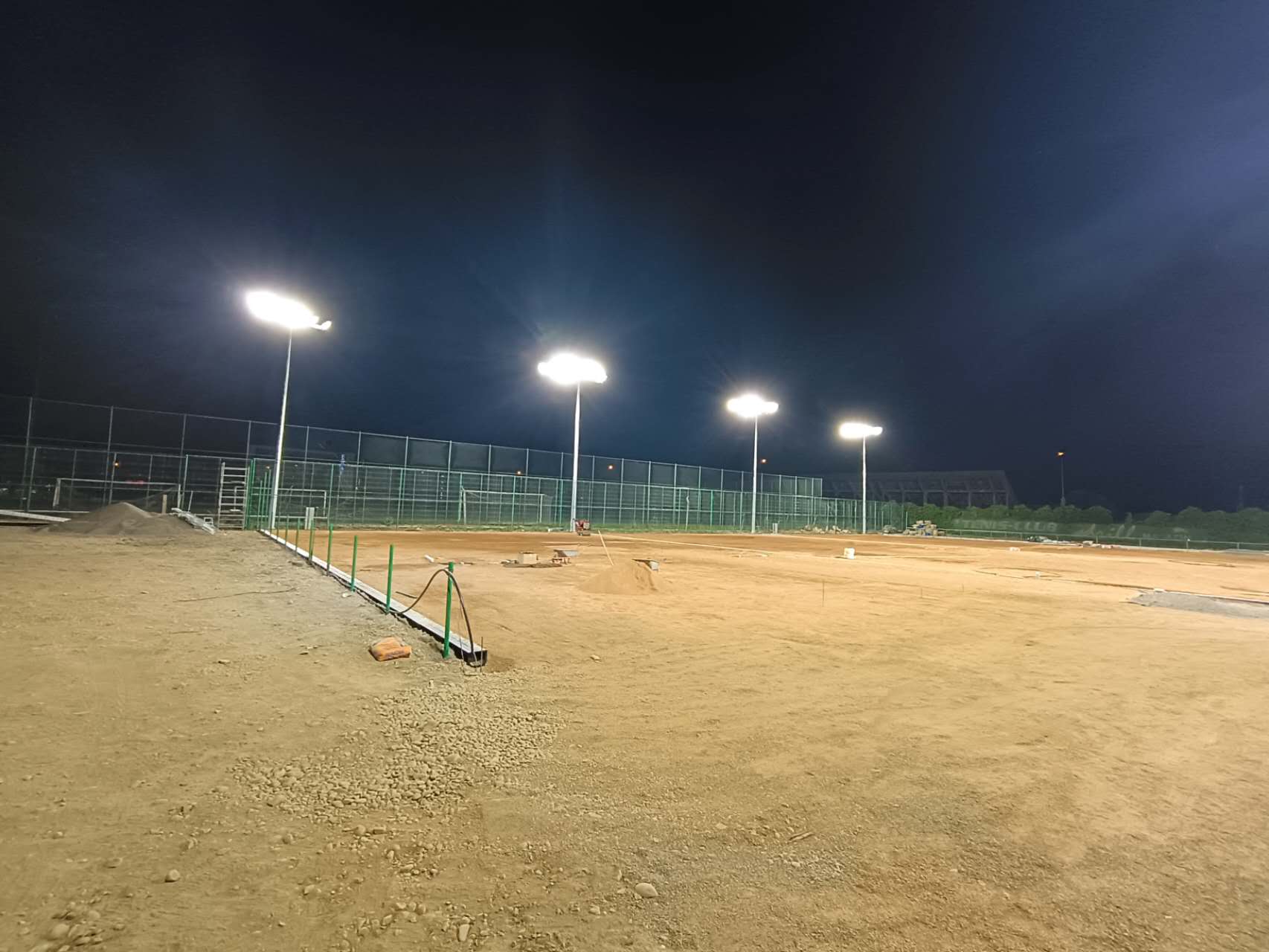

Application


1440w led high mast light application


Click to contact us for more detailed information and the latest quotation!


contact us

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.

1440w led high mast light baem angle

Carton

1440W: 1pc/ 100*61.2*23.7cm  GW:25.3Kg
