● Watt: 120W
● Lumens: 18,600/ 20,400
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP Rating: IP66 - IK10
● Size: 297*263*132mm
● Lamp Weight: 2.2kg
● CCT (Color Temp): 3000, 4000, 5000, 6000
● 5 years warranty
● Beam Angle: 10/20/40/60/90/140*100/135*60(P50)
Specifications
Model No. | LSHM‐120W‐LV(XXK) | |
Watt | 120W | |
Lumen | 18,600 | 20,400 |
Efficiency | 155Lm/W±3% | 170Lm/W±3% |
Input Volt | 100-277VAC | |
Chip Brand | Lumileds/ Osram 5050 | |
CCT | 3000K 4000K 5000K 5700K 6500K | 4000K, 5000K |
Modules | Rotatable | |
Weight | 2.2kg | |
Size | 297*263*132mm | |
Beam Angle | 10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50) | |
Driver | Meanwell XLG-150-H-A | |
Wind rating | 51.0-56.0m/s | |
IP Rating | IP66 & IK10 | |
CRI | Ra70 (Ra80, Ra90 optional) | |
Dimmable | Optional dimmable and non-dimmable | |
Certification | ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved | |
Life Time | L70/B10 >50,000hours | |
Warranty | 5 Years / 7 years extended warranty available |
120W LED Sport Flood Light
175Lm/W can save a lot of energy consumption for your stadium sports field and get more and higher quality light;
100 watt LED Sport Flood light can emit 17,500 lumens of light and can replace 200-250 watt metal halide MH or HPS/ HID lamps. 3000-6500K optional light colors ensure that bright and clear light with different color temperatures can be selected in different scenes;
Using folding Aluminum Fin design, light weight, Thermal effect is good;
The bracket can be rotated up and down for easy adjustment, and can be installed in various ways. Ideal for directing light more precisely in the right direction or areas with special lighting requirements. It is the best installation or refurbishment option for basketball courts, football fields, baseball fields, golf courses and other sports fields;

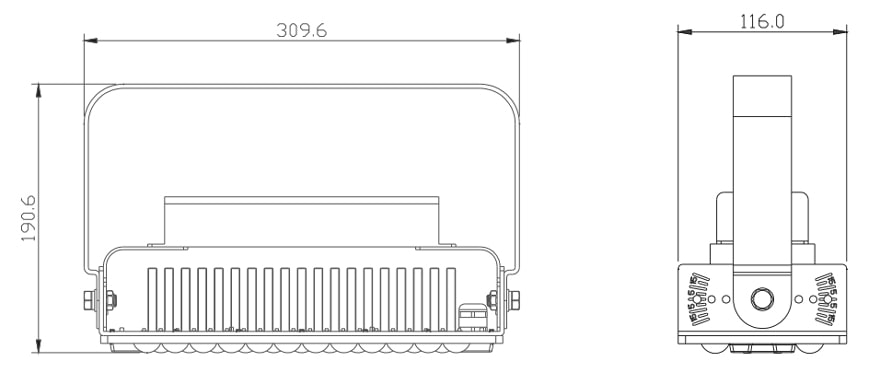

Size
Why Choose Slim Pro 120W LED Sport Flood Lights?
1.High luminaire efficiency up to 170lm/w;
2.Marine grade aluminum housing;
3.IP66 and IK10 protection rate;
4.5 years warranty;
5.Folding aluminum fin design which are very light weight;
6.ENEC ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
7.Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility;

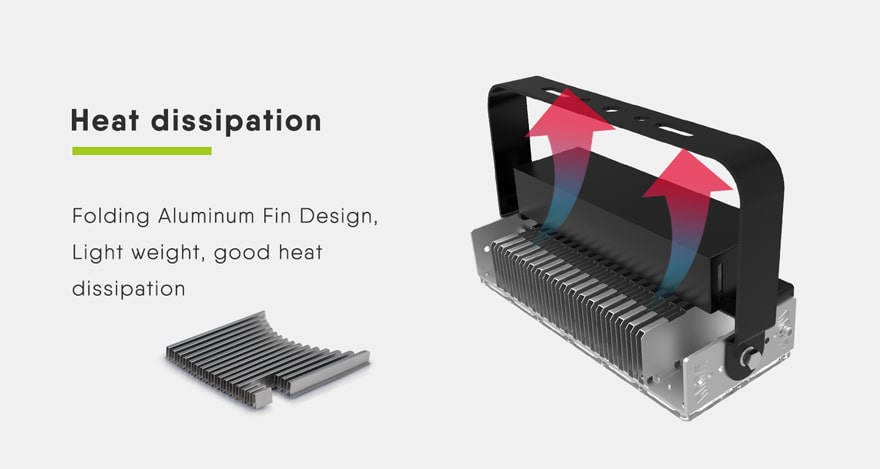

1.Folding aluminum fin design
Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.
2.Protection class
1.IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim PRO LED High MAST LIGHT to withstand harsh environments;

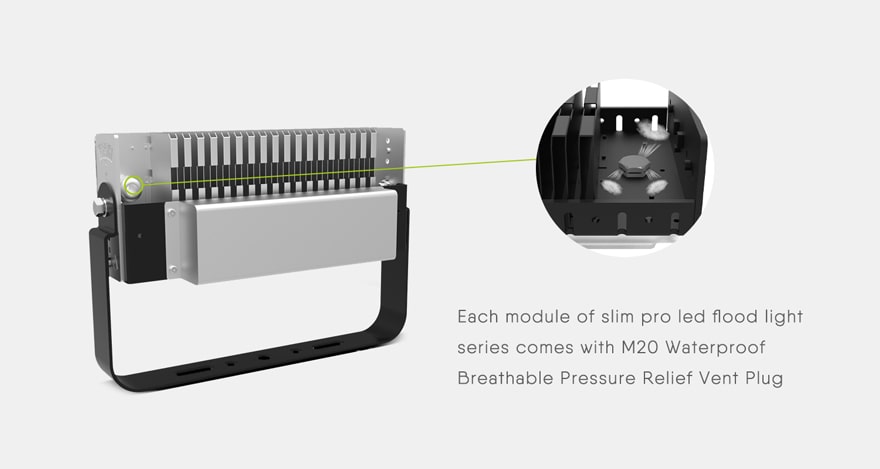

2.Each module of slim pro high mast lights series comes with M20 Waterproof Breathable Pressure Relief Vent Plug;
Photometrics
The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.
Application
LED High Mast Light is very suitable for large areas such as sports fields, stadiums, Racing track, Ballpark airports, terminals, etc.

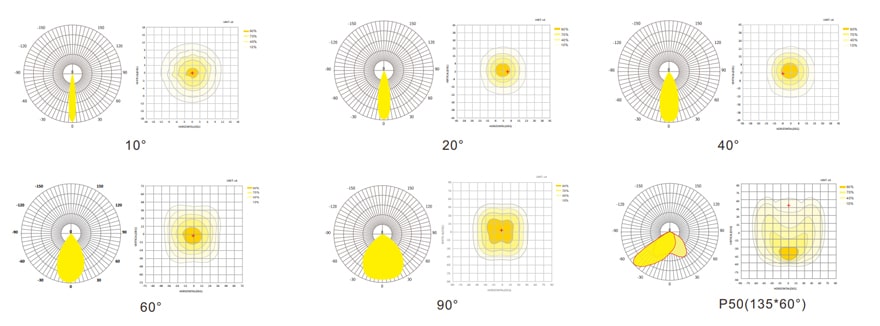

Beam angle
The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.
Accessories
347-480VAC Sosen driver | |
1-10V Dimmable | |
10KV or 20KV SPD | |
Slip fitter | ![]() |
Round Installation plate | ![]() |
Anti glared visor | ![]() |
Laser pointer | ![]() |
Remote driver box | ![]() |
Package details
Wattage | 120W |
Size of box(cm) | 40*31*22 |
Weight | 3.0kg |
