960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
  • 960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
  • 960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
  • 960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
  • 960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
  • 960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
  • 960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
  • 960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting
960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting960W LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting

960W Slim ProX LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting

1. 960W;

2. 168,000Lm(175Lm/W±3%);

3. Replaceable 2000-2200W HPS/ MH/ HQI;

4. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;

5. Folding aluminum fin design which are very light weight;

6. ProX series modules can be flexibly rotated and adjusted;

Inquire Now Next Product

960W Slim ProX LED Sports Light Fixture - Yoke Mount Football, Squash, pickleball, Stadium Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Function icon

Specifications

Model

LSHM B960W-LV(XXK)ProX

Watt960W
Efficiency160Lm/W±3%175Lm/W±3%
Lumens

153,600Lm

168,000Lm
CCT4000K 5000K 5700K 6000K4000K, 5000K
DriverMeanwell Driver 2*ELGC‐300‐H‐A
Weight12.5kg
Size

649*375*188mm

Beam Angle10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)/ 70*30 degree
CertificationETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Slim ProX high uniformity and flexibility led lighting fixture

1.Perfect lighting can increase the audience's enthusiasmfor the event;

2.Good lighting can improve the overall comfort and visibility of the sports venue;

3.Flicker-free high-quality lighting can also enhance the clarity and realism of TV broadcast and live broadcast;

Advantages of slim prox series products

Slim prox led sports light fixture of different wattage



Designed for high uniformity sports light - More flexible and adjustable module design, it is the best for arena, sports field, large area lighting

960W Slim ProX led sports light fixture

960W Slim ProX led sports light fixture size

960W Slim ProX led sports light fixture

Product Features

1.Modules can rotate continuously

The Slim prox series uses innovative continuously rotating accessories, which can be flexibly rotated to achieve the best lighting angle, which is very suitable for large-scale area lighting such as sports fields and airports;


960W Slim ProX led sports light fixture Modules can rotate continuously

600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture


2.Pure aluminum heat sink

The entire lamp body adopts Pure aluminum heat sink, which has strong anti-corrosion performance and good heat dissipation performance. In addition, the weight is very light compared with other products of the same level. And adopted the Breathable Protective Air Vent Plug;

960W Slim ProX led sports light fixture uses aluminum heat sink

3.Professional optical system

Slim proX series each module can be matchec with any light distribution angle to achieve the most uniform lighting;

960W Slim ProX led sports light fixture optical system

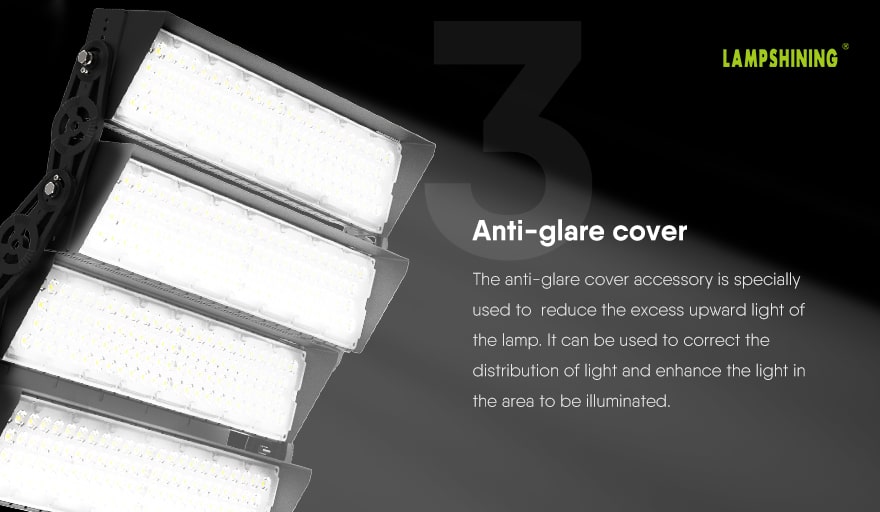

4.Anti-glare cover

The anti-glare cover accessory is specially used to reduce the excess upward light of the lamp. It can be used to correct the distribution of light and enhance the light in the area to be illuminated;

960W Slim ProX led sports light fixture anti glare cover accessory


5.High CRI

The Slim proX series LED high mast light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90;

high cri vs low cri

application

application


contact us

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.

beam angle

Packaging

75*66*30cm 1pc/ctn

GW: 20Kg
