● Watt: 240W
● Lumens: 36,000/ 43,200
● Light Source: Lumileds 5050
● Input Volt: 220-240VAC
● IP Rating: IP66 - IK08
● Anti-Glare Design
● Size: 495*380*69mm
● Lamp Weight: 7.2kg
● CCT (Color Temp): 3000-6000K
● 5 years warranty
● Beam Angle: 20/40/60/90/30*70/97*47(Type 4)/135*60(P50);
|Chip Brand||Lumileds 5050|
|Driver||Meanwell XLG-240-H-A/ Sosen SS-240GA-56|
|IP & IK Rating||IP66 & IK08|
|Beam Angle||20, 40, 60, 90, 30*70, 97*47(Type 4),135*60 degree(P50);|
|Number of lamp beads||72|
|Certifications||Reach ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved|
This high quality NEMO LED flood light is designed with the latest technology for optimal performance and is ideal for signs, accent architecture,flags, parking lots, and landscape lighting. LED technology has a longer life expectancy than fluorescent lighting, and emits no UV rays,contains no mercury, and does not flicker.
Integrated aluminum material (ADC12) die-casting;
The surface is made of black powder sprayed with special metal powder for outdoor use, which increases the frostiness and convexity and expands the heat dissipation area;
The chip terminal can be plugged and unplugged between the PCB and the power supply for post-maintenance (replacement of the drive or light source board);
Tempered glass adopts snap-on fixing method, which is convenient for post-maintenance (can be opened without tools);
The lightweight and ultra-thin design ensures light weight and is easy to transport and install under the premise of ensuring heat dissipation of the lamp;
The streamlined appearance has a small drag coefficient, which is also conducive to air flow and heat dissipation;
Meet ROHS standards;
The outer casing is waterproof and integrated, and the waterproof level can reach IP66;
The product has passed multiple certifications, Reach ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved
Wind resistance coefficient is small,but also more conducive to air flow heat dissipation;
High quality LED brand
Uses high quality Philips 5050, LED Flood Light Efficiency up to 180Lm/W. Save more energy consumption;
Lightweight ultra-thin Rotatable design
Lightweight and ultra-thin design, under the premise of ensuring heat dissipation of the lamps, the product is light in weight, convenient for transportation and installation; The rotatable design can make the lamps easier to adjust and get the best lighting angle. And can be adjusted without tools;
Support Series circuits
NEMO led flood light support series circuits. Many outdoor projects have a large span. In areas of 500 meters or more, this Linakble LED Flood Light uses only 30% of the power used by fluorescent lights or metal halides, which means it is lighter and more mobile. Good convenience.
Tool free open and maintanance
For the subsequent maintenance of the lamp fixture, NEMO FLood Light tempered glass and bracket are fixed by a knob type fixing method, and the lamp can be opened and adjusted with hand-tightening；
Anti Glare lens
This high quality NEMO LED flood light is designed with the latest technology for optimal performance and is ideal for signs, accent architecture,flags, parking lots, and landscape lighting. LED technology has a longer life expectancy than fluorescent lighting, and emits no UV rays,contains no mercury, and does not flicker; NEMO LED flood light minimizes glare and achieves maximum uniformity. We successfully achieved UGR <22.
Waterproof lightning protection
With ip66 waterproof and 10KV lightning protection;
Optional Wall installation, Ground installation, Pole installation methods;
Reater light comfort, improved planning and more selection options for a wide spectrum of applications – the NEMO LED Floodlight range of luminaires has been speciﬁcally developed for wide-area and plaza lighting and sets new standards for complete building and facility lighting solutions.

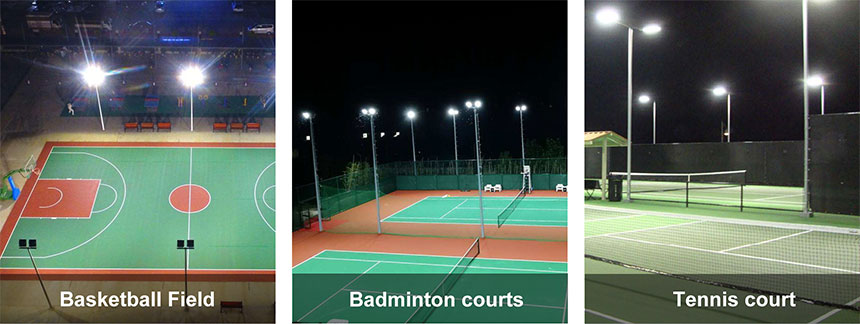

Be also suitable for indoor and outdoor basketball courts, badminton courts, football fields, tennis courts, baseball fields, golf courses, ski resorts and other indoor and outdoor stadiums. Also suitable for swimming pools, ski resorts, stations, gardens, park lighting and other Surface and facade lighting.
Beam angle application
The advantage of Polarized illumination angle is anti-glare, which does not shine on the athletes eyes when playing, which makes the sports experience and training effect better. 20, 40, 60, 90, 97*47(Type 4), 135*60(P50).
|Slip Fitter||Photocell sensor||1-10V Dimmable|
|SPD 10KV or 20KV||NEMA 3pin Photocell||Shorting Cap|
Optional plug wires and Extended wires
1. Please make sure that all wires are connected correctly when you are installing it.
2.Optional plug wires and Extended wires.
Carton size: 55*49*17cm GW: 7.5Kg
