● Watt: 100W
● Lumens: 12,500
● Light Source: Philips SMD 3030
● Input Volt: 100-277VAC
● IP Rating: IP65 - IK08
● Size: 260mm*165mm
● CCT (Color Temp): 3000-6000k
● 5 years warranty
● Beam Angle: 60/ 90/ 120 degree
Specifications
| Item NO. | LSUFO-100WXY-Z LSUFO-100WND-M LSUFO-100WD-M |
| Watt | 100W |
| Lumen | 12,500 |
| Efficiency | 125Lm/W±3% |
| Light Source | Philips SMD 3030 |
| LED QTY | 144 |
| Driver | Meanwell HBG-100-48A/ HBG-100-48B |
| Dimension | 260mm*165mm |
| Equivalent | 250W metal halide / HID High Bay Light Equivalent |
| CCT | 3000K-6500K |
| Input Volt | 100-270VAC , 347-480VAC 50/60Hz |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 year Warranty |
| Power Factor | >0.95 |
| Dimming Options | Non-dimmable/ Dimmable |
| Cap Type | Base Options:US,Europe,UK,Australia plug |
| Cover options | Acrylic reflector, milky cover and clear cover options |
| Construction | Retrofit fin aluminum+stainless steel |
| IP Rating | IP65 |
| CRI | >70 |
| Rated Lifespan | 50,000+ hours |
| Beam Angle | 60/ 90/ 120 degrees |
| Certified | CE RoHS |

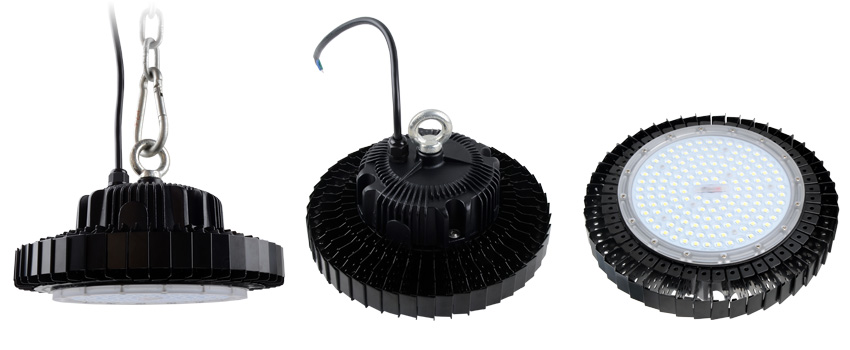

Dimensions UFO LED High Bay Light
Size
| Item NO. | DLC NO. | Rated Wattage | Luminous efficiency | Beam Angle | Lumen | Dimension |
| LSUFO-60WXY | N/A | 60W | 150Lm/W | 60 / 90 / 120 degree | 9000Lm | 260mm*165mm |
| LSUFO-100WXY | LSUFO-100WND LSUFO-100WD | 100W | 140Lm/W | 14000Lm | 260mm*165mm | |
| LSUFO-120WXY | LSUFO-120WND | 120W | 140Lm/W | 16800Lm | 260mm*165mm | |
| LSUFO-150WXY | LSUFO-150WND LSUFO-150WD | 150W | 150Lm/W | 22500Lm | 280mm*166mm | |
| LSUFO-150WXY | LSUFO-150WND LSUFO-150WD | 150W | 160Lm/W | 24000Lm | 280mm*166mm | |
| LSUFO-200WXY | LSUFO-200WND LSUFO-200WD | 200W | 140Lm/W | 28000Lm | 320mm*200mm |
Example: LSUFO-60WND
| Series | Watt | Dimmable |
| LSUFO | 60W | XY stands for D , which is short for Dimmable XY stands for ND , which is short for None Dimmable |
| LSUFO | 100W | |
| LSUFO | 120W | |
| LSUFO | 150W | |
| LSUFO | 200W |
Main Feature
5 years warranty
With most suitable beam angle 60,90 and 120 degrees
Original Philips SMD 3030 which up to125Lm/W
With the best quality Meanwell HBG-100-48A; HBG-100-48B
They are assembled by module light weight aluminum fin
IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Using aluminum fin heat sink which heat transfer faster than die cast
Tiny package and lighter,lower freight cost,more competitive in the market
Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc
Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 90%.
Application
Photometrics - UFO LED High Bay Light
| Mounting options | Accessories | Image | Description |

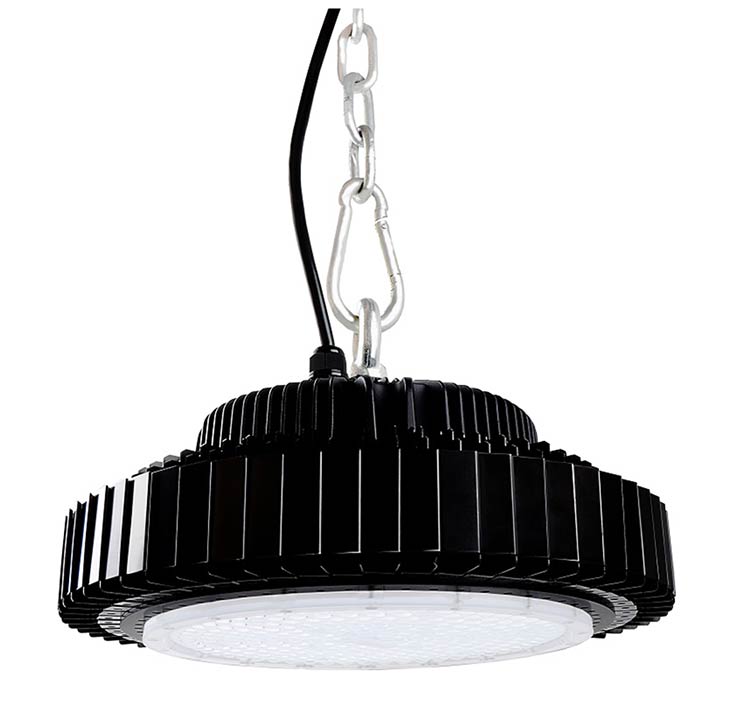

| 2 Hooks + 1 Cord (1M) |  |  | Material: nickel-plated chains Diameter of the chains: 7.5mm Hooks 2pcs Cord 1pcs (1m) |

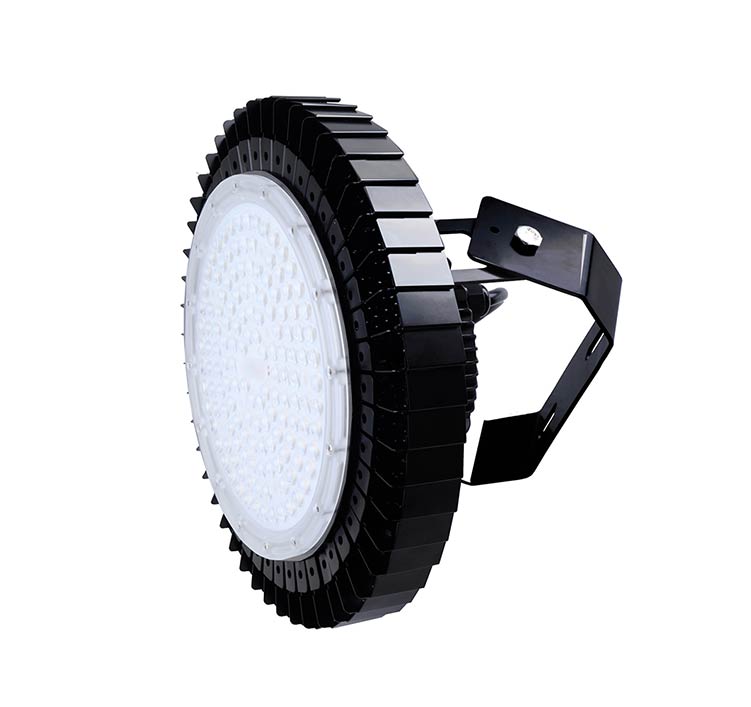

| U bracket |  |  | The maximum adjustable angle of the bracket is 270 degree The diameter of the mounting bracket fixing hole is 10mm |

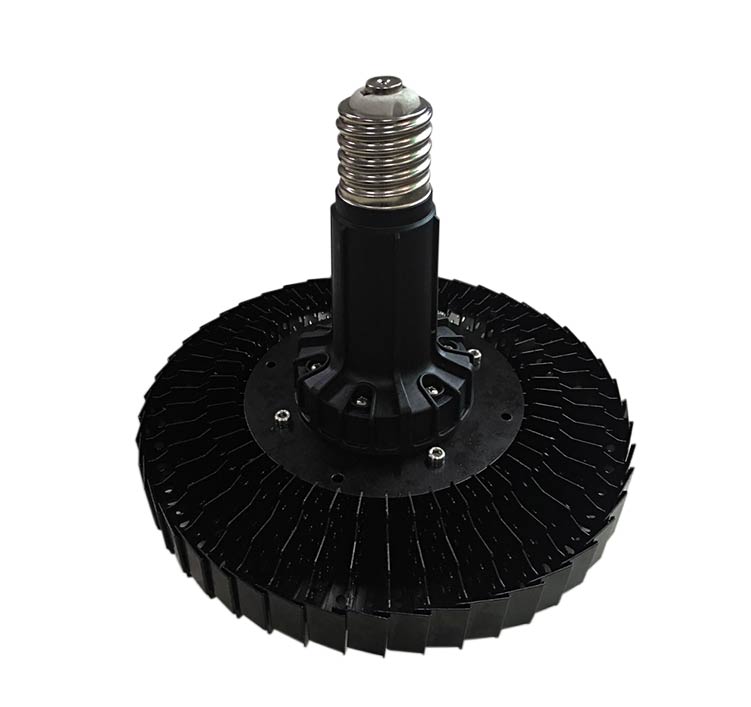

| E40 base External driver |  |  | Mogul Base E40 E39 |

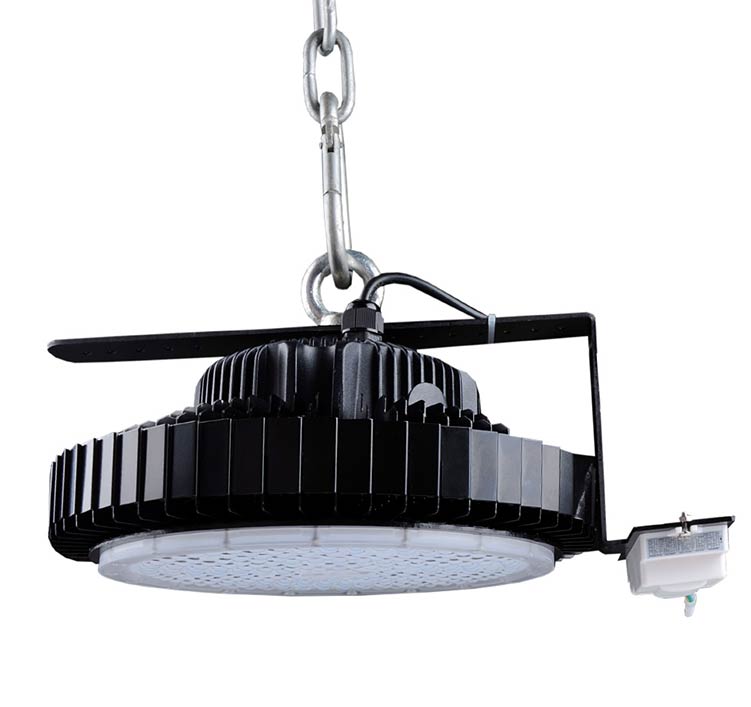

| Microwave Motion+daylight sensor |  |  | Microwave Motion Sensor (Non-dimmable) + L bracket (Dimmable) + L bracket |
| IP65 Microwave Motion Sensor |  |  | IP65 CE UL Microwave Motion Sensor |
| Acrylic reflector |  |  | without bottom cap |
| Acrylic reflector |  |  | Acrylic reflector with bottom cap |
| PC Cover |  |  | (Milky and transparent options) |
Packaging - 100W UFO LED High Bay
| Length | Width | Height | GW(kg) | |
| Inner Box(1pc) | 34cm | 34cm | 22cm | 2.5 |
| Outer Carton(4pcs) | 70cm | 37cm | 45cm | 11.2 |
| With Milky Cover box size | 70*44*45cm |
| With sensor box size | 1pc/ 42*42*26cm 4pcs/ 78*44*51cm |
| Acrylic reflector box | 17pcs/ 48*48*66cm |
| Bottom Cap package | 17pcs/ 47*47*40cm |
