120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed
  • 120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed
  • 120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed
  • 120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed
  • 120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed
  • 120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed
120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed

120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed

1.Light Source: Philips 3030
2.Luminous Flux: 14400 Lumen
3.Rated Wattage: 120Watt
4.Power Factor > 0.95
5.Input Voltage: 100-277VAC,50/60Hz
6.Dimming Options:Non-dimmable/Dimmable
7.IP Rating: IP65
8.Lifetime: 50,000+ hours
9.Lens Beam Angle: 60 / 90 / 120 degrees
10.200-250W HID/Metal Halide Equivalent .
11.TUV CB SAA C-tick LCP RoHS listed.

Inquire Now Next Product

120W UFO LED High Bay 14,400 Lumen 300W HID Equivalent TUV SAA C-tick listed

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


120W UFO LED High Bay Lighting

UFO led high bay


Specifications

Item NO.

DLC NO.

LSUFO-120WXY

LSUFO-120WND

Power Factor>0.95
Wattage120WDimming OptionsNon-dimmable  /  Dimmable
Luminous Flux14400 Lumen(120Lm/W)Cap TypeBase Options:US,Europe,UK,Australia plug
Light SourcePhilips SMD 3030Optical lens60 90 and 120 degree
LED QTY144Cover optionsAcrylic reflector, milky cover and clear cover options
Driver Power

Non-dimmable Meanwell HBG-100-48A

Dimmable Meanwell HBG-100-48B

ConstructionRetrofit fin aluminum+stainless steel
Dimension260mm*159mmBeam Angle60 90 and 120 degrees
Equivalent250W metal halide / HID High Bay Light EquivalentUnified Glare Rating60 degrees : UGR < 19 90 degrees/ 120° : UGR < 25
CCT3000K/4000-4500K/5000-5700K/6000-6500KIP RatingIP65
Input Voltage100-300VAC , 347-480VAC 50/60HzCRI>70
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg CRated Lifespan50,000+ hours
Warranty5 year WarrantyCertifiedTUV CB SAA C-tick LCP RoHS listed


Main Feature

  • 5 years warranty

  • With most suitable beam angle 60, 90 and 120 degrees

  • Original Philips SMD 3030 which up to 120Lm/W

  • With the best quality meanwell driver HBG series

  • They are assembled by module light weight aluminum fin

  • IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion

  • Using aluminum fin heat sink which heat transfer faster than die cast

  • Tiny package and lighter,lower freight cost,more competitive in the market

  • Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc

  • Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 90%.


UFO led high bay light 100w 120w


Microwave Motion and daylight - UFO LED High Bay Light

Microwave Motion and daylight

Application

ufo led high bay light application.jpg

    Lamp Shining LED

ufo led high bay light application.jpg

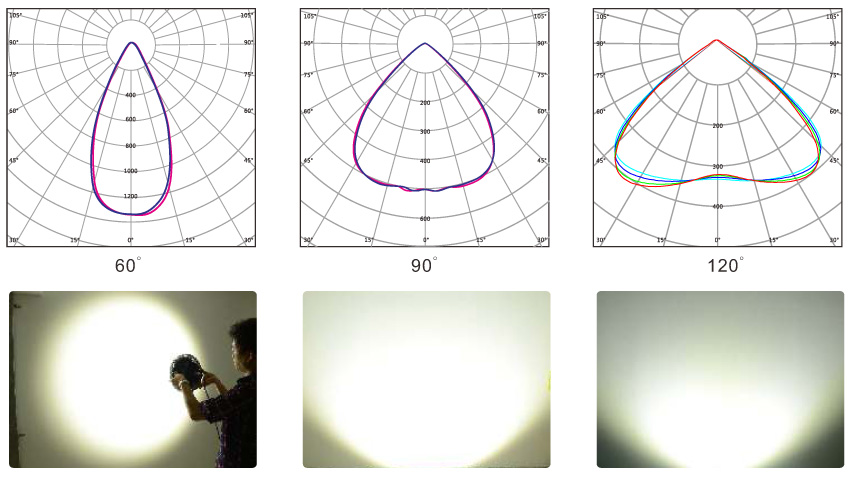

Photometrics - UFO LED High Bay Light 60°90°120°

beam angle.jpg

Mounting optionsAccessoriesImageDescription
2 Hooks + 1 Cord (1M)light fixtures Hooks and Cord accessoriesufo led high bay light 60w

Material: nickel-plated chains

Diameter of the chains: 7.5mm

Hooks 2pcs

Cord 1pcs (1m)

U bracketU installation bracket, ufo high bay light accessoriesU bracket ufo high bay light

The maximum adjustable angle of the bracket is 270 degree

The diameter of the mounting bracket fixing hole is 10mm

E40 base
External driver
e40 base,ufo led high bay light accessorye40 base ufo led high bay light fixturesMogul Base E40 E39
Microwave Motion+daylight sensorMicrowave Motion+daylight sensor,ufo led high bay light accessoryufo led high bay light with Microwave Motion+daylight sensor

Microwave Motion Sensor

(Non-dimmable) + L bracket

(Dimmable) + L bracket

IP65 Microwave Motion SensorIP65 Microwave Motion Sensor, accessoryufo led high bay light with IP65 Microwave Motion SensorIP65 CE UL Microwave Motion Sensor
Acrylic reflectorAcrylic reflector with bottom cap, accessoryufo led high bay light with Acrylic reflector without bottom capwithout bottom cap
Acrylic reflectorAcrylic reflecto, accessoryAcrylic reflector with bottom capAcrylic reflector with bottom cap
PC CoverMilky and transparent PC Cover, accessorypc cover, accessory(Milky and transparent options)


Packaging


  length width heightGW(kg)
Inner Box (1pc)  39cm  39cm 25cm5.1
Outer Carton (4pcs)  78cm   41cm 51cm25.3



With Milky Cover box size70*44*45cm
With sensor box size1pc 42*42*26cm   4pcs/78*44*51cm
Acrylic reflector box17pcs/48*48*66cm
Bottom Cap package17pcs/47*47*40cm
