70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V
  • 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V
  • 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V
  • 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V
  • 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V
  • 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V
70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V 70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V

70W LED Corn Bulbs 9100Lm Equal 275W HID External driver AC 347V~480V

  • 1. Model NO. : LSCB-70WXY-HV

  • 2. Wattage: 70 Watt

  • 3. Input Voltage: 347-480VAC External driver HVG-65-36A

  • 4. Luminous Flux: 9100 Lumen (130Lm/W)

  • 5. Base: E40/E39(mogul) E27/E26(Medium)

  • 6. CCT: 3000K 4000K 5000K 5700K 6500K

  • 7. Milky cover,clear cover and NO cover options.

  • 8. ETL cETL CE RoHS certified.

  • 9. Equal 275W Metal Halide / HPS / HID Lamp.

  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Lighing Layout

Feature

  • Using high brightness of original packed Epistar 2835 SMD chip which achieves 130lm/w

  • As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

  • Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).

  • Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

  • No spot, no black area, long life span and less brightness decay

  • Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)

  • Wide voltage External driver AC347-480V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

  • No magnetic disturbance influence and CE & RoHS standard compliant.

  • No UV and near-IR radiation in the light beam.

  • ETL cETL CE RoHS certified.

  • 36 months warranty

ce rohs 70W led corn light bulbs show.jpg


Specifications - LED Corn Bulbs

ModelLSCB-40WXY-HVLSCB-50WXY-HVLSCB-60WXY-HVLSCB-70WXY-HVLSCB-100WXY-HVLSCB-120WXY-HV
Wattage40W50W60W70W100W120W
Luminous Flux5200 Lm6250 Lm7700 Lm9100 Lm13000 Lm15600 Lm
Efficacy130Lm/W
Dimensions4.1x9.09 in4.1x9.09 in4.1x10.51 in4.1x11.93 in5.04x11.3 in5.04x12.1 in
Equal150W175W250W275W400W450W
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage347-480VAC External driver
Power Factor>0.8
Cap TypeE40/E39 (mogul) E27/E26(Medium)
CoverMilky cover,clear cover and NO cover options
Light Source2835 Epistar SMD
Beam Angle360 degrees
IP Rating60
CRI>80
Body Temperature<50 Deg C @Ta=25 Deg C
Ambient temperature-45 to + 50 Deg C
Rated Lifespan50,000+ hours
CertifiedETL cETL CE RoHS Listed

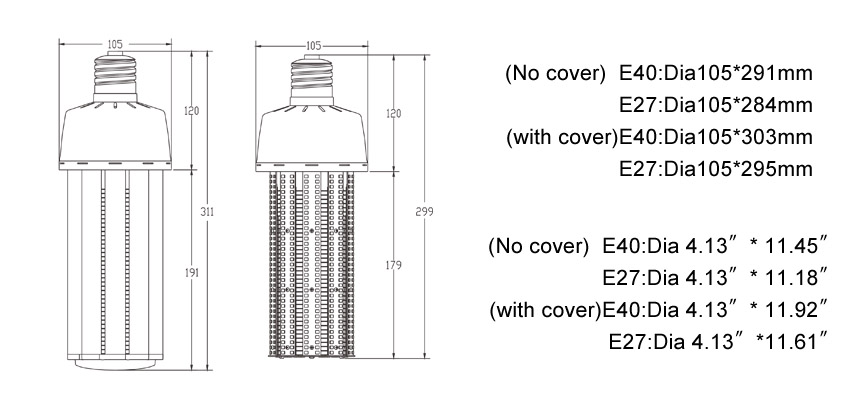

Dimensions

led corn light bulbs 70w dimensions.jpg

Advantages

led corn light Beam Angle 360 degree  led corn light aluminum fin bulit-in heat sink    Customer Review.jpg

Application

led corn light application

led corn light application

Replacement LED

Replacement LED Description.jpg

led corn light accessories.jpg

 lengthwidthheightGW(kg)
Inner Box (1pc)13cm13cm27cm0.45
Outer Carton (12pcs)55cm44cm34cm8.75


led corn light package dimmable light bulbs.jpg
