1. Model NO. : LSCB-100WXY-HV
2. Wattage: 100 Watt
3. Input Voltage: 347-480VAC
4. Luminous Flux: 13000 Lumen (130Lm/W)
5. Base: E40/E39(mogul) E27/E26(Medium)
6. CCT: 3000K 4000K 5000K 5700K 6500K
7. Milky cover,clear cover and NO cover options.
8. ETL cETL Certified.
9. Equal 400W Metal Halide / HPS / HID Lamp.
Overview
Specifications
Model | LSCB-40WXY-HV | LSCB-50WXY-HV | LSCB-60WXY-HV | LSCB-70WXY-HV | LSCB-100WXY-HV | LSCB-120WXY-HV |
DLC Number | LSCB-40WE39NC-HV | N/A | LSCB-60WE39NC-HV | N/A | N/A | LSCB-120WE39CC-HV |
Wattage | 40W | 50W | 60W | 70W | 100W | 120W |
Luminous Flux | 5200 Lm | 6250 Lm | 7700 Lm | 9100 Lm | 13000 Lm | 15600 Lm |
Efficacy | 130Lm/W | |||||
Dimensions | 4.1x9.09 in | 4.1x9.09 in | 4.1x10.51 in | 4.1x11.93 in | 5.04x11.3 in | 5.04x12.1 in |
Equal | 150W | 175W | 250W | 275W | 400W | 450W |
CCT | 3000K 4000K 5000K 5700K 6500K | |||||
Input Voltage | 347-480VAC | |||||
Power Factor | >0.8 | |||||
Cap Type | E40/E39 (mogul) E27/E26(Medium) | |||||
Cover | Milky cover,clear cover and NO cover options | |||||
Light Source | 2835 Epistar SMD | |||||
Beam Angle | 360 degrees | |||||
IP Rating | 60 | |||||
CRI | >80 | |||||
Body Temperature | <50 Deg C @Ta=25 Deg C | |||||
Ambient temperature | -45 to + 50 Deg C | |||||
Rated Lifespan | 50,000+ hours | |||||
Certified | ETL cETL DLC TUV CE RoHS SAA FCC Listed |
100W LED Corn Bulbs
Size
Feature
Using high brightness of original packed Epistar 2835 SMD chip which achieves 130lm/w
As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .
Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).
Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.
No spot, no black area, long life span and less brightness decay
Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)
Wide voltage AC347-480V,High efficiency constant current drives,Efficiency of power supply is more than 90%.
No magnetic disturbance influence and CE & RoHS standard compliant.
No UV and near-IR radiation in the light beam.
ETL cETL certified.
36 months warranty
Advantages
Application
Replacement LED
CFL Replacement - Just plug in,run at 100~240VAC
HPS Replacement - Basllast or transformer should be bypassed before installation

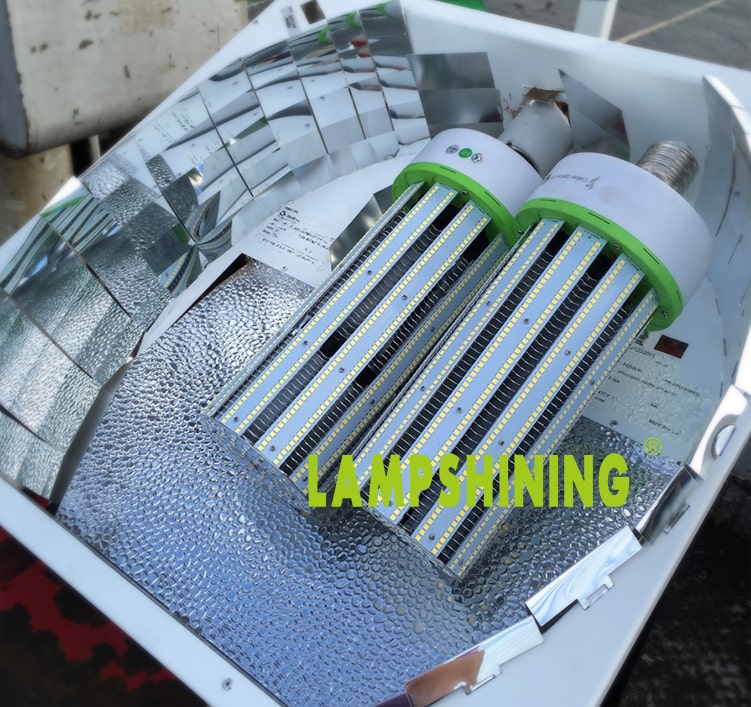

Cases show
Beam angle
length | width | height | GW(kg) | |
Inner Box (1pc) | 15cm | 15cm | 36cm | |
Outer Carton (12pcs) | 64cm | 49cm | 40cm | 14.5 |
