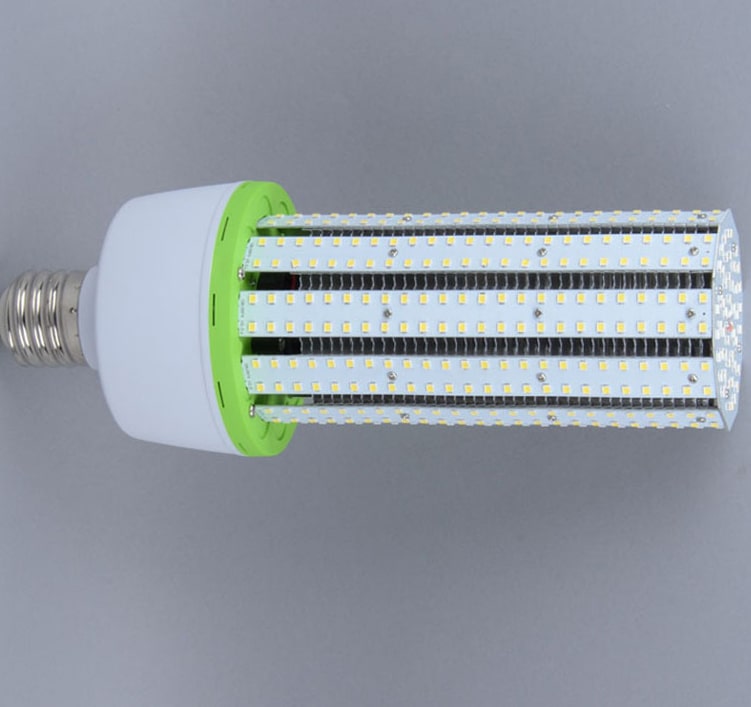

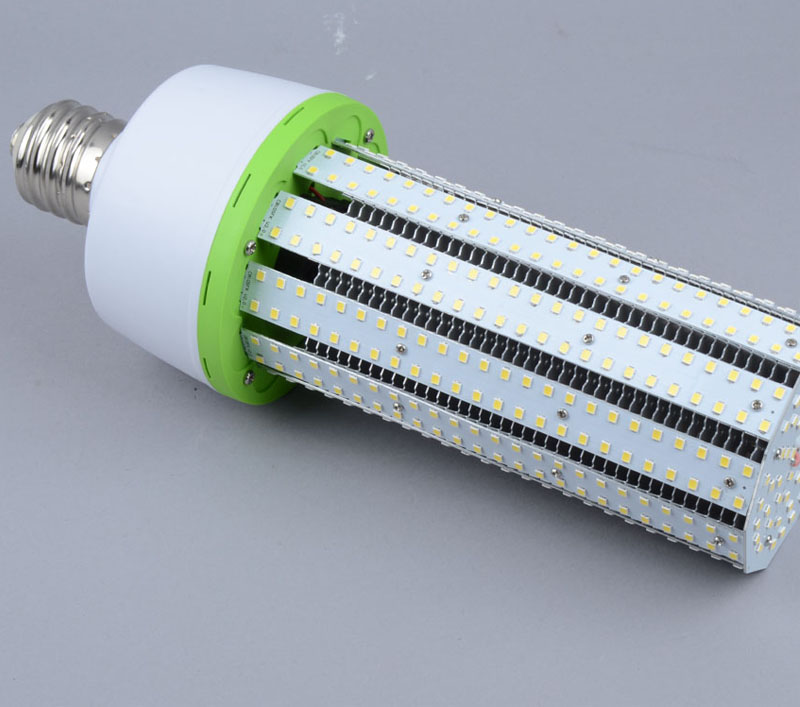

70W LED Corn Bulbs 9100Lm Equal 275W HID

  • 1.Model NO. : LSCB-70WXY

  • 2.Wattage: 70 Watt

  • 3.Input Voltage: 100-277VAC

  • 4.Luminous Flux: 9100 Lumen

  • 5.Base: E40/E39(mogul) E27/E26(Medium)

  • 6.CCT: 3000K 4000K 5000K 5700K 6500K

  • 7.Milky cover,clear cover and NO cover options.

  • 8.ETL cETL DLC SAA CE RoHS Certificate.

  • 9.Equal 275W Metal Halide / HPS / HID Lamp.

Inquire Now Next Product

70W LED Corn Bulbs 9100Lm Equal 275W HID

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Package details

Feature

  • Using high brightness of original packed Epistar 2835 SMD chip which

  • As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

  • Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).

  • Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

  • No spot, no black area, long life span and less brightness decay

  • Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

  • No magnetic disturbance influence and CE & RoHS standard compliant.

  • No UV and near-IR radiation in the light beam.

  • ETL cETL TUV SAA CE RoHS certified.

  • 60 months warranty

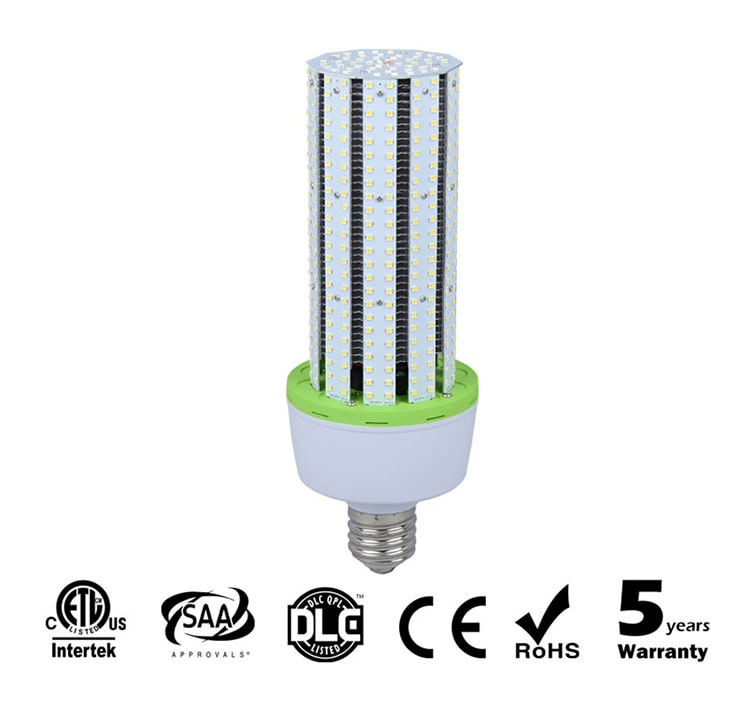

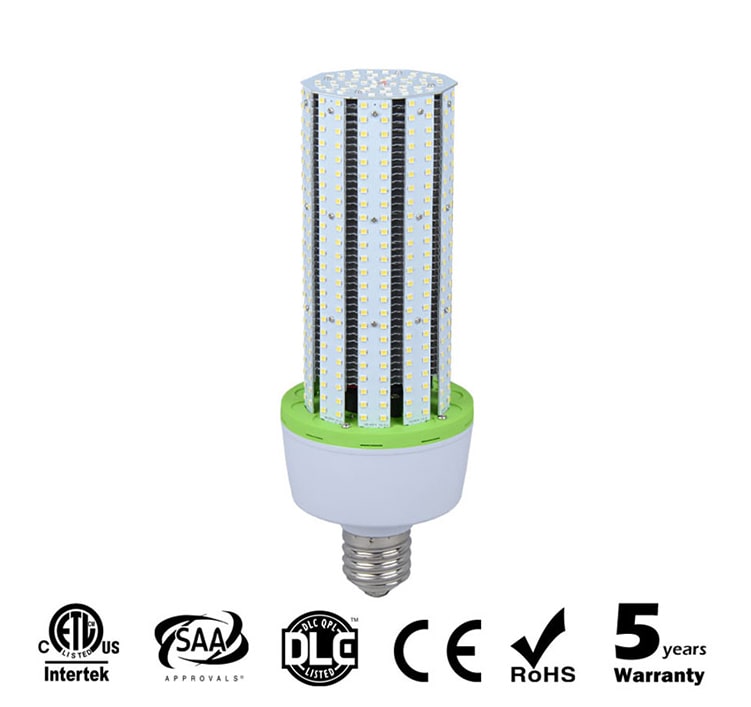

ETL SAA DCL CE ROSH.jpg


Specifications - 70W LED Corn Bulbs

ModelLSCB-70WXY
DLC NumberLSCB-70WE39NC
Wattage70W
Luminous Flux9100 Lm
Dimensions

(No cover) E40:Dia 4.13'' * 11.46''          E27:Dia 4.13'' * 11.18''

(with cover)E40:Dia 4.13'' * 11.93''         E27:Dia 4.13'' * 11.61''

Replaces275W HID
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-300VAC,50/60Hz
Power Factor>0.8
Cap TypeE40/E39 (mogul) E27/E26(Medium)
CoverMilky cover,clear cover and NO cover options

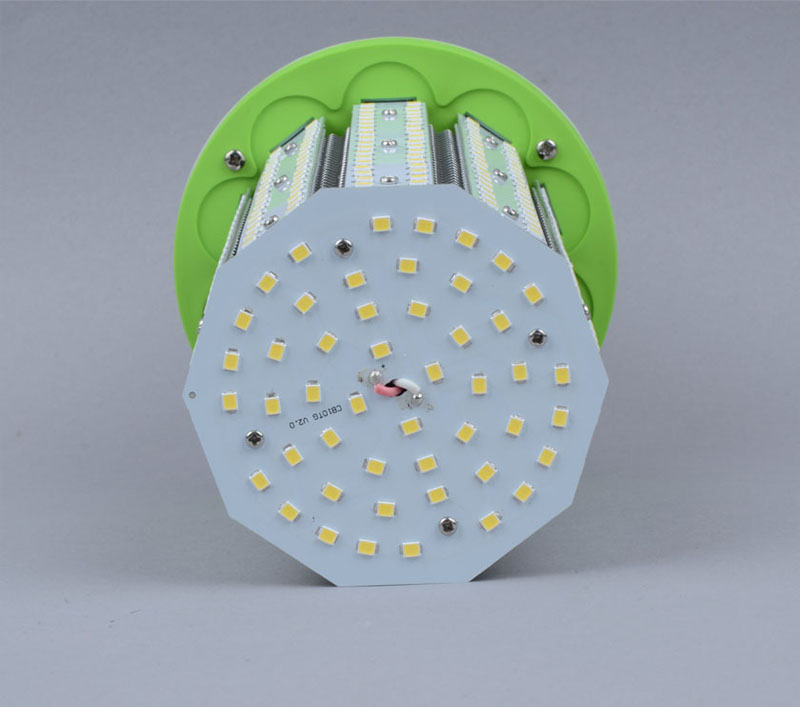

Light Source2835 Epistar SMD
Beam Angle360 degrees
IP Rating60
CRI>80
Body Temperature<50 Deg C  @Ta=25 Deg C
Ambient temperature-45 to + 50 Deg C
Rated Lifespan50,000+ hours
CertifiedETL cETL DLC SAA CE RoHS Listed

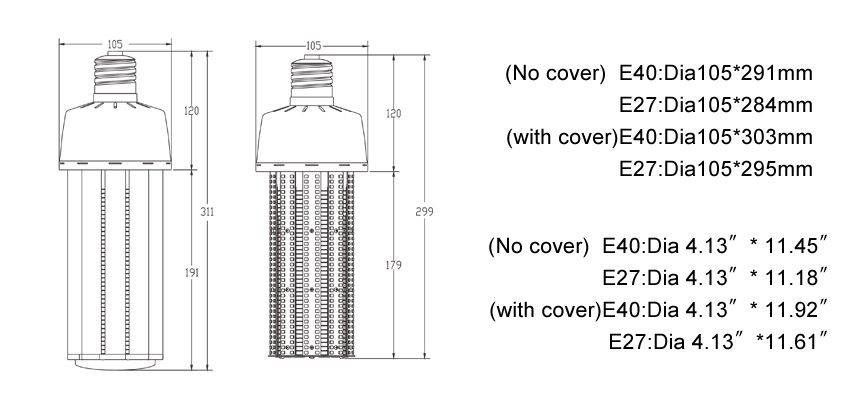

Dimensions

led corn light 70w dimensions.jpg


Advantages

led replace hps.jpg

led corn light Beam Angle 360 degree  led corn light aluminum fin bulit-in heat sink    Customer Review.jpg

Application

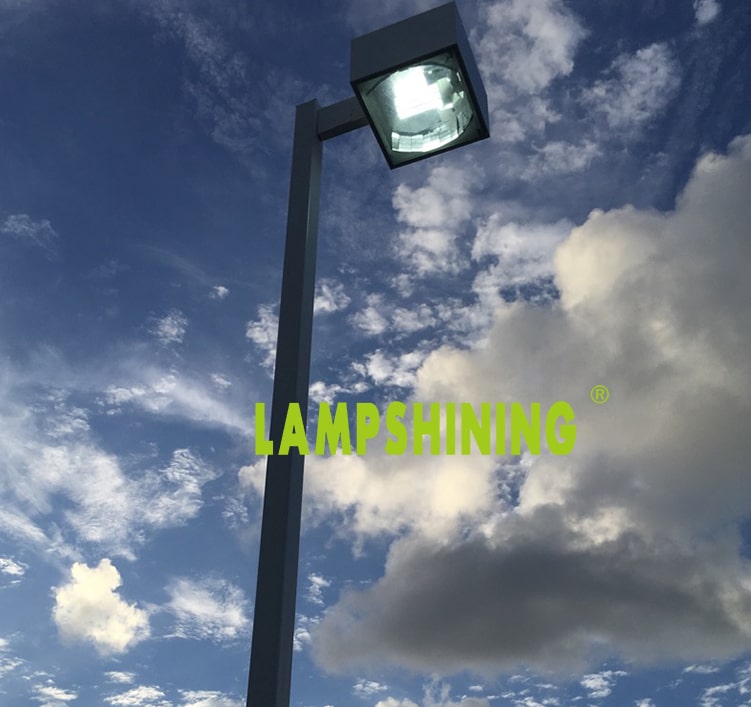

led corn light application

Replacement LED

CFL Replacement - Just plug in,run at 100~240VAC

led corn light CFL_ Replacement.jpg

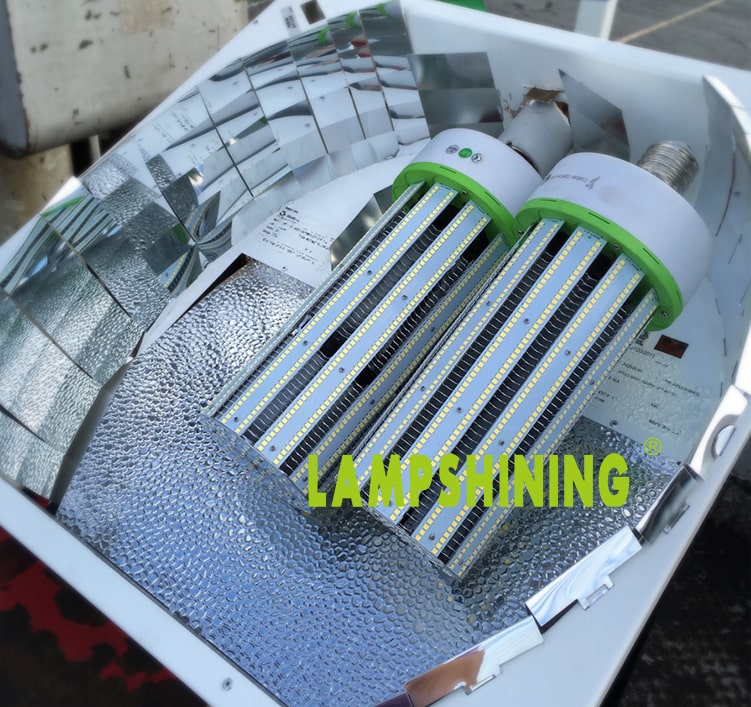

HPS Replacement - Basllast or transformer should be bypassed before installation

led corn light HPS_ Replacement.jpg

led corn light accessories.jpg

 lengthwidthheightGW(kg)
Inner Box (1pc)13cm13cm34cm
Outer Carton (12pcs)55cm44cm36cm11.7

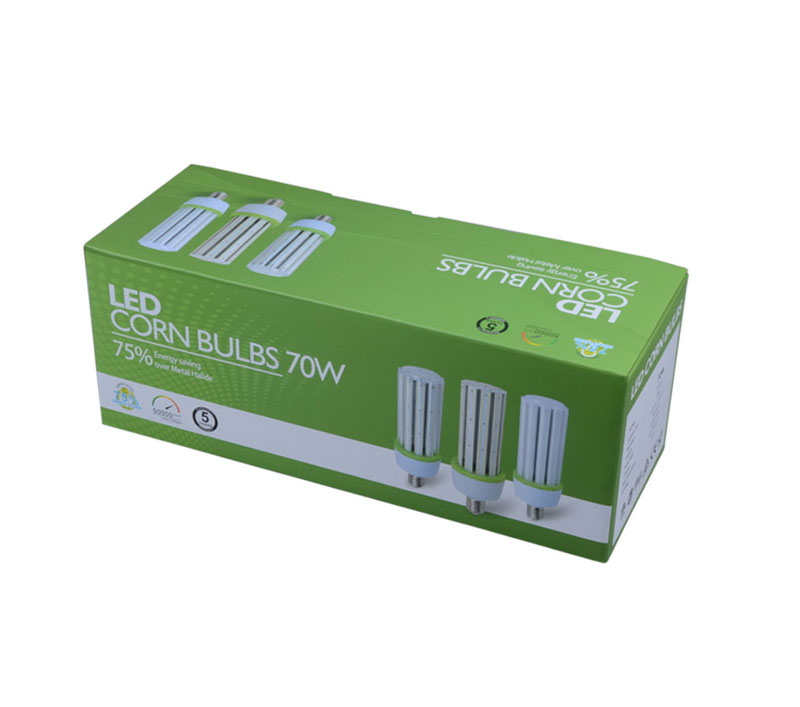

led corn light package dimmable light bulbs.jpg
