240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID
  • 240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID
  • 240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID
  • 240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID
  • 240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID
  • 240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID
  • 240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID
240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID

240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID

  • Model NO. : LSCB-240WXY

  • Wattage: 240 Watt

  • Input Voltage: 100-277VAC

  • External driver meanwell HLG-240H-36A

  • Luminous Flux: 28800 Lumen

  • Base: E40/E39(mogul) E27/E26(Medium)

  • CCT: 3000K 4000K 5000K 5700K 6500K

  • Milky cover,clear cover and NO cover options.

  • CE RoHS Certificate.

  • Equal 1000W Metal Halide / HPS / HID Lamp.

Inquire Now Next Product

240W LED Corn Bulbs External driver ELG-240-36A 28800Lm Equal 1000W HID

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview

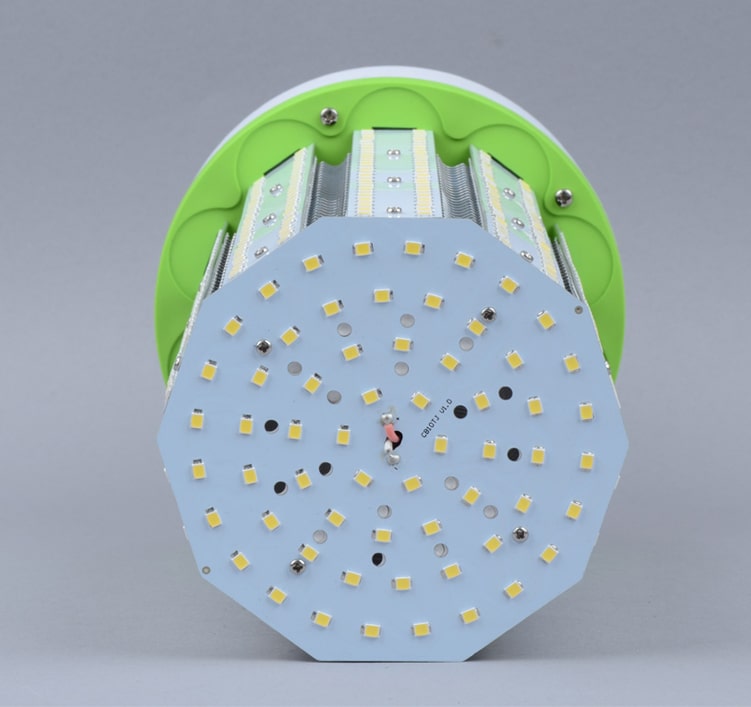

240W LED Corn Bulbs

240W ELG led corn light.jpg

Size

180W-200W led corn light size.jpg


Specifications

ModelLSCB-240WXY
DLC NumberLSCB-240WE39CC
Wattage240W
Luminous Flux28800 Lm
DriverExternal driver  MEAN WELL  ELG-240H-36A
Dimensions

(No cover) Dia 5.04'' * 14.05''         E27:E27:Dia 5.04'' * 13.78''

(with cover)E40:Dia 5.04'' * 14.57''      E27:Dia 5.04'' * 14.29''

Replaces1000W HID
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-300VAC,50/60Hz
Power Factor>0.8
Cap TypeE40/E39 (mogul) E27/E26(Medium)
CoverMilky cover,clear cover and NO cover options
Light Source2835 Epistar SMD
Beam Angle360 degrees
IP Rating60
CRI>80
Body Temperature<50 Deg C  @Ta=25 Deg C
Ambient temperature-45 to + 50 Deg C
Rated Lifespan50,000+ hours
CertifiedCE RoHS Listed



Feature

  • Using high brightness of original packed Epistar 2835 SMD chip which

  • As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

  • Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).

  • Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

  • No spot, no black area, long life span and less brightness decay

  • Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

  • No magnetic disturbance influence and CE & RoHS standard compliant.

  • No UV and near-IR radiation in the light beam.

  • ETL cETL TUV SAA CE RoHS certified.

  • 60 months warranty


Advantages

100-240w led corn light.jpg

led replace hps.jpg

  led corn light aluminum fin bulit-in heat sink


Application

led corn light application.jpg


Replacement LED

CFL Replacement - Just plug in,run at 100~240VAC

led corn light CFL Replacement

HPS Replacement - Basllast or transformer should be bypassed before installation

led corn light HPS Replacement

Beam angle

led corn light Beam Angle 360 degree

led corn light accessories.jpg

 lengthwidthheightGW(kg)
Inner Box (1pc)15cm15cm41cm
Outer Carton (12pcs)64cm50cm45cm14.5
External Driver(12pcs)38cm28cm19cm16.0


led corn light package dimmable light bulbs.jpg
