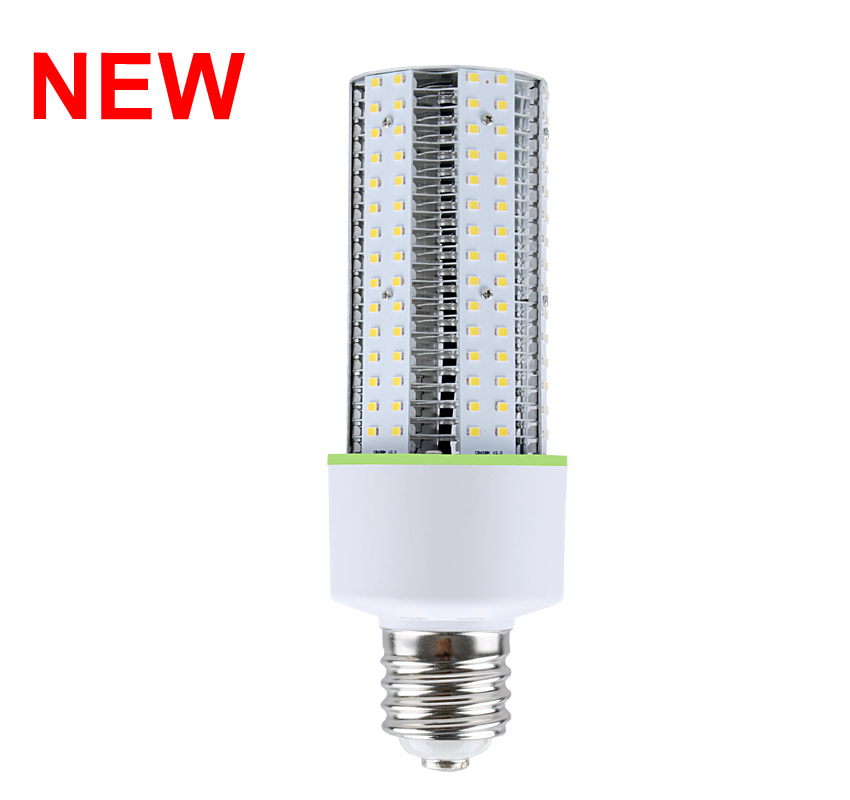

NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
  • NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID
NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HIDNEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HIDNEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HIDNEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HIDNEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HIDNEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HIDNEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HIDNEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID

NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID

●   Watt: 30W

●   Lumens: 3,750

●   Light Source: 2835 Epistar SMD

●   Input Volt: 100-277VAC

●   Size: 200*72mm

●   Lamp Weight: 0.35kg

●   Base: E40/ E39/ E27/ E26

●   CCT (Color Temp): 3000-6500K

●   5 years warranty

●   Milky cover,clear cover and NO cover options

Inquire Now Next Product

NEW 30W LED Corn Bulbs 3,750Lm 125Lm/W Equal 105W HID

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSCB-30WXY
DLC NumberLSCB-30WE39NC
Watt30W
Lumen3,750
Efficiency125Lm/W±3%
LED QTY200pcs
DimensionsNo cover -  E40: Dia72*200mm/ E27: Dia72*197mm

With cover - E40: Dia72*208mm/ E27: Dia72*204mm

Weight0.35kg
Replaces105W HPS
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-277VAC
Power Factor>0.8
Cap TypeE40/E39 (mogul) E27/E26(Medium)
CoverMilky cover,clear cover and NO cover options
Light Source2835 Epistar SMD
Beam Angle360 degrees
IP Rating60
CRI>80
Body Temperature<50 Deg C  @Ta=25 Deg C
Ambient temperature-45 to + 50 Deg C
Rated Lifespan50,000+ hours
CertifiedETL cETL DLC SAA CE RoHS Listed



Feature

  • Using high brightness of original packed Epistar 2835 SMD chip which achieves 125lm/w

  • As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

  • Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).

  • Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

  • No spot, no black area, long life span and less brightness decay

  • Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

  • No magnetic disturbance influence and CE & RoHS standard compliant.

  • No UV and near-IR radiation in the light beam.

  • ETL cETL TUV SAA CE RoHS certified.

  • 60 months warranty


Advantages

  led corn light aluminum fin bulit-in heat sink    Customer Review.jpg


Size

30w led corn ligh size.jp

ETL SAA DCL CE ROSH.jpg

FREE brand.jpg

Application

led corn light application

led corn light application

Replacement LED

CFL Replacement - Just plug in,run at 100~240VAC

CFL_ Replacement.jpg

HPS Replacement - Basllast or transformer should be bypassed before installation

HPS_ Replacement.jpg


Cases show

Basement Wall Light Fixture

Shoebox Fixtures LED Retrofit

Outdoor Parking lot Shoebox Retrofit

Beam angle

led corn light Beam Angle 360 degree

led corn bulb accessories.jpg

 lengthwidthheightGW(kg)
Inner Box (1pc)9cm9cm25cm
Outer Carton (50pcs)42cm54cm42cm18.5

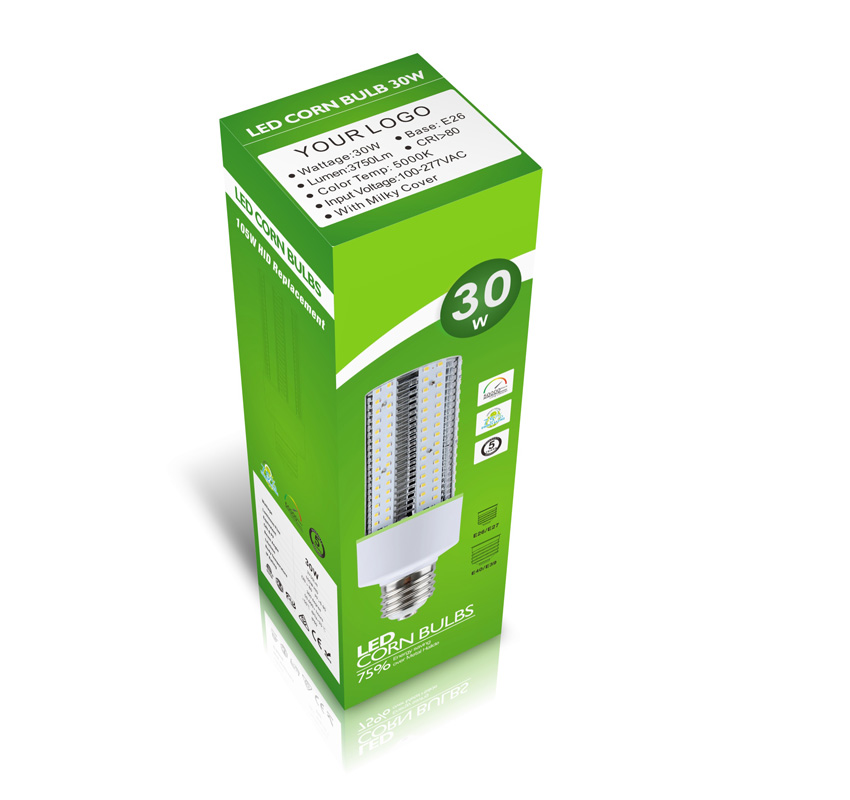

package dimmable light bulbs.jpg
