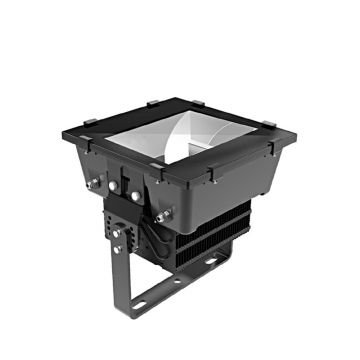

400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof
  • 400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof
  • 400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof
  • 400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof
400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof 400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof 400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof

400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof

1.wattage: 400W

2.Efficency: 105Lm/W

3.IP Rating: IP65

4.input voltage: 100-277VAC

5.Light Source: Lumileds 3030

6.Luminous Flux: 41,000 Lumens

7.Expected lifespan: >50,000 hours

8.CCT: 4000K/5000K/6000K

9.Dricer typeL: UL Approved

10.Certficates: ETL,cETL,CE,RoHS

Inquire Now Next Product

400W High power LED Stadium Light,High Mast Light,105Lm/W,41000LM,IP66 Waterproof

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


400W LED Stadium Lights

400W high power LED stadium lights

Size

High power 400W LED stadium light size.jpg

Specifications

Model
LSFL-400W-SPower Factor>0.95
Wattage400WCap TypeBase Options:US,Europe,UK,Australia plug
Luminous Flux41000 LmReflector25 ,45 ,60 ,90 ,100 degrees
Light SourceLumileds 3030ConstructionRetrofit fin aluminum+stainless steel  + tempered glass diffuser
Efficency105LM/WBeam Angle25 ,45 ,60 ,90 ,100 degrees
Driver PowerMeanwell Driver 2 x ELG-200-36AIP RatingIP65
Dimension400*430*192mmCRI>80
Equivalent750W metal halide / HID lamp EquivalentWorking Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
CCT4000K/5000K/6000KWarranty5 year Warranty
Input Voltage100-277VACRated Lifespan50,000+ hours
CertifiedETL,cETL,CE,RoHSReplacement750W HPS


Main Feature

1. 5 years warranty.

2. High quality Cree Chip.

3. Internal meanwell driver.

4. Tempered clear glass diffuser.

5. point the light at different angles.

6. IP65,ideal for indoor and outdoor use.

7. Made with retrofit aluminum and copper.

8. Easy installation, adjustable stand lets you.

9. No UV and near-IR radiation in the light beam.

10. Owns better heat dissipation aluminum system

11. Use toughened glass and the light transmittance is about 93%.

12. Meanwell power supply for directconnection with 100-277VAC


Feature

Adopting specialized waterproof connector as well as the sealed technology with silicone ring.then the protection rating could be up to IP65,which has satisfied the requirements of a variety of outdoor harsh environments.

LED stadium light waterproof IP65.jpg

Respirator design

  It could not only be waterproof but also able to clear the mist,whih has avoided water condensation, improve the performance and lengthen.

LED stadium light Respirator design.jpg

Rubber ring airtightness

  silicone waterproof rubber ring,dustproof,waterpoor,anti-aging.

LED stadium light Rubber ring airtightness.jpg

Main Structure

High power 400W LED stadium light Main Structure.jpg

DIAlux Simulation

LED stadium light Lighting Simulation.jpg

Application

Applicable to basketball courts, badminton courts, football fields, large sports fields, golf courses, etc. It is also suitable for performances, night lighting, etc.

LED stadium light application.jpg

Beam Angle

The high purity aluminum fin reflector has been anodized and polished already, which has optimized the lighting performance.At the same time,it has also reduced  spill light and glare light effectively .25 ,45 ,60, 90 degrees and 100 degrees are available, including the narrow-angle 30 degrees.wideangle 90 and narrow-angle 60 degrees.wide-angle 90 degrees and narrow-angle 90 degrees,wide-angle 90 degrees square reflector options.It meets the professional light distribution, to adapt to different conditions.

High power LED stadium light Beam Angle.jpg

Package

Carton info:

59*59*42cm 1pc/ctn

GW:15.5kg
