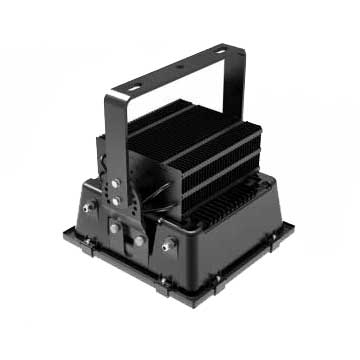

650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof
  • 650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof
  • 650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof
  • 650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof
650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof

650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof

●   Watt - 650W

●   Lumens - 68,250

●   Light Source - Lumileds 3030

●   Input Volt - 100-277VAC

●   IP Rating - IP65 - IK08

●   Size - 400*430*192mm

●   CCT (Color Temp) - 4000,5000,5700k

●   5 years warranty

●   Beam Angle - 25/ 45/ 60/ 90/ 100 degree

Inquire Now Next Product

650W LED Stadium Light,High Mast Light,105Lm/W,68250LM,IP66 Waterproof

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSFL-650W
Watt650W
Lumen68,250
Efficiency105Lm/W±3
Light SourceLumileds 3030
DriverMeanwell Driver 3 x HLG-240H-36A
Dimension400*430*192mm
Equivalent1300W metal halide / HID lamp Equivalent
CCT4000K-6000K
Input Volt100-277VAC
Power Factor>0.95
Cap TypeBase Options:US,Europe,UK,Australia plug
IP RatingIP65
CRI>70
ConstructionRetrofit fin aluminum+stainless steel  + tempered glass diffuser
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty5 year Warranty
Rated Lifespan50,000+ hours
Beam Angle25 ,45 ,60 ,90 ,100 degrees
CertificationETL,cETL,CE,RoHS


650W LED Stadium Lights

high power 650w led stadium lights

LED stadium light technology.jpg

Size

650W LED stadium light size.jpg


Main Feature

1. 5 years warranty.

2. High quality Cree Chip.

3. Internal meanwell driver.

4.Tempered clear glass diffuser.

5. point the light at different angles.

6. IP65,ideal for indoor and outdoor use.

7. Made with retrofit aluminum and copper.

8. Easy installation, adjustable stand lets you.

9. No UV and near-IR radiation in the light beam.

10. Owns better heat dissipation aluminum system

11. Use toughened glass and the light transmittance is about 93%.

12. Meanwell power supply for directconnection with 100-277VAC


Feature

Adopting specialized waterproof connector as well as the sealed technology with silicone ring.then the protection rating could be up to IP65,which has satisfied the requirements of a variety of outdoor harsh environments.

LED stadium light waterproof IP65.jpg

Respirator design

It could not only be waterproof but also able to clear the mist,whih has avoided water condensation, improve the performance and lengthen.

LED stadium light Respirator design.jpg

Rubber ring airtightness

  silicone waterproof rubber ring,dustproof,waterpoor,anti-aging.

LED stadium light Rubber ring airtightness.jpg

Main Structure

650W LED stadium light Main Structure.jpg

DIAlux Simulation

LED stadium light Lighting Simulation.jpg

Application

  Applicable to basketball courts, badminton courts, football fields, large sports fields, golf courses, etc. It is also suitable for performances, night lighting, etc.

650W LED stadium light Application.jpg

Beam Angle

  The high purity aluminum fin reflector has been anodized and polished already, which has optimized the lighting performance.At the same time,it has also reduced  spill light and glare light effectively .25 ,45 ,60, 90 degrees and 100 degrees are available, including the narrow-angle 30 degrees.wideangle 90 and narrow-angle 60 degrees.wide-angle 90 degrees and narrow-angle 90 degrees,wide-angle 90 degrees square reflector options.It meets the professional light distribution, to adapt to different conditions.

650W LED stadium light Beam Angle.jpg

Package

Carton info:

59*59*42cm   1pc/ctn

GW:15.5kg
