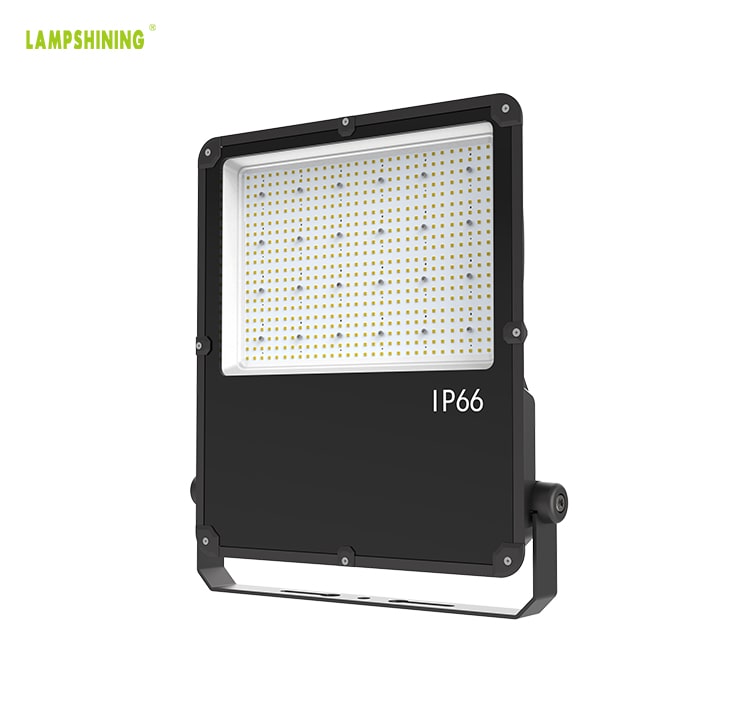

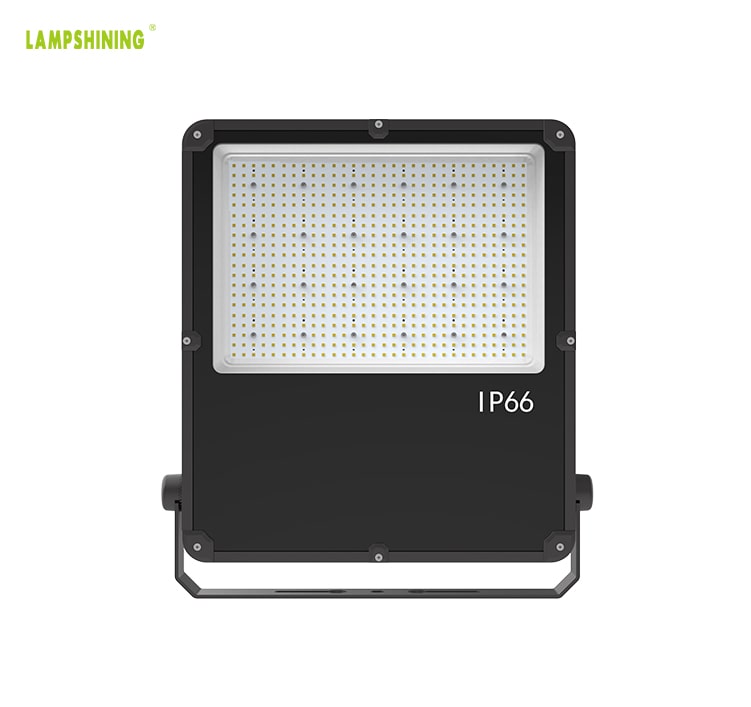

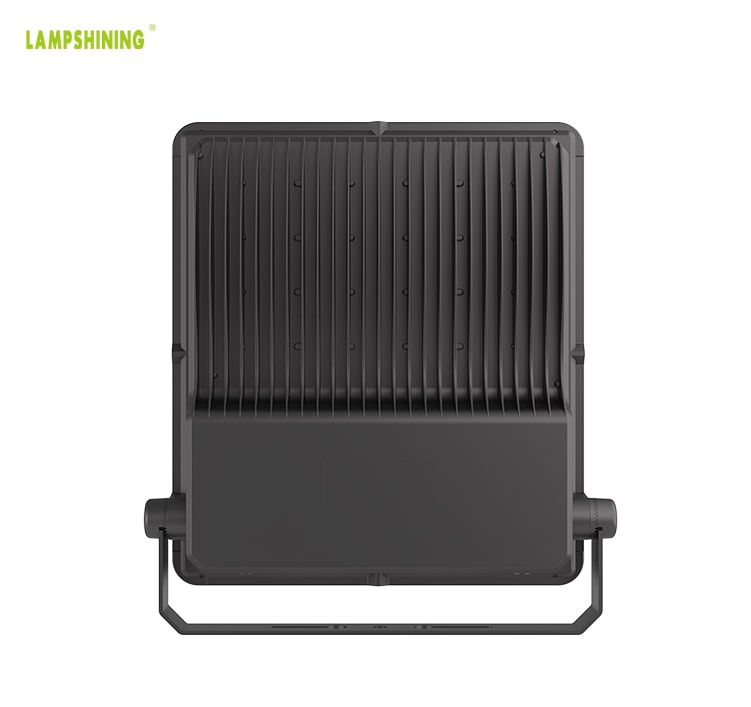

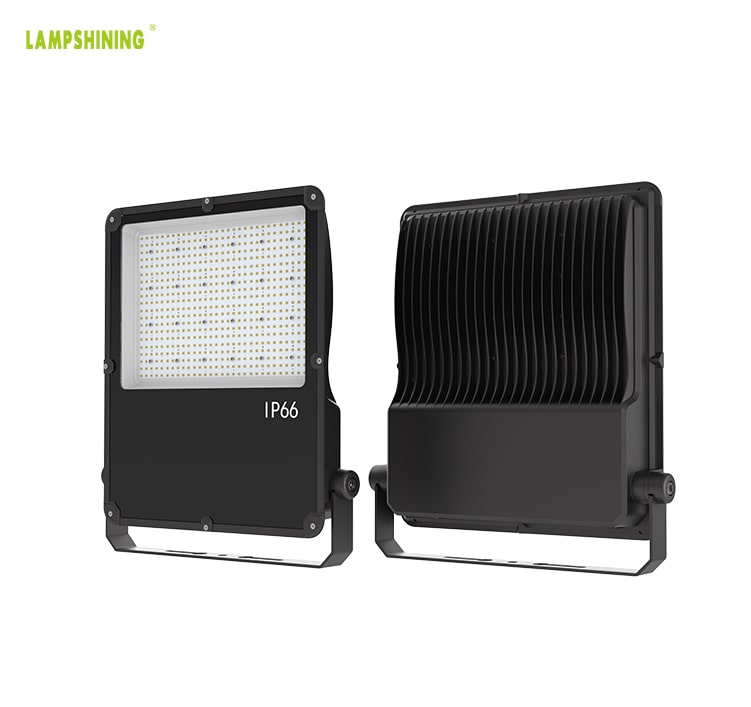

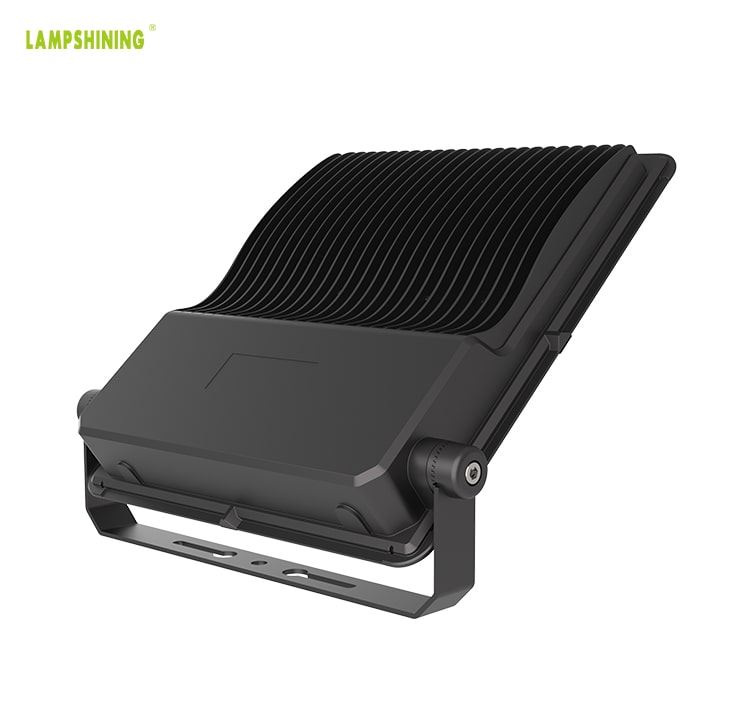

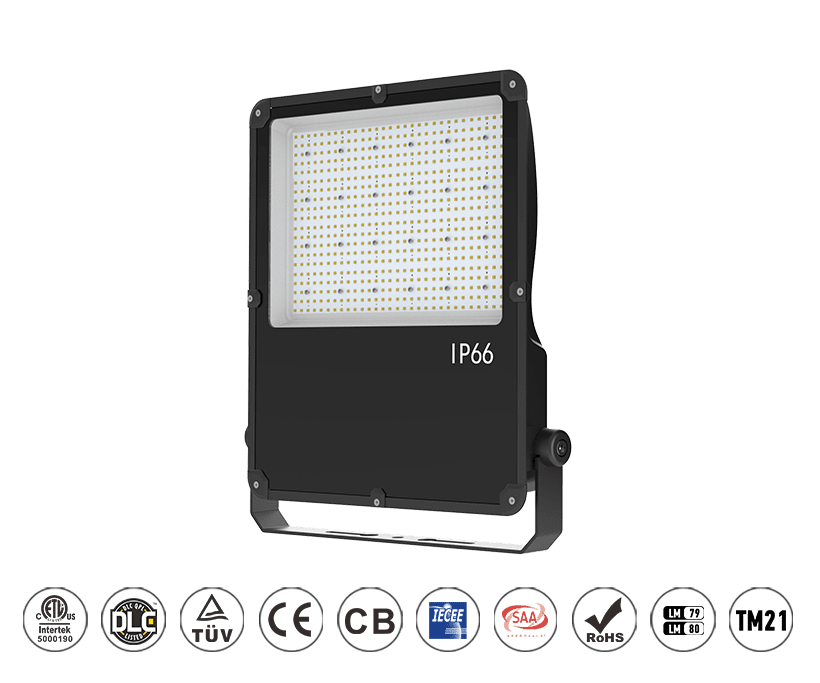

Flood Light LED 240W 190Lm/W High Lumens Security Yard Lights

●   Watt: 240W

●   Lumens: 42,000/ 45,600

●   Light Source: Lumileds 2835/5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK08

●   Anti-Glare Design

●   Size: 439*483*67mm

●   CCT (Color Temp): 3000-6000K

●   5 years warranty

●   Beam Angle: 30/ 60/ 90/ 120/ TypeII/ TypeIII/ TypeIV/ P50

Inquire Now Next Product

Flood Light LED 240W 190Lm/W High Lumens Security Yard Lights

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSSFL-240W(XXK)
Watt240W
Lumen42,000
Efficiency175Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 2835
Power SupplyMoso Driver
Surge Protection6KV
CCT3000-6000K
Size439*483*67mm
IP & IK RatingIP66 & IK08
Beam Angle30/ 60/ 90/ 120 degree/ TypeII/ TypeIII/ TypeIV
CertificationsETL, DLC, TUV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, TM21, Salt spray test approved

Remark:120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%

Model

LSSFL-240W(XXK)
Watt240W
Lumen45,600
Efficiency190Lm/W±3%
Input Volt100-277VAC
Chip BrandLumileds 5050
Power SupplyMeanwell Driver
Surge Protection6KV
CCT3000-6000K
Size439*483*67mm
IP & IK RatingIP66 & IK08
Beam Angle30/ 60/ 90/ 120 degree/ TypeII/ TypeIII/ TypeIV/ P50
CertificationsETL, DLC, TUV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, TM21, Salt spray test approved

Remark:120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%

EKO 240W LED Flood Light

EKO 240W LED Flood Light

EKO 240W LED Flood Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

240W

170-190Lm/W

3000K-6000K

ETL DLC TUV CE CB IECEE SAA RoHS

LM79 LM80 IK08 Spray Test approved

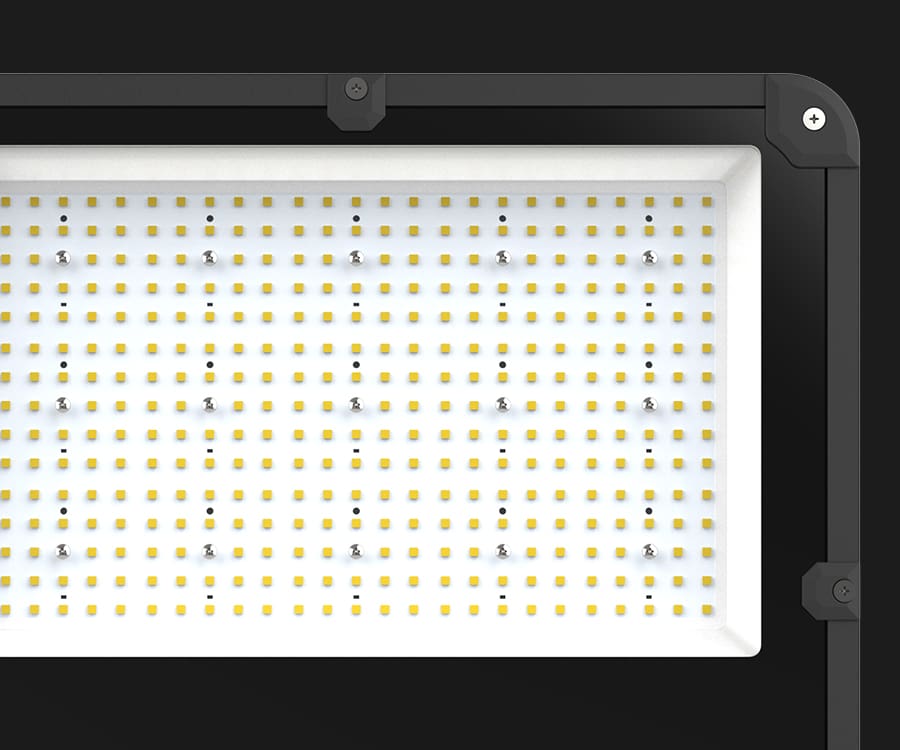

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 170-190Lm/W!

Lumileds 2835

Lumileds 5050

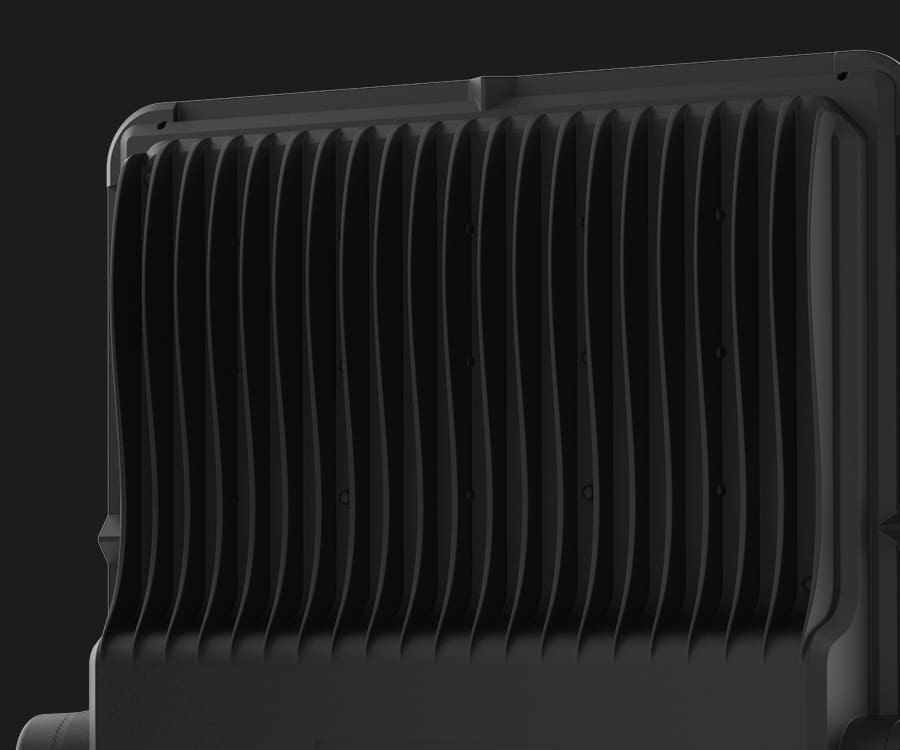

Integrated aluminum material Design

Integrated aluminum material Design

Integrated aluminum material (ADC12) die-casting,The surface is treated with black powder spraying of outdoor special metal powder, which increases the frosted concave and convex feeling and expands the heat dissipation area.

Integrated aluminum material (ADC12) die-casting

Bracket Rotatable

Bracket Rotatable

The angle of the bracket can be adjusted according to the needs, up to 270 degree.

Bracket Rotatable

IP66 Waterproof & IK08

IP66 Waterproof & IK08

Integrated waterproof shell, Waterproof grade IP66 and IK08 rating of anticollision.

IP66

IK08


Respirator

Respirator

All series are equipped with respirator as standard, which makes the temperature of the power space lower

Respirator

Other Watt

EKO LED Flood Light is available in wattage from 50W to 300W, which is the best choice to replace the existing MH/HID street lights of 100W-600W.

Beam Anlge

Beam Anlge

The beam angle can be selected from 30/ 60/ 90/ 120 degree/ Type II/ Type III/ Type VI/ P50. Professional light distribution angle can better achieve uniform and efficient lighting effect.

30

60

90

120

Type II

Type III

Type IV

P50

Installation

Installation

Different scenarios EKO LED Flood Light supports different installation methods.

Wall Installation

Ceiling Installation

Pedestal Installation

Pole Installation

Application

Professional tennis court, landscape lighting, projection lighting, advertising lighting, bridge lighting, dock, ship lighting, intersection lighting, etc.
