DLC NO. : LSUS-100WND-LV(XXK) / LSUS-100WD-LV(XXK)
Lumens: 13,000Lm / 15,000Lm
Efficacy: 130Lm/W / 150Lm/W
Light Source: Osram 2835
Lifetime: 50,000+ Hours
Input Voltage: 100-277VAC, 50/60Hz
IP Rating: IP65 waterproof
Dimension: Diameter*Height: 280*157mm
Color Temp: 3000K,4000K,5000K,5700K, 6500K
Replacement: 250-300W HID / Metal Halide
ETL, cETL, DLC CE, RoHS SAA certified.
1. Light weight: using patented design process and heat dissipation material, lighter than its counterparts, and fins
The film is fine, the heat dissipation area is large, and the heat dissipation is faster.
2. Multi-application: the bracket adopts thread locking, high stability, suitable for all kinds of complex and varied Application.
3. Multi-angle adjustment: reasonable design facilitates adjustment of different azimuth angles
4. High protection: IP65 protection level
5. Professional heat dissipation structure, air passage design inside and outside, greatly improving heat dissipation performance.
Extend the life of the whole lamp
6. Large-area integrated die-cast aluminum housing, integrated whole lamp cooling
|Luminous Flux||13000Lm (130Lm/W)||15000Lm (150Lm/W)|
|CRI||Ra70 (Ra80, Ra90 optional)|
|IP Rating||IP65 Waterproof|
|Light Source||Osram 2835|
|Beam angle||60/90/120 degree Lens|
|Replacement||250-300W HID / Metal Halide|
|Certificates||ETL, cETL, CE, RoHS, SAA Listed|
|Option add ons||Extended wires with plug can be customed specially according to different countries|
The Integrated sensor is combined with the luminaire, which is automatically turned on when someone passes, and automatically turns off when no one passes. In this way, the lamp energy consumption is reduced, the lamp life is extended, and the operation convenience is improved.
1.Anti-dust design,able to be withflushable cleaning.
2.can't be immersed into the water

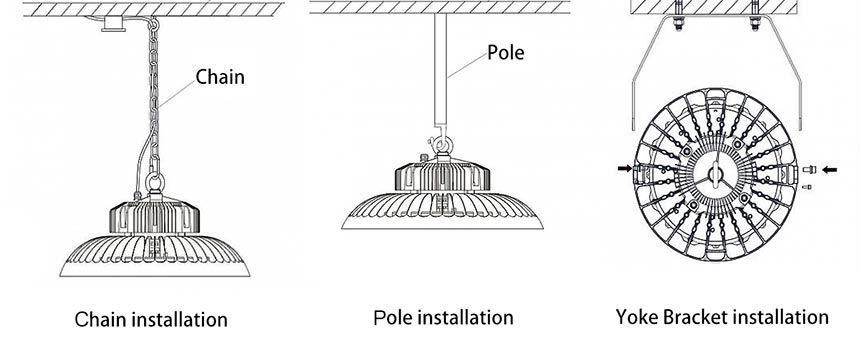

Three optional installation methods,
3.yoke bracket installation
Infrared remote control (optional)
Carton size: 33*33*20cm
Gross weight: 2.5kg
