30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof
  • 30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof
  • 30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof
  • 30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof
30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof 30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof 30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof

30W Semi Cut-off LED Wall Pack Lights,,3000 Lumens,IP65 waterproof

1.wattage: 30W

2.IP Rating: IP65

3.input voltage: 100-277VAC

4.Light Source: Philips 3030

5.Luminous Flux: 3,000 Lumens

6.Expected lifespan: >54,000 hours @L80

7.CCT: 3000K/4000K/5000K/5700K/6500K

8.Dricer typeL: UL Approved

9.Certficates: DLC,ETL,cETL,TUV,SAA,RCM,CB,LCP,ROHS


  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Lighing Layout

Main Feature

1.5 years warranty

2.Original Philips SMD 3030 which up to 110Lm/W to 120Lm/W

3.With the best quality UL driver.

4.They are assembled by module light weight aluminum fin.

5.IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

6.Using aluminum fin heat sink which heat transfer faster than die cast.

7.Tiny package and lighter,lower freight cost,more competitive in the market.

8Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.

Specifications

Model
LSSWP-30WPower Factor>0.95
Wattage30W
Cap TypeBase Options:US,Europe,UK,Australia plug
Luminous Flux

3000LM

optical lensN/A
Light SourcePhilips SMD 3030ConstructionHigh pressure die-casting aluminum external
LED QTYN/AInstallation MethodWall installation
Driver PowerUL ApprovedCRI>80
Dimension175*135*280mmWorking Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Equivalent105W metal halide / HID wall pack EquivalentWarranty5 year Warranty
CCT
3000K 4000K 5000K 5700K 6500KRated Lifespan50,000+hours
Input Voltage100-277VAC and 347-480VACIP RatingIP65
CertifiedETL,cETL,TUV,CE,ROHS,SAA,FCC,PLC,DLC,Ctick certified


30W Semi cut-off LED wall pack lights

  The LED wall pack lights uses High strength and die-cast aluminium casing, printing static and thermoplastic external surface which is corrosion resistant, shock resistant, hard and durable. The use of high-strength shell of aluminum die-casting, with good heat dissipation, the characte.

  And there are a number of authoritative certification, quality assurance.

LED wall pack light certificate.jpg


Dimension

30W Semi cut-off LED wall pack light size.jpg

Product Range

semi cut-off LED wall pack light product range.jpg

LED light Color temperature diagram.jpg

Application

AvaiaBle for warehouse,tunnel lighting,advertisement,gas station and factory lighting etc.

LED wall pack light case.jpg

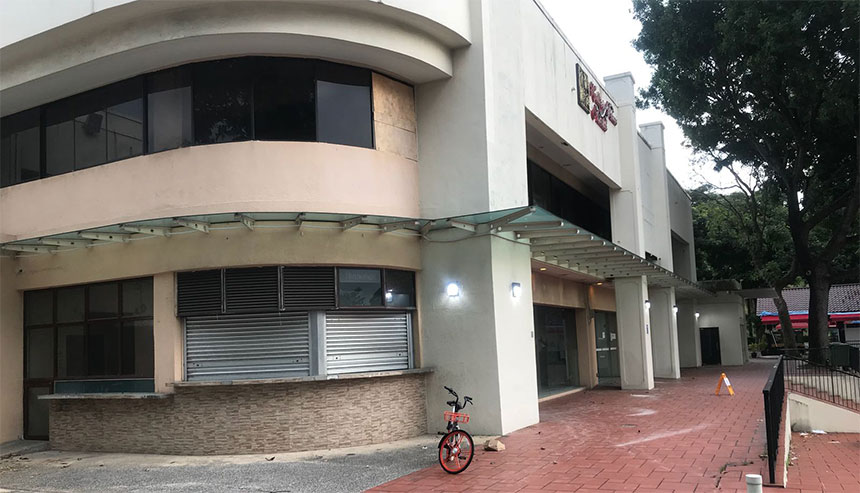

30w 3000 lumens LED Wall Lights application real case

30w 3000 lumens LED Wall Lights application real case

Main Feature

1.5 years warranty

2.Original Philips SMD 3030 which up to 110Lm/W to 120Lm/W

3.With the best quality UL driver.

4.They are assembled by module light weight aluminum fin.

5.IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

6.Using aluminum fin heat sink which heat transfer faster than die cast.

7.Tiny package and lighter,lower freight cost,more competitive in the market.

8Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.

Package Details


                      4pcs/carton carton size: 30*20*16cm   (20ft container=2900pcs 40ft container=6000pcs)

30W Semi cut-off LED wall pack light packing.png
